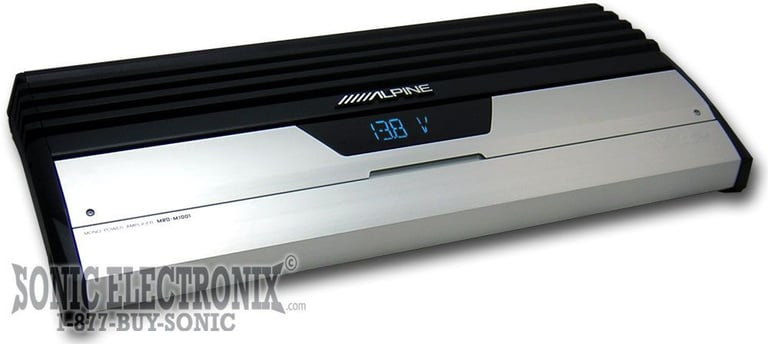

Alpine MRD-M1001 Class D MonoBlock

Alpine
Shop all Alpine
Product videos
highlight-star-icon

1,000 watts RMS at 2 ohm • Bass Engine® with low-pass filter, subsonic filter, and parametric EQ, • preamp outputs

Learn more about the mrdm1001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Product Highlights


1,000 watts RMS at 2 ohm • Bass Engine® with low-pass filter, subsonic filter, and parametric EQ, • preamp outputs

Description


Alpine brand icon

Authorized dealer

  • 500 watts RMS x 1 at 4 ohm (CEA-2006 Compliant)
  • 1000 watts RMS x 1 at 2 ohm
  • 2-ohm stable
  • Bass Engine® features:
    • variable low-pass digital crossover, 30-200 Hz, with selectable 12 or 24 dB/octave slope
    • variable subsonic filter (15-50 Hz in 5 Hz steps)
    • parametric EQ variable from 30-160 Hz, ±12 dB
    • Bass Compensator circuit enhances low-end definition (3 settings)

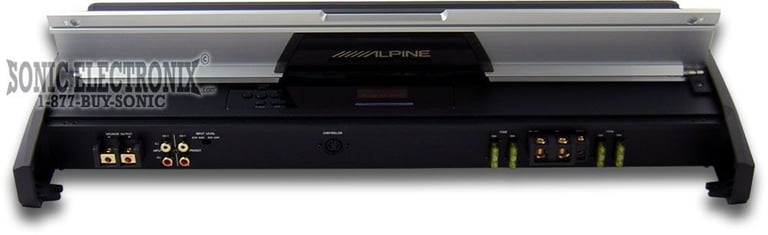

  • top-mounted digital control center with cover
  • time correction 0-10 milliseconds in 0.1ms steps
  • phase adjustment 0-180°
  • turn-on delay to eliminate turn-on "thump"

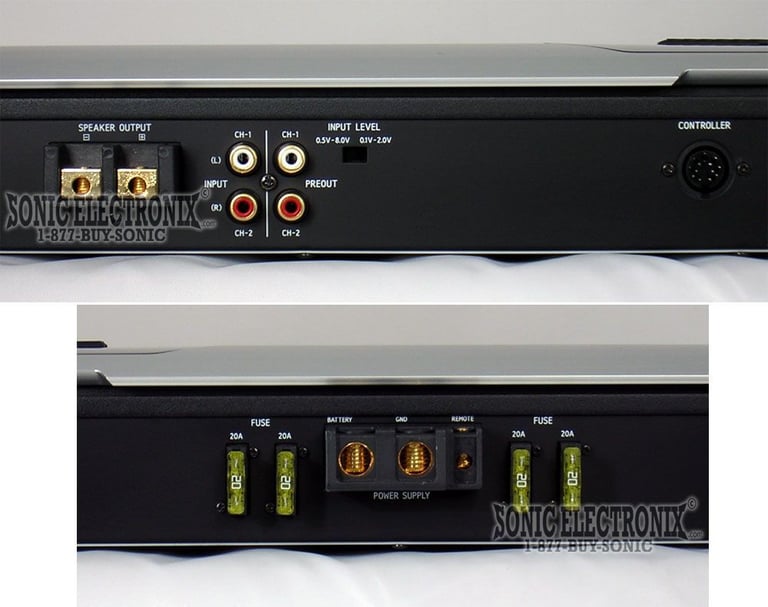

  • preamp inputs and outputs
  • onboard fuse holder with four 20-amp fuses
  • requires 4-gauge power/ground leads and an 80-amp fuse — wiring and hardware not included with amplifier
  • extra-large gold-plated terminals
  • 22-15/16"W x 2-9/16"H x 10-5/8"D
  • warranty: 1 year

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Signal-to-Noise Ratio
60 dB
Bass Boost
Parametric EQ: -12dB to +12dB
Fuse Rating
20A x 4

Item Details


Manufacturer:

Model Number:

MRD-M1001

Weight:

28.00lbs

Internal SKU:

mrdm1001

Internal Product ID:

2532

Product and How-to Videos


Customer Ratings & Reviews


Alpine MRD-M1001 Class D MonoBlock thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
3.5
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

Nice amp, a little pricey

Me and my friend installed this along with 4 alpine type R 12's in his explore. Hit pretty hard, draws a lot of current though. He had really bad dimming. Solid built amp, but there is better if your on a budget.

By Ryan on March 7, 2005

5 found this helpful


Solid Amp

Very solid amp. Does ok producing power considering it only has 80 amp fuse. It is a bit long so take that into consideration. Its pretty ease to tune.

By Brett on March 16, 2005
