DLS Ultimate A3

1000W RMS, 2-Channel Car Amplifier

DLS
Shop all DLS
Product videos
highlight-star-icon

DLS Ultimate A3 2-Channel Class AB Car Amplifier • 150W x 2 @ 4 ohm • 270W x 2 @ 2 ohm • Gold-plated RCA level Inputs • Pulse Width Modulated MOSFET Power Supply • Heavy Duty Aluminum Alloy Heatsink • Built-In Cooling Fan

Learn more about the dlsa3

We apologize

This item has been discontinued


Loading...
DKGM-C2D main

Crux DKGM-C2D Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2000-2012 vehicles from Chevrolet, GMC, Pontiac

2
-35.71%

$81.00

List price $126.00

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

NSP65KIT main

NVX NSP65KIT

600W Peak (200W RMS) 6.5" N-Series 2 Way Component Car Speakers

6
-16.67%

$89.99

List price $107.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Limited time!
R152-S main

Rockford Fosgate Prime R152-S

160W Peak (80W RMS) 5.25" Prime Series 2 Way Component 4-ohm Speakers

26
-12.50%

$69.99

List price $79.99

Limited time!
Stage3 627 main

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-22.74%

$84.95

List price $109.95

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


DLS Ultimate A3 2-Channel Class AB Car Amplifier • 150W x 2 @ 4 ohm • 270W x 2 @ 2 ohm • Gold-plated RCA level Inputs • Pulse Width Modulated MOSFET Power Supply • Heavy Duty Aluminum Alloy Heatsink • Built-In Cooling Fan

Description


DLS brand icon

Authorized dealer

  • DLS Ultimate A3 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 270 watts x 2 chan.
    • 1 ohm: 425 watts x 2 chan.
    • Bridged, 4 ohm: 550 watts x 1 chan.
    • Bridged, 2 ohm: 870 watts x 1 chan.
    • Bridged, 1.33 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • 2 or Mono channel operation
  • Built-In cooling fan

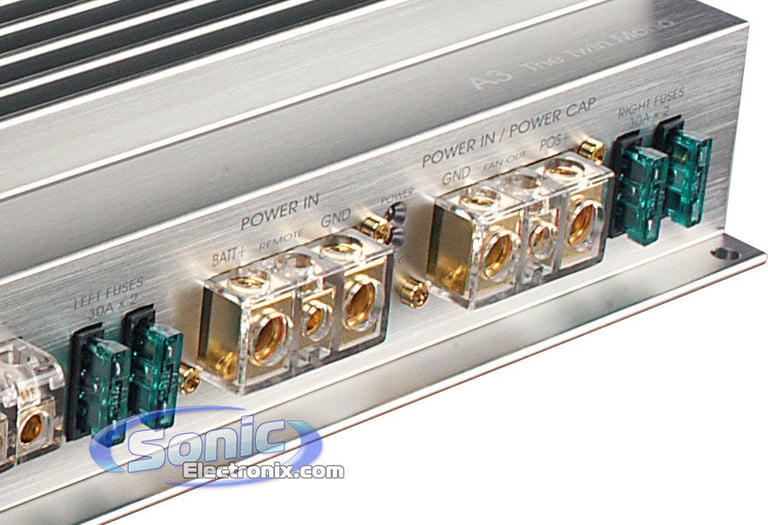

  • Dual power terminals where you can connect dual power feeds or a DLS Power Cap
  • Phase shift button when you use it as a subwoofer amplifier
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • 2-Way protection (Thermal & Current)

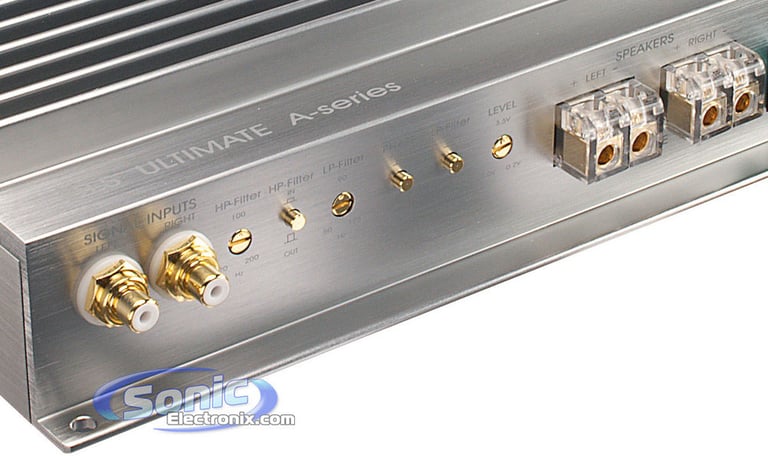

  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input Sensitivity: 0, 2 - 7 V
  • Variable high-pass filter (20-200 Hz)
  • Variable low-pass filter (50-125 Hz)
  • Subsonic filter (20-200 Hz)
  • Signal-to-noise ratio: >100 dB
  • Damping factor: >200
  • Frequency range: 10-50,000 Hz
  • Input impedance: >10,000 ohm
  • THD (Total Harmonic Distortion): <0.1%
  • Weight: 13.67 lbs
  • Dimensions: 9-7/16"D x 16-1/8"W x 2-7/8"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
