DLS ASB 326

6-1/2" Active Subwoofer Box loaded with Two DLS 6.5" Subwoofer Drivers and Built-in SBA185 Amplifier

DLS
Shop all DLS
highlight-star-icon

DLS ASB 326 Loaded Dual 6-1/2 Subwoofer Enclosure • Built-in SBA185 Amplifier • .63 Cubic Foot Vented Enclosure • Durable Black Carpet • Protective Woofer Grilles • Built-In Cooling Fan

Learn more about the dlsasb326

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


DLS brand icon

Authorized dealer

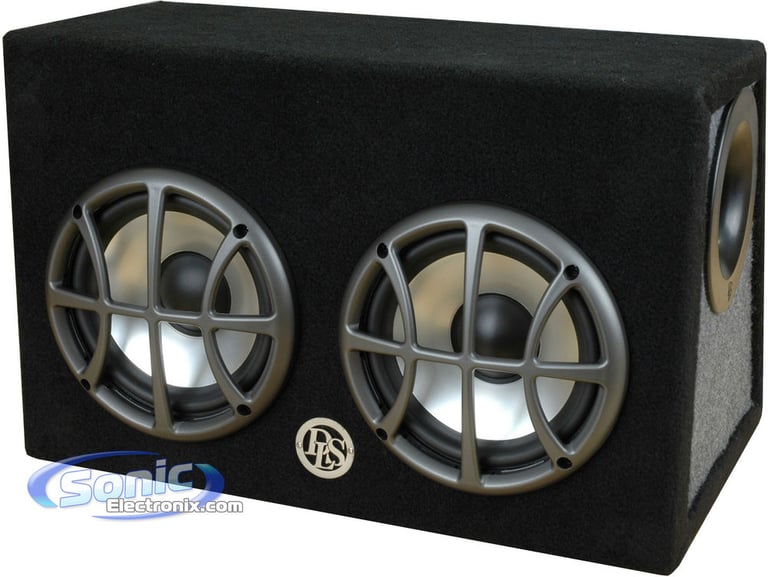

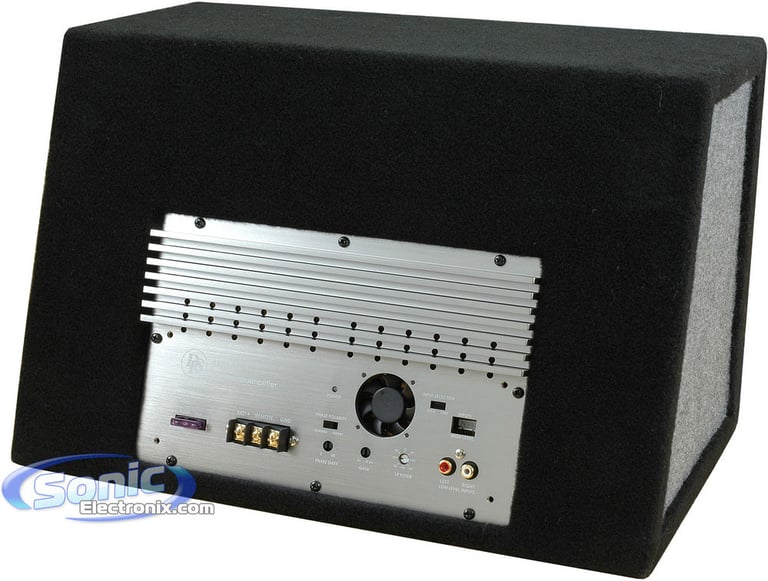

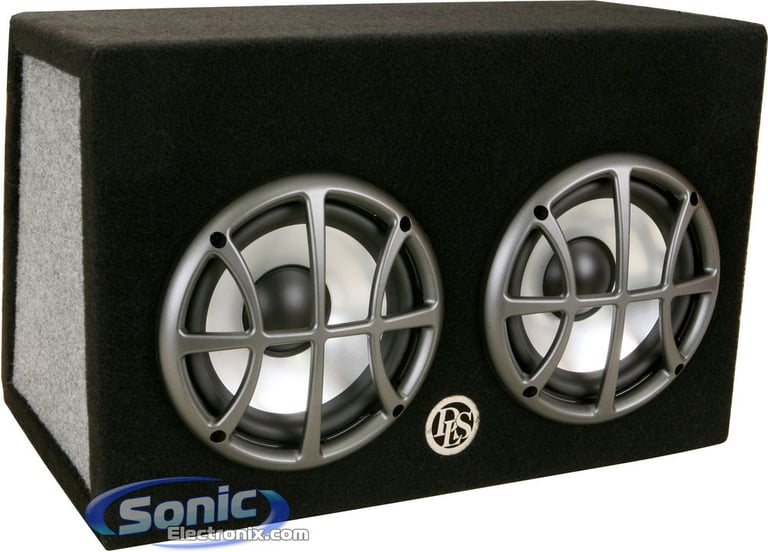

Enclosure Features:
  • DLS ASB 326 Loaded Dual 6-1/2 Subwoofer Enclosure
  • Loaded with 2 DLS RW6 6-1/2" Subwoofer
  • Built-in SBA185 Amplifier
  • .63 Cubic foot vented enclosure
  • Durable black carpet
  • Protective woofer grilles
  • DLS logo on front of enclosure
  • Dimensions: 7-1/4"D x 16-3/4"W x 10-13/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Subwoofer Features:
  • 6-1/2" Reference Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • Max: 200 watts
    • RMS: 100 watts
  • Impedance: 4 ohm
  • Frequency Range: 30-4000 Hz
  • Sensitivity: 86 dB
  • Magnet Size: 4-5/16"
  • Mounting Depth: 3-5/16"
  • X-Max: +- 4.5 mm
  • Weight: 4.6 lbs each

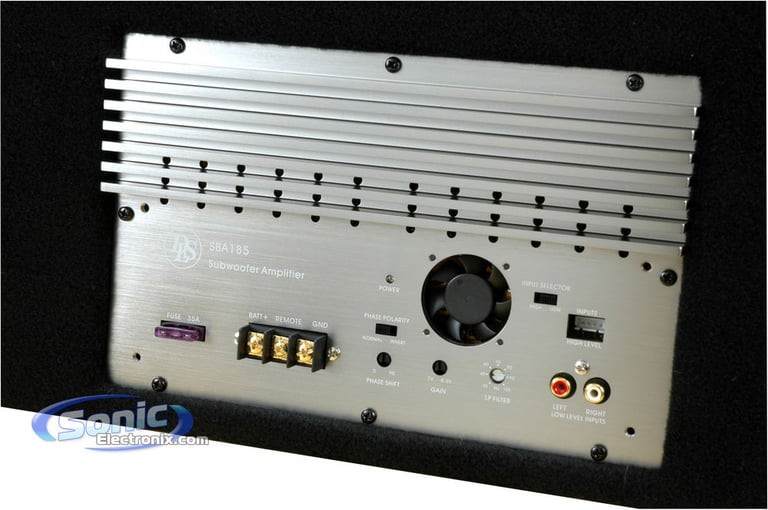

Amplifier Features
  • SBA-185 Monoblock Class AB Amplifier
  • Power Handling:
    • 4 ohm: 180 watts x 1 chan.
    • 2 ohm: 265 watts x 1 chan.
  • High and low level input
  • Built-in cooling fan
  • Frequency Range: 25-160 Hz
  • Input Sensitivity: 2-7 volts
  • Low Pass Filter: 50-250 Hz
  • High Pass Filter: Subsonic 25 Hz
  • Phase Control: 0°-180°
  • Dimensions: 6-5/16"D x 10"W x 2-5/8"H

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
265 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
Subsonic 25 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
25
Remote bass/level controller
No
Fuse Rating
35A x 1
Subwoofer Specifications
Subwoofer Size
6.5"
RMS Power Handling
100 watts
Peak Power Handling
300 watts
Woofer Surround
Not specified by manufacturer
Woofer Composition
Not Specified by Manufacturer
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Frequency Response
30 - 4000 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
10-13/16"
Width
16-3/4"
Depth
7-1/4"
Number of Terminals
2
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

ASB 326

Weight:

25.00lbs

Internal SKU:

dlsasb326

Internal Product ID:

26570
