Garage
Shop

See all parts that fit your 2003 B3000

DLS CA 23

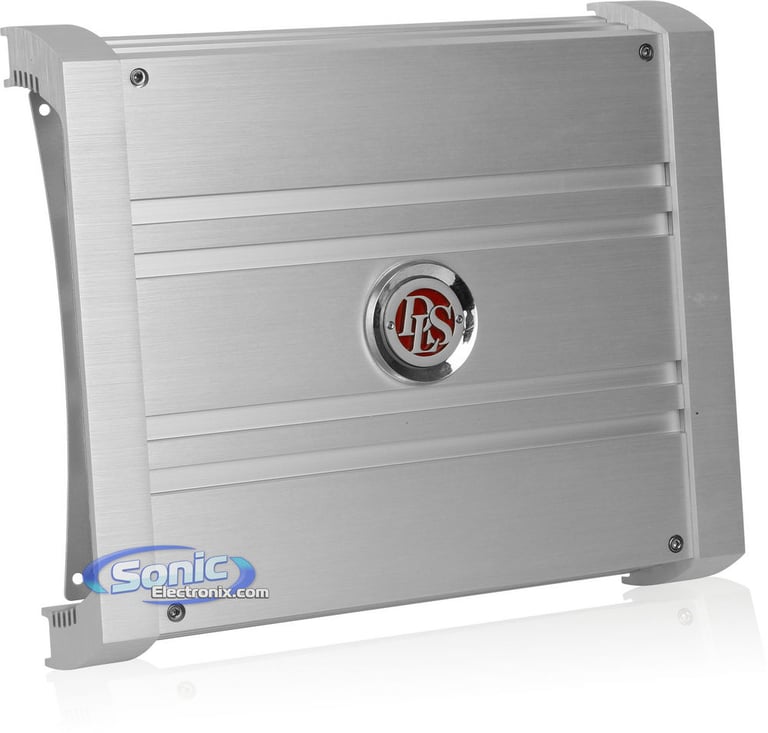

400W, 2-Channel Class AB Classic Series Car Amplifier (Performance Classic -- 10-30223)

DLS
Shop all DLS
Product videos
highlight-star-icon

Performance Series 2-Channel Class A/B Car Amplifier • 400W RMS • Dual Speaker Terminals • 3-Way System Protection Circuitry • Preamp RCA Outputs • Speaker-Level Inputs • Variable High/Low Pass Filters

Learn more about the dlsca23

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


Performance Series 2-Channel Class A/B Car Amplifier • 400W RMS • Dual Speaker Terminals • 3-Way System Protection Circuitry • Preamp RCA Outputs • Speaker-Level Inputs • Variable High/Low Pass Filters

Description


DLS brand icon

Authorized dealer

  • Performance Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating (13.8V):
    • 4 ohm: 135 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

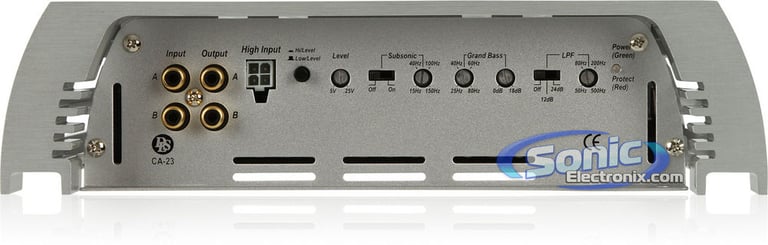

  • Variable Bass Boost (0 to +18 dB bass boost at 25-80 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink sink for extreme heat dissipation
  • Gold-plated RCA level inputs

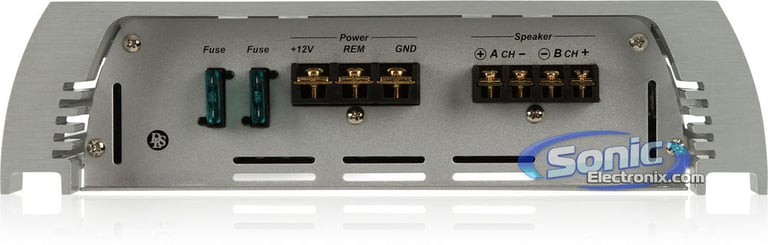

  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 250mV-5V
  • Variable high-pass filter (15-150 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • Damping factor: >100
  • Frequency response: 10-35,000 Hz
  • Dimensions: 12-5/16"L x 2-5/16"W x 10-9/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
135 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 150 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

CA 23

Weight:

8.00lbs

Internal SKU:

dlsca23

Internal Product ID:

26579
