See all parts that fit your 2000 Ram 3500 Van

JL Audio C3-525cw

225W 5.25" Evolution C3 Series Convertible Midbass Woofer (Priced Individually)

JL Audio
Shop all JL Audio
highlight-star-icon

• Peak Power: 225W
• RMS Power: 65W
• Convertible Component Woofer
• Mineral Filled Polypropylene Cone
• Rubber Surrounds
• Injection Molded Polymer Woofer Frames

Learn more about the c3525cw

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

Description


JL Audio brand icon

Authorized dealer

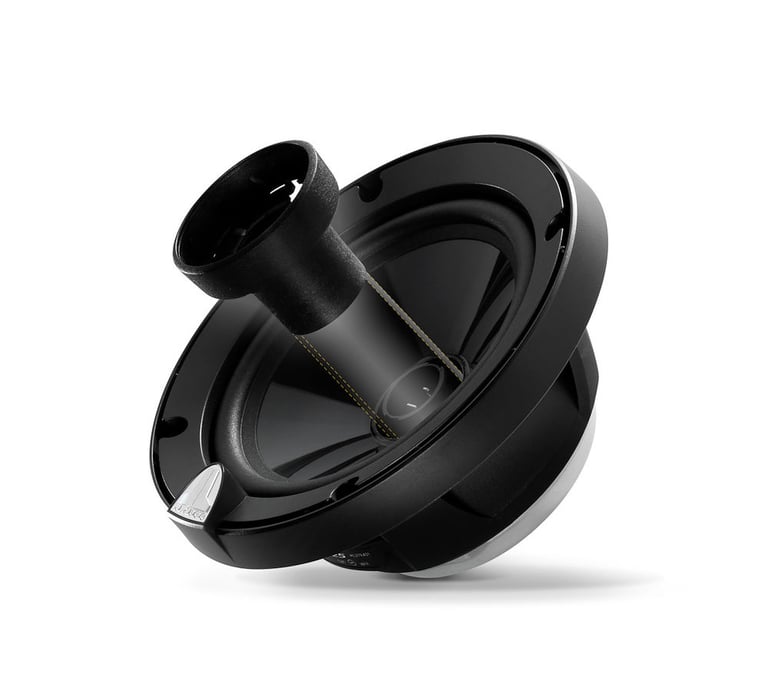

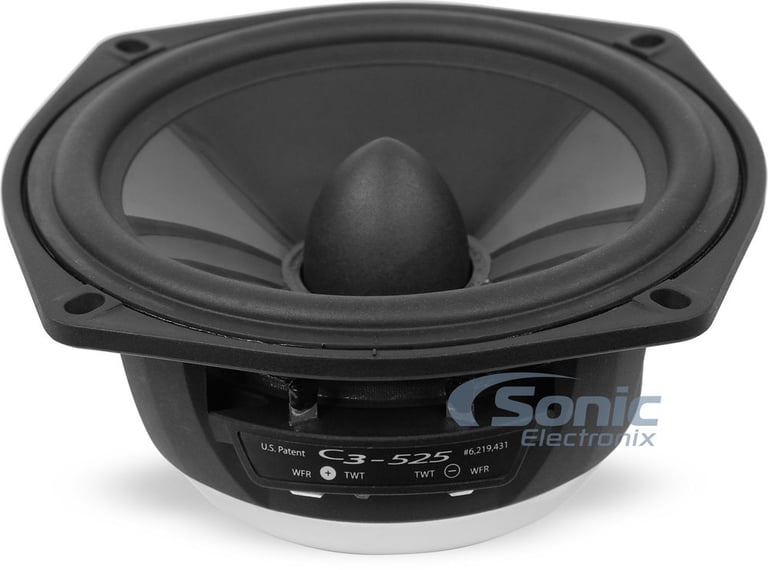

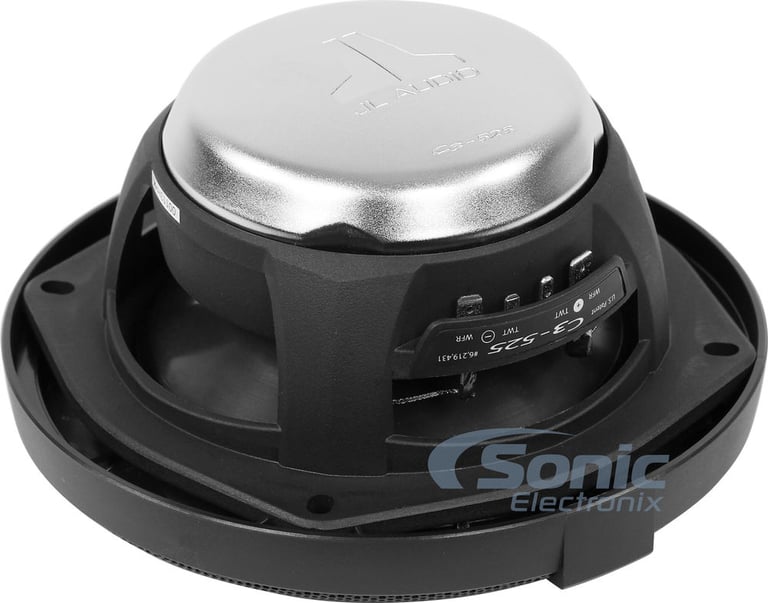

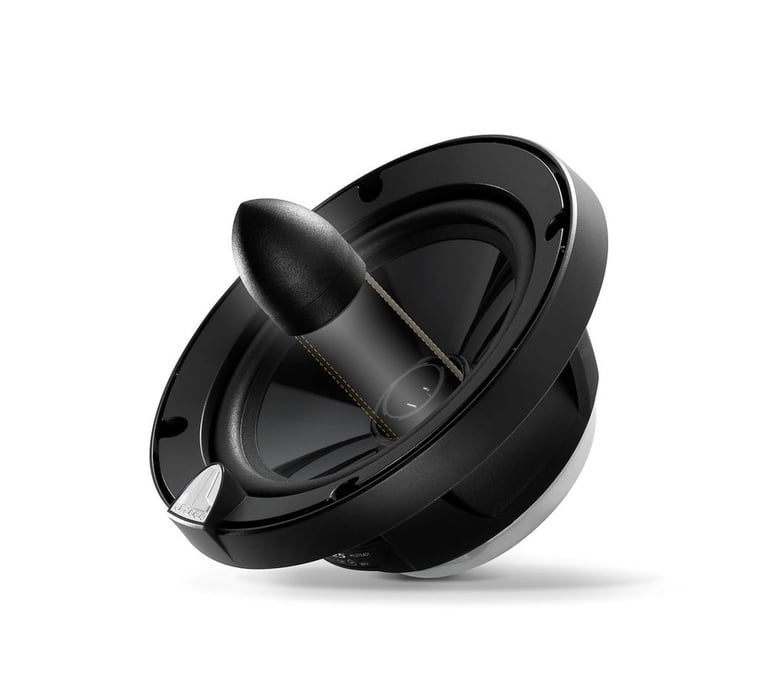

JL Audio Evolution C3 Series Component Woofer

With the Evolution C3 Convertible Systems, the same product can be deployed in either a Component or Coaxial configuration (tweeter needed, not included), delivering outstanding audio quality in each application. Long woofer excursion capability with DMA-optimized performance delivers superb mid-bass and clean mid-range output. The woofer houses a beefy 1.2-inch voice coil that generates a stunning mid-bass output without sacrificing mid-range fidelity. In addition, the woofer offers a mineral-filled polypropylene cone, a rubber surround, and an injection-molded polymer basket.


JL Audio Linearity and Control

JL Audio Linearity and Control

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. Its main catalyst is the driver's robust 1.2-inch voice coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.


General Features:







  • 5.25" Evolution C3 Series Convertible Component Woofer
  • Power Handling:
    • Peak: 225 watts per channel
    • RMS: 65 watts per channel
  • Recommended Power Range: 25 - 150 watts
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Injection-molded Polymer Basket
  • 1.20" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider
  • Ferrite Woofer Magnet
  • Elevated Frame Cooling
  • Convertible Drivers: Coaxial or Component
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • Black steel mesh grille with an electroformed JL Audio logo Included
  • Top-mount depth: 2.27"
  • Cutout Dimensions: 4.56"
  • Nominal Impedance: 4 ohm
  • Efficiency: 88.5 dB @ 1 watt / 1 meter
  • Frequency Response: 53 Hz - 7 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually.

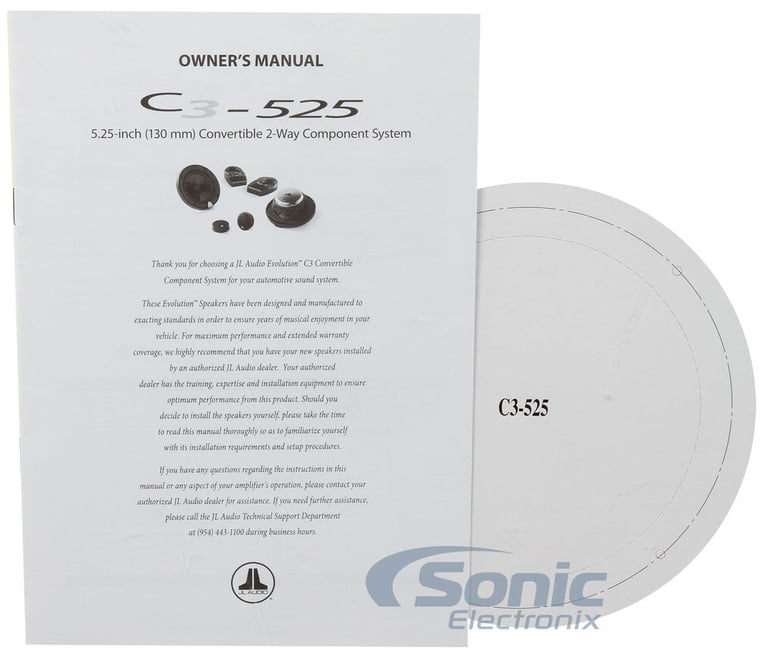

Check out the JL Audio C3-525 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$229.99

List price $229.99

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$169.99

List price $169.99

51KSC2704 small

Kicker KSC270 (51KSC2704)

• 100 watts Peak Each, 50 watts RMS Each
• Composite Paper cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(3)

$59.99

List price $69.99

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

Specifications & Details


Speaker Specifications
Series
C3 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
5-1/4"
Design
Subwoofer
Tweeter Design
N/A
Tweeter Size
N/A
Tweeter Composition
N/A
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
65 watts
Sensitivity
88.5 dB
Frequency Response
53 - 7,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.27"
Cutout Dimensions
4.56"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C3-525cw

Weight:

2.00lbs

Internal SKU:

c3525cw

Internal Product ID:

27141
