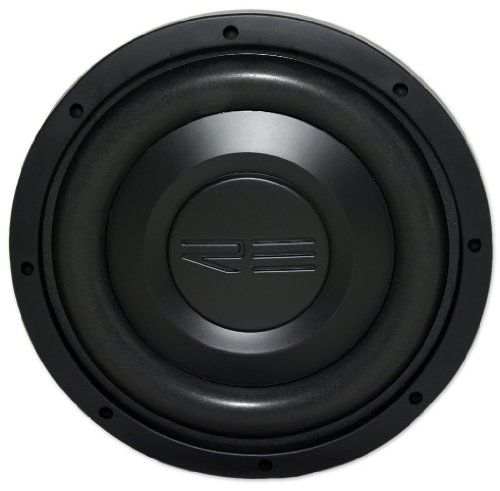

RE Audio SL 10

• 10" Dual 4 ohm SL Series Shallow Mount Subwoofer
• Power Handling:
  • RMS: 350 watts
• Impedance: Dual 4 ohm
• Kraft pulp cone with carbon fibers in matrix
• Rubatek foam surround
• Cast aluminum basket
• 4-Layer aluminum voice coil
• FEA Optimized motor structure
• Double stack magnet
• Spiderless push pull suspension
• Wrap around rubber gasket
• Isolated leadwire technology
• Mounting Depth: 3"
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

• Electrical Q Value (Qes): 0.49
• Mechanical Q Value (Qms): 3.63
• Total Speaker Q Value (Qts): 0.40
• Free Air Resonance (Fs): 36.0 Hz
• Equivalent Compliance (Vas): 21 liters
• One-Way, Linear Excursion (Xmax): 16 mm
• Efficiency (SPL 1W/1m): 85.2 dB SPL
• Effective Piston Area (Sd): 330 cm2
• DC Resistance (Re): 3.5 ohm
• Nominal Impedance (Znom): Dual 4 ohm
• Thermal Power Handling (Pe): 350 W
• Force Factor (Bl): 21.61

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article
