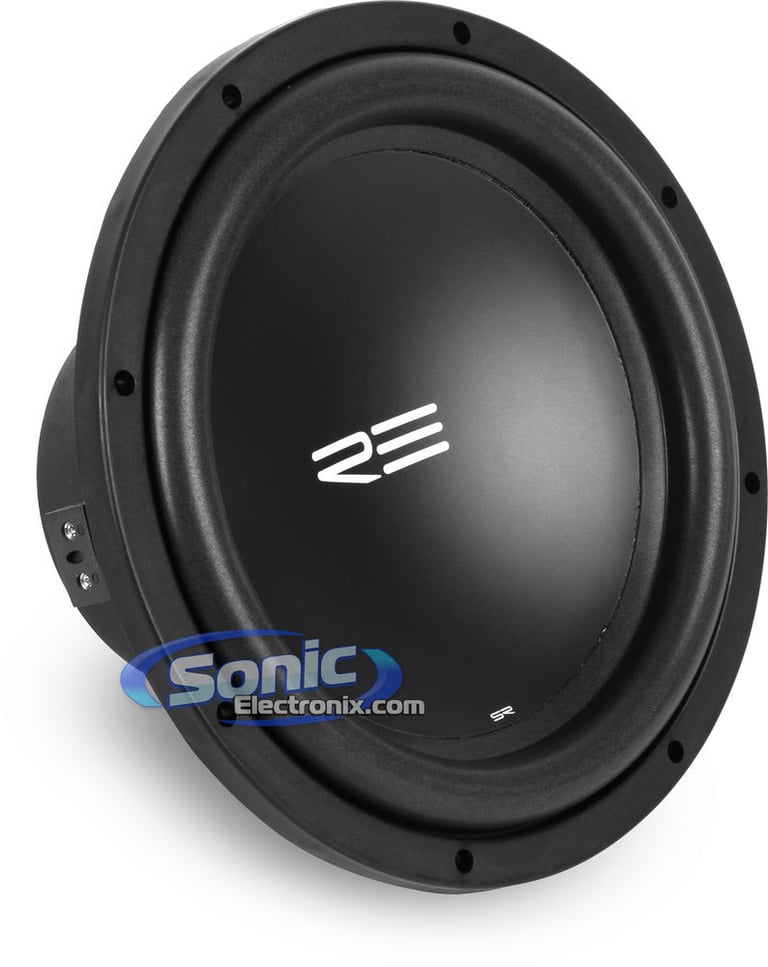

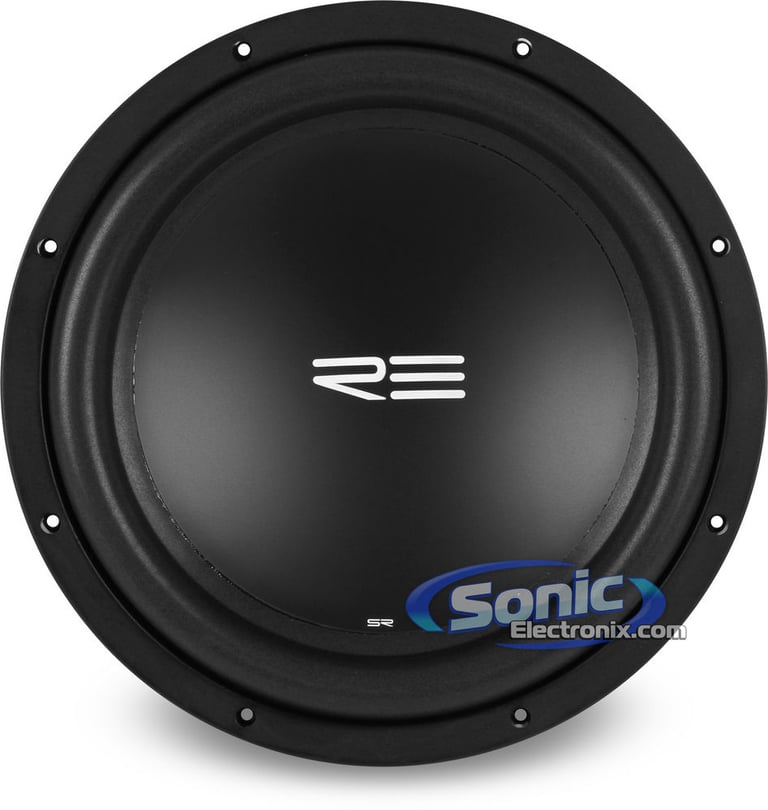

RE Audio SRX12D4

12" Dual 4 ohm SRX Series Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 450W
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Learn more about the srx12d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

scxv212d4 thumbnail

RE Audio SCX12v2 (SCX 12 v2)

OUR PRICE: $94.99

View item

Loading...
86-9001 main

Metra 86-9001

1998-2006 Volkswagen/Audi/Mercedes Radio Removal Tool

5
-12.51%

$20.99

List price $23.99

DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-16.67%

$239.99

List price $287.99

Product Highlights


• RMS Power: 450W
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Description


RE Audio brand icon

Authorized dealer

Monster Performance

Get big bass with the RE Audio SRX series of car subwoofers! Easily expect monster performance and deep bass from these quality drivers. The SRX series has twice the power handling and improved audio output over the RE Audio REX series. The striking cosmetics complete the look of the subwoofer, while ensuring that high quality sound is produced. Once mounted, the kraft pulp cone and rubber surround will be visible for all to see. Underneath the cone is a 4-layer copper voice coil, a FEA optimized motor structure, double stacked magnets that all work together to keep the subwoofer linear and sounding great. The RMS of the SRX series is an affordable 300 watts and is perfect for those just starting their car audio system or the long time car audio enthusiast. Like all of the RE Audio subwoofers, they are capable of accepting much more power then the recommended RMS. For excellent performance for a great price, check out the RE Audio SRX car subwoofers

Subwoofer Features:
  • 12" Dual 4 ohm SRX Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Impedance: Dual 4 ohm
  • Kraft pulp woofer cone

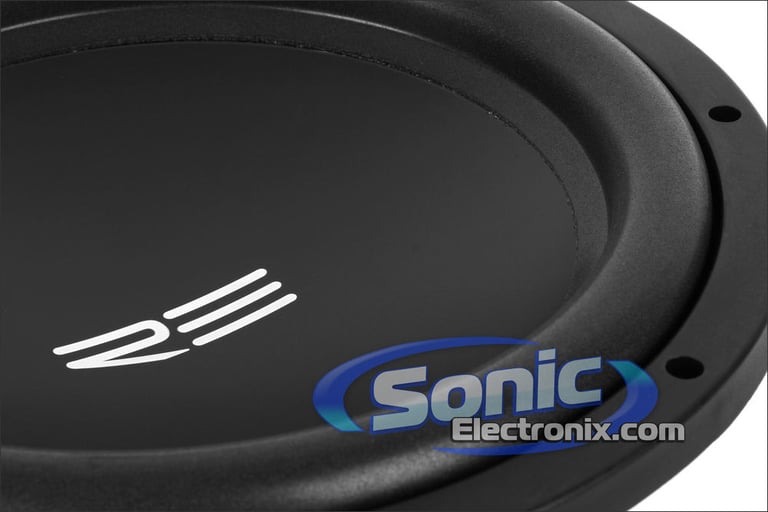

  • Rubber surround

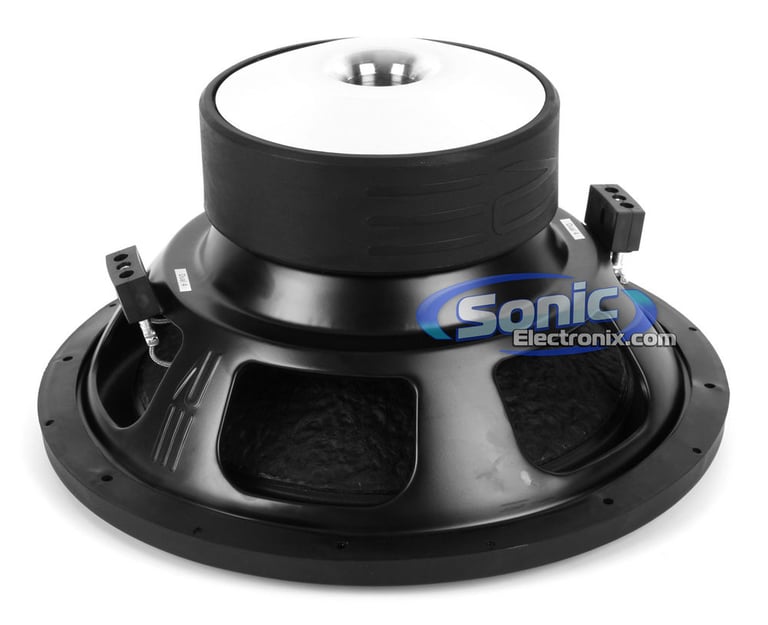

  • Pressed steel basket
  • FEA optimized motor structure
  • Linear spiders
  • Foam gasket
  • 4-Layer copper voice coil
  • Double stacked magnets
  • Also available in dual 2 ohm: RE Audio SRX12D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SRX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.41
  • Mechanical Q Value (Qms): 4.99
  • Total Speaker Q Value (Qts): 0.38
  • Free Air Resonance (Fs): 23.6 Hz
  • Equivalent Compliance (Vas): 85 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 86.2 dB SPL
  • Effective Piston Area (Sd): 480 cm^2
  • DC Resistance (Re): 1.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 300 W
  • Force Factor (Bl): 14.35

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SCXv2-12d4 thumbnail
(newest, current model)
RE Audio SRX12D4 thumbnail
(previous model, replaced by RE Audio SCX12v2 (SCX 12 v2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SRX12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SRX12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SRX12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SRX12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
SRX Series
Subwoofer Size
12"
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.2 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kraft Pulp
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.6 Hz
Equivalent Compliance (Vas)
85 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.41
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
4.99
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX12D4

Weight:

17.00lbs

Internal SKU:

srx12d4

Internal Product ID:

27304

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SRX12D4 thumbnail image

5 star
80%
4 star
15%
3 star
0%
2 star
5%
1 star
0%



Durability
4.5
Value
4.7
Features
4.5
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Tinsel Lead Defects!!!

Got a bad batch of woofers. Hard black stuff on the leads right at the terminal created a weak point and broke the leads on all 3 woofers. Sounded good before they broke. I had to foot the shipping bill on the first return for something that was not my fault but Sonic took the other 2 back paid shipping after I proved my case. Overall they are a excellent woofer for cheap but I think they are cutting corners on the parts. Switched to Skar IVX 12's that have woven leads because that was pure hassle and a waste of time and money over silly tinsel leads. At least sow them in the spider. Also had cone slap and a felt material to deaden the sound.

By Juice on July 19, 2013

33 found this helpful


Talk about sneaking up on ya'

Recommended by a friend, I bought a single dual voice coil SRX12" to replace a bulky box and a pair of 10's. Installed it in a custom box in a Chevy HHR.

Talk about sneaking up on ya' and kicking you in the head. This speaker is very VERY impressive. Hard deep bass notes, and crisp cannon-like kick drums. I have owned Kicker, Fosgate, and a few others and the RE really holds it's place in the ranks.

By Putter's Custom Concepts on January 20, 2012

30 found this helpful


re bangs

I bought 1 12 and its taking 10k from my opti 12001 stupid loud wow.

By jermiah aka"the turd" treasure piont car audio on April 8, 2012

30 found this helpful


Awesome for the money !!

Bought these to replace a pair of JL subs I'd had for six years. (surrounds tore) I had read good things about these on the web and thought I'd give them a try. Best decision ever. I haven't metered them yet but they sound louder than the JLs. Lovin' em!

By Puresound on September 17, 2013

28 found this helpful


Super performance

I wanted a musical subwoofer that did not require a large enclosure.
The SRX12D4 fit with my plans. I matched it with a 500 watt amp and the results are stunning. Very musical, very accurate but when the volume is turned up the sound is powerful and in fact, it not only shakes the car it shakes you.
One 12" of this quality is all anyone needs and it is in a 1.2 cubic foot sealed enclosure. AWESOME

By Double Bogie Blast Master on August 15, 2013

28 found this helpful


good buy for price point

Good subwoofers dvc. Decent power handling worked well in pre fab enclosure minimal mounting modifications

By will on September 17, 2013

28 found this helpful


A good budget subwoofer

Pros: Lots of pleasing, tight, punchy, deep, loud bass.
Cons: None.

Disclaimer: this is my first ever subwoofer, so my points of reference are very limited.

My setup is the following. I run this one in a 1.15 cu. ft hatchback style sealed "Sonic Sub Box" that you can buy here from Sonicelectronix. Almost 1.5 pounds of polyfill were stuffed into the box to enhance the sound. The voice coils are wired in parallel and I am pushing 300watts to it using a 2ohm stable amplifier. I set the crossover point on my head unit at 80Hz, with a 24dB per octave slope. The box is in the trunk of a midsized car.

My impressions so far are very positive. I listen a little bit of everything, but for the most part all sorts of rock music (alternative, classic, american, latin, etc), and also some latin music, like regueton. In my opinion my setup (box type, crossover, etc) is near optimal for the kind of music I listen. This subwoofer playes tight deep loud bass without distortions. The bass is tight as opposed to being boomy. The volume can be very loud, yet at the same time soft on your ears. Bass guitars and other bass heavy instruments sound excellent. It's unbelievable how much music you miss without a subwoofer. Given the cost of under $150 (including the box and accessories), this product is a steal. All in all I am very pleased I went with a Re Audio instead of subwoofer bargain basement cheapies.

By Jacob on January 22, 2011

26 found this helpful


killer subs!!

I have used every sub u can think of I have a little moble electronic buss for th past 4 yrs. These SUBS POUND!!! They are getting 500 watts RMS each at 2 oms n sound GREAT!!!!!!! They replaced my orions n they blow them out th water. I think they can handle even more power..

By ssmobile electronics on December 20, 2010

27 found this helpful


Very Impressed

I picked up 3 of these and they slam. Have them in a custom box .90 cubes each sealed. For a "budget" sub I can tell you that this series will give you a good mix of SQ and SPL. You will easily pay more for some other brands to get the same performance. All 3 are powered by a Rockford Fosgate Power 1000bd @ 2.67 ohms and it gives them what they want. I heard on a forum somewhere to stay away from RE because these got outsourced to china but don't worry about that. The quality is solid with a beautiful chrome magnet. Out the box the suspension is very stiff. I think it will need a bit of a break in to get more excursion. This is a good buy and I recommend this sub.

By BuckTussa on May 20, 2013

25 found this helpful


stupid not to buy...

These things are ridiculous. I put four of d2s in a 6cuft box stuffed them down into a 95 Integra and they get down. Got them powered by a Memphis pr1000d @ 1 ohm. Best subs I've owned so far. No one expects them to be so loud. Wont buy anything but re from now on.

By Chris on March 31, 2012

26 found this helpful




QSPY2M small

Xscorpion QSY2M

Quad Shield Platinum RCA Interconnect Y-Adapter Cable (2 Male to 1 Female)

$8.99

List price $11.99

7752X small

Clifford 7752X

2-way LC3 SST LCD Replacement Remote

(4)

$89.99

List price $199.99

JVC-AUX-ADAPTER small

JVC Auxillary Input Adaptor ( AUX Input )

(ACC-JVCAUX)

(4)

$13.99

List price $29.99

V12RCA-Y2 small

T-Spec V12RCA-Y2

1 Male to 2 Female V12 Series RCA Y-Interconnect Cable

$7.95

List price $9.95

TSUNAMI BIG 3 KIT-RED small

Tsunami Big 3 Kit (Red)

Sonic Exclusive Big 3 Upgrade Combo Package (1/0 AWG Cable)

$114.29

List price $216.91

Justin Power Case ITJ-4231TAN small

Innovative Technology ITJ-4231TAN (TAN)

Rechargeable Power Case For iPad 2 And Other 10" Tablets

$14.99

List price $89.99

BD10-03 small

Lightning Audio Bolt BD10-03

1.0 Farad Digital Capacitor w/ Built-in Distribution Block

$44.99

List price $99.99

98-5999 small

Metra 98-5999 Dash Kit

Install a new Double-DIN with Single-DIN car stereo in select 2000-2004 Avalon

(4)

$17.99

List price $27.99

AT-647331 small

Omaha Tools AT-647331

34" x 23" Heavy Duty Fender Cover

$12.99

List price $0.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Audi A4

2014 Ford Taurus

2016 Lexus ES300h

2002 BMW X5

2001 Dodge Durango

2016 Nissan Leaf

2002 Nissan Pathfinder

2003 Maserati Spyder

2011 Ford Edge

2017 Mazda CX-9

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
