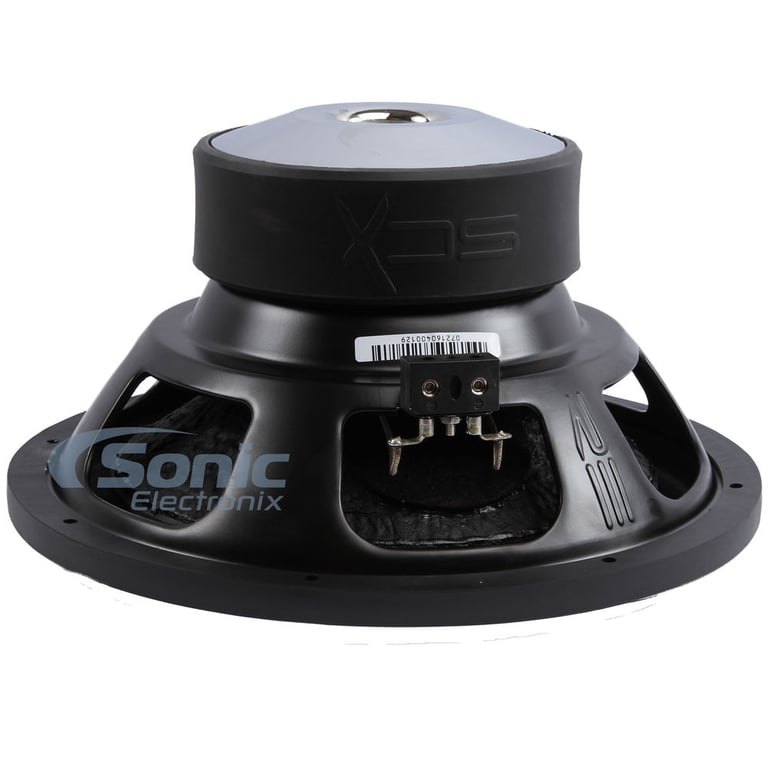

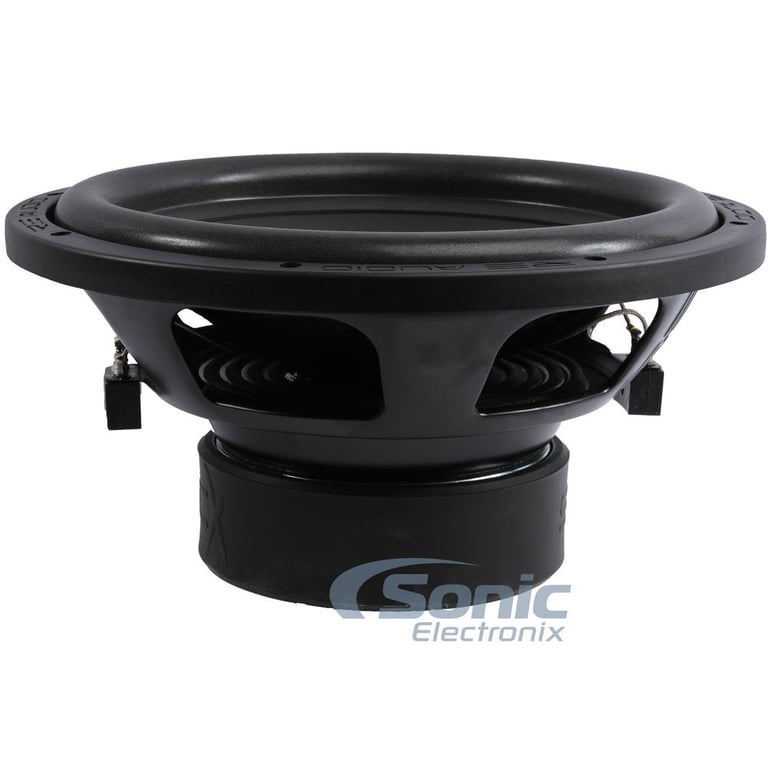

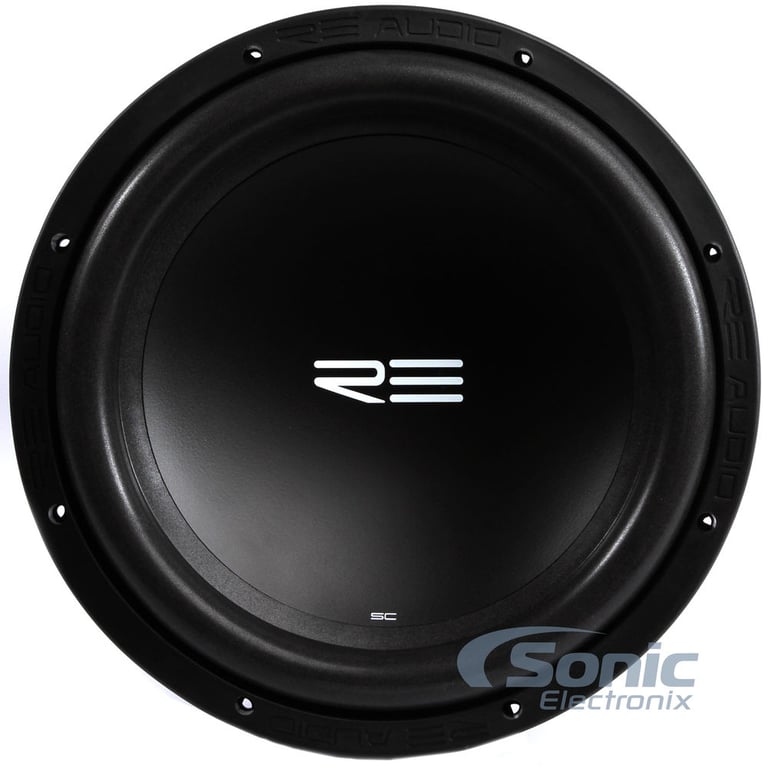

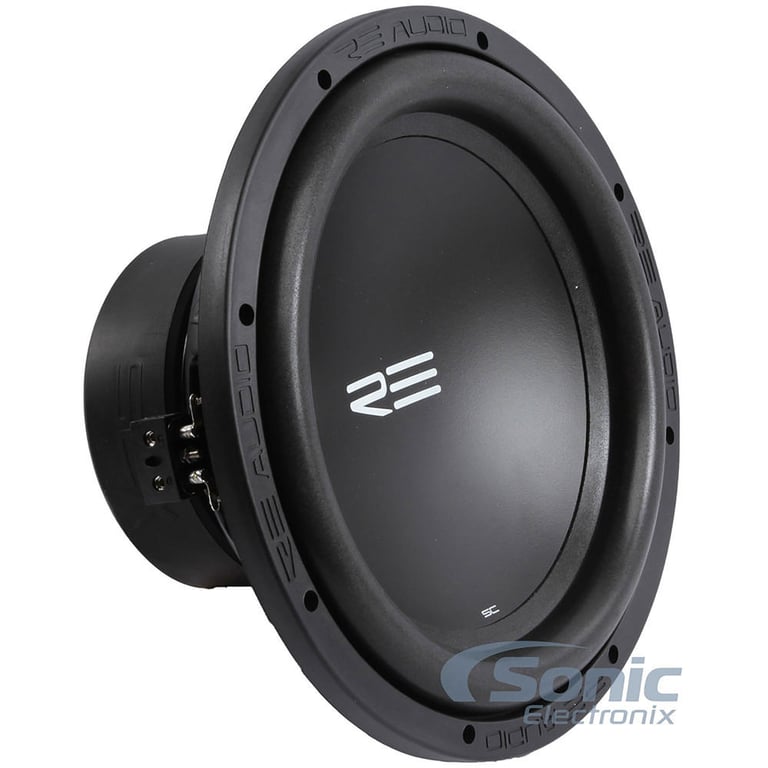

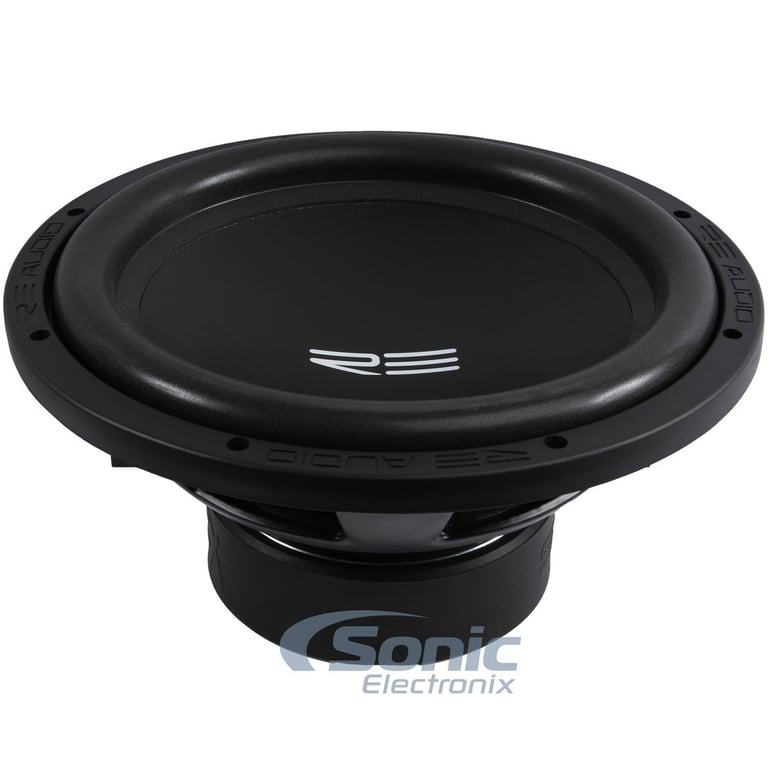

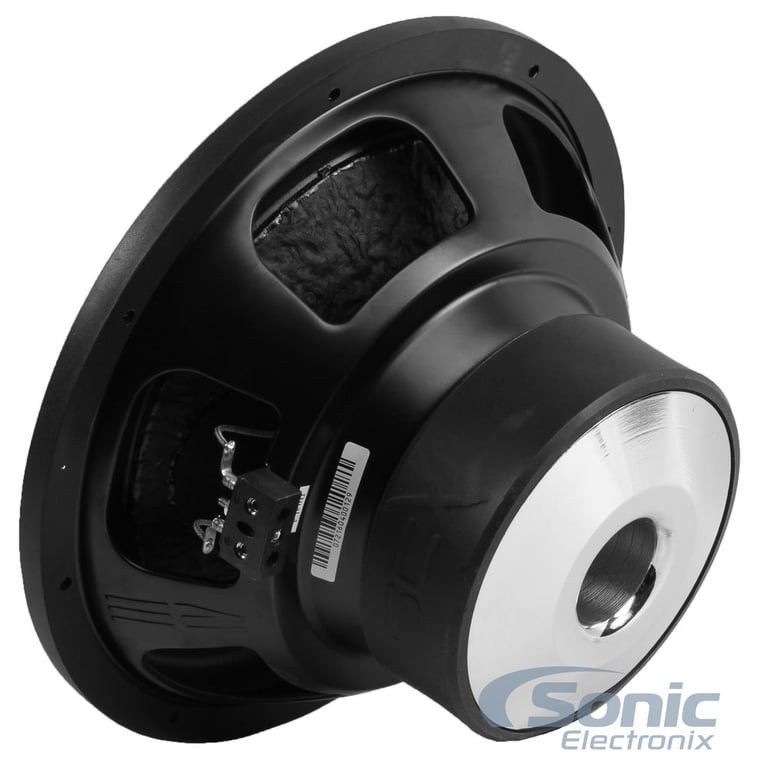

RE Audio SCX12v2 (SCX 12 v2)

450W 12" SCXv2 Series Dual 4 Ohm Subwoofer (REXV212D4)

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• 450W RMS
• Sensitivity: 87.2 dB
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Heavy duty steel stamped basket
• Double Stacked Magnets
• FEA Optimized Motor Structure

Learn more about the scxv212d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• 450W RMS
• Sensitivity: 87.2 dB
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Heavy duty steel stamped basket
• Double Stacked Magnets
• FEA Optimized Motor Structure

Description


RE Audio brand icon

Authorized dealer

The all new SCX v2 Subwoofer Series by RE Audio is a replacement of the very celebrated SRX series. RE Audio went above and beyond to provide the market with a high quality, reliable and well performing driver. This goal resonates with the architecture of the driver, going from a lame stamped basket frame to a higher quality, better looking and more durable cast basket. In addition, the power handling is from a lowly 300 watts (RMS) to an above modest 450 watts. Expect louder output and lower lows along with better exotic styling, while still maintaining the desirable RE Audio look and Performance! Complete the setup with the matching RE Audio SA 1500.1 amplifier, that provides the exact power that the subwoofer(s) is asking for.



General Features:

  • 12" Dual 4 Ohm SCXv2 Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Heavy duty steel stamped basket
  • Tork-Tite terminals
  • Double stacked magnets
  • FEA optimized motor structure
  • 2.5" 4-layer aluminum voice coil
  • One-Way Linear Excursion (Xmax): 18.6 mm
  • Sensitivity: 87.2 dB 1 watt / 1 meter
  • Top-mount depth: 6.13"
  • Cutout Diameter: 11.20"
  • Displacement: 0.17 ft³
  • Weight: 17.8 lb
  • Matching amplifier: RE Audio SA 1500.1
    ✔ Add a Second Subwoofer for a 900 watt (RMS) setup!
  • Also available in a 10" version: RE Audio SCX 10 v2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: SCX12D4-V2, SCXV2-12D4, SCXV212D4

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio RE Audio SCX 12 v2 Subwoofer Enclosure Guide

Product history:

RE Audio SCXv2-12d4 thumbnail
(newest, current model)
RE Audio SRX12D4 thumbnail
(previous model, replaced by RE Audio SCX12v2 (SCX 12 v2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SCX12v2 (SCX 12 v2) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SCX12v2 (SCX 12 v2) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SCX12v2 (SCX 12 v2) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SCX12v2 (SCX 12 v2) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
SCX v2 Series
Subwoofer Size
12"
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
87.2 dB
Xmax (millimeters)
18.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Optimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.52 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.86 cubic feet
Top-Mount Depth (Mounting Depth)
6.13"
Cutout Diameter
11.20"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Electrical Resistance of Voice Coil (Re)
4 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SCXv2-12d4

Weight:

17.00lbs

Internal SKU:

scxv212d4

Internal Product ID:

77324

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SCX12v2 (SCX 12 v2) thumbnail image

5 star
70%
4 star
30%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
4.7
Features
4.5
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Love it

I've had this in my Access Cab Tacoma for 6 months now paired with a 500w amp in a sealed box. Absolutely love it. Handles a wide range of music well, hits hard, deep, and clear (within reason). Compliments my JL speaker setup perfectly, not over the top, just perfectly balanced.

It has been hit by water bottles, dog balls etc while running with zero damage.

In a larger vehicle it may not be strong enough, but in a small truck cab this thing is absolutely perfect.

By Jay on October 15, 2014

37 found this helpful


Crazy Loud

So i have this hooked up to a Hifonics HFI 1000.1 pushing just 475watts have crazy spl can hear it 3 to 4 blocks away this sub can take a beating very happy makes my outside mirrors flex

By Jerdawg on February 8, 2015

35 found this helpful


RE Audio FTW

I have to say that this is my first RE Audio product. I am extremely pleased with the sound quality. I am running a 500 watt alpine mono amp and a 1.25 cubic ft sealed enclosure. The excursion capabilities are ridiculous. Good bang for your buck.

By Ed on April 17, 2015

31 found this helpful


Great subs!!

Built a box and installed these subs in my '14 Camry. They sound great! Ordered a bigger amp because the one I have doesn't help these subs reach their full potential, and I want all that they have.

By Dane on September 5, 2015 Checkmark Icon Verified purchase

19 found this helpful


Works Well

I bought this sub to replace a blown version 1 Image dynamics Idq 12 a second hand sub that served me well for 5+ years. The install was straight forward. I wish the sub came with some mounting hardware. As far as performance compared to my old image dynamics this sub holds it own. It plays every type of music i throw at it effortlessly. The bass note is warm and provides a very tight and punchy bass note in my sealed box. I am running an alpine monoblock with 300 w rms and this speaker can be very loud if you want it to be. Could definitely handle more power without distortion. Overall i'm impressed with the value of this speaker and the over all fit and finish is nice.

By Rich on September 25, 2015

16 found this helpful


great buy still performs like the best

These subs bump and sound great. Put them in my boat with a 1000 watt crossfire d class and they seem to handle the punishment.

By jred delta 209 on September 18, 2015

16 found this helpful


Awesome subwoofer Awesome price

I have owned many subwoofers and this RE audio SCX 12" is by far the best! The X-max alone puts this subwoofer in a class that costs almost double from other manufacturers. The sound quality is amazing. I would definitely recommend this subwoofer to anyone who is looking for an awesome sound at a good price. I have the 12" SCX in a 1.6cu.ft. vent style port tuned to 33hz and I am in heaven with its sound quality.

By Ohmega1080 on January 5, 2016

14 found this helpful


Hard Hitters

almost a year since I ordered these and they are still hitting hard as they were the day I installed them in my car. I'm going to upgrade to the 15's once I get my S.U.V . Great Speakers R.E Audio

By Joseph on January 20, 2017

13 found this helpful


Decent subs for the price

Theses subs are decent subs for price. I bought the 12's for a sealed box in my dodge ram 1500. And they do the job well and don't really have any complaints so far but wouldn't run anymore then the 450 rms power tho. And a side note these are re audio's only sub that is made in China.

By Outcast432 on March 18, 2016

12 found this helpful


SOLID WOOFER

I purchased this woofer, it arrived on timely manner and in great condition (NEW in Box).
I ran a sound test in Free Air because my box was still in route.
The woofer sounded good delivering lows well into the 30 - 35hz range
Mid lows were solid, Midrange was a bit muddy , but remember this is free air so I did not crank it up too much. I say for the most part this woofer performed well and will work well as a expected , delivering good lows. Unfortunately I had to return due to it would not fit My sub box configuration.

By Humberto on December 29, 2015 Checkmark Icon Verified purchase

13 found this helpful
