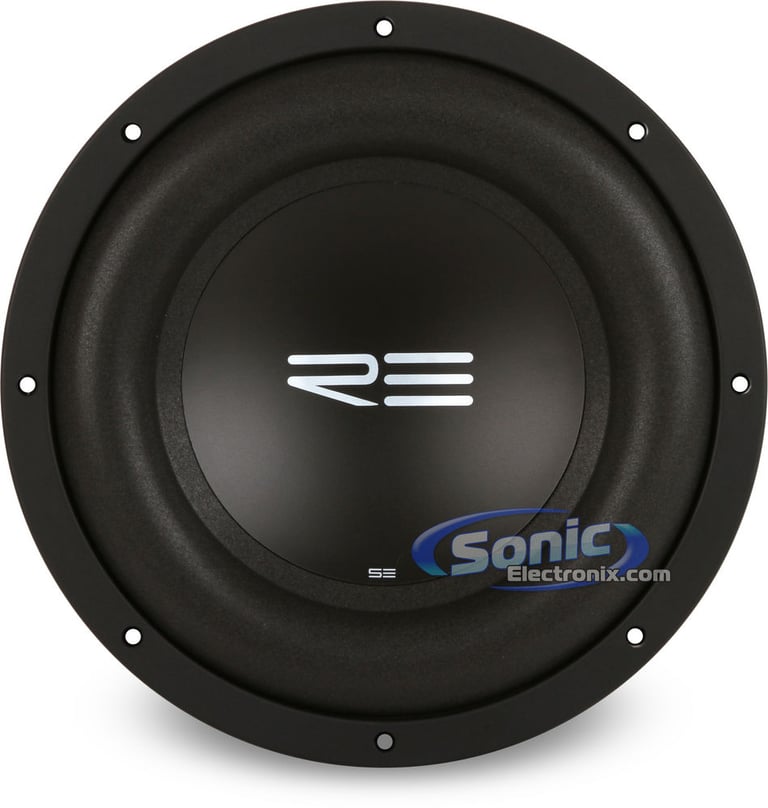

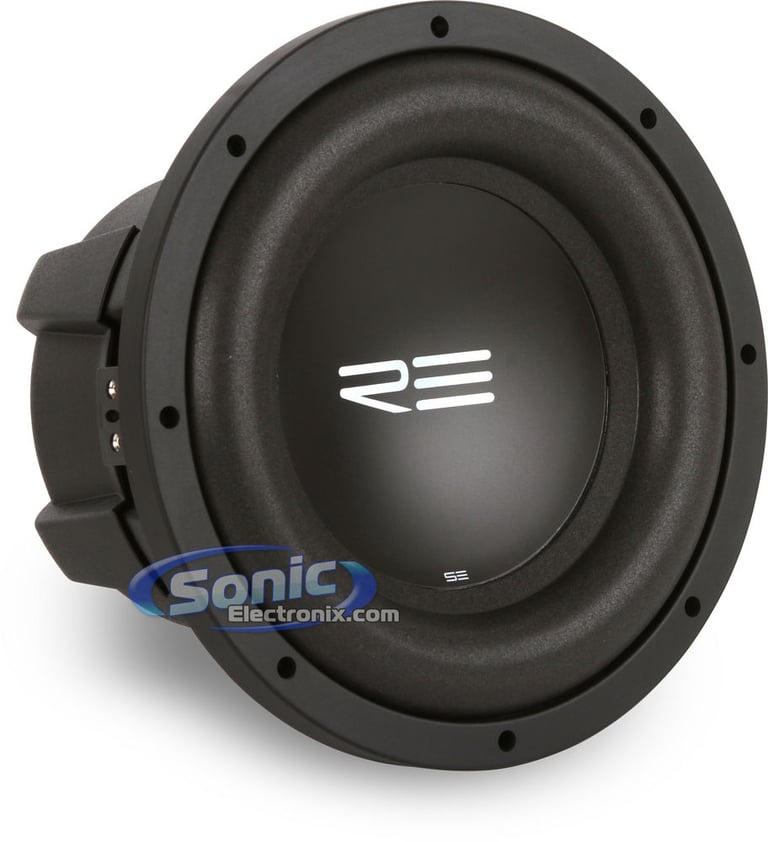

RE Audio SEX10D4

600W 10" SE-X Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 600W
• Dual 4 ohm

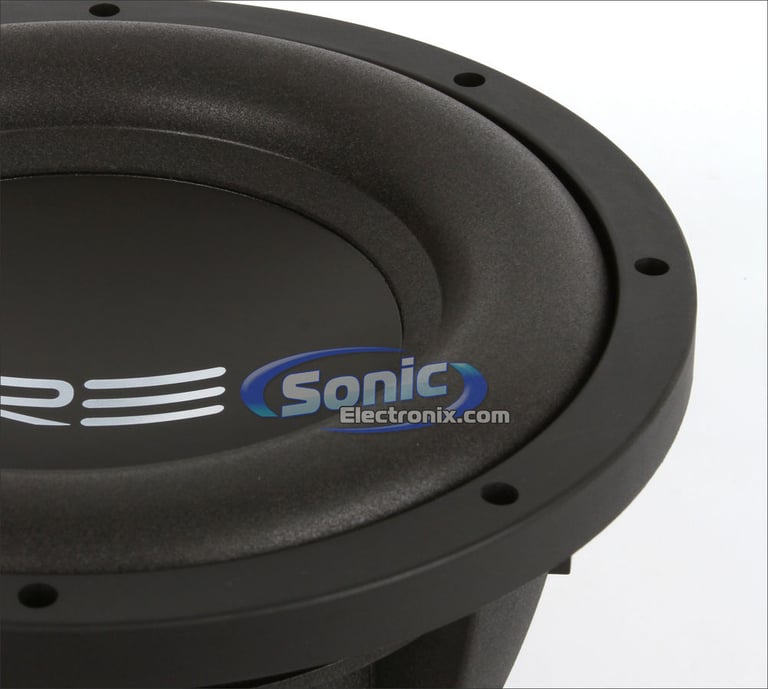

• Rubatek Foam Surround
• Dual Composite 2-Piece Cone

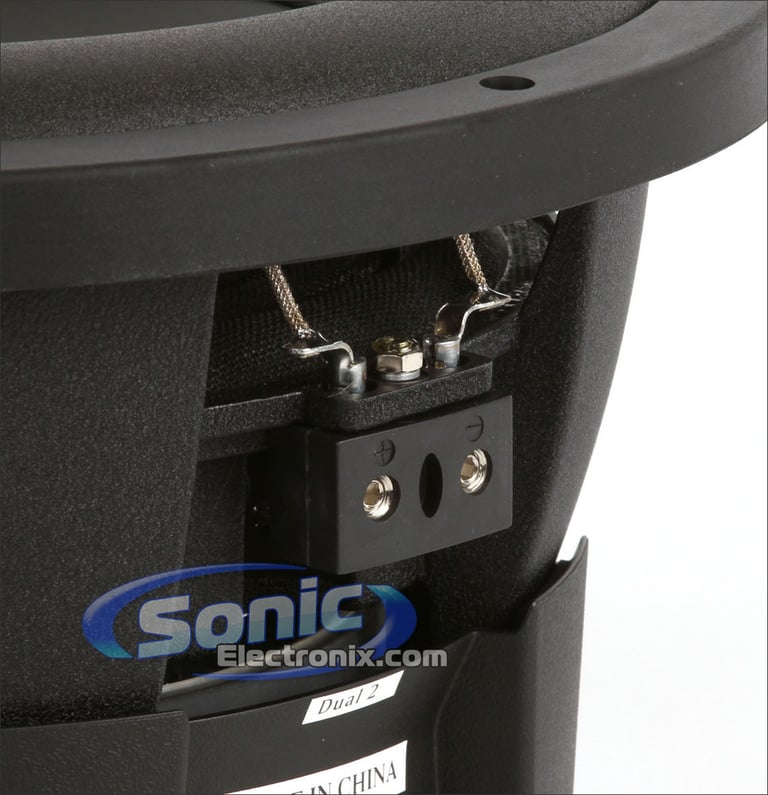

• Tork-Tite Terminals
• Progressive Spiders

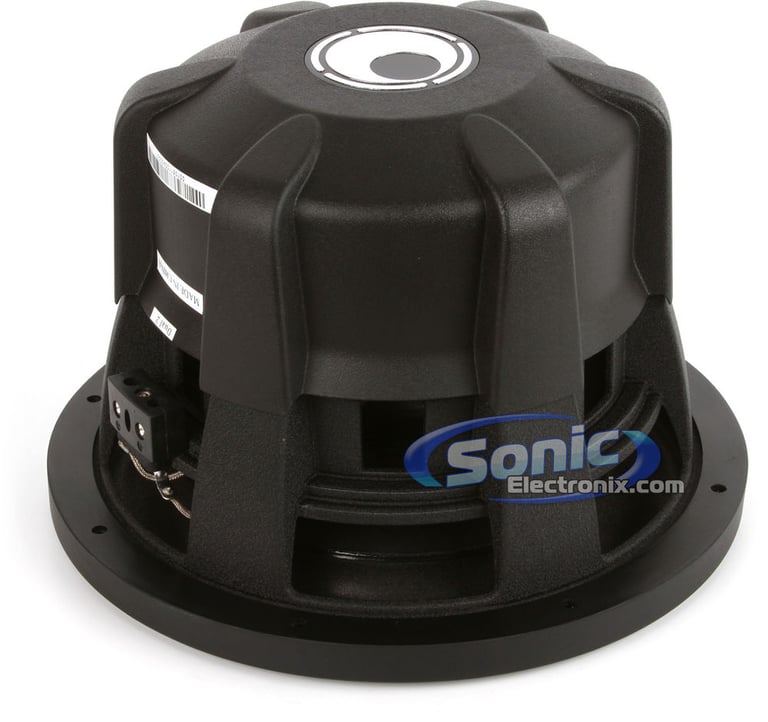

• Triple Stacked Magnets

Learn more about the sex10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sexv210d4 thumbnail

RE Audio SEXv2-10D4 (SEX v2 10D4)

OUR PRICE: $179.99

View item

Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

BTS-HN1 main

Crux BTS-HN1

Add Bluetooth Streaming, USB, and AUX Support in select 1998-2005 vehicles from Honda

-38.01%

$92.95

List price $149.95

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


• RMS Power: 600W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SEX Subwoofers

RE Audio’s SEX Line of subwoofers redefines high performance and value. These subwoofers are placed in the middle of RE Audio’s full line-up, and can handle high power output around 600 watts RMS! These SEX Subwoofers are the perfect addition to any trunk!

These impressive subwoofers are built into a cast aluminum basket, and their triple stacked magnet drivers work off of a 3” 4-layer aluminum voice coil. This allows for quick bass response, and clearly outputs for deep bass in the lower frequency range. With an FEA optimized motor structure, the SEX subwoofer lineup maintains tight bass response and allows the subwoofer full control over all types of music.

Each one of these RE Audio SEX Subwoofer can handle 600 watts RMS of continuous power, no matter the size! These competitively priced subwoofers are an excellent complement to any audio system, and will provide you with that clean, hard hitting bass you’re looking for.

Subwoofer Features:
  • 10" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket
  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Also available in a Dual 2 ohm: RE Audio SEX10D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SEX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.46
  • Mechanical Q Value (Qms): 4.4
  • Total Speaker Q Value (Qts): 0.42
  • Free Air Resonance (Fs): 26.6 Hz
  • Equivalent Compliance (Vas): 31 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 83.2 dB SPL
  • Effective Piston Area (Sd): 310 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SEXv2-10D4 thumbnail
(newest, current model)
RE Audio SEX10D4 thumbnail
(previous model, replaced by RE Audio SEXv2-10D4 (SEX v2 10D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SEX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SEX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SEX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SEX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
SEX Series
Subwoofer Size
10"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
83.2 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
0.65 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26.6 Hz
Equivalent Compliance (Vas)
31 liters
Total Speaker Q Value (Qts)
0.42
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
2.8 ohm
Mechanical Q Value (Qms)
4.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEX10D4

Weight:

24.00lbs

Internal SKU:

sex10d4

Internal Product ID:

27314

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SEX10D4 thumbnail image

5 star
85%
4 star
13%
3 star
0%
2 star
0%
1 star
2%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Awesome SUBS

I LOVE these subs!
but my only let down is that all the positive leads for both subs snapped after about 5-6 months of use, I have a 1500W DB Drive A7 series amp, with a 2 cubic foot box ported and tuned to 35Hz and they POUND!
till the leads snapped anyways, but I noticed the tinsel leads aren't glued across the spiders, but are free and go to the base of the cone?
BUT OVERALL I RECOMMEND THESE!
whether your an SPL FREAK or looking for some quality sound, they do the best of both worlds!

By Trevor on May 9, 2014

44 found this helpful


GREAT SUB!

Absolutely by far the best 10" woofer I've heard. It hits just as hard as a W6 (never heard a 10" W7) and for the price, its a steal. I have two in a sealed box in a mini cooper and they SLAM. The whole car shakes. They say 600 RMS but its underrated, i have them on 800 RMS and they are taking the power like champs!

By Chris on June 12, 2011

37 found this helpful


Best 10's Under 200 bucks!!

I bought these RE Audio SEX10d4 subwoofers (2) and placed them in a custom 4th order bandpass enclosure that I designed using Winisd and all I can say is WOW. These things are killing the low notes with a vengeance. I'm using a 6" aero port to dump all of the sound into the cabin through the factory sub hole in the rear deck. There is also zero trunk rattle to be heard. Do yourself a favor and get these while you still can and no one will believe that you're running 10's.

By Terry H on June 30, 2014

36 found this helpful


Best sub I've ever owned!

My history of owning subs is pretty diverse. This is by far the best I've ever owned as far as clarity and output. Of course it is cleaner than my Visonik Bass package two 10's or my old MTX Thunder 6000 12's. I've also owned a Phoenix Gold Octane R12d which I enjoyed but wasn't as good as the JL12W3. This beats them all.

One 10 in a sealed box is plenty for me and even during break in at less than half capable output with the MB Quart FX1.600 it will mask my mids and highs. I will need to upgrade the power supply for my door and deck speakers now.

I just can't get over how clean this sub is and you cannot touch the price for this quality.

By Tyler on December 21, 2011

36 found this helpful


Wow

i have the model prior to this one, and i love it. this is a sq sub, you will need to feed it at least 500 watts RMS, and i believe it could handle 700 watts. i have my 2 on a hifonocs zxi1006, 500W RMS x 2 at 2 ohms. you will enjoy home theater type bass if you provide the right amplification. at less that 83 spl, means that it is hungry, feed it right and all you can say is....Wow. mine tips the scale at 20 pounds. look around, the other sub with similar specs cost twice as much. check the car audio forums, these are damn good subs, at this point, they may be the best.....600 watts RMS, small sealed box, deep, articulate, solid bass the kind you feel in your chest. put a good amp on this sub and you will look for reasons to go for a ride.

By tim on August 10, 2010

36 found this helpful


sounds awesome

This sub sounds great. Way better than ppi stuff. Sounds better in a ported box (build the box to the 1.25 cu ft tuned to 34hz and let it hit with sq

By LOWBASSSUBS on July 7, 2014

35 found this helpful


RE Audio

The speakers and amp are worth every penny. I would compare the quality to JL audio. If you want the sound of a quality speaker without the high sticker price, these speakers are the ones for you. I am 100% happy with my purchase.

By Orencio on August 16, 2011

32 found this helpful


Amazing!!!

Ok so I decided to upgrade from two 10 inch Infiniti Reference 1060w's in a sealed box to just this one RE Audio 10inch SEX sub in a ported enclosure, and let me just say that this thing kicks the two inifiniti subs to the curb. My friend was literally like damn dude, did you upgrade from two 10's to two 12's? Then I opened the trunk to show him, he was blown away.

I've only had it installed two days now but just to give an idea of the increase on my two infiniti's I had my amp's gain set to around 85%. On this one RE Audio sub I literally just pulled the wires from my old box and put them right into this box. I had to dial the gain knob down to around 60% and its obliterating my car, I could turn the gain back up to where it was but there's just no reason to. I DEFINITELY RECOMMEND THIS SUB!

I have it hooked up to a Kicker ZX 750.1 amp which compliments it very nicely. The difference between this one sub\box to my old two subs\box is phenomenal, not just marginally better, astronomically better!

By Kasspa on December 11, 2013

30 found this helpful


Great sound quality hard hitting

These are the best sound quality subs on the market for this price. I have two 10"s in a super bass probox run by a re audio 1000.1 . When people hear my subs I have to pop the trunk to prove they're 10's and not 12's

By Logan on February 7, 2013

31 found this helpful


A Beast

I used this sub to replace my 10" infinity kappa after I blew it. It works nicely with my 600w infinity amp. Sounds great in a ported box. Hits hard.

By Srphatness on June 4, 2013

30 found this helpful




FRING65, SDSK2, SDRLR1 small

NVX 6.5" Speaker Installation Kit

Includes: 2 Piece 6.5" / 6.75" Adhesive Foam Speaker Baffle Kit + 1.38 Square Feet of Sound Damping + Heavy Duty Roller for Sound Damping

(281)

$35.07

List price $52.72

SRG1021R small

Clarion SRG1021R

4" 2-Way SRG Series Coaxial Speakers (SRG-1021R)

(1)

$20.99

List price $49.99

HRD-92CCP small

Farenheit HRD-92CCP

Pair of 9" LCD Universal Replacement Headrest Monitors w/ Built-In DVD Player

$289.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Honda S2000

2008 Nissan Versa

2018 Ford Mustang

2010 MINI Clubman

1977 Ford Ranchero

2017 Ford C-Max

2017 Kia K900

1985 Mercury Capri

1983 Jeep CJ5

2003 Ford Escape

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
