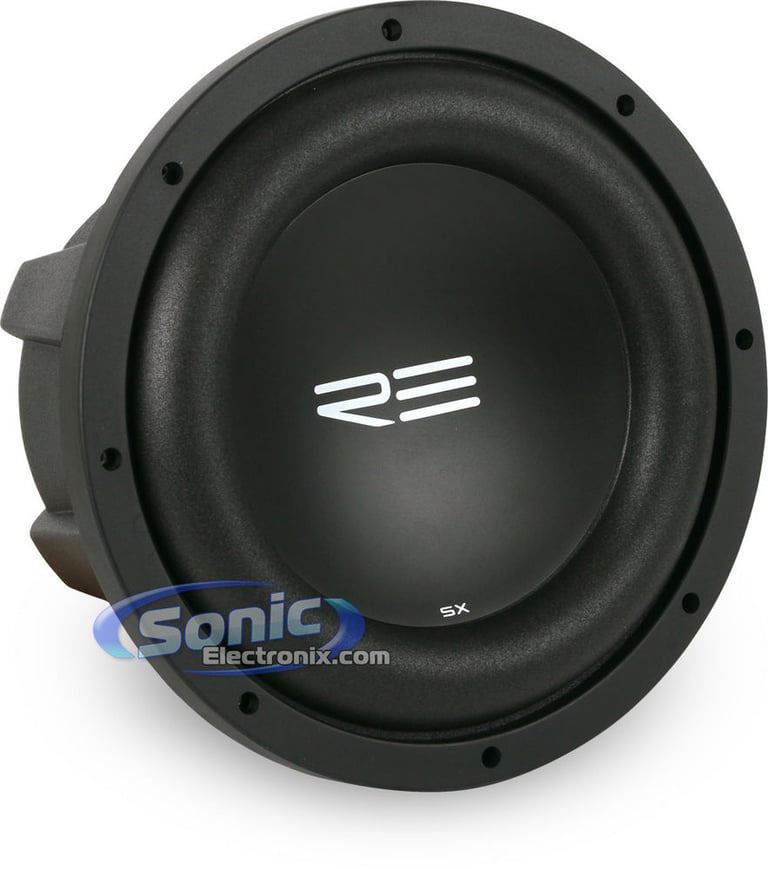

RE Audio SXX10D4

10" Dual 4 ohm SXX Series Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1000W
• Dual 4 ohm

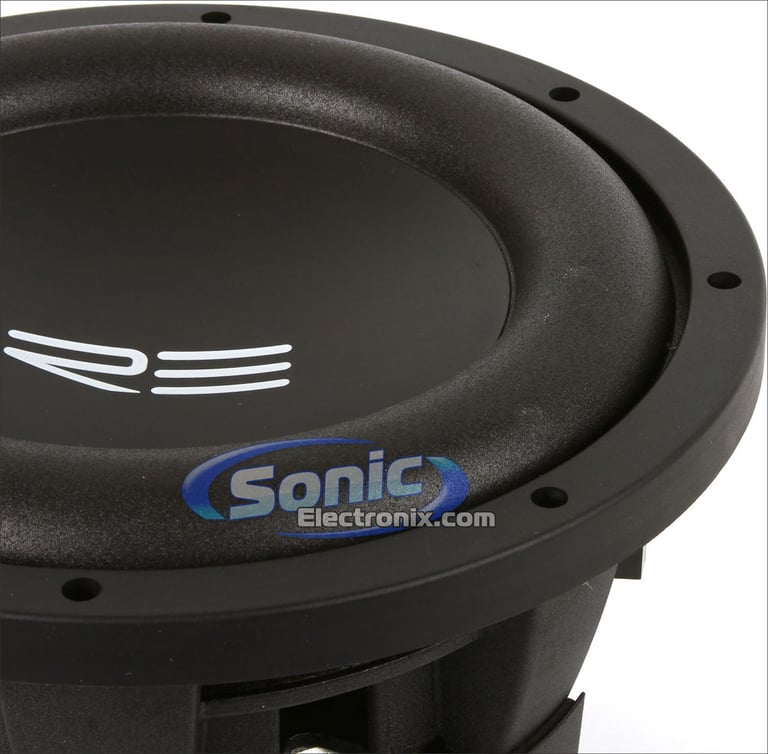

• Rubatek Foam Surround

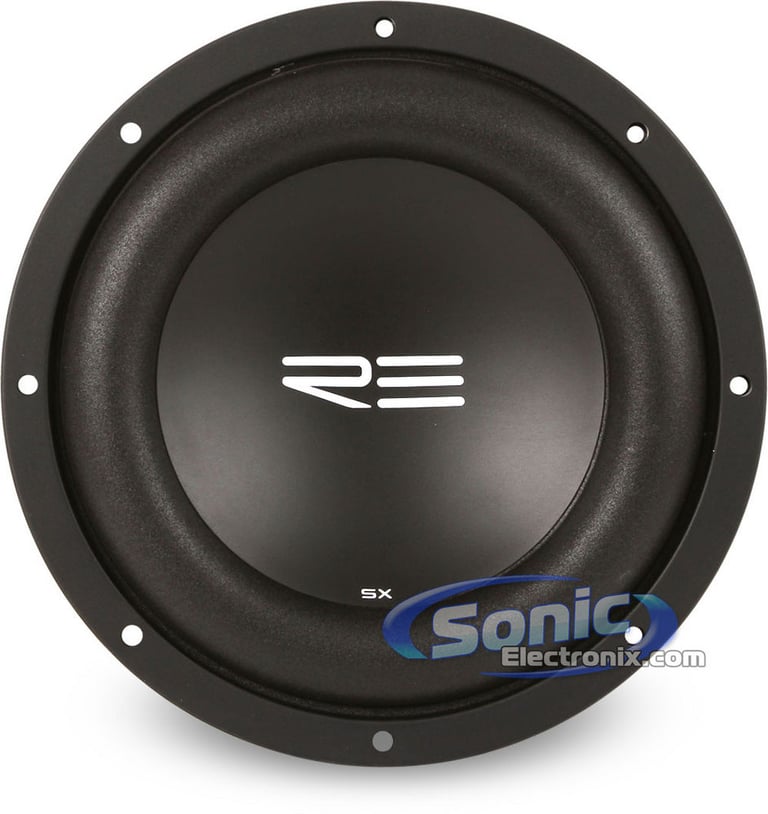

• Dual Composite 2-Piece Cone

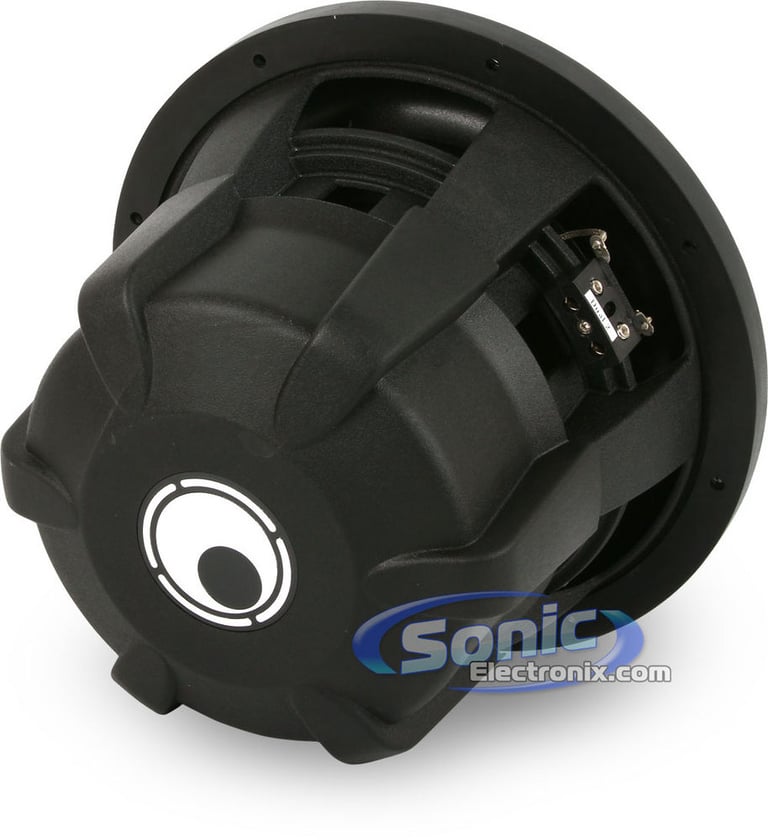

• Tork-Tite Terminals
• Progressive Spiders

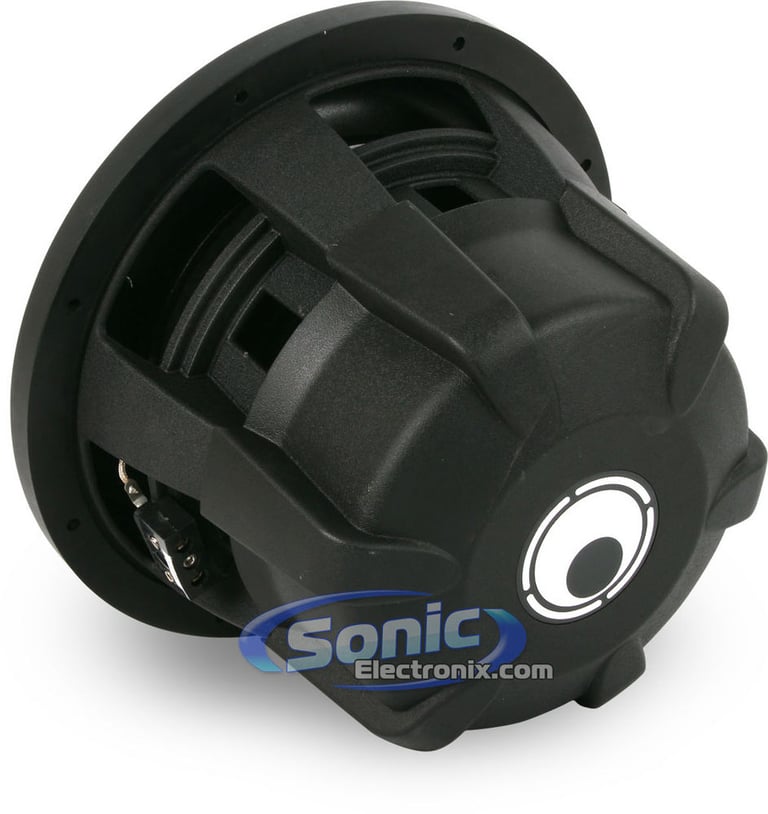

• Triple Stacked Magnets

Learn more about the sxx10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sxxv210d4 thumbnail

RE Audio SXXv2-10D4 (SXX v2 10D4)

OUR PRICE: $270.99

View item

Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

BTS-HN1 main

Crux BTS-HN1

Add Bluetooth Streaming, USB, and AUX Support in select 1998-2005 vehicles from Honda

-38.01%

$92.95

List price $149.95

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


• RMS Power: 1000W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SXX Subwoofers

RE Audio raises the bar for high output with the SXX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SXX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

Subwoofer Features:
  • 10" Dual 4 ohm SXX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket
  • Tork-Tite terminals
  • 3" 8-Layer voice coil
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 2 ohm: RE Audio SXX10D2
  • Proudly made in the USA
  • Also found as: sxx 10, sxx10, sxx 10d4, sxx-10, sxx-10d4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SXX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.29
  • Mechanical Q Value (Qms): 4.3
  • Total Speaker Q Value (Qts): 0.27
  • Free Air Resonance (Fs): 30.7 Hz
  • Equivalent Compliance (Vas): 21.8 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 85.2 dB SPL
  • Effective Piston Area (Sd): 310 cm2
  • DC Resistance (Re): 1.9 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 1000 W
  • Force Factor (Bl): 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SXXv2-10D4 thumbnail
(newest, current model)
RE Audio SXX10D4 thumbnail
(previous model, replaced by RE Audio SXXv2-10D4 (SXX v2 10D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SXX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
SXX Series
Subwoofer Size
10"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
85.2 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.7 Hz
Equivalent Compliance (Vas)
21.8 liters
Total Speaker Q Value (Qts)
0.27
Electrical Q Value (Qes)
0.29
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
4.3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXX10D4

Weight:

25.50lbs

Internal SKU:

sxx10d4

Internal Product ID:

27315

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SXX10D4 thumbnail image

5 star
85%
4 star
10%
3 star
5%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.9
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Release The Beast

The following review is for SXXv2-10D4, which is a part of the bundle you are viewing.

I bought one RE Audio SXXv2-10D4 & this baby drops some serious bass. If you run two of these Subs, you might blow your ear drums out!!!

By Tracy on November 23, 2014

35 found this helpful


HUGE!

The following review is for SXXv2-10D4, which is a part of the bundle you are viewing.

These woofers are the beefiest 10's ive ever seen. they have a huge surround definitely made for large excursion and an extremely large magnet to handle all the power. the spyders and tinsel leads are all very thick and look very strong. and i rated durability 3 stars because im still waiting on an amp to power these beasts. Cant wait to hear these things boom!

By brady on August 17, 2014

34 found this helpful


Very happy with this sub

I bought one of these as a temporary sub to take advantage of an unused sub box that I had built for an old sub. It was a vented box, I cannot recall the tuning but the volume was slightly larger than the max recommended for this sub. Overall this is a solid 10". I believe it has a very good balance between SQL and SPL in the sense that it is very accurate over a wide frequency range and it gets pretty darned loud for a 10". I was giving this sub 1400w rms (brutus 2100 @ 2ohms) and it handled it, though I will say that it lost some of its accuracy near the max volume. I would estimate that 1200w is more reasonable.

Bottom line: this is a well balanced sub that sounds good and plays loud and I believe it is a good value purchase.

By Sam on September 13, 2012

23 found this helpful


The box makes this sub!

I bought this sub because it was more non-mainstream than the big names like Alpine, MTX, Kicker, etc. Ive had 2 Type-R 10s, a Kicker L7 15, and many other subs and this little guy beats them all. If you put it in the right size box with a large amount of port area (22mm of xmax moves a lot of air) and feed it the recommended 800-1000 watts rms, then this sub will surprise you. I had limited space in my mustang, and this in a 1.4 ft^3 box tuned @ 35 hz is enough to take your breath away. People cant believe its only one 10" sub!

By Spencer on July 21, 2011

24 found this helpful


Boom!!

Give them power and they will respond!!

By Jrice on July 6, 2011

24 found this helpful


Best 10 in its price range, by far

This thing hammers. I only have one in the trunk of my car and it hits extremely hard, it also seems to hammer lows pretty well which is usually what you sacrifice when using 10 inch rather than 12s or 15s. If your like me your looking at this sub and comparing to the mainstream subs like the alpine type r, upper level rockford fosgate etc. Just get this sub, it blows them all away and sounds good doing it. Its also one of the coolest looking subs ive seen, which shouldnt be a factor in deciding which sub to get, but certainly is a benefit in the "aesthetics" department. Its rated at 1000RMS and im running 1200 to it with no distortion and i would confidently say you could do 1400 before problems start to show up.

By Justin on February 14, 2014

22 found this helpful


Great Subwoofer

Very loud for a 10 inch subwoofer Hits every note. Don't let the somewhat high price tag make you stray away, its worth it.

By Gary on May 12, 2013

22 found this helpful


Rollin' Earthquake

This sub BANGS!!!! I got 2 of these guys in the trunk of my 03 V6 Mustang on 1208 watts a piece and let me tell you, they kick ass. Hard to believe but I'm hittin' harder than these big body chevy's round my way and nobody can figure it out. These things can handle what ever you throw at em. I truely need a bigger enclosure but u can get much in the trunk of a mustang lol. Anyway for anybody looking to pound the streets this is the best thing smokin'. Forget the rest thats out there. Get your money right and invest in this sub. You won't regret it.

By beat_nutt313 on July 5, 2012

21 found this helpful


BUMP

The sub slams. I have it running at 1000 watts on an MB quart 1500D amp on 2 ohms. after i had it installed, the guy who installed said that little sub sounds like 2 12's and he was right. I would suggest getting a box that is 1 inch thick and ported. Then it will sound nice.

By Joe on December 7, 2011

22 found this helpful


RE REALLY, Earthquake coming

I bought this sub to replace my audiobahn high excursion woofer that blew off of 500 watts. I had an audiobahn alumhq10 prior to that and that woofer was fantastic until the spider separated from the former. So, I decided to go up to the big boys of competition woofers. Lets just say, that I am happy. I used to run two kicker 12's in my Honda (less air volume) and they hit hard. In my Mercedes (more air volume), this one woofer outputs the 2 12's like crazy. This one woofer causes all the air to be displaced in my car (taking breath away, or feeling it in your chest). See youtube at hwe13161 for yourself and decide. I only run this sub on 500 watts and it still kills everything I hear on the street. My amp is top quality Fosgate 250 mono stable @ 1 ohm. BUY THIS. I am not making any money from Sonic Electronics but I say BUY IT. YOU WILL NOT BE DISAPPOINTING. I am originally from Cali so I know what bass should sound and feel like, plus I am an audio installer.

By hwe13161 on February 1, 2012

20 found this helpful




HD-8BG small

Power Acoustik HD-8BG (BEIGE)

2 Universal BEIGE Leather Headrests Loaded with 8" TFT-LCD Monitors with Remote

(1)

$209.99

List price $599.99

SX18D4 small

RE Audio SX18D4 (SX18 D4)

1000W 18" SX Series Dual 4 ohm Subwoofer

(15)

$344.99

List price $824.99

XXX18 V2D2 small

RE Audio XXX18 V2D2 (XXXv2-18D2)

2000W 18" Dual 2 Ohm XXX Series Car Subwoofer

(7)

$799.99

List price $1999.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Honda S2000

2024 Nissan Leaf

2015 Audi A4 Quattro

2017 Lexus GS350

2009 Saab 9-7X

2015 Toyota RAV4

1994 Ford Ranger

2017 Ford Flex

1985 Audi 4000

2001 BMW 330Ci

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
