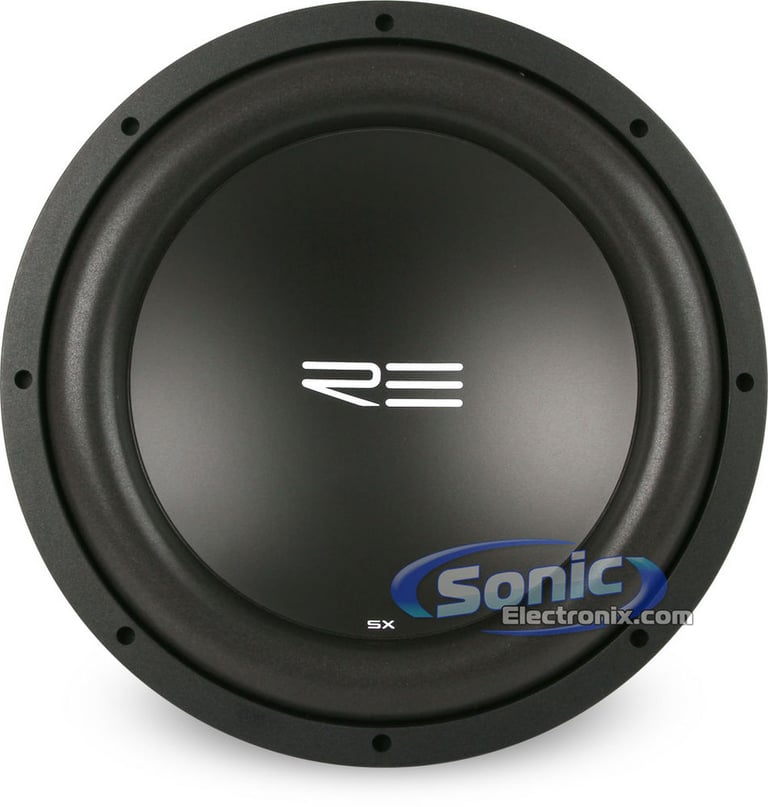

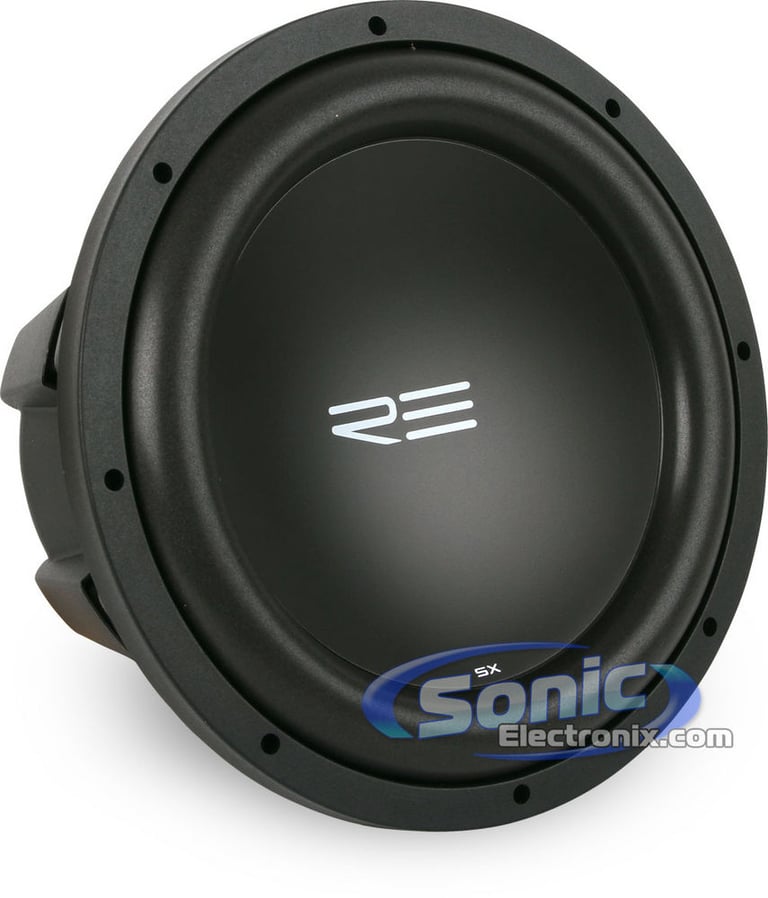

RE Audio SXX12D2

12" Dual 2 ohm SXX Series Car Subwoofer (Free Upgrade to Version 2)

36
RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1000W
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Learn more about the sxx12d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sxxv212d2 thumbnail

RE Audio SXXv2-12D2 (SXX v2 12D2)

OUR PRICE: $296.99

View item

Product Highlights

• RMS Power: 1000W
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description

RE Audio

Authorized dealer

RE Audio SXX Subwoofers

RE Audio raises the bar for high output with the SXX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SXX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

Subwoofer Features:
  • 12" Dual 2 ohm SXX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 2 ohm
  • Dual composite 2-piece cone

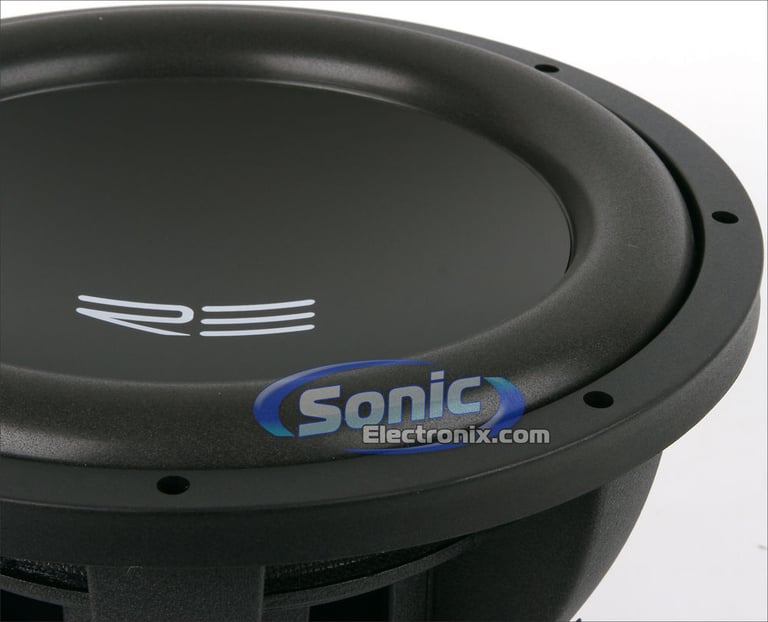

  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

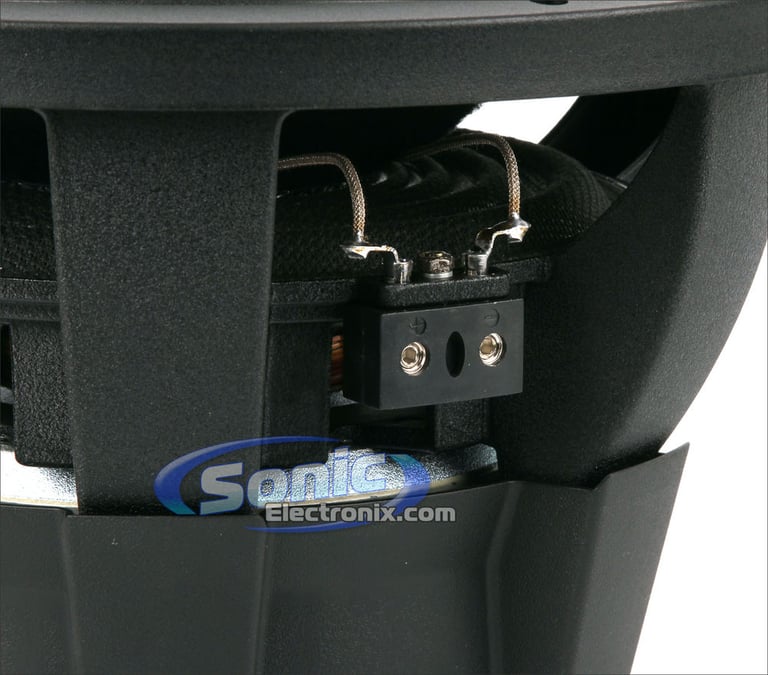

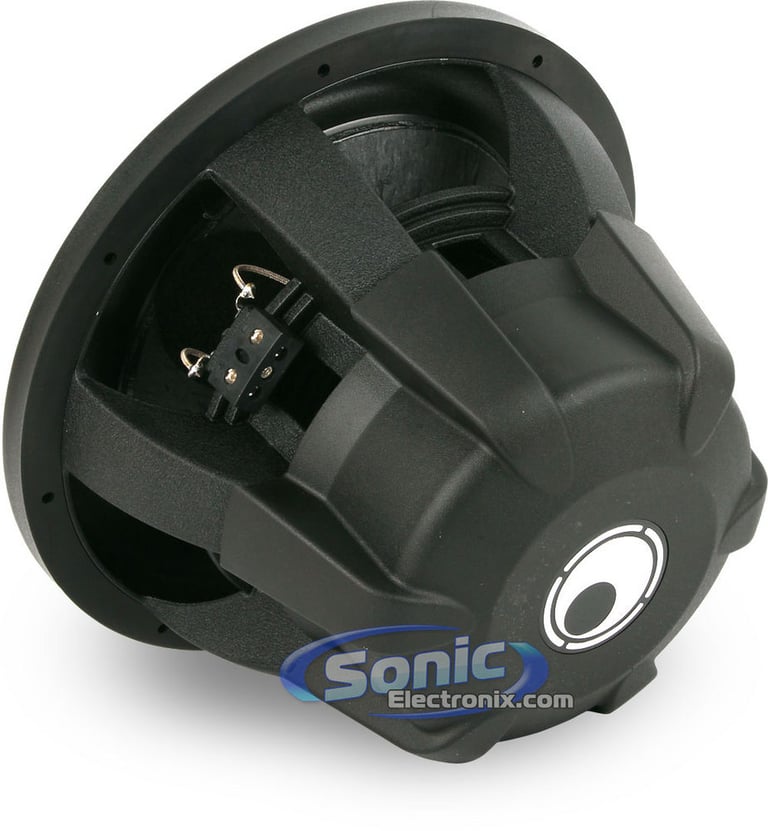

  • Tork-Tite terminals
  • 3" 8-Layer voice coil

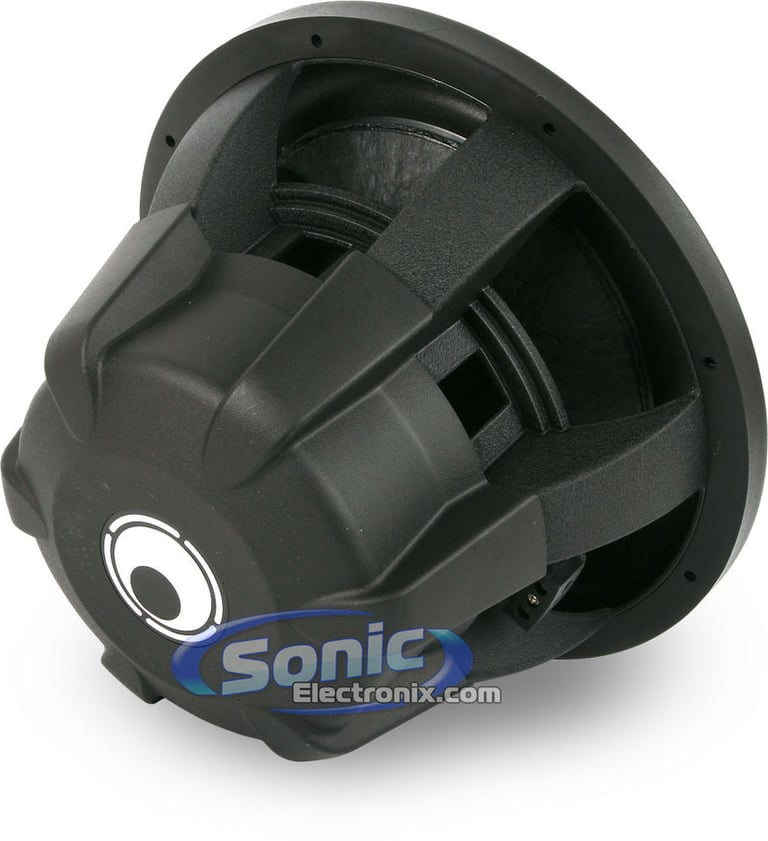

  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 4 ohm: RE Audio SXX12D4
  • Proudly made in the USA
  • Also found as: sxx 12, sxx12, sxx 12d2, sxx-12, sxx-12d2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SXX 12" T/S Parameters:
  • Electrical Q Value (Qes): 0.32
  • Mechanical Q Value (Qms): 4.4
  • Total Speaker Q Value (Qts): 0.30
  • Free Air Resonance (Fs): 30.6 Hz
  • Equivalent Compliance (Vas): 47.6 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 88.1 dB SPL
  • Effective Piston Area (Sd): 480 cm2
  • DC Resistance (Re): 1.9 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 1000 W
  • Force Factor (Bl): 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SXXv2-12D2 thumbnail
(newest, current model)
RE Audio SXX12D2 thumbnail
(previous model, replaced by RE Audio SXXv2-12D2 (SXX v2 12D2))

Subwoofer Wiring Guide

Wiring Guide to Wire 1 RE Audio SXX12D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXX12D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXX12D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXX12D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications
Series
SXX Series
Subwoofer Size
12"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
3"
Sensitivity
88.1 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
30.6 Hz
Equivalent Compliance (Vas)
47.6 liters
Total Speaker Q Value (Qts)
0.30
Electrical Q Value (Qes)
0.32
Electrical Resistance of Voice Coil (Re)
1.9 ohms
Mechanical Q Value (Qms)
4.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

RE Audio

Model Number:

SXX12D2

Weight:

26.50lbs

Internal SKU:

sxx12d2

Internal Product ID:

27317

Product and How-to Videos

  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews

RE Audio SXX12D2
36
Rate or review product
5 star
92%
4 star
6%
3 star
3%
2 star
0%
1 star
0%
Durability
4.9
Value
4.8
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:
Loading...

great sound

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

I have been a Rockford guy for years but there quality has been going down and price sky rocketing and a friend of mine told me about RE so I bought it and all I can say is wow great product for the cost.

By Jason on July 21, 2014

37

found this helpful.
Helpful? Report abuse

Amazing subs

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

These subs surprised me from the moment I took them out of their boxes. Heavy duty, well made appearance and the performance exceeded all my expectations. Sonic electronics shipped them quickly and they were well packaged. Great buy in all aspects.

By Ryan on July 28, 2014

34

found this helpful.
Helpful? Report abuse

GREAT SOUND

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

Great subs they really have power and the sound is loud I recommend them to people who are going to buy subs

By Jgarcia on July 7, 2014

34

found this helpful.
Helpful? Report abuse

great value on a great product

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

These things hit hard and sound great. This pair of speakers are the best ones I have ever owned. They are not easy to wire a pair in series make sure you look up the wiring this info is NOT included in the owners manual

By ducky on November 27, 2014

34

found this helpful.
Helpful? Report abuse

jl w7 killer

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

This sub is crazy its power hungry though I have one 12 re audio in a slot ported ground shaker w7 box with the nvx 1200.1 my friends thk I have four 12s this is how much bass im talking about ... it will hold every bass note at high volume all your lows and everything great sub and great amp too never go wrong with this combo I promise !!!

By todd on September 19, 2013

32

found this helpful.
Helpful? Report abuse

Great stuff

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

Love this speaker, great quality and really bumps great great deal for the price. And can take a beating.

By Chr on August 17, 2014

31

found this helpful.
Helpful? Report abuse

Great Woofer

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

Definitely recommend this woofer! Hits as loud as you think it will and then some more!

Only Con: for the first 3 days, it gave off a burnt rubber smell.
No problems since...

Damn thing broke my sunroof!(too much bass) I demand my money back haha!

By Dino on August 8, 2014

29

found this helpful.
Helpful? Report abuse

Great Woofer

The following review is for SXXv2-12D2, which is a part of the bundle you are viewing.

One word to the wise With this sub, don't put this thing in a small box. I have mine in a 1.9 cu. ft. box and it doesn't fly like I hoped or like other reviews have noted of similar models. Running it off a Rockford R1200-1D @ 1OHM. Although it is loud, it's not too impressive IMO. Have it in a 99 4Dr Blazer, box is vented and tuned to 34 Hz. The woofer is a beast and has handled everything like a champ these first 3 weeks. Time to start playing with boxes and make thing monster really start to sing!!!

By Shane on September 23, 2013

27

found this helpful.
Helpful? Report abuse

The right Sub

Great Sub would advise anyone to buy.

By Isaac on October 11, 2010

18

found this helpful.
Helpful? Report abuse

SSX12

This sub is so loud and durable, this sub is in a 2 cu. Ft box tuned to 34 hz this sub blows all others out of the water. It is the loudest sub I've ever owned, I set off car alarms every time I go out, definitely a good buy

By Jimmy on July 27, 2010

17

found this helpful.
Helpful? Report abuse
See all 36 reviews
