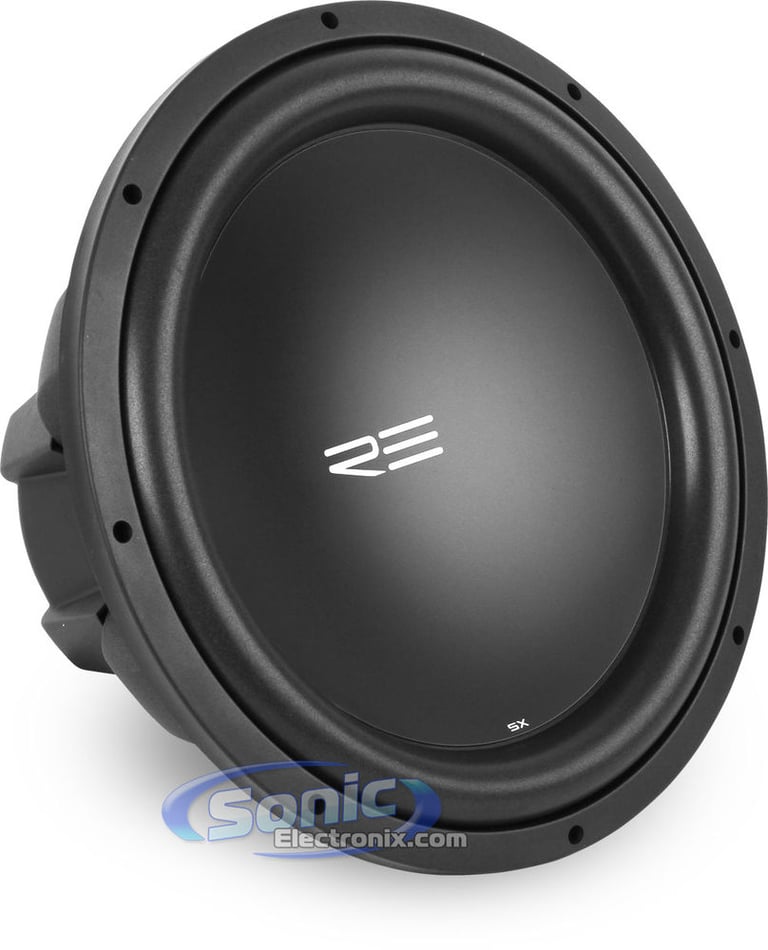

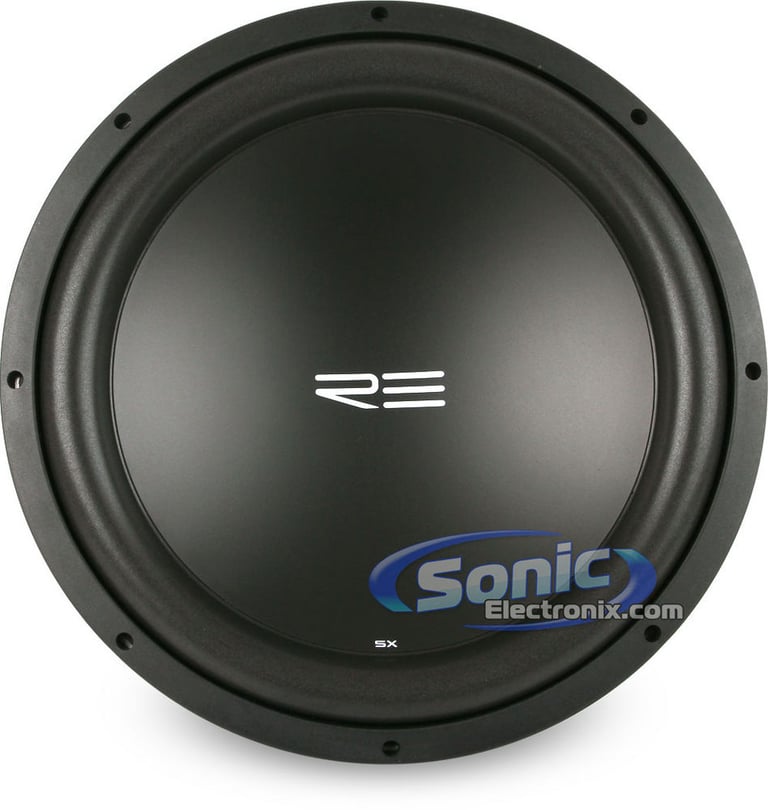

RE Audio SXX15D2

15" Dual 2 ohm SXX Series Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1000W
• Dual 2 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Learn more about the sxx15d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sxxv215d2 thumbnail

RE Audio SXXv2-15D2

OUR PRICE: $267.99

View item

Loading...
APSUB-CH41 main

PAC APSUB-CH41

Amplifier and Subwoofer Integration Interface for select 2013-2024 vehicles from Ram, Jeep, Dodge

-27.36%

$239.00

List price $329.00

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

AXSUB-CH5 main

Axxess AXSUB-CH5

Active 2-Channel Line Output Converter and Subwoofer Data Interface for select 2014-2026 vehicles from Ram, Jeep, Dodge

-10.04%

$205.99

List price $228.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Product Highlights


• RMS Power: 1000W
• Dual 2 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SXX Subwoofers

RE Audio raises the bar for high output with the SXX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SXX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

Subwoofer Features:
  • 15" Dual 2 ohm SXX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 2 ohm
  • Dual composite 2-piece cone

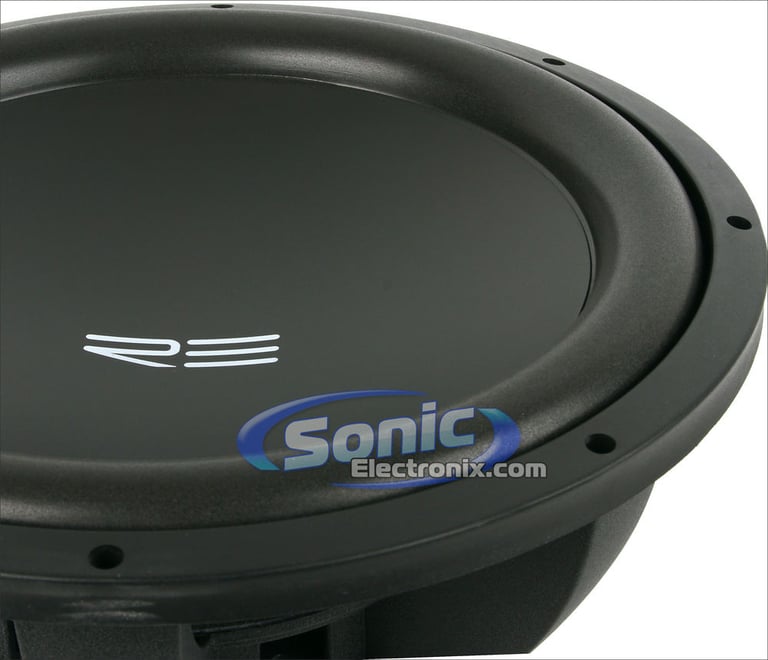

  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

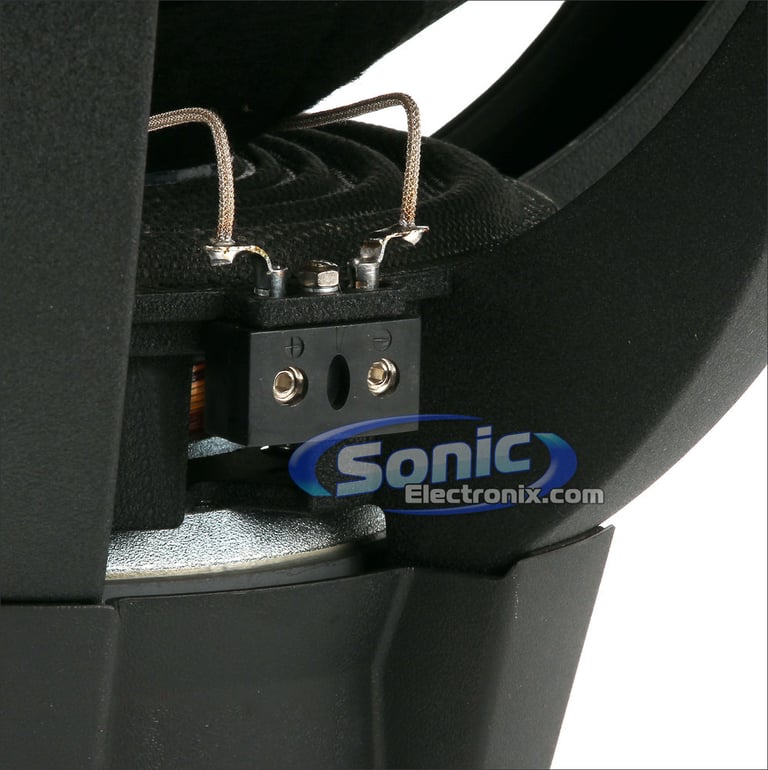

  • Tork-Tite terminals
  • 3" 8-Layer voice coil

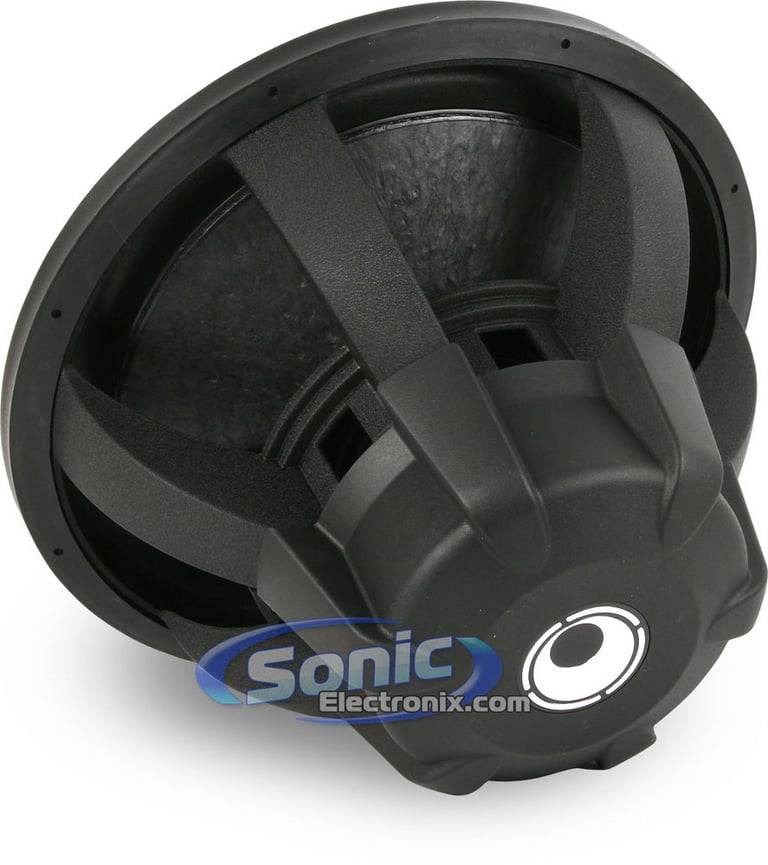

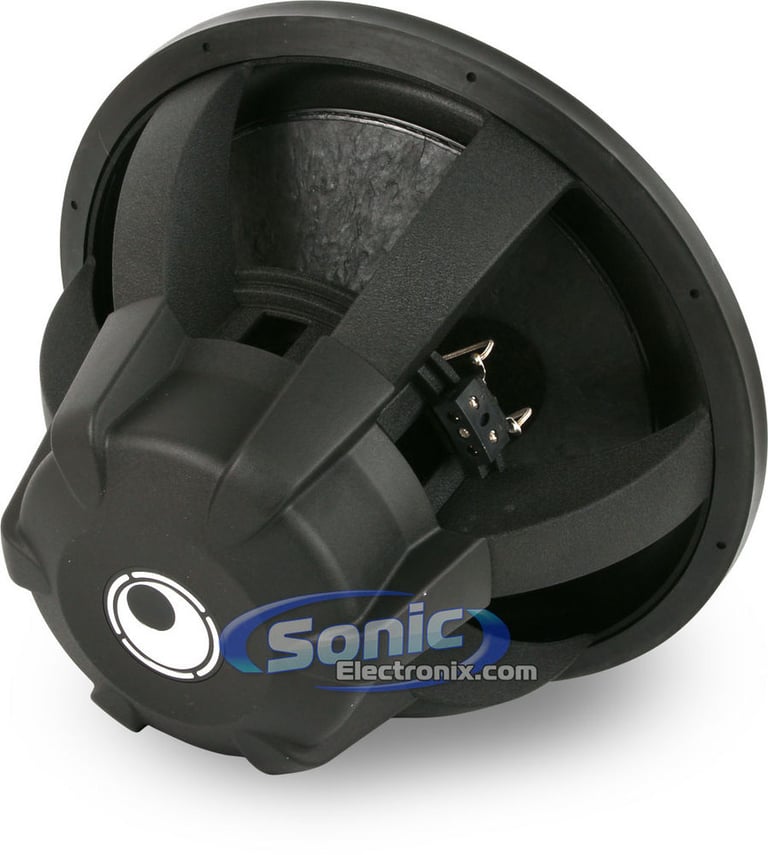

  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 4 ohm: RE Audio SXX15D4
  • Proudly made in the USA
  • Also found as: sxx 15, sxx15, sxx 15d2, sxx-15, sxx-15d2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.38
  • Mechanical Q Value (Qms): 4.7
  • Total Speaker Q Value (Qts): 0.38
  • Free Air Resonance (Fs): 27.8 Hz
  • Equivalent Compliance (Vas): 126.3 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 90.4 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 1.9 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 1000 W
  • Force Factor (Bl): 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SXXv2-15D2 thumbnail
(newest, current model)
RE Audio SXX15D2 thumbnail
(previous model, replaced by RE Audio SXXv2-15D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SXX15D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXX15D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXX15D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXX15D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51K5RDL7T102 main

Kicker 51K5RDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

-10.53%

$849.99

List price $949.99

51KRDL_NDA15_XK42_NK_KK main

Kicker KRDL7T10 Subwoofer Enclosure + NVX NDA15001 Amp w/ Free Amp Install Kit

1000W RMS Loaded Dual 10 inch Sealed Truck Enclosure, 1500W RMS Class D Monoblock Amplifier with Bass Remote, 4 Gauge OFC Wiring Kit and Koozies

138
-24.94%

$1,050.02

List price $1398.94

51KTDL7_NDA15_XK42_NK_49K main

Kicker 51KTDL7T102 + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1500W RMS Class D Monoblock Car Amplifier, 4 Gauge OFC Wiring Kit, and Koozies

137
-24.94%

$1,050.02

List price $1398.94

51K5RDL7_NDA15_XK42_NK_49K main

Kicker Dual 10" Sub Box (51K5RDL7T102) + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with NVX 1500W RMS Monoblock Amp, 4 Gauge OFC Wiring Kit, and Can Insulator Koozies

137
-24.94%

$1,050.02

List price $1398.94

EXCL-RAMBASS.DF/21-UP.LD main

DS18 EXCL-RAMBASS.DF/21-UP.LDPKG

2400W Peak (1200W RMS) Loaded Dual 10" Sealed Enclosure and Amplifier Package for select 2021-2024 2500 and 3500 and 1500

-16.67%

$2,039.95

List price $2447.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
SXX Series
Subwoofer Size
15"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
90.4 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.8 Hz
Equivalent Compliance (Vas)
126.3 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.38
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
4.7
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXX15D2

Weight:

29.51lbs

Internal SKU:

sxx15d2

Internal Product ID:

27320

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SXX15D2 thumbnail image

5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

sq & spl subwoofer!!

The following review is for SXXv2-15D2, which is a part of the bundle you are viewing.

i have owned the original sx15 and now wanted to go back to resonant engineering again SXXv2 15, amp i am using Rockford Fosgate P1000X1BD @ 1 ohm birth sheet 1403. If you want to get loud and have the space get 2 of theses, only regret is i didn't buy XX or XXX 15. A lot of ppl have been bashing the newer re audio but from my experience the v2's sub woofers are back on track.

By Doc on September 9, 2014

46 found this helpful


Boom!

I had 2 of these in my nissan frontier and they slam! just put it in the right enclosure.

By Gello on December 20, 2012

38 found this helpful


big bass

i have 6 of these in a custom fiberglass box in a 2003 Mitsubishi Eclipse GT. I literally blew the windshield out, would recommend to anyone

By famous on August 26, 2010

37 found this helpful


THUMP THUMP THUMP!!!!!!!!!!!!WARNING(VIOLENT SUBWOOFER)

The following review is for SXXv2-15D2, which is a part of the bundle you are viewing.

I have this subwoofer on a 1300 rms watt amp and it thumps. My friends ask me why man, why is this so loud. When I drive past people they either give a look of I hate you or man that sounds mean. but if you have this sub get a second battery like I did plus make sure you have nice high and mids in your car or they will not be heard. I have 4 JBL mid drivers and 10 1 inch tweeters and 2 4 inch pioneer super tweeters it sounds like I am in concert !!!!!!!!!!!!!!!!!!!

By Dignifed93 on September 12, 2014

37 found this helpful


Not for the faint of heart!

I recommend to anyone who loves bass that will flex your windshield! I'm not kidding either, this sub plays notes I have never heard before. It will hit the low notes like a BEAST.

By Gabe on March 29, 2011

37 found this helpful


RE's

The following review is for SXXv2-15D2, which is a part of the bundle you are viewing.

These subs are dope. They pound like you wouldn't believe. When paired with the right amp and enclosure they will shake everything in your ride. I would recommend these to anyone looking for deep bass and a hard punch.

By Derek on November 21, 2014

36 found this helpful


look good

Got my sub last week, but have not installed it yet. It looks like a real beast. Good service from sonic, will definitely order from them again.

By Jimmy on March 23, 2014

35 found this helpful


hits hard

The following review is for SXXv2-15D2, which is a part of the bundle you are viewing.

got this sub to replace my alpine type x 10 inch. it hits hard, not sure if as hard as the alpine but that may be because of the box and amp I'm using. sounds crisp though for a 15 inch sub. you can tell the craftsmanship is good though, quality materials etc. built to last for sure.

By erik on December 1, 2013

35 found this helpful


The Big League.

I recommend this product to anyone who can handle extreme bass and spl. This sub isn't a good choice for nancy boys or an intro system. I have one of these hooked up to a 1000.1 amp in a huge box. I had to put the box in my back seat because it wouldn't fit in my trunk. This thing HOUNDS, I have door flex, roof flex,trunk flex, front/rear windshield flex, AND hood flex. Everything is powered by stock power. If your not a little sissy then this sub is for you.

By brandon on February 10, 2013

34 found this helpful


Buy it. Don't think,just buy

Bought this sub along with a sealed ground shaker box and it blew me away.. Now I wanna get get two new ones and hand this one down to my little brother.. This sub band at any level I have a diamond audio hex 750.1 and it bangs this sub perfectly.. Get it..

By devin on May 5, 2013

33 found this helpful




PC 2 CHAT small

Sennheiser PC 2 CHAT

On Ear PC Stereo Headset with USB Sound Card

$19.95

List price $25.95

MUO BLACK small

KEF MUO BLACK

Portable Wireless Bluetooth Speaker

$279.00

List price $349.95

95-6534B small

Metra 95-6534B Dash Kit

Double DIN Stereo Dash Kit for select 2007-2008 Compass and Patriot and Caliber

(3)

$39.99

List price $71.99

WR-5 small

Sangean WR-5

iPod/iPhone Docking AM/FM Radio Wooden Cabinet Receiver

(2)

$109.99

List price $199.95

Aurora MP300 Plus (Liquid Silver) small

Edifier Aurora MP300 Plus Liquid Silver

2.1 Channel Speaker System for PC, MP3 Players, and iPod (Liquid Silver)

$69.99

List price $99.99

IEP385RED small

iLuv iEP385RED JetTurbo - Red

JetTurbo High-Performance Earphones with SpeakEZ Remote for iPad/iPhone/iPod (IEP385RED)

$12.99

List price $34.99

JBLFLIP3BLUE small

JBL Flip 3 (Blue)

Splashproof Portable Bluetooth Speaker with Powerful Sound and Speakerphone Technology

$79.95

List price $110.00

TW 10 small

Massive Audio TW 10

10" Dual 4 ohm TW Series Car Subwoofer

$129.99

List price $199.95

HARMONY-2 small

DreamWave HARMONY

16 Watt Portable Bluetooth Speaker

$99.95

List price $149.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Ram 2500

2011 Lexus LS600hL

2016 Ford Expedition

2002 BMW M5

1998 BMW Z3

2004 Honda Odyssey

2000 Lexus GS300

2007 Chrysler Pacifica

2015 Subaru Impreza

1998 Volkswagen Passat

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
