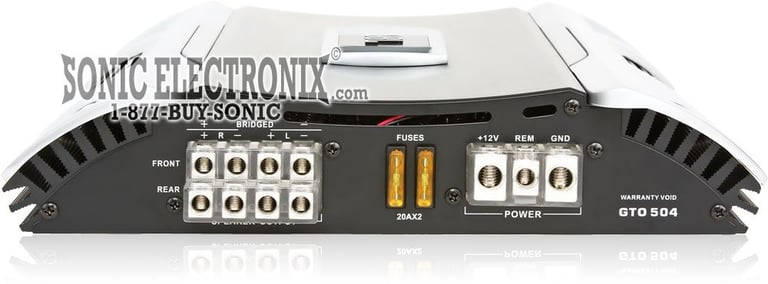

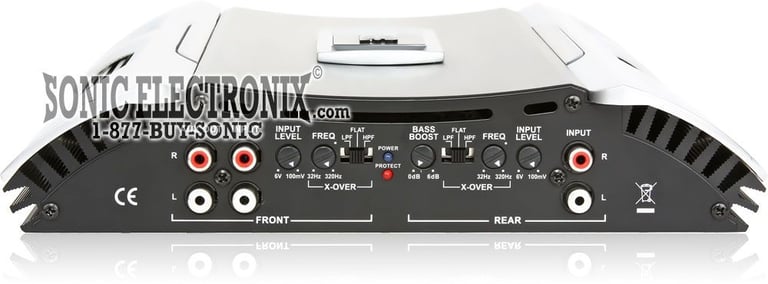

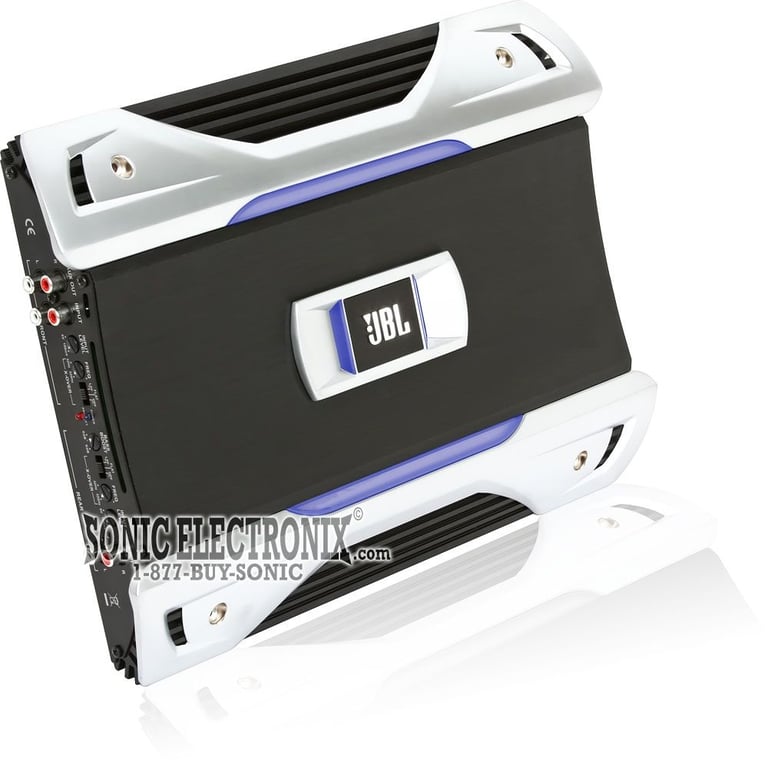

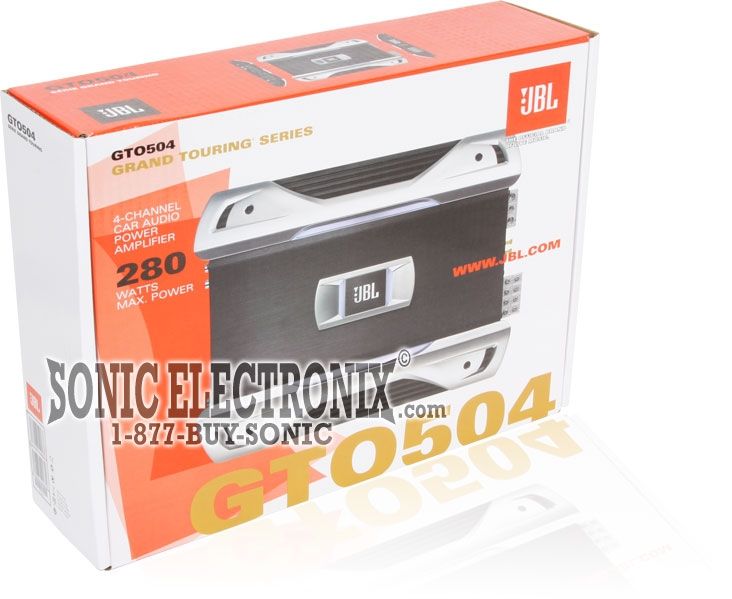

JBL GTO504

560W Max, 4-Channel Grand Touring Series Class AB Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

Grand Touring Series 4-Channel Class AB Car Amplifier • 55W x 4 chan. @ 4 ohm • 70W x 4 chan. @ 2 ohm • 140W x 4 chan. Max • Preamp RCA outputs • Cast-aluminum heatsink

Learn more about the gto504

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

70-5512 main

Metra 70-5512 Wiring Harness

Install a new car stereo in select 1989-2000 vehicles from Ford

-60.90%

$8.99

List price $22.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

51KSC6804 main

Kicker KSC68 (51KSC6804)

150W Peak (75W RMS) 6x8" KS Series 2 Way Coaxial 4-ohm Speakers

2
-13.33%

$129.99

List price $149.99

51KSC6504 main

Kicker KSC65 (51KSC6504)

400W Peak (200W RMS) 6.5" KS Series 2 Way Coaxial 4-ohm Speakers

6
-13.33%

$129.99

List price $149.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


Grand Touring Series 4-Channel Class AB Car Amplifier • 55W x 4 chan. @ 4 ohm • 70W x 4 chan. @ 2 ohm • 140W x 4 chan. Max • Preamp RCA outputs • Cast-aluminum heatsink

Description


JBL brand icon

Authorized dealer

  • Grand Touring Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 55 watts x 4 chan.
    • 2 ohm: 70 watts x 4 chan.
  • Max power output: 140 watts x 4 chan.
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost)
  • Preamp RCA outputs
  • Cast-aluminum heatsink
  • Variable high-pass filter (32-320 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-100000 Hz
  • Dimensions: 13-3/16"L x 10-3/8"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Also can be found as: GTO-504, GTO50.4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
70 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
560 watts
Total RMS Power Output
280 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTO504

Weight:

10.00lbs

Internal SKU:

gto504

Internal Product ID:

12243
