See all parts that fit your 2016 A3

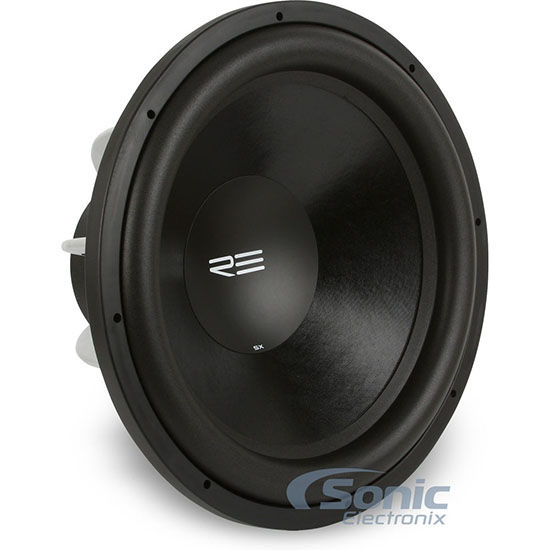

RE Audio SXX 18 (SXX18D4)

18" Dual 4 ohm SXX Series Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

18" SXX Series Car Subwoofer • 1000 Watts RMS • Dual 4 ohm • Rubatek Foam Surround • Dual Composite 2-Piece Cone • Tork-Tite Terminals • Progressive Spiders • Triple Stacked Magnets

Learn more about the sxx18d4

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Product Highlights


18" SXX Series Car Subwoofer • 1000 Watts RMS • Dual 4 ohm • Rubatek Foam Surround • Dual Composite 2-Piece Cone • Tork-Tite Terminals • Progressive Spiders • Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

RE Audio SXX Subwoofers

RE Audio raises the bar for high output with the SXX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SXX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

Subwoofer Features:
  • 18" Dual 4 ohm SXX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket
  • Tork-Tite terminals
  • 3" 8-Layer voice coil
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 2 ohm: RE Audio SX18D2
  • Proudly made in the USA
  • Also found as: sxx 18, sxx18, sxx 18d2, sxx-18, sxx-18d2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SXX 18" T/S Parameters:
  • Electrical Q Value (Qes): 0.53
  • Mechanical Q Value (Qms): 6.1
  • Total Speaker Q Value (Qts): 0.48
  • Free Air Resonance (Fs): 33.2 Hz
  • Equivalent Compliance (Vas): 159 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 92.7 dB SPL
  • Effective Piston Area (Sd): 1210 cm2
  • DC Resistance (Re): 1.9 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 1000 W
  • Force Factor (Bl): 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SXX18D4 thumbnail
(newest, current model)
RE Audio SX18D4 thumbnail
(previous model, replaced by RE Audio SXX 18 (SXX18D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SXX 18 (SXX18D4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SXX 18 (SXX18D4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SXX 18 (SXX18D4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SXX 18 (SXX18D4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
18"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
5.5 cubic feet
Maximum Ported Box Volume
8.0 cubic feet
Top-Mount Depth (Mounting Depth)
9-1/2"
Cutout Diameter
16-3/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SXX18D4

Weight:

32.00lbs

Internal SKU:

sxx18d4

Internal Product ID:

27323
