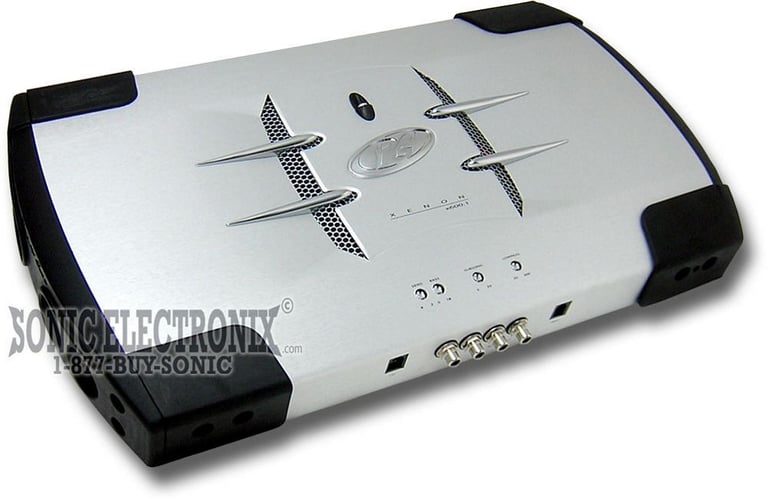

Phoenix Gold Xenon X600.1

Class D Monoblock Amplifier

Product videos
highlight-star-icon

600 watt amplifier • 600W x 1 (1-4 Ohms) • Xe.load, Xe.tune, Xe.flow • Built in High/Low Pass Crossovers • Bass Boost: 0-18dB • Variable input sensitivity

Learn more about the x6001

We apologize

This item has been discontinued

Product Highlights


600 watt amplifier • 600W x 1 (1-4 Ohms) • Xe.load, Xe.tune, Xe.flow • Built in High/Low Pass Crossovers • Bass Boost: 0-18dB • Variable input sensitivity

Description


Phoenix Gold brand icon

Authorized dealer

  • 600 Watt Power Amplifier
  • High efficiency (greater than 80%) Class D Operation
  • Xe.load™: optimized for any impedance load
  • Xe.tune™: 24dB Linkwitz-Riley subsonic and low pass crossovers
  • Xe.flow™: variable thermal feedback controlled fans
  • Buffered RCA full range thru output
  • Remote Monitoring Display (RMD) port
  • Low Pass Level control ready (LPL-44)
  • 600W x 1 (4-1 ohm)
  • Built-in Crossovers
  • Optional Remote Voltage Display
  • Optional Remote Low-Pass Level Control
  • Variable input sensitivty
  • 0 - 18dB Bass Boost at 45Hz
  • CEA-2006 Compliant
  • Dimensions: 18.25" L x 10.6" W x 2.5" H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 18dB(45Hz)
Fuse Rating
60A
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

X600.1

Weight:

16.00lbs

Internal SKU:

x6001

Internal Product ID:

2748

Product and How-to Videos


Customer Ratings & Reviews



5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.5
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Decent, middle of the road monoblock

I've owned several amps (with my benchmark favorite - ESX Q175.2), and purchased this amp to power 1 or 2 10" subs. Decently constructed amp; the terminals and covers are a nice touch. I would have liked the output RCA's to be crossed over in high pass or have the option, but they RCA outputs are full-range. Power wise, I wasn't terribly impressed, my amp was rated at 614 W @ 4 ohm - but I read several reviews around the web that said that should be the expectation. Would have liked to get a couple more watts for free, but hey, what can I expect? Overall, it does what it says - it's a decent middle of the road amp, that pushes clean power.

By Alex on March 30, 2006

29

found this helpful.

Xenon Power

i have owned this amp for 3 months now and am very pleased with it. i have it running at 1ohm and it never gets hot. it appears to be very efficient and very well built. the crossover is very easy to use and easy to tune if you're into the whole "i know what frequency i want": then simply dial it in.

the subsonic filter goes well below 5hz for some reason, but it does. the installation is simple and clean.

By jon on October 24, 2005

28

found this helpful.

WORTH EVERY PENNY

I am currently buying 1 maybe 2 of these amps.. i have heard that 1 of these amps can provide power all 4 of my 12's.. well im gona have to find that out for my self because that is very hard to believe.. But pheonix gold is one of hte best companys out there..

By derek on February 25, 2006

27

found this helpful.

Awsome!

This amp is very nice. I own the Onyx edition and I love it. Way underrated at 600.1 my birthsheet is at 862 watts rms. 262 watts of extra power! I use this amp to push two Rockford 15" subs and wow. It has that nifty blue led light so you can keep an eye on it, it keeps itself cool though the intake and the heatsink design. It looks really cool too.

By Troy on July 7, 2005

27

found this helpful.
