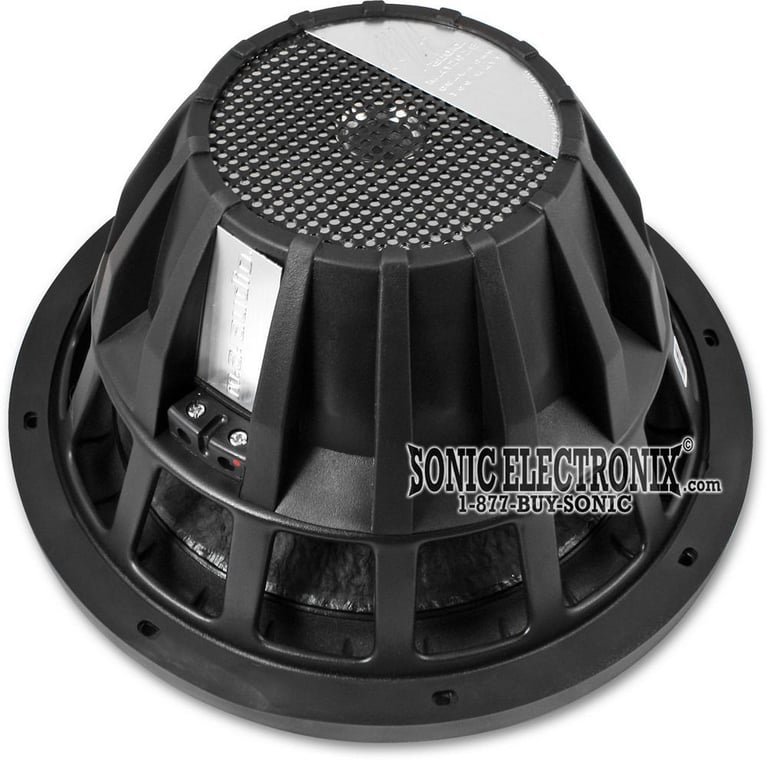

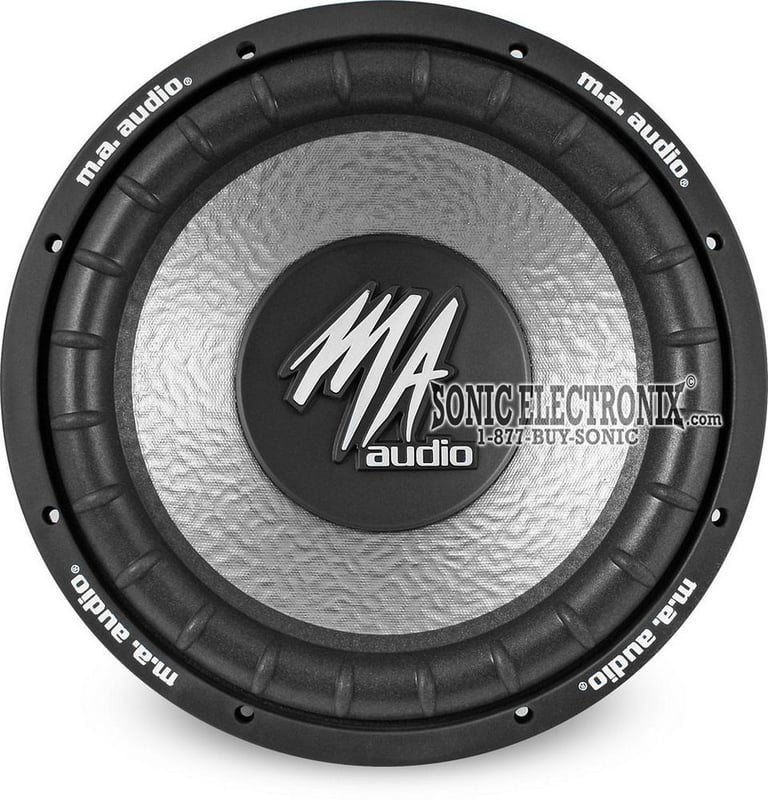

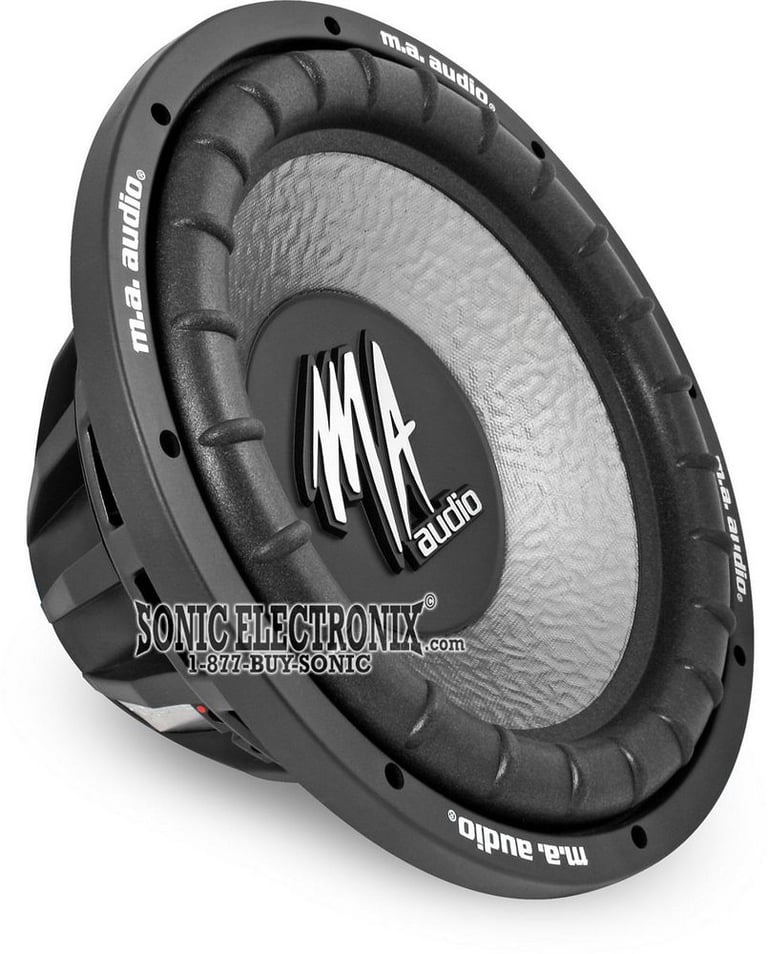

MA Audio MA120XE

12" Dual 4 ohms Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

12" Dual 4 ohms Competition Subwoofer • 350W RMS • 700W Max • Dual 4-ohm Voice Coils • 150oz. Double Stacked Strontium Magnets • Reinforced Ribbed High Foam Surround • Black Powder Coated Stamped Steel Basket • Copper Wound Voice Coils

Learn more about the ma120xe

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

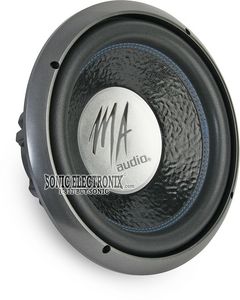

ma123xe thumbnail

MA Audio MA123XE

OUR PRICE: $74.99

View item

Product Highlights


12" Dual 4 ohms Competition Subwoofer • 350W RMS • 700W Max • Dual 4-ohm Voice Coils • 150oz. Double Stacked Strontium Magnets • Reinforced Ribbed High Foam Surround • Black Powder Coated Stamped Steel Basket • Copper Wound Voice Coils

Description


MA Audio brand icon

Authorized dealer

  • 12" Dual 4 ohms Competition Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Impedance: Dual 4 ohms
  • Non-pressed paper cone woofer
  • Reinforced ribbed high foam surround technology
  • Black powder coated stamped steel basket
  • Ultra strong polypropylene dust cap
  • Platinum plated block terminals
  • Copper wound voice coils
  • 150oz. Double stacked strontium magnet structures
  • Mounting Depth: 6.2”
  • Mounting Diameter: 10.9”
  • Optimum Vented Box: 2 Cu/Ft
  • Round Port Diameter: (2) 4”
  • Square Port Area: 25 Sq/In
  • Port Length: 15.5”
  • Optimum Sealed Box: 0.75 – 1.25 Cu/Ft
  • 2-year Manufacturer's warranty

Product history:

MA Audio MA123XE thumbnail
(newest, current model)
MA Audio MA120XE thumbnail
(previous model, replaced by MA Audio MA123XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA120XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA120XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA120XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA120XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Sensitivity
89.25 dB
Woofer Surround
Reinforced Ribbed High Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6.2"
Cutout Diameter
10.9"
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

MA120XE

Weight:

15.00lbs

Internal SKU:

ma120xe

Internal Product ID:

2758
