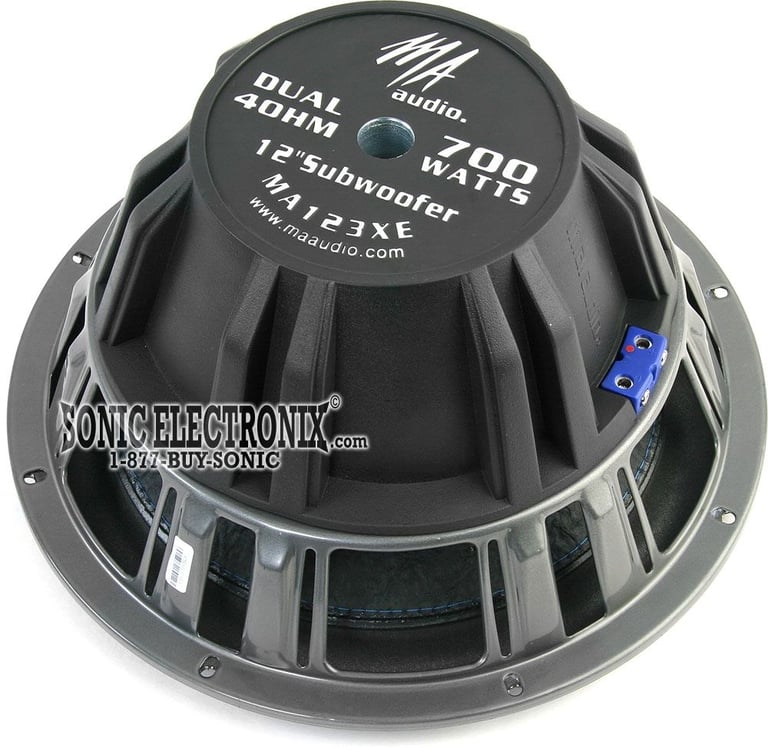

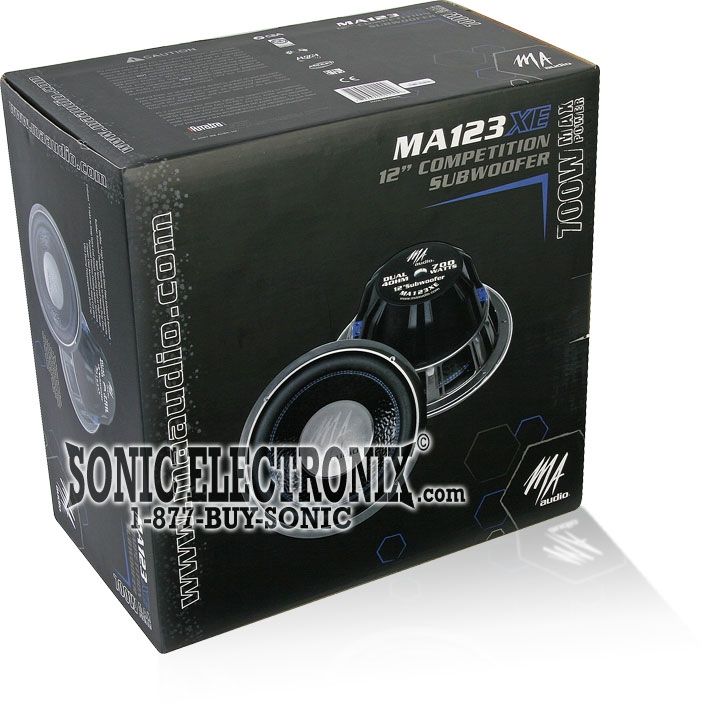

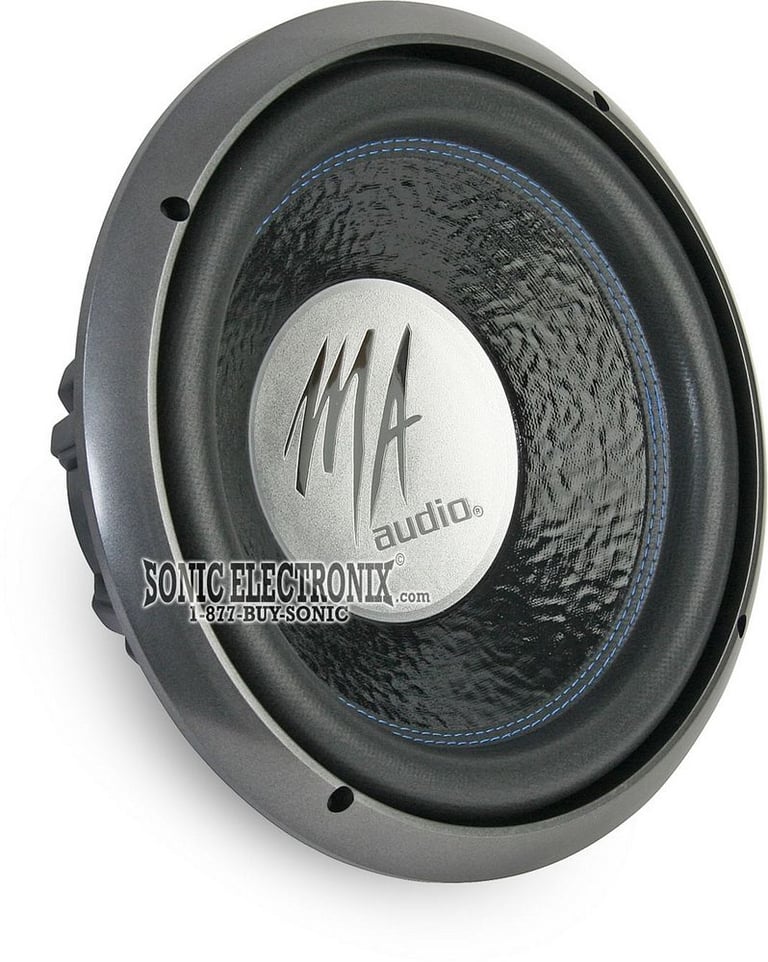

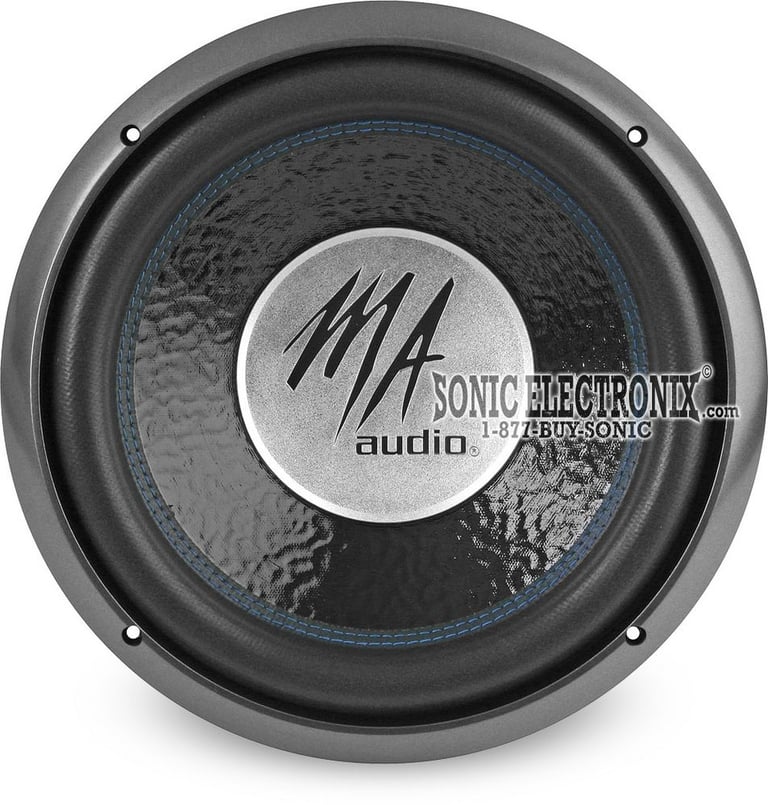

MA Audio MA123XE

12" Dual 4 ohm XE Series Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

12" Dual 4 Ohm XE Series Subwoofer • 700W Max • 350W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 89oz. Double stacked strontium magnets

Learn more about the ma123xe

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


12" Dual 4 Ohm XE Series Subwoofer • 700W Max • 350W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 89oz. Double stacked strontium magnets

Description


MA Audio brand icon

Authorized dealer

  • 12" Dual 4 Ohm XE Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Non pressed paper cone woofer
  • Double stitching rubber surround with glass fiber reinforcement
  • Die-cast basket
  • Dual laminated progressive Dupont spider
  • "CoilVent" T-yoke allows for greater power handling while keeping voice coils cool
  • Polypropylene dust cap
  • Platinum plated block terminals
  • Plastic sealant gasket
  • Kapton voice coil former
  • Dual 4 ohm copper coated aluminum voice coils
  • 150oz. Double stacked strontium magnets
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

2008 MA Audio New Release

Product history:

MA Audio MA123XE thumbnail
(newest, current model)
MA Audio MA120XE thumbnail
(previous model, replaced by MA Audio MA123XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA123XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA123XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA123XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA123XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
89 dB
Xmax (millimeters)
24 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Reinforced Paper
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
11-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MA123XE

Weight:

15.00lbs

Internal SKU:

ma123xe

Internal Product ID:

11890
