Name: db Drive pd2000.1 R/B
Brand: db Drive
SKU: LS-pd20001-RB
Price: 199.95 USD
Availability: Discontinued
Rating: 4.6667 (3 reviews)

Shop all db Drive

by db Drive

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

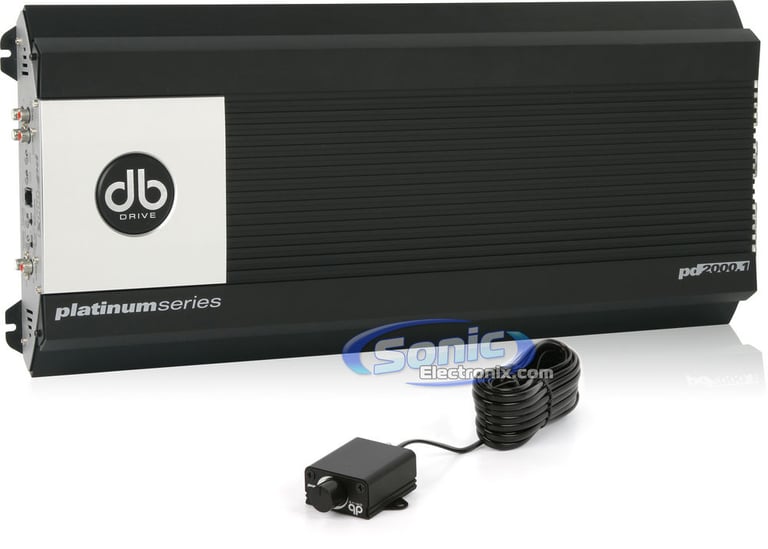

db Drive pd2000.1 R/B Image 1 — db Drive pd2000.1 R/B

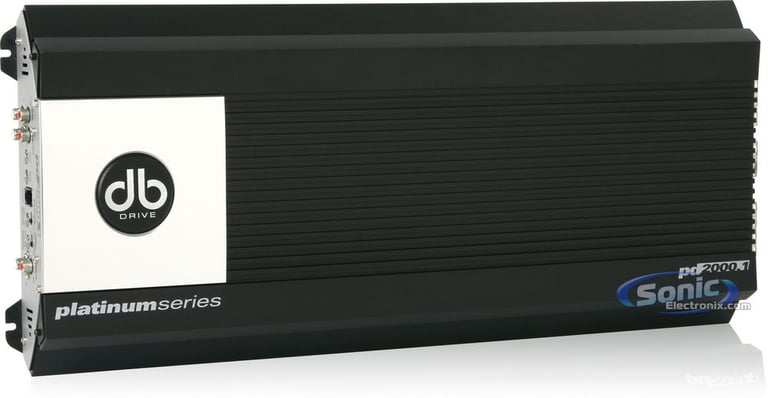

db Drive pd2000.1 R/B Image 2 — db Drive pd2000.1 R/B

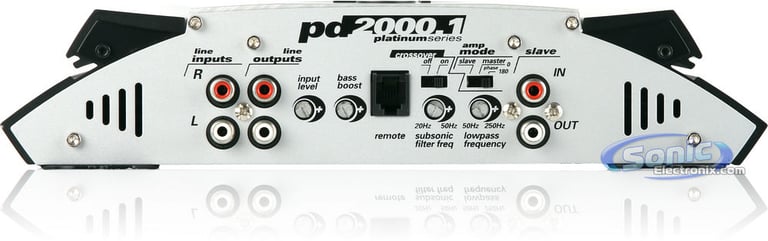

db Drive pd2000.1 R/B Image 3 — db Drive pd2000.1 R/B

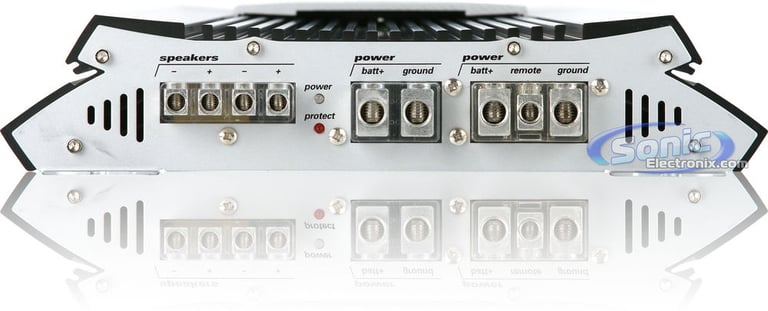

db Drive pd2000.1 R/B Image 4 — db Drive pd2000.1 R/B

db Drive pd2000.1 R/B Image 5 — db Drive pd2000.1 R/B

Product videos

Product highlights

db Drive pd2000.1 Platinum Class D Monoblock Amplifier • 500W x 1 chan @ 4 ohm • 1000W x 1 chan @ 2 ohm • 2000W x 1 chan @ 1 ohm • Remote Bass Control Included • Variable Bass Boost • Internal Multi-Link Module

Learn more about the LS-pd20001-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

db Drive pd2000.1 Platinum Class D Monoblock Amplifier
RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 1000 watts x 1 chan.
- 1 ohm: 2000 watts x 1 chan.
Unregulated DC-DC PWM power supply

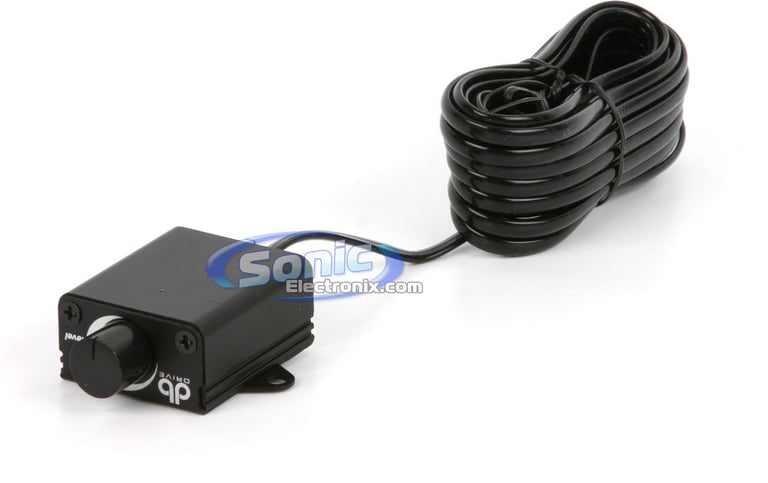

Remote bass control included
LED power (green) and protect (red) indicators
Variable bass boost (0-12 dB @ 45 Hz)
Internal Multi-Link module for easy multi-linking of two like amplifiers
Mono channel operation
Speaker-level inputs with signal sensing for automatic turn-on
3-Way System Protection circuitry (thermal, DC offset, and short circuit protection)
RCA pre-amp outputs for easy daisy chaining of multiple amplifiers
DRIVESINK heat management system for extreme heat dissipation
Double sided PC board
Audiophile grade components
Enhanced dynamic performance
Large gauge power input terminals
Continuously variable Low level RCA inputs
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 250mV-6V
Variable high-pass filter (10-50 Hz, 24 dB/octave)
Variable low-pass filter (50-250 Hz, 24 dB/octave)
Subsonic filter (10-50 Hz @ 24 dB)
Phase Shift: 0-180°
Signal-to-Noise Ratio: >90 dB
THD (Total Harmonic Distortion): <.5%
Input Voltage: 10V-16V
Frequency response: 10-250 Hz
Dimensions: 10-1/4"L x 23"W x 2-1/4"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

1000 watts x 1 channel

RMS Power @ 1 ohm

2000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

2000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<.5%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

10 - 50 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

10 - 50 Hz

Signal-to-Noise Ratio

>90 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

80A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Overall rating distribution

5 star		67%
4 star		33%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		4.7
Usability		4.4

Customer Reviews

Sort by:

MINI SURF BOARD BEAST........

Amp is huge and i love it. For a refurb its in great shape. Ready to seet it in action with my 18 hdc3, really should create some havoc. With bench/clamp numbers like 2490 rms @ 1ohm, rise to 1.77ohm @ 12.9 volts (bench test can be found online). With these numbers $200 is a steal, and this amp is "smexy". But they should have had a 0ga in put instead of 2 4ga.

By BGOWDY31 on February 7, 2012

3 found this helpful

Report abuse

Amazing amps

These amps are great. I'm running two of them strapped at 2ohm and they love every minute of it. I've also ran one of these at .5ohm daily on 14volt set up. Cant get better power for the money. Also I've used refurbs and had no issues with them. The only thing Im not a huge fan about is the dual 4g inputs. Would rather single or dual 1/0 inputs on them. But doesnt effect the performance in any way!

By SuperDave on December 15, 2011

3 found this helpful

Report abuse

Amazing power output!!!!

It's up to par with my old rockford t2000.1 and my old kicker zx2500.1. Wouldn't hesitate to buy for one second. Just please put an inline fuse with both power wires goin to the amp or you will be sorry. I would say it puts out more then 2000 RMS although its a little on the power hungry side. The sq is actually pretty decent and for the cost you won't regret it. You have my word. Buy now!

By dbs on January 31, 2012

1 found this helpful

Report abuse
