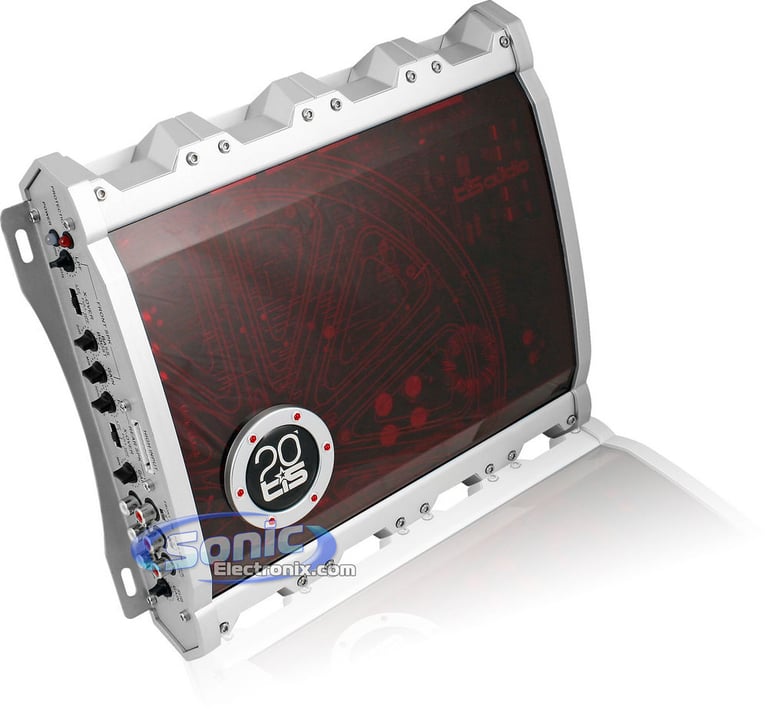

TIS Audio T510A R/B

700W Max, 5-Channel Bridgeable Power Amplifier

TIS Audio
Shop all TIS Audio
Product videos
highlight-star-icon

5-channel amplifier with 700W Max Power Output (75W x 4 + 400W x 1)

Learn more about the LS-t510a-RB

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


5-channel amplifier with 700W Max Power Output (75W x 4 + 400W x 1)

Description


TIS Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

The T510A 5-channel amplifier is a great deal for those looking for an affordable, 5-channel option. It originally was part of the T510PK combo by TIS Audio and now is available individually in refurbished condition. The amplifier includes a 90 day factory warranty.

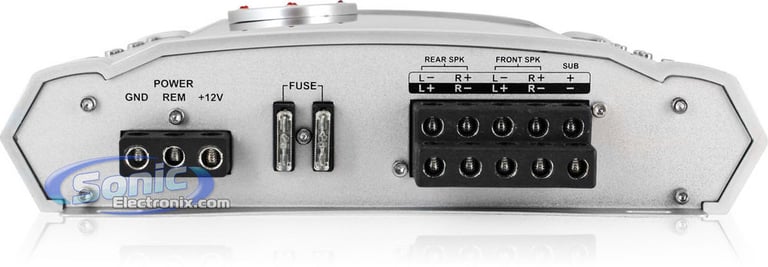

  • Amplifer Power Output:
    • Peak: 700 watts total output! (75W x 4 + 400W x 1)
  • RCA Line Inputs & Outputs
  • High level inputs (speaker-level) allows system to hookup to your factory radio using speaker wire connections
  • Power/Protection LED
  • Thermal/Short/Overload Protection Circuitry

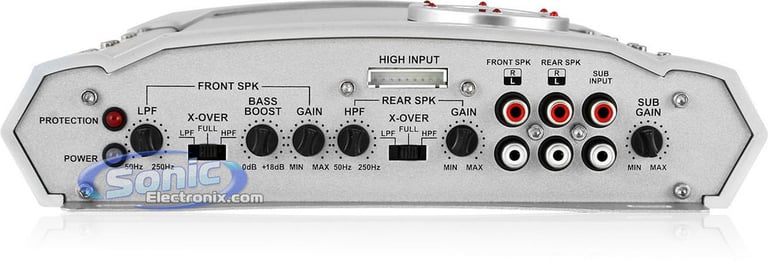

  • Variable High-pass/Low-pass/Full-pass Crossovers
    • HP/LP: 50Hz - 250Hz at 24dB
  • Variable Bass Boost: 0 - 18dB
  • Separate subwoofer gain control
  • Adjustable Input Sensitivity (from 0.2V to 8.0V)
  • 90 Day Manufacturer's warranty

Specifications & Details


Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
700 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

T510A-RB

Weight:

5.10lbs

Internal SKU:

LS-t510a-RB

Internal Product ID:

28327
