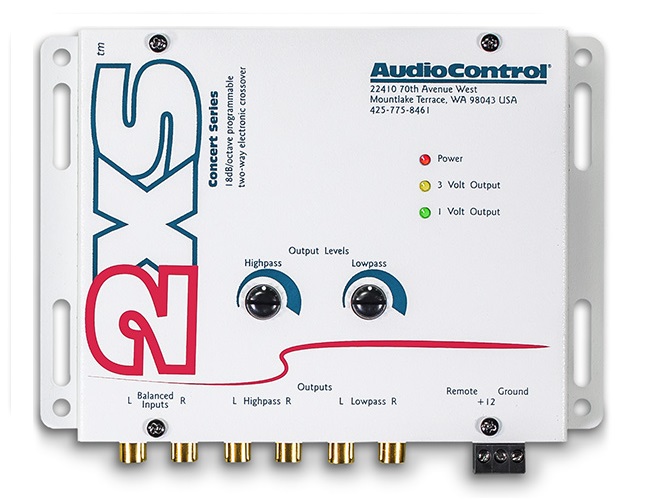

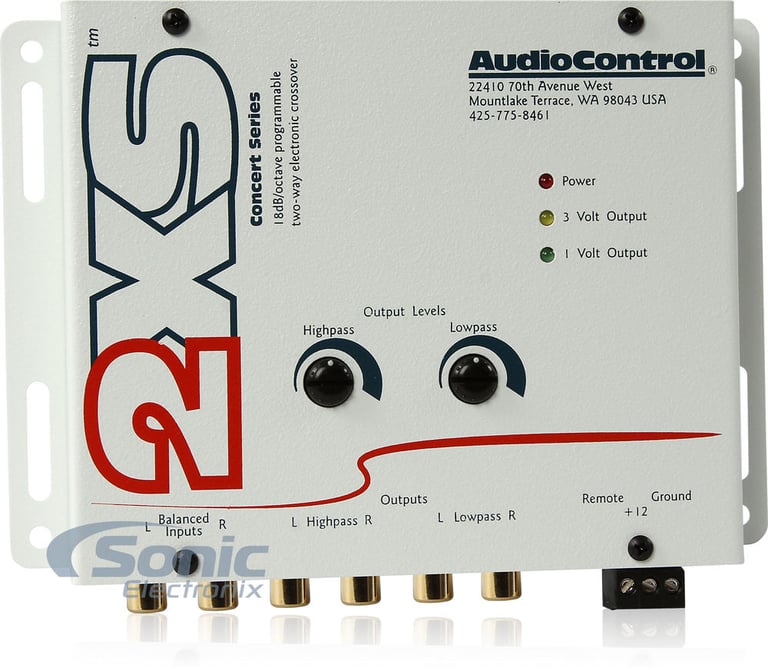

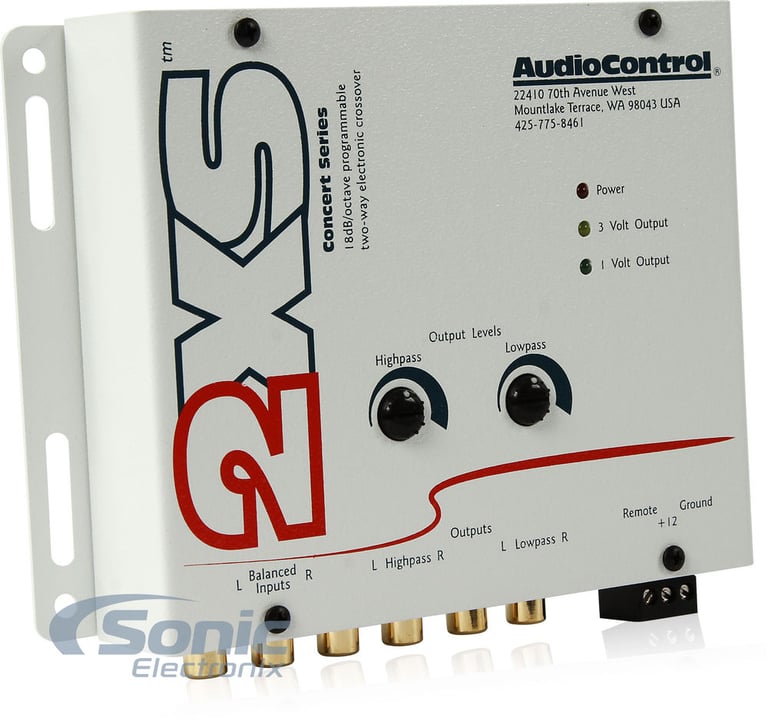

AudioControl 2XS Crossover (Sierra White)

Concert Series Two Way Crossover with 5-year warranty!


• Concert Series 2-Way Crossover
• Built-In Line Driver
• High-Pass and Low-Pass Filters
• Simple Connection and Setup
• Balanced Inputs
• Internal Switching
• Ground Isolation Selector
• Gold-Plated RCA Jacks
• Sierra White

Learn more about the 2xs-white

We apologize

This item has been discontinued



Authorized dealer

For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

2XS - 2-way electronic crossover

A state-variable, 18dB/octave, 2-way electronic crossover designed with a flexible and accurate module-programmable crossover frequency. AudioControl's exclusive Programmable Frequency Match (PFM) subsonic filter provides exceptional bass control. Winner of the coveted CES "Design and Engineering Excellence Award." This crossover is incredibly adjustable, programmable, and most importantly, the 2XS will make your car audio system sound better. Whether you are a car audio soundoff competitor or just someone who appreciates good sound, the 2XS will provide you with many hours of enjoyment.

Key Features:

Programmable 18dB/Octave 2-way Crossover:

The 2XS utilizes a sharp 18dB/octave state variable filter that accurately separates your high and low frequencies. In addition, by using plug-in resistor modules (for more info see the section on "Making Your Own Crossover Module"), the two way electronic crossover in the 2XS can be configured precisely in any multi-amplified system.

Programmable Frequency Match (PFM) Subsonic Filter:

Subsonics are low frequency non-musical noises which are present in most recordings and usually occur below the frequencies which human ears can detect. This robs amplifier power, causes intermodulation distortion, and may even cause speaker damage. Obviously you don't want your system to reproduce these nasty sounds, therefore, the 2XS features an AudioControl exclusive, a sharp 18dB/octave Programmable Frequency Match (PFM) subsonic filter. This PFM filter rolls off these problem-causing frequencies before they get to your amplifiers. Since it is programmable, you can install a PFM resistor module at the ideal low frequency roll-off point(like the subwoofer enclosure tuning frequency or the -3dB down point of your system), and get the best possible sound from your system.

Line Driver:

Every electronic component produces a small amount of noise. This noise is the result of electrons bouncing into each other like pinballs. Unfortunately, these noises add to the "noise floor" of your car audio system and can end up as hissssss through your speakers. Fortunately, the circuitry in the 2XS has been designed to provide signal gain. This "gain" allows you to raise the signal above the hissssssing noise floor and drive your amplifier better. This, my friend, is a good thing.

Selectable Ground Isolation:

Ground loops and ground noises are constant threats to a quality car stereo installation. Head unit manufacturers ground their products one way while amplifier manufacturers may ground theirs differently. Unfortunately, these differences can cause ground loops. The 2XS helps you avoid these problems by providing selectable signal and power grounds. Ground loops are now things of the past.

General Features:

  • Concert Series 2-Way Crossover
  • Precise 2-way 18dB/octave, programmable electronic crossover with a plug-in module
  • Programmable Frequency Match (PFM) subsonic filter
  • Balanced inputs
  • On-board line driver for signal gain
  • Output level controls
  • Selectable ground isolation
  • Optimum signal output indicator LEDs

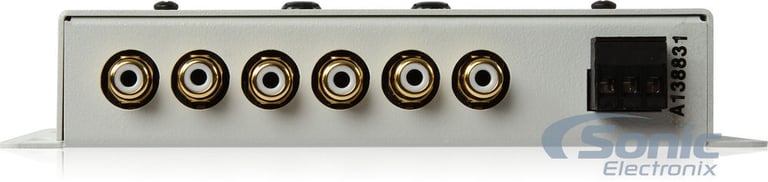

  • Gold-Plated RCA jacks
  • Top-Mounted controls for easy adjustment
  • Color: Sierra White
  • Also available in: Salmon Gray
  • Now available in Black: 2XS - Black
  • Dimensions: 4.65"D x 5.5"W x 1.15"H
  • Authorized Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

The 2XS Specifications

  • Frequency Response: 15 Hz - 20 kHz; ±1dB
  • Total Harmonic Distortion (25 Hz - 20 kHz): 0.005%
  • Signal to Noise Ratio (rated full output): 115dB
  • Maximum Output Level: 9.5 Vrms
  • Crossover Slope: 18dB/Octave
  • Crossover type: State Variable
  • Crossover frequencies: set at 90Hz (user programmable)
  • PFM filter slope: 18dB/Octave
  • PFM filter frequency: set at 33Hz (user programmable)
  • Power supply: transformer isolated PWM DC/DC converter
  • Power draw: 150mA
  • Recommended fuse rating: 1 Amp
  • Weight: 2 lbs
  • Country of Origin: U.S.A

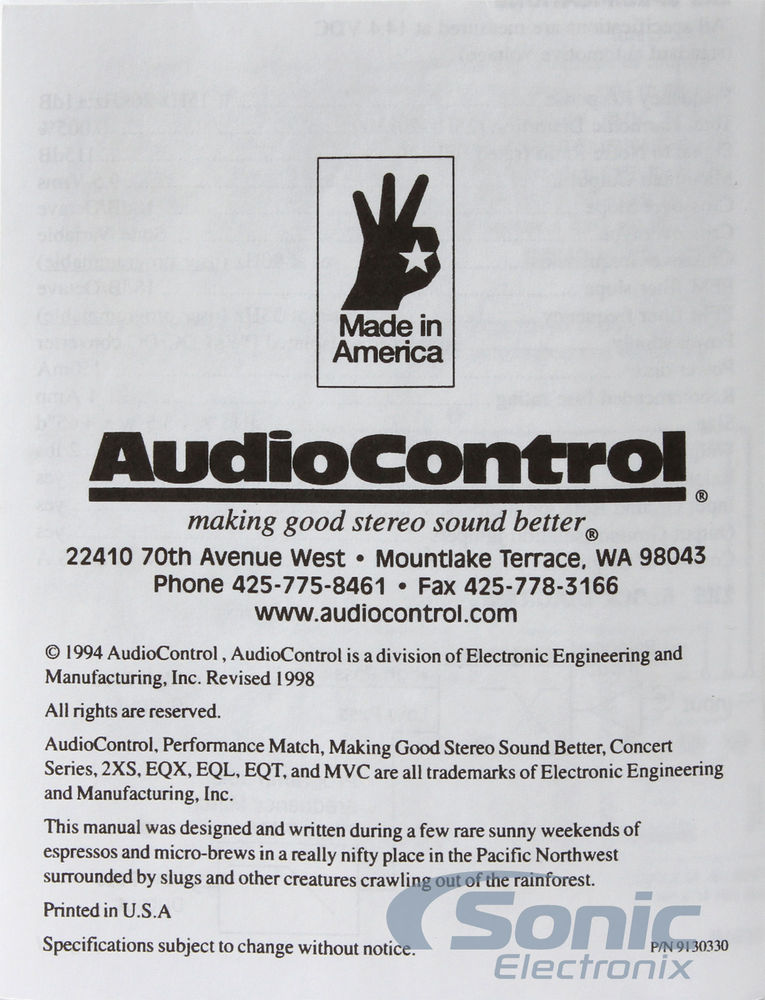

Check out the AudioControl 2XS Owner's Manual

Specifications & Details

Crossover Specifications
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Built-in Bass Reconstruction
Line Driver
Max Output Level
9.5 volts
Frequency Response
15 - 20,000 Hz
Signal-to-Noise Ratio
115 dB
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider

Item Details


Model Number:




Internal SKU:


Internal Product ID:


Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star

Sort by:


Very nice basic crossover with a few nice quality extras

There is nothing fancy about this crossover but you do get some quality features for the money like a built in line driver and subsonic filter. I used this to go active in my wife's 2014 Toyota Sienna with Focal 6.5" woofers and Peerless/Vifa tweeters. Using REW RTA software with a mimi dsp mic to look at the frequency response and the speakers cross over at 3600 Hz very well and sound fantastic together. I'm powering these speakers with an NVX mini 4 ch amp and the 4 volt max output from the pioneer HU wasn't enough to keep the gain on the amp low enough below the hiss of the amp so I minimized the gain on the amp to its lowest setting and used the Audio Controls 2XS built in line driver to drive the amp to the desired level/power for the speakers and eliminated the background hiss or noise from the NVX amp. Sound quality went up and I didn't need an monster amplifier with passive crossovers to get the desired results I wanted with my components.

By John on February 6, 2017 checkmarkIcon Verified purchase


found this helpful.
