Product Highlights


In-Dash DVD Receiver + GPS Navigation System Combo • 7" TFT-LCD Full Color Display with LED Backlight • Supertuner IIID with 18FM/6AM Presets • Over 12 Million Points of Interest • SD Card Slot • Multi-Destination Planning

Description


Pioneer brand icon

Authorized dealer

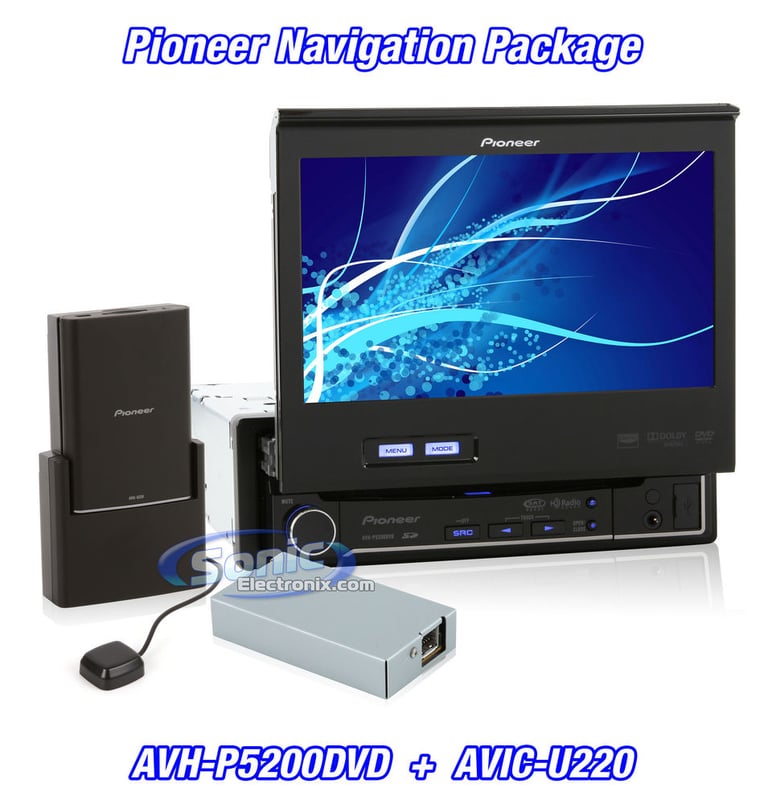

Sonic Exclusive In-Dash DVD Receiver + GPS Navigation System Combo

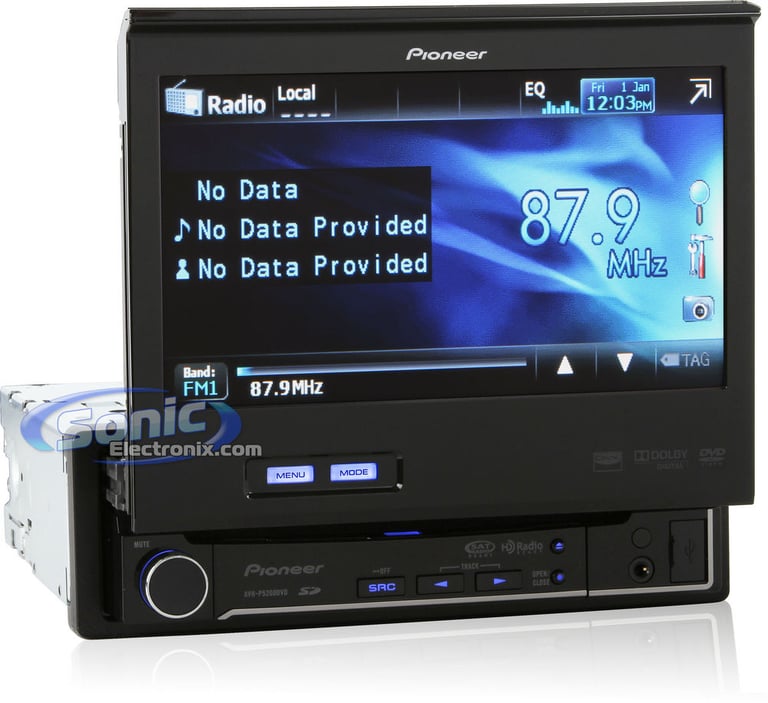

The Pioneer AVH-P5200DVD is a single DIN In-dash receiver with a 7” TFT-LCD flip-out screen that has all the features of a Double DIN, just in a smaller package. This head unit provides you with lots of entertainment options such as listening to CD’s, DVD’s or information loaded onto a USB Device. Have an iPod? Just connect it to the USB input and you will be able to use touchscreen controls to access your playlists. You will be listening to you iPod all night long with this music-listening option.

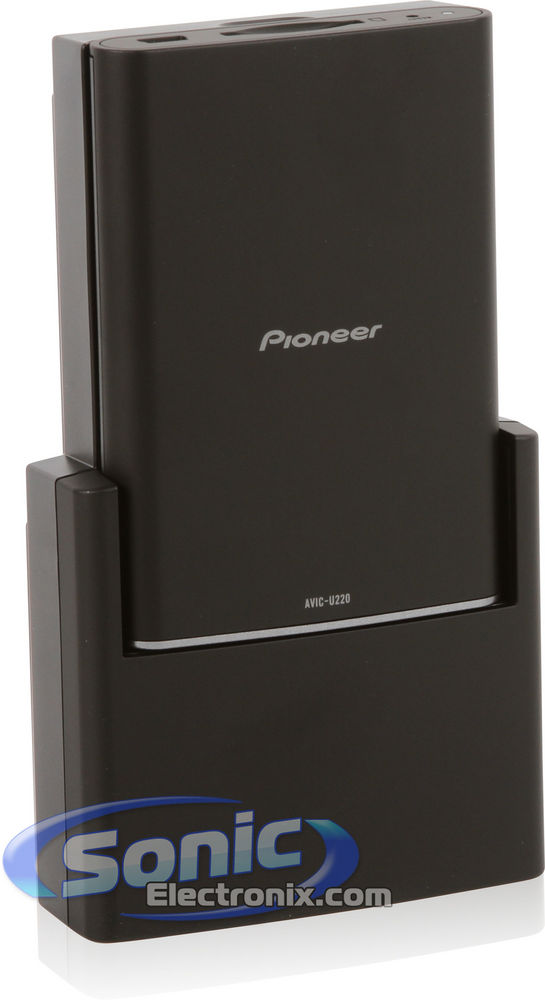

The full featured Pioneer AVIC-U220 navigation system features over 12 million points of interest, maps for the entire United States and Canada, voice prompts, multi-destination route planning,and more. Choosing between the 2D or 3D map views lets you get the look that fits your taste. The SD Card slot and the USB port allow maps to be updated quickly, getting you on the road faster. Sonic Electronix is the only place this combo is available, don't miss out!

General Features:
  • Single DIN 7" TFT-LCD Touchscreen Monitor and multimedia receiver
  • Navigation Included In this Combo! Pioneer AVIC-U220 Included

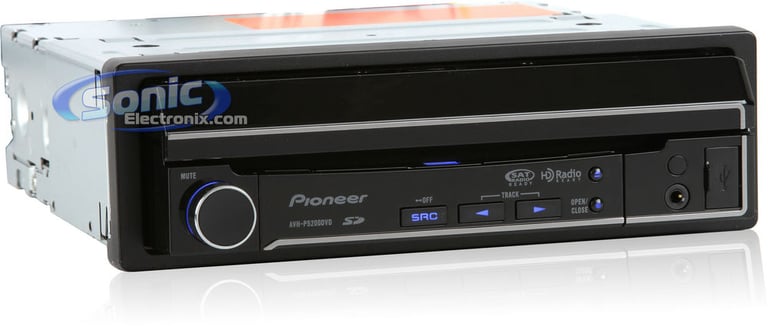

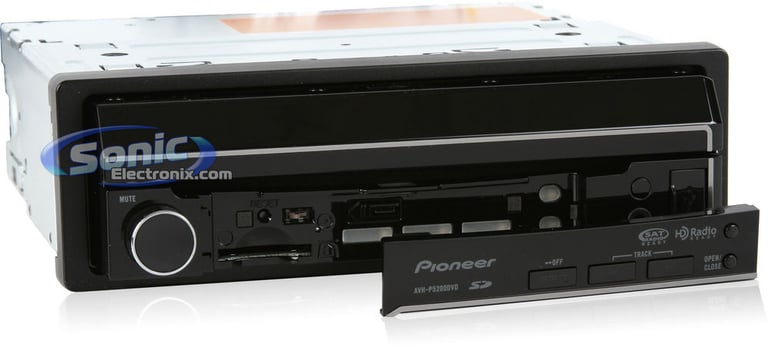

  • Motorized flip-up face and half-close setting
  • 7" TFT-LCD Full color display with LED backlight
  • Selectable angle setting (50-110 degrees)
  • Wireless remote control sold separately (Pioneer CD-R55)
  • Wired remote control input
  • 5 Color display illumination
  • Red or blue color key panel illumination
  • Customizable background pictures
  • Intelligent dimmer control
  • 5 Selectable viewing modes
  • Picture adjustment (brightness, contrast and dimmer settings)
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 52 watts x 4 channels
    • RMS: 22 watts x 4 channels (Pioneer Certified)
    • RMS: 14 watts x 4 channels (CEA Certified)
  • Rear channels can power a subwoofer directly from the speaker wires on the Pioneer harness (70 watt x 1 chan. @ 2 ohm)
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Manufacturers warranty
Playback and Audio Features:
  • Playback of DVD, DVD-R, DVD-RW, DivX, CD, CD-R, CD-RW, MP3, AAC, WMA, and JPEG
  • Supertuner IIID with 18FM/6AM presets
  • Dolby Digital and Dolby Pro Logic audio decoders
  • Touch AutoEQ function allows the system to automatically equalize the audio (Pioneer CD-MC20 required and sold separately)
  • EEQ (8-Band graphic equalizer with 7 preset tone curves)
  • Advanced Sound Retrieval technology restores the lost frequencies that come with digital compression of music
  • 3 Mode loudness selections
  • High-pass crossover (50/63/80/100/125Hz, -12dB/Octave)
  • Subwoofer crossover (50/63/80/100/125Hz, -18dB/Oct.)
Expandability Options:
  • 2 Sets of 4V preamp outputs (front, rear sub switchable)
  • Bluetooth Ready: Pioneer CD-BTB200 required and sold separately
  • Navigation Ready: Pioneer AVIC-U220 required and included
  • HD Radio Ready: Pioneer GEX-P20HD required and sold separately
  • SIRIUS or XM Satellite Radio Ready: A subscription is required for each service, as well as purchase of either the SIRIUS Radio Package or XM Radio Tuner
  • iPod Ready:
  • Steering Wheel Control Ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately
  • Optional off-set installation kit: Pioneer AD-GA10 required and sold separately

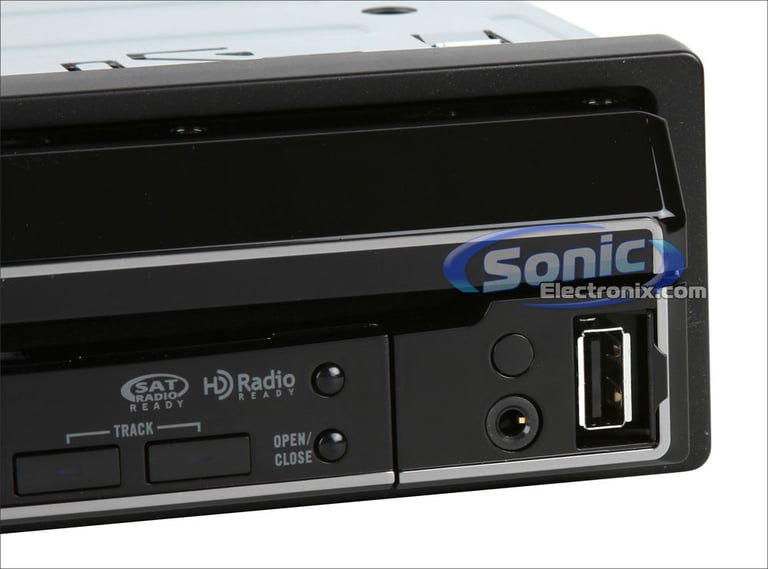

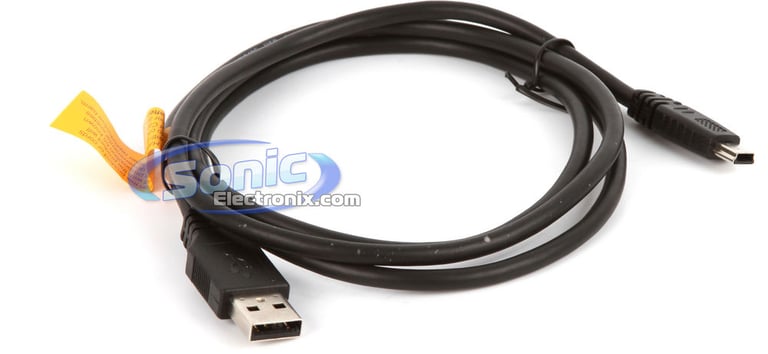

  • Rear auxiliary input: USB Port allows connection to portable media devices such as MP3 players, etc.
  • Rear camera input: Pioneer ND-BC4 or Pioneer ND-BC20PA backup camera recommended and sold separately
  • 1 Set of Rear A/V outputs: RCA video output and 3.5mm stereo mini-jack for a rear A/V output
  • 1 Set of Rear audio inputs: RCA stereo inputs for a rear connection to external audio sources
  • Rear Monitor output: 1 rear RCA video output for the connection of external overhead or headrest monitors
Product Features:

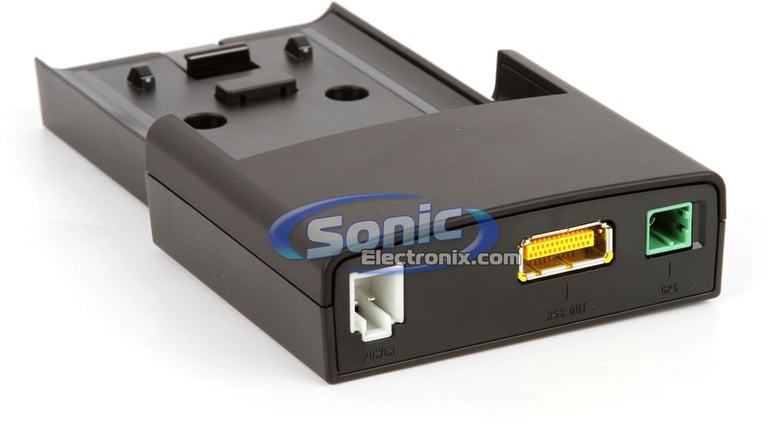

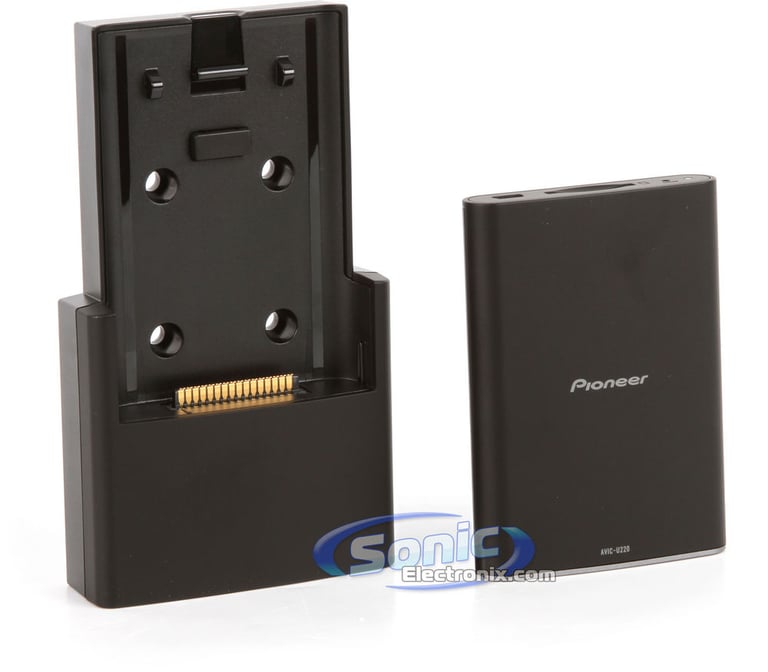

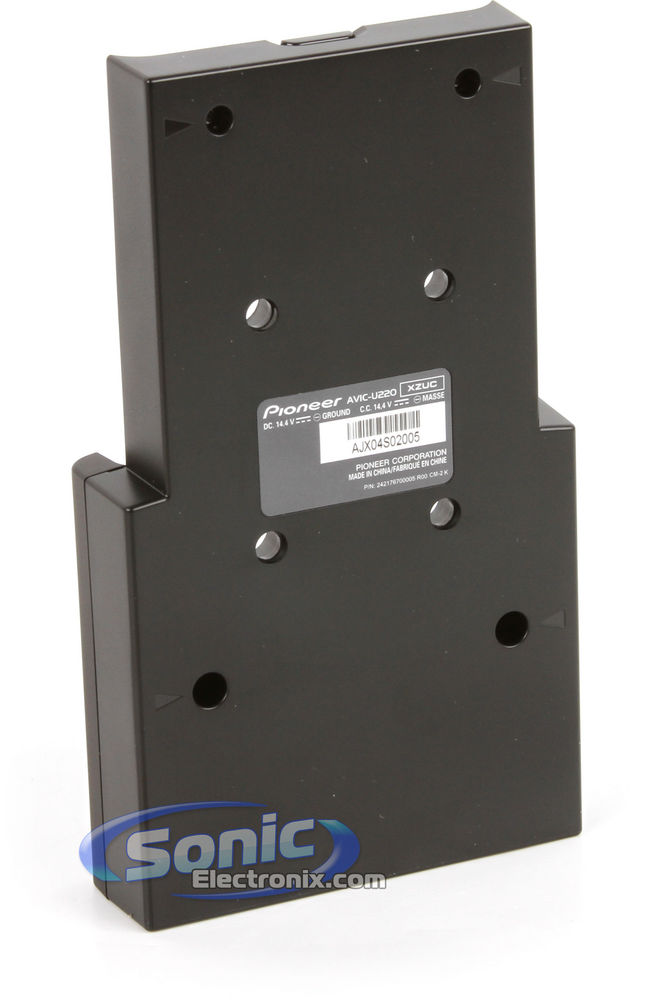

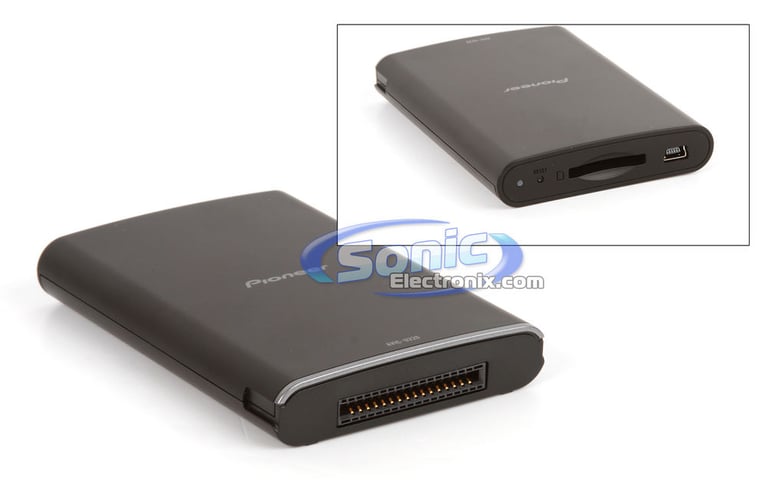

  • Add-On Navigation System for Select 2010 Pioneer In-Dash Multimedia Receivers
  • Fast and simple installation
  • Compact size fits in smaller locations behind dashes and panels

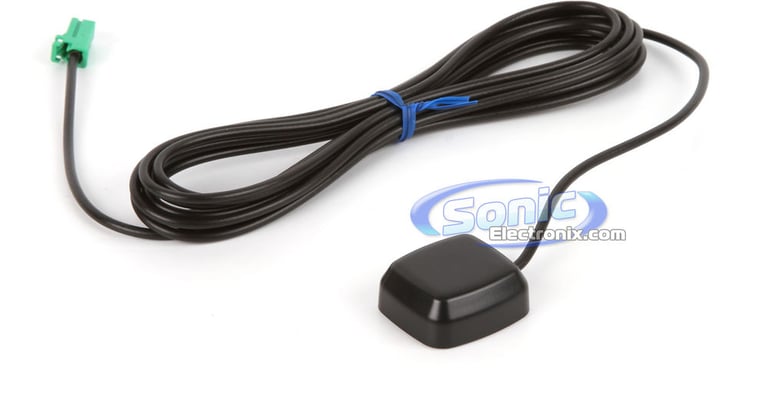

  • Includes the GPS satellite antenna
  • Comes pre-installed with maps for the entire United States and Canada
  • Over 12 million points of interest for convenient traveling
  • Navigation system is displayed on the units video screen
  • Voice prompts with turn-by-turn guidance make the navigation system convenient and safe
  • Multi-destination planning allows you to set a route with several destinations
  • Quickly reroutes if turns are missed
  • Compatible with the Pioneer AVIC Feeds system
  • Internal trip computer
  • SD card slot and USB input will allow future map updates
  • 20-channel GPS receiver
  • Dimensions: 6-3/4"L x 3-3/8"W x 1-1/8"H

Loading...
H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

Limited time!
THUNDER46 main

MTX Audio THUNDER46

160W Peak (80W RMS) 4x6" Thunder Series 2 Way Coaxial 4-ohm Speakers

-20.00%

$79.96

List price $99.95

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

15
-29.45%

$59.96

List price $84.99

Limited time!
KFC-4675C main

Kenwood KFC-4675C

120W Peak (40W RMS) 4x6" 2 Way Coaxial 4-ohm Car Speakers

16
-39.84%

$77.00

List price $128.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

Stage3 6427 main

JBL Stage3 6427 (STAGE36427AM)

350W Peak (70W RMS) 4x6” Stage3 Series 2-way 3-ohm Coaxial Car Speakers

1
-18.19%

$89.95

List price $109.95

DB462 main

Polk Audio DB462 (DB 462)

300W Peak (100W RMS) 4x6” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

7
-9.99%

$90.00

List price $99.99

P1462 main

Rockford Fosgate Punch P1 P1462

140W Peak (70W RMS) 4x6” Punch Series 2 Way Coaxial 4-ohm Speakers

37
XAV-AX3200, BLPCAM2 main

Sony XAV-AX3200 with License Plate Camera

6.95" Double-DIN Touchscreen Digital Multimedia Receiver with License Plate Backup Camera

71
-32.40%

$337.99

List price $499.98


Best selling similar products

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

D9-SP-MOST-64GB small

Dynavin D9-SP-MOST-64GB

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(1)

$769.99

List price $699.99

D9-SLK small

Dynavin D9-SLK

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2004-2010 vehicles from Mercedes-Benz
• 7" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Navigation via Dynaway
• 3 sets of 3 volts preamp outputs
• 16-Band Equalizer

$935.99

List price $799.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Optional (Accessory and sold separately)
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
No
Preamp Voltage
4 volts
Built-In Equalizer
8-Band graphic equalizer with 7 preset tone curves
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Brightness
Contrast
Expandability Features
Inputs
Auxiliary (Rear)
Backup Camera
Memory Card Slot
SD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
  • PAC SWI-PSv1: Pioneer Specific, Manual Programming Interface
  • Axxess ASWC: Universal, Automatic Programming Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
Tele Atlas
Maps
Complete 50 USA
Canada
Map Dimensional Display
2D
3D
Points of Interest
12 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AVH-P5200DVD_AVIC-U220

Weight:

11.12lbs

Internal SKU:

avhp5200dvd_avicu220

Internal Product ID:

29006

Product and How-to Videos


Customer Ratings & Reviews


Pioneer AVH-P5200DVD + AVIC-U220 Navigation Package thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


DS 250x2, BAK82 small

Taramps DS 250x2 + Belva BAK82

250W RMS DS Series Full Range 2-Channel Class-D Amplifier + Belva 8 Gauge Amp Wiring Kit

(98)

$99.99

List price $141.99

No picture

Clarion In-Dash DVD w/ GPS Navigation Combo: Clarion VRX785BT + Clarion NAX980HD

In-Dash 7" TFT-LCD Touchscreen Monitor with DVD Player, Built-in Bluetooth, USB, and Remote PLUS GPS Navigation Unit

$839.99

List price $1899.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Chevrolet C3500 Pickup

2020 Chevrolet Equinox

2011 Chevrolet Silverado 2500 HD

2004 Dodge Sprinter

2018 BMW X3

2012 Lexus IS350C

2006 Dodge Sprinter

2005 Mazda B Series

1985 Toyota Van

2002 Mitsubishi Eclipse

Vehicle
Store
Delete

2012 Harley Davidson FLHTC Electra Glide Classic

Vehicle
Store
Delete

2017 Can-Am Commander 800R

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
