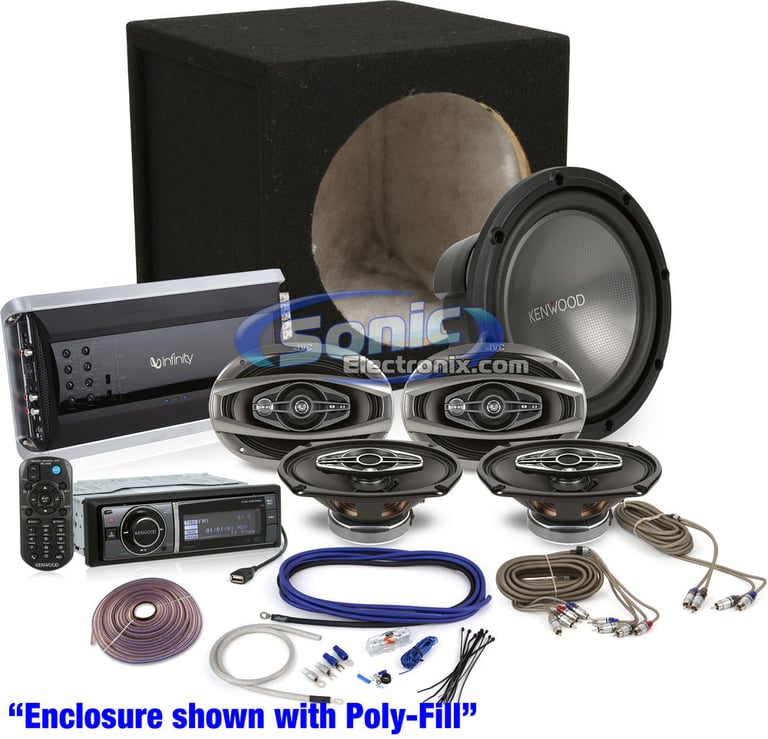

All-Inclusive Car Audio Kit: Kenwood, JVC and Infinity

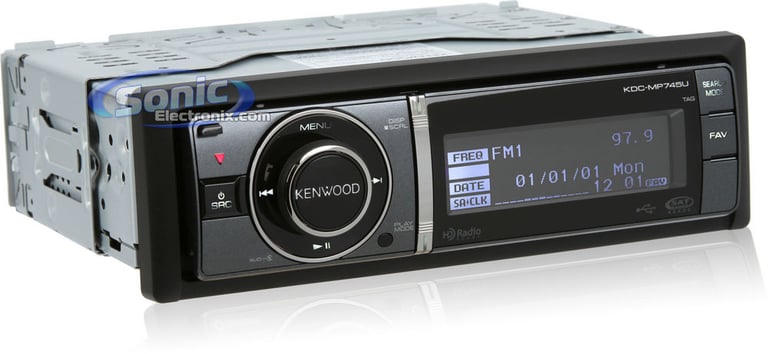

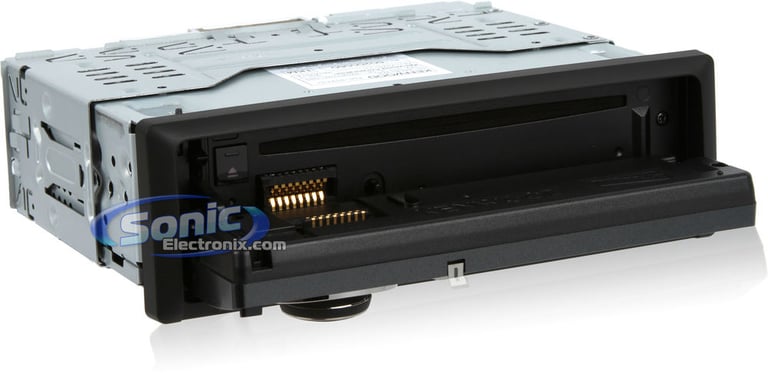

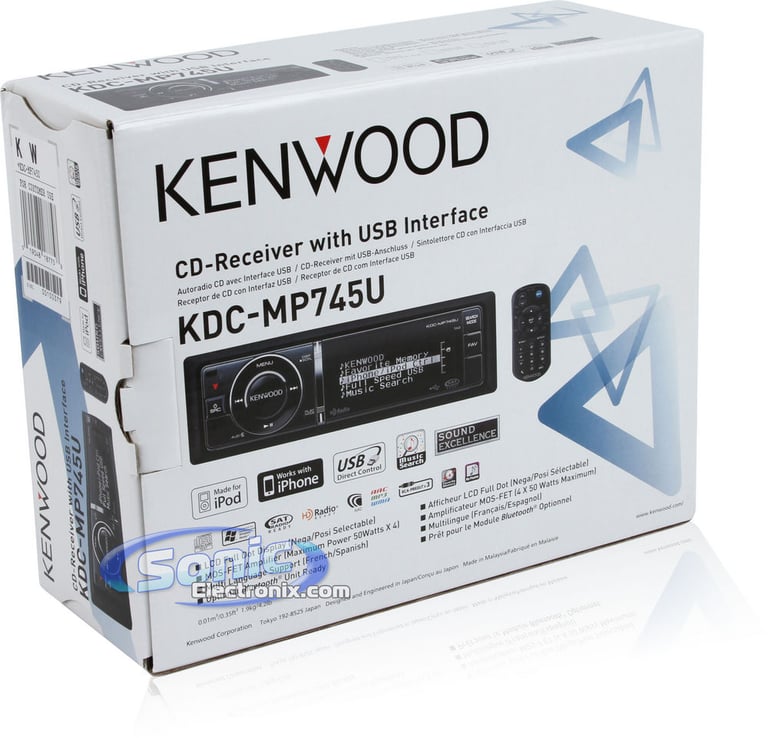

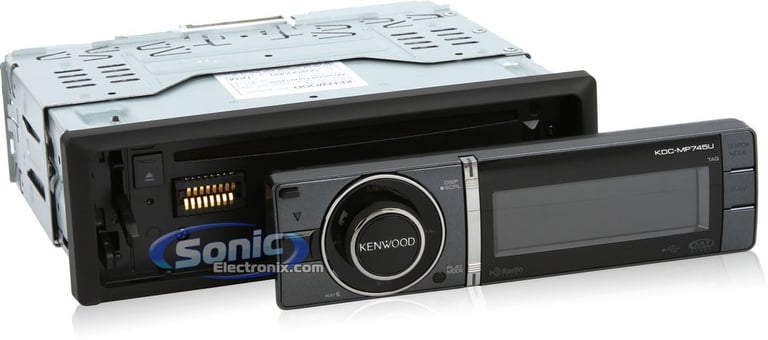

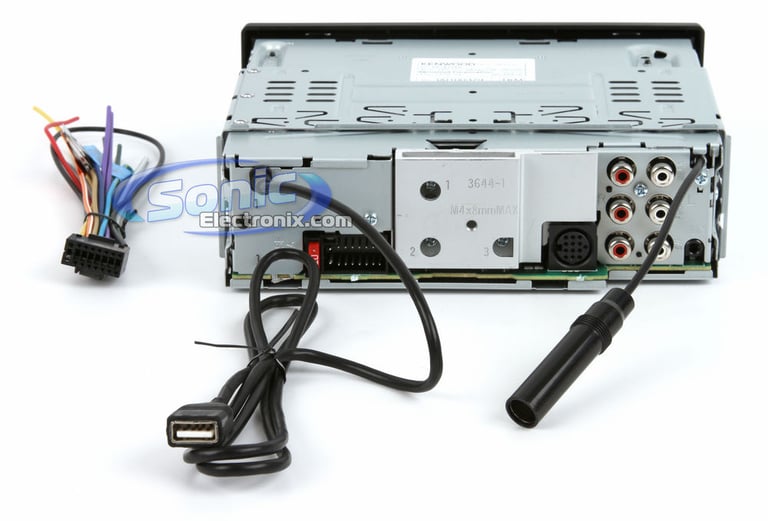

Car Stereo: Kenwood KDC-MP745U

General Features:

• In-Dash CD/MP3/WMA Car Stereo Receiver
• 5-Line Full-Dot LCD display with contrast control
• Interactive illumination effect
• USB/iPod direct connection
• Sound Excellence DSP

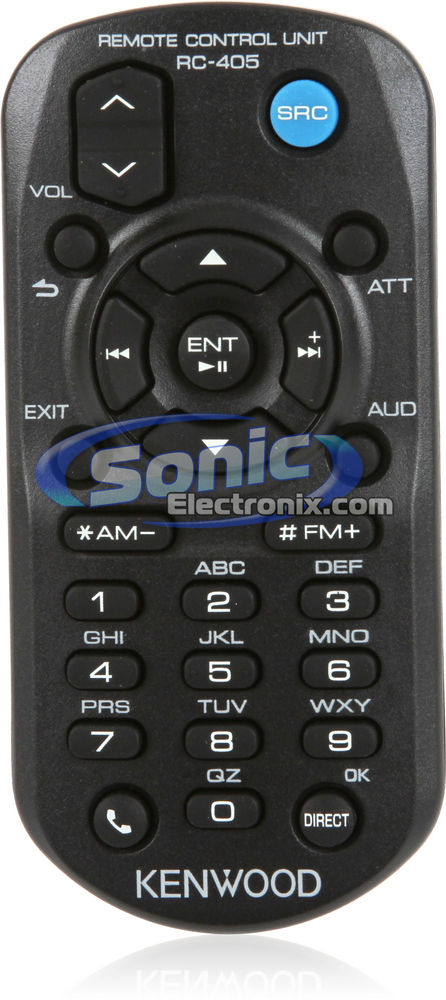

• Wireless remote control included
• Detachable face with flip down feature
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 22 watts x 4 channels
• MP3 ID3 Tag Display (Title/Artist/Album)
• CD, audio file, satellite and HD radio text display
• 1-year Sonic Electronix warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, MP3, and WMA
• AM/FM tuner with 18FM/6AM presets
• 3 band parametric equalizer
• System Q-EX with digital E's crossover and DSP bass boost
• 3-Band parametric equalizer with 9 tone curves (8 presets and 1 user)
• Built-in low-pass and high-pass filters
• 24 bit Digital-to-analog converter for great sound reproduction
• Subwoofer control interface
• Compatible with iTunes tagging on HD Radio

Expandability Options:

• 3 Sets of 2.5 volt preamp outputs (front and rear/subwoofer switchable)
• SIRIUS or XM Satellite Radio Ready: SIRIUS Satellite Package or the XM Satellite Package required and sold separately, along with a subscription to the respective service
• HD Radio Ready: Kenwood KTC-HR300 required and sold separately
• Bluetooth Ready: Optional Kenwood KCA-BT200 required and sold separately
• iPod and iPhone Ready: Kenwood KCA-iP101 required and sold separately
  • Audio playback Only: Standard USB-to-iPod cable will work with most iPods/iPhones
• USB port allows connection to thumb drives, flash drive, etc.
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

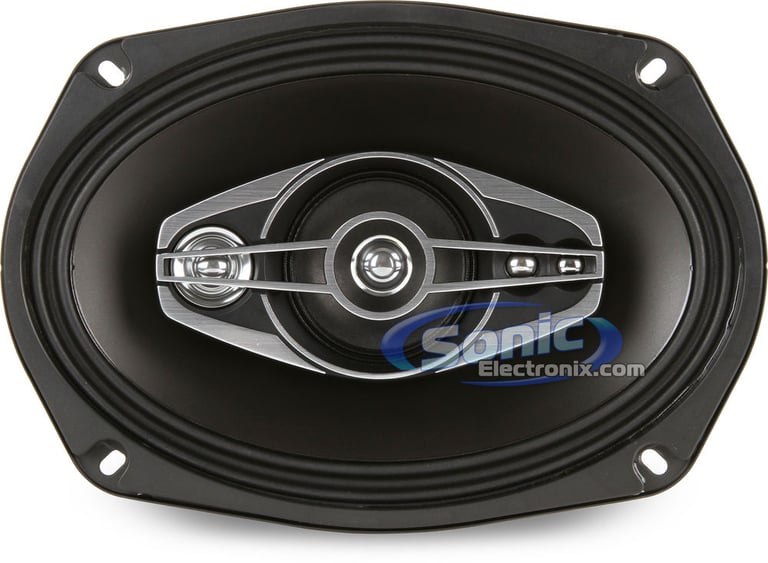

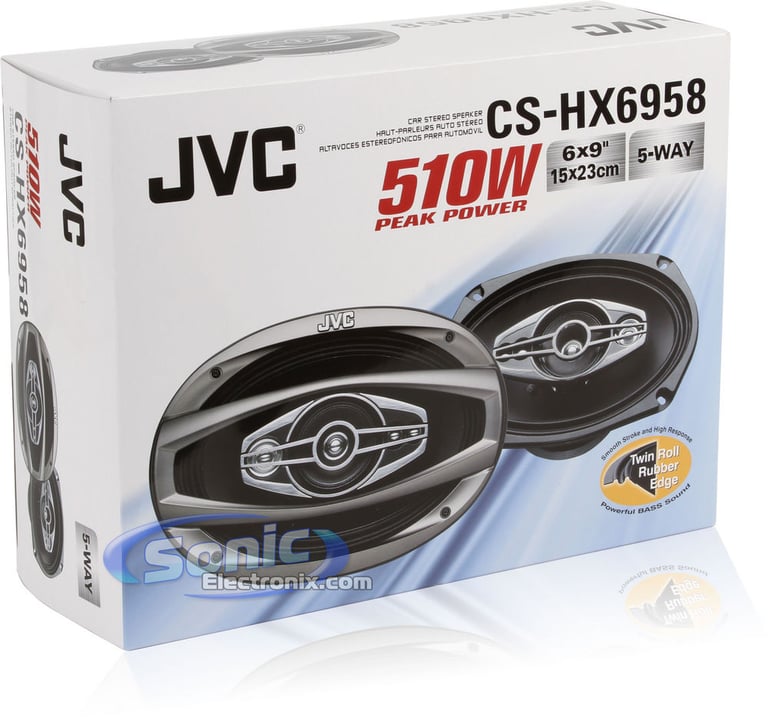

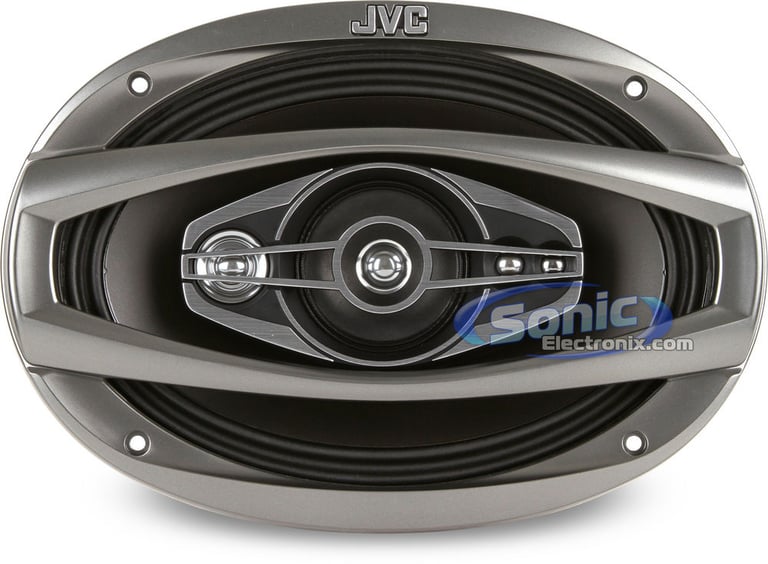

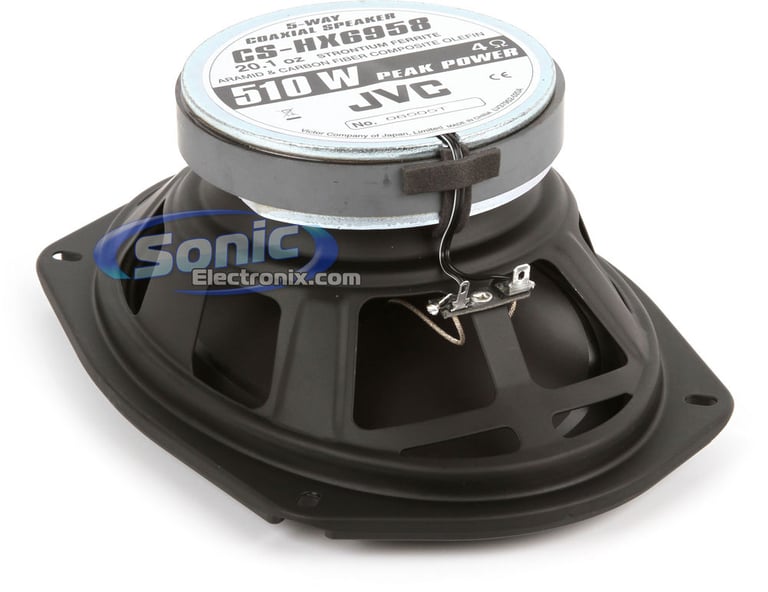

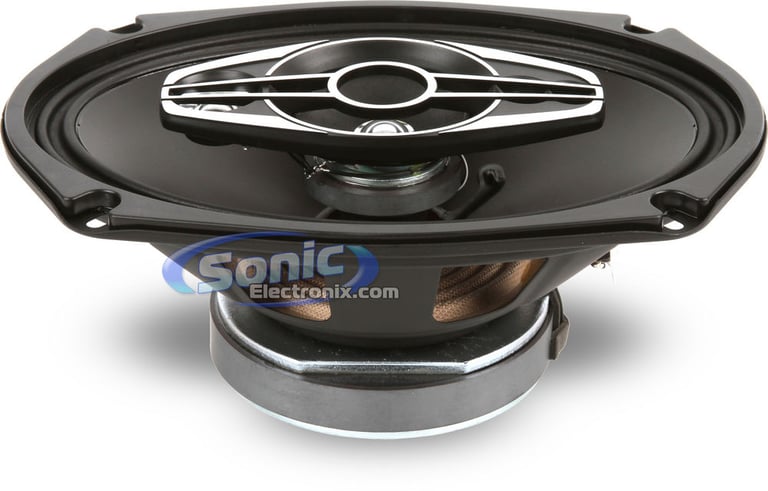

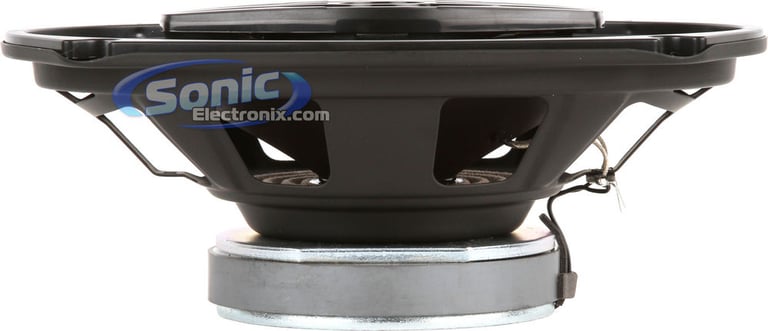

Speakers: JVC HX Series

• JVC HX Series Car Speakers
• Enter your car information on checkout and we will send you the speakers that fit your car!
• Mica aramid fiber with carbon fiber composite olefin cone woofer
• Large magnets handle greater power for lower frequency response
• Twin rubber edge enhances sound quality and response with smooth and linear movement
• Mica reinforced cone provides strength and stability for deeper bass response
• 4 ohm impedance
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

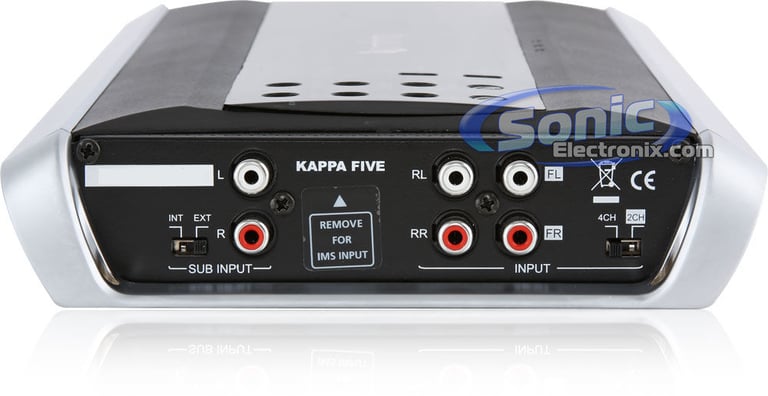

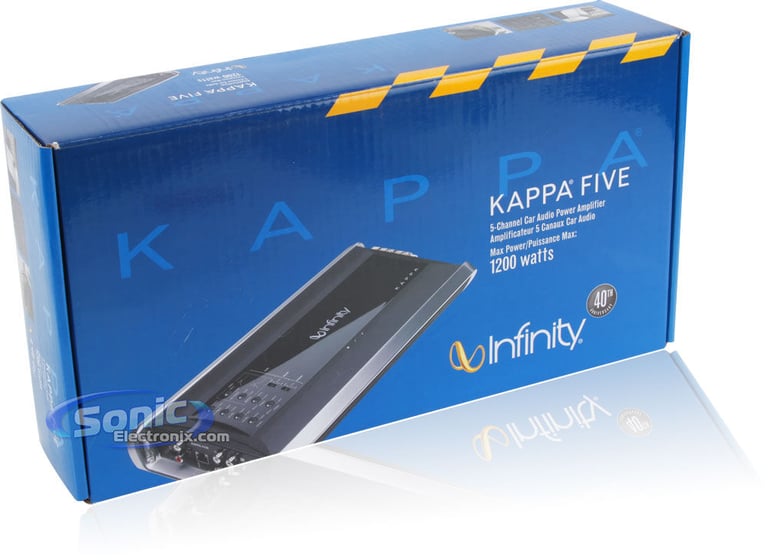

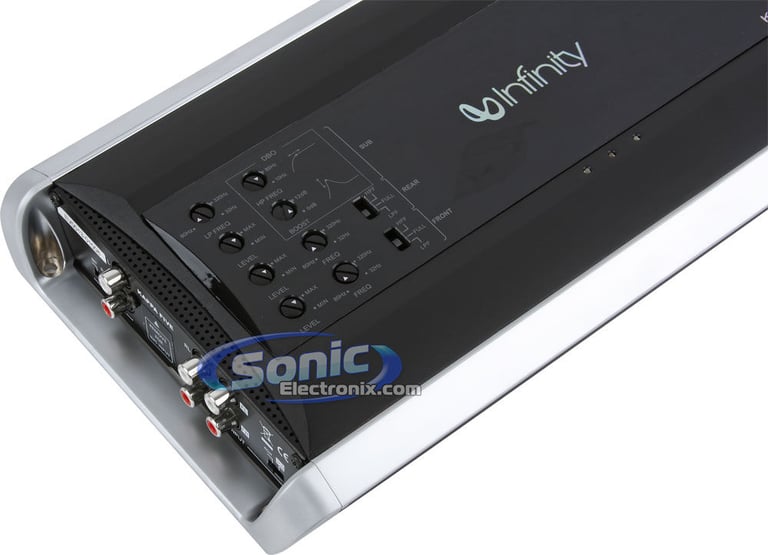

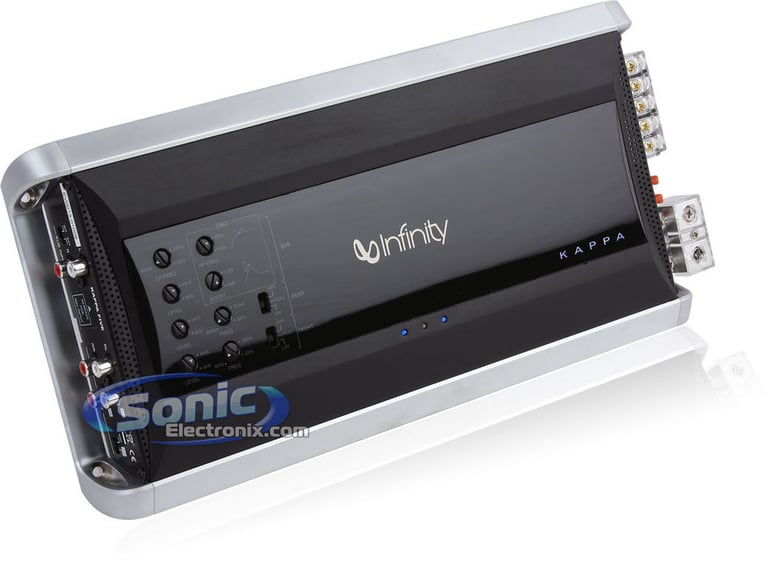

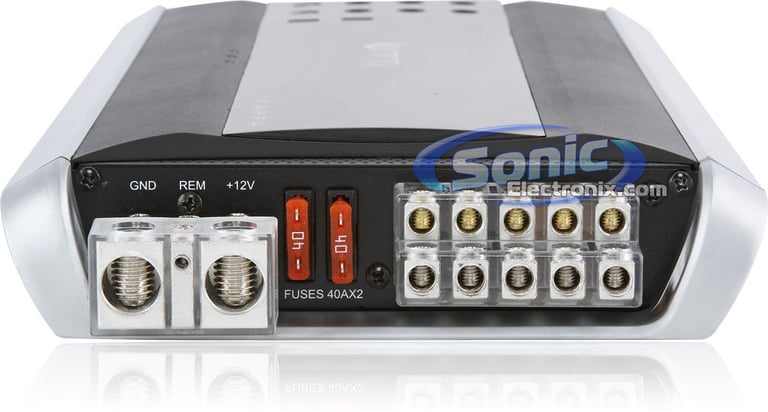

Amplifier: Infinity KAPPA FIVE

• Kappa Series 5-Channel Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 chan. + 200 watts x 1 chan.
• 2 ohm: 75 watts x 4 chan. + 300 watts x 1 chan.
• Bridged, 4 ohm: 150 watts x 2 chan. + 200 watts x 1 chan.
• Max power output: 1200 watts
• MOSFET power supply
• DirectFET technology transistors
• 3 LED indicators (2 power, 1 protect)
• Bass Boost (0-12 dB bass boost)
• 5/4/3 Channel operation
• Dynamic Bass Optimization (DBO): Fine-tune the bass in your system to optimize performance. The frequency control also acts as a subsonic filter
• Protection Circuitry (DC output, over/under voltage, short circuit)
• Non-Stop Thermal Protection (The amplifier will gradually reduce output to cool the amplifier down instead of shutting it off if it overheats)
• Variable high-pass filter (32-320 Hz, 12 dB/octave)
• Variable low-pass filter (32-320 Hz, 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response(Full Range): 10-75,000 Hz
• Frequency response(Subwoofer): 20-320 Hz
• Dimensions: 14-3/16"L x 7-1/16"W x 1-3/4"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Sonic Electronix warranty

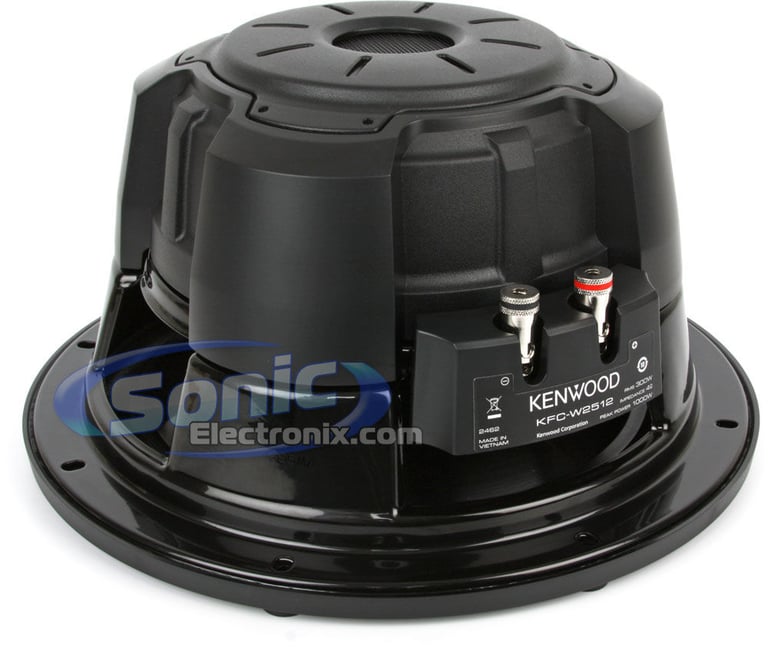

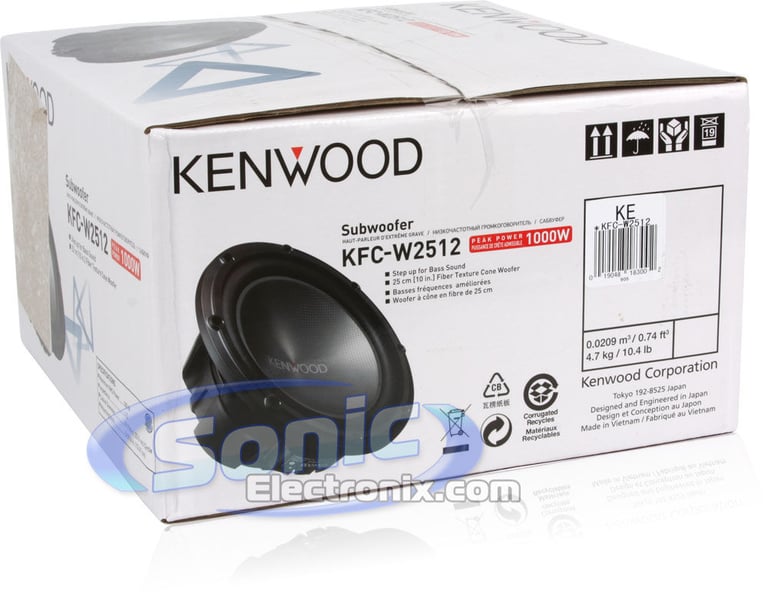

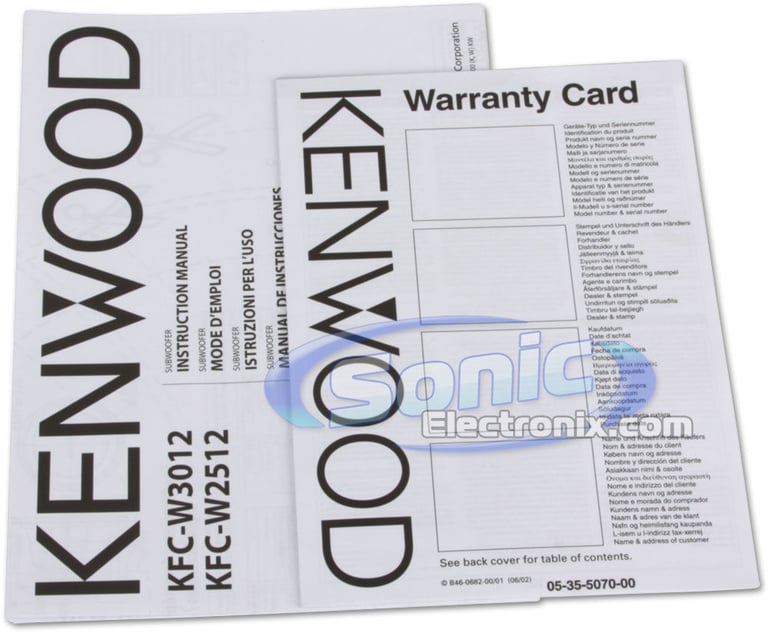

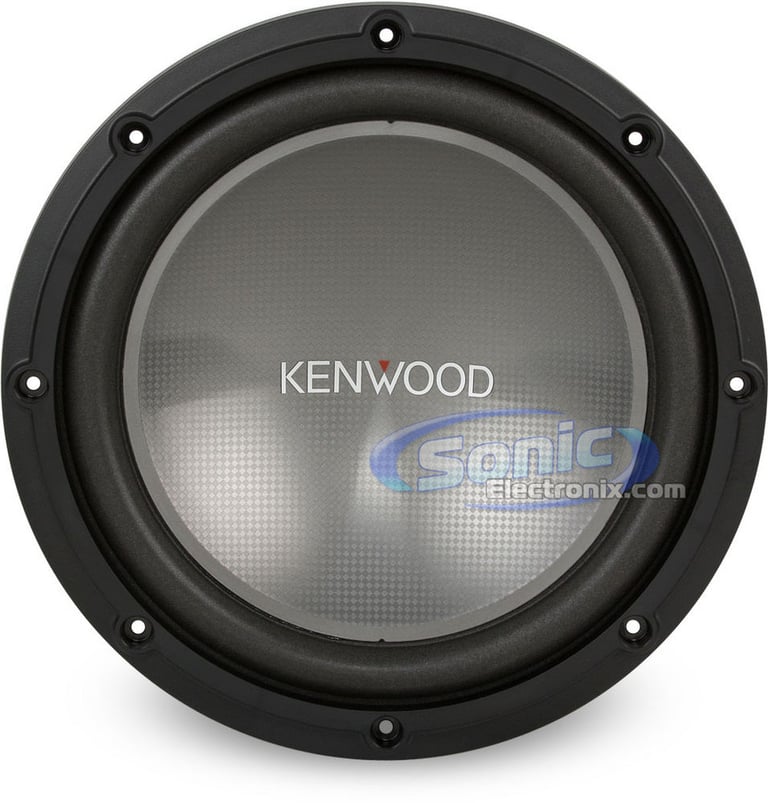

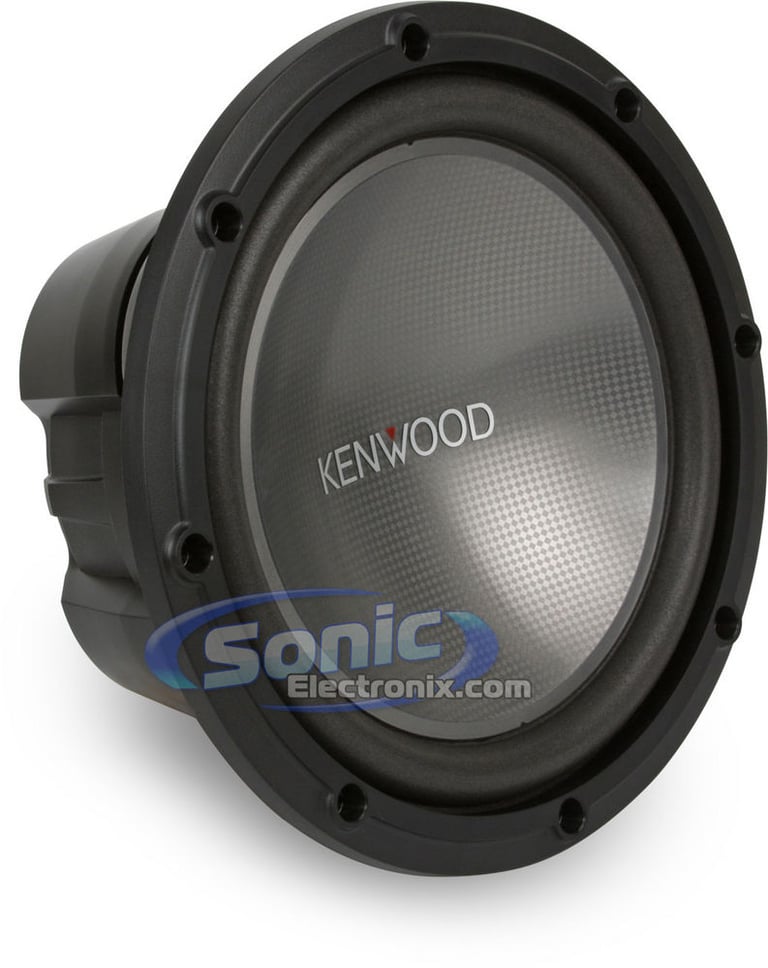

Subwoofer: Kenwood KFC-W2512

• 10" Single 4 Ohm KFC Series Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 300 watts
• Polypropylene cone woofer
• Urethane foam surround
• Super linear spider design
• 2-Layer voice coil design
• Double stacked magnet creates a powerful linear motor with increased excursion
• Frequency response: 37-300 Hz
• Sensitivity: 83 dB
• 1-year Sonic Electronix warranty

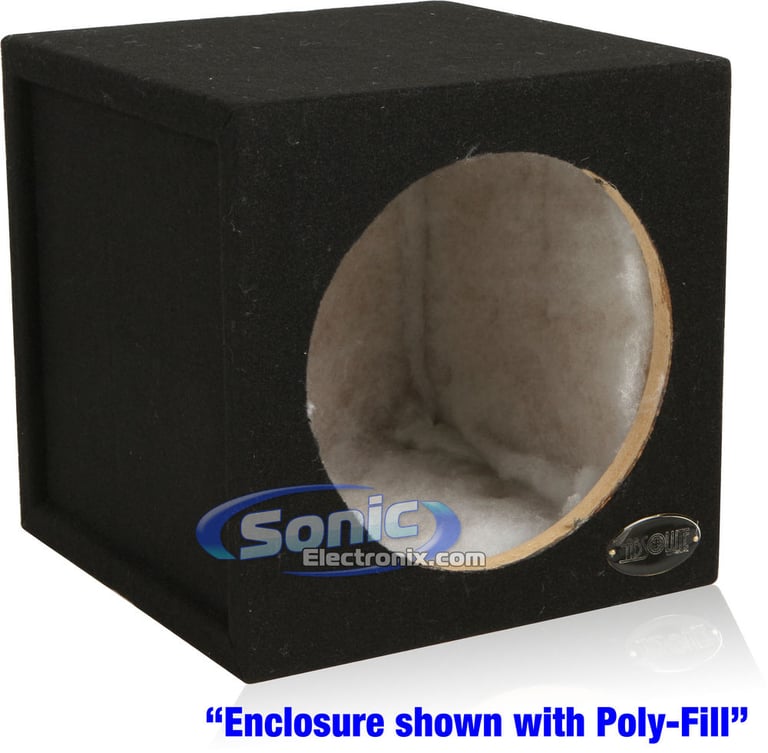

Enclosure: Absolute SS-10

• 10" Sealed Square Subwoofer Enclosure

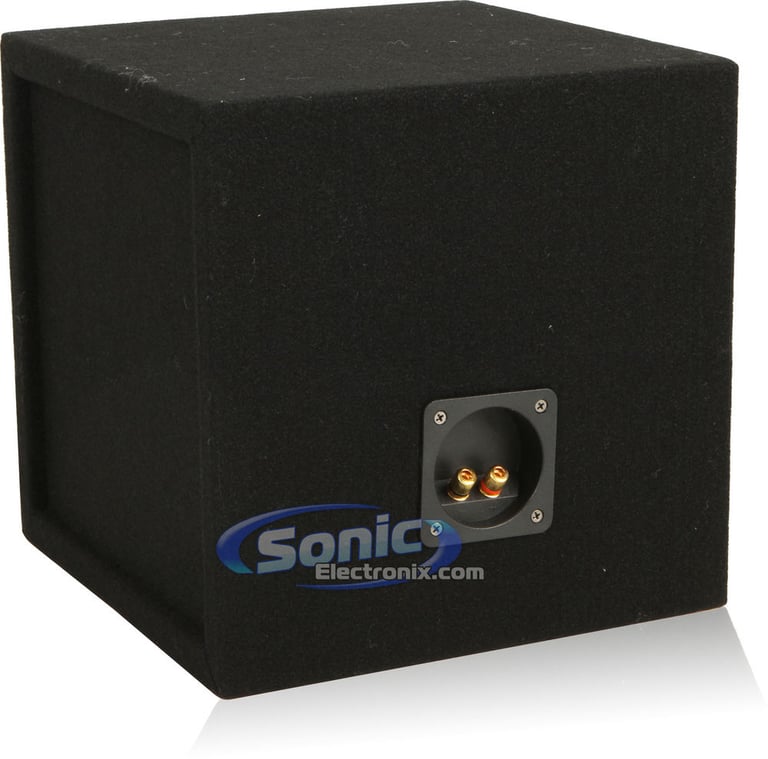

• Gold plated screw terminals (banana clip ready)
• Mounting depth: 10-5/8"
• Cutout diameter: 9-1/8"
• Box volume: 0.66 cubic feet
• Made from 3/4" Medium Density Fiberboard (MDF)
• Dimensions: 12"D x 12"W x 12"H

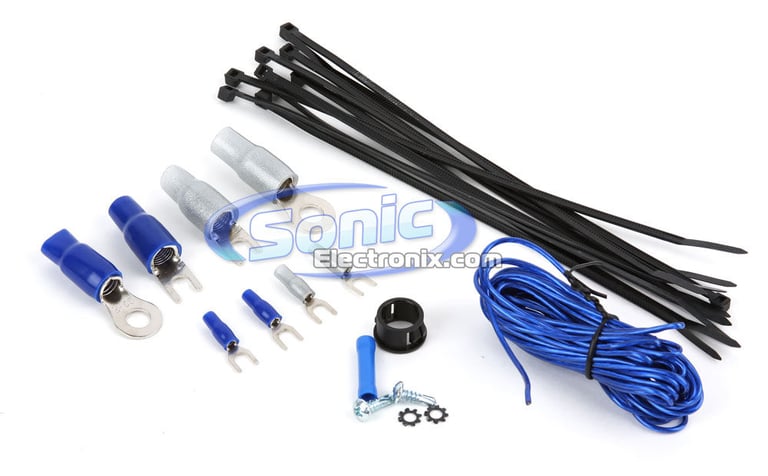

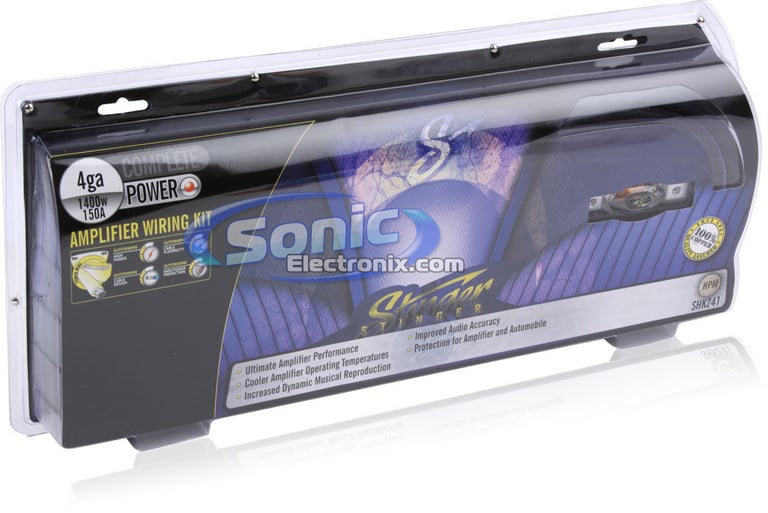

Amplifier Kit: Stinger SK6241 4 Gauge

• 4 Gauge 6000 Series Power Amplifier Wiring Kit
• Designed specifically for car audio systems up to 1750 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Mini-ANL style fuse holder for maximum power delivery and safety
• Pre-Installed black nylon mesh covering protects power & ground wire from damage
• TruSpec cables/wires meet or exceed the industry standard of copper required for the gauge size
• Matte finish HyperTwist wire construction provides excellent flexibility
• Pre-Terminated power connections provide reliable performance
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

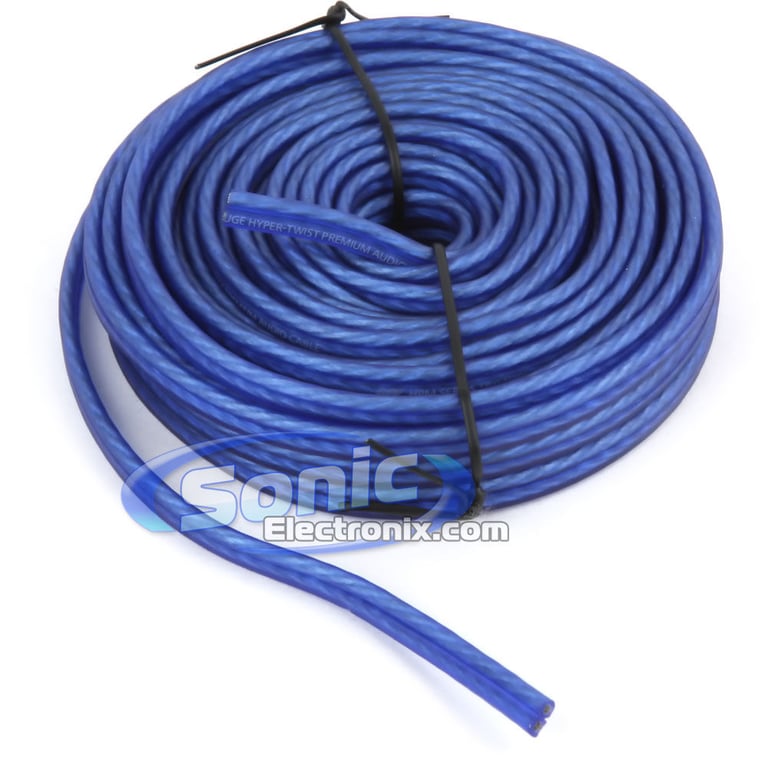

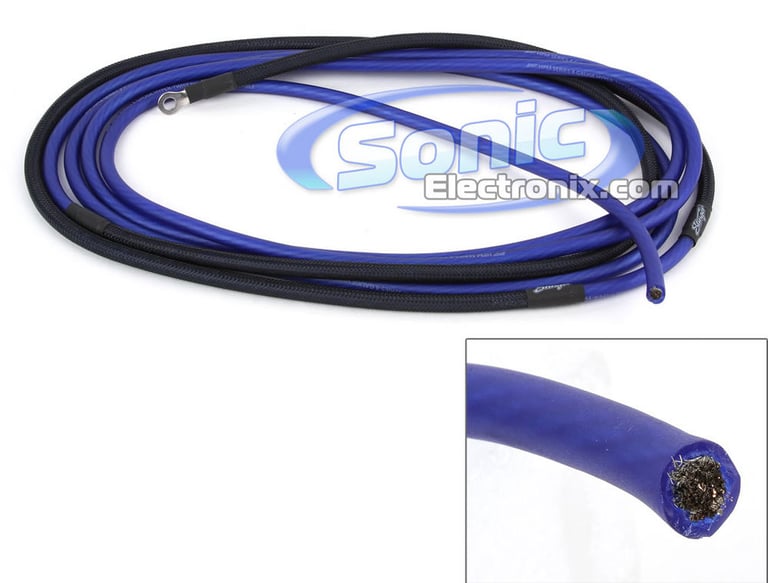

1. 17 ft. of 4 Gauge matte blue hyper-twist power wire

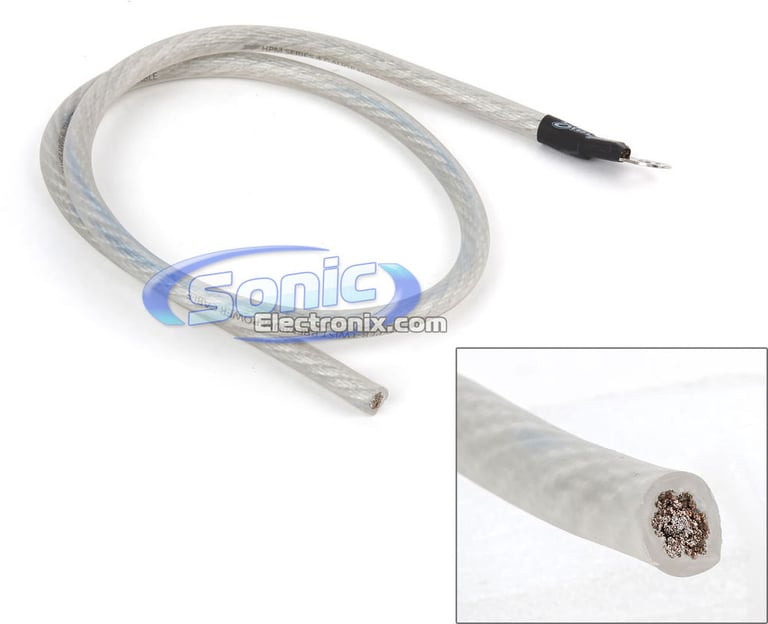

2. 3 ft. of 4 Gauge Matte silver hyper-twist ground wire
3. 17 ft. of 18 Gauge Blue turn-on wire
4. 175 Amp Mini-ANL Fuse

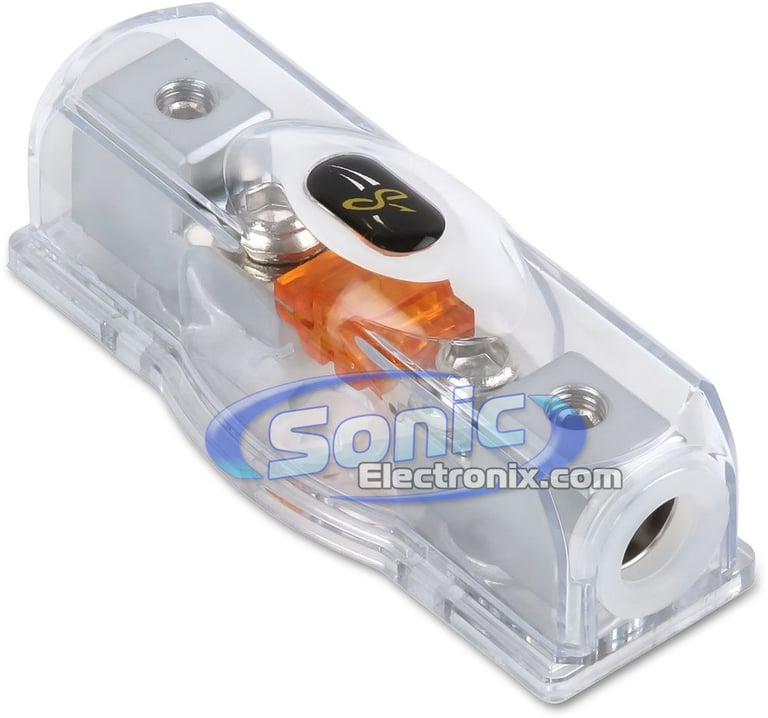

5. Mini-ANL Style fuse holder
6. Pre-Terminated ends
7. Mesh wire loom
8. Stinger metal badge

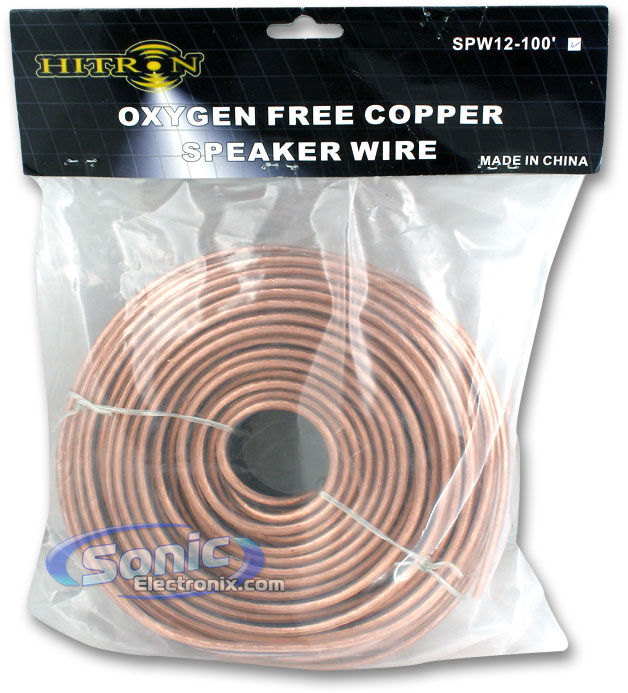

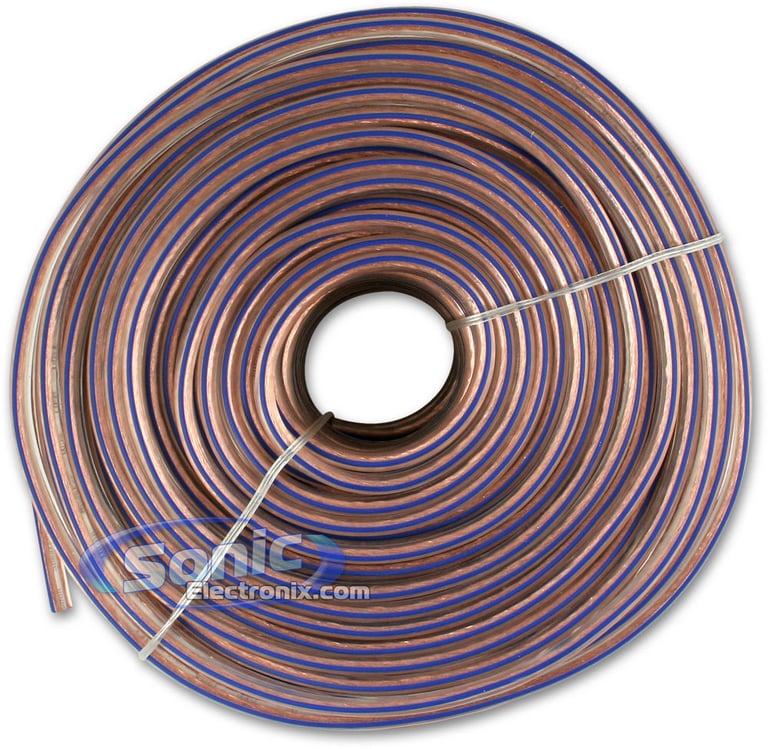

Speaker Wire: Hitron 12 Gauge

• 12 Gauge speaker wire
• 100 ft. speaker wire
• OFC (Oxygen Free Copper) wire used for less sound interference
• Works great with various size speakers
• Easy color cosmetics to keep speaker polarity (positive/negative color differences)

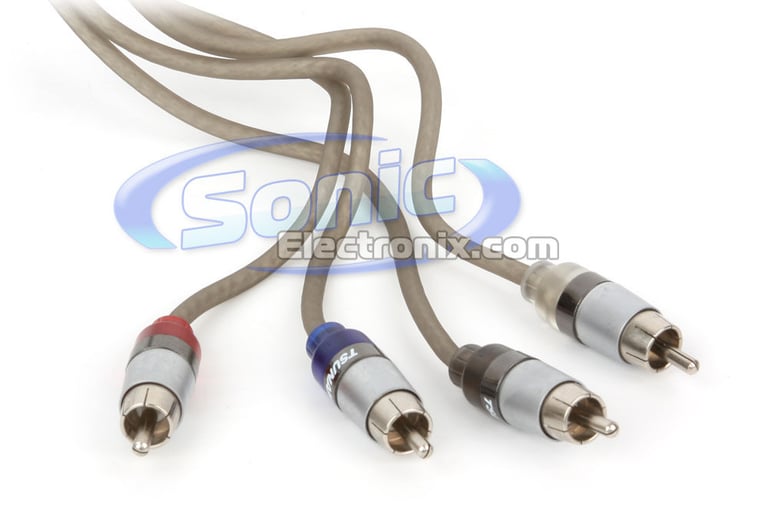

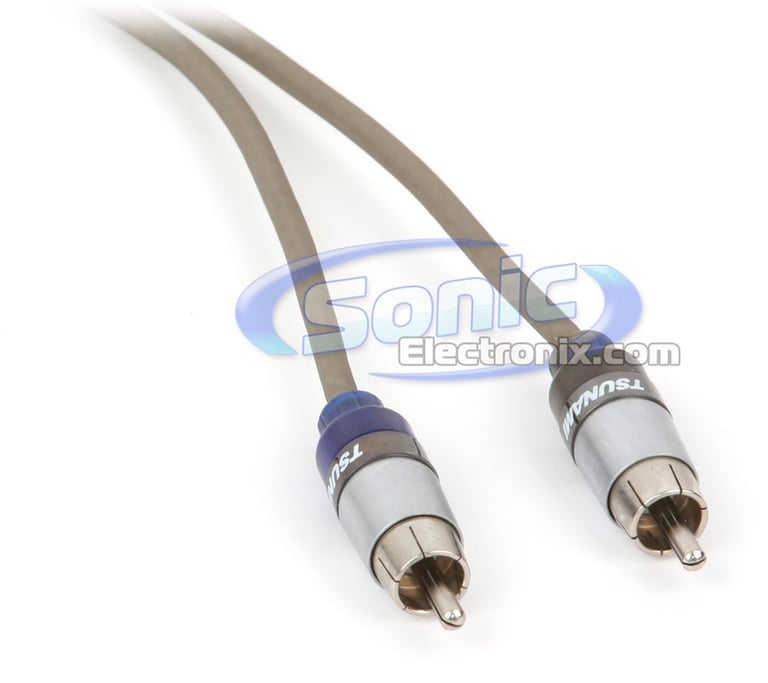

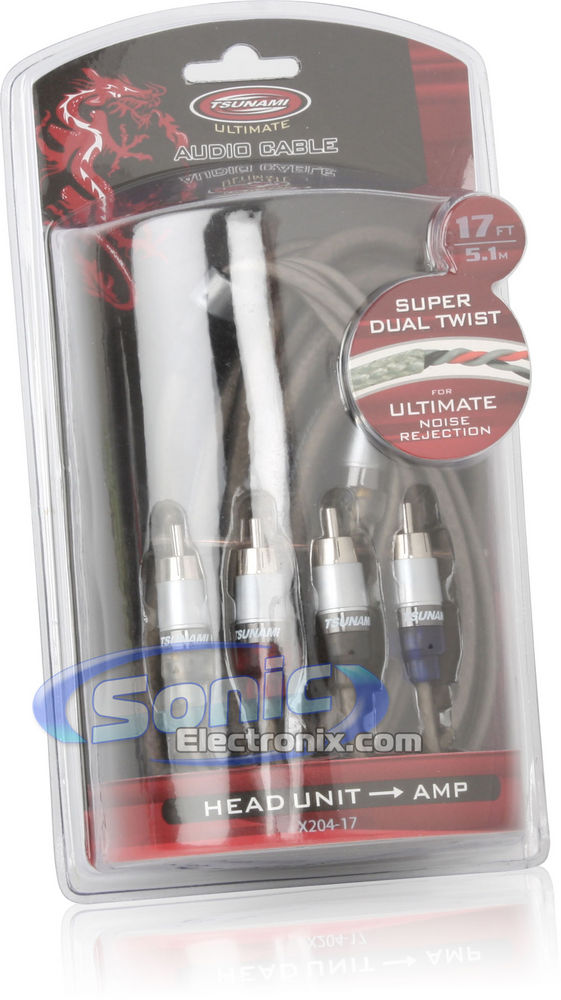

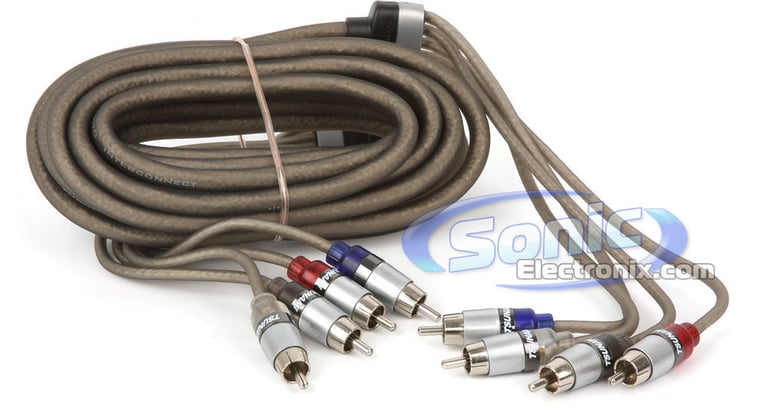

RCA Interconnect Cables: Tsunami X204-17

• 4-Channel Twisted Pair of Advanced Audio RCA Interconnect Cables
• Features the latest in CAT-5 Technology with a double braided outer shield for the ultimate in noise rejection
• 100% Oxygen free copper and precision wound technology
• Produces accurate and transparent sound reproduction
• Utilizes a super-flex PVC jacket and custom metal barrel connector
• Nickel-plated split tips and rings
• Color-coded high tech barrels
• Length: 17 feet
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

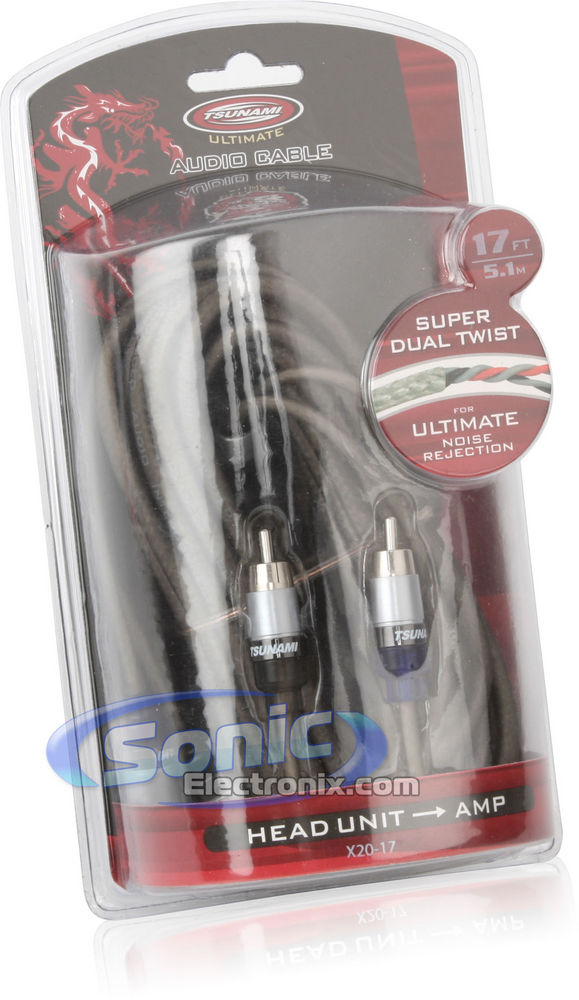

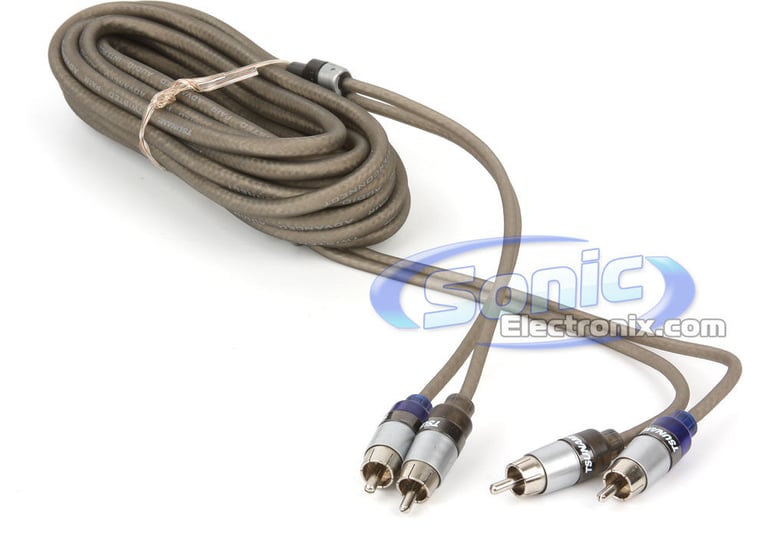

RCA Interconnect Cables: Tsunami X20-17

• Twisted Pair of Advanced Audio Interconnect Cables
• Features the latest in CAT-5 Technology with a double braided outer shield for the ultimate in noise rejection
• 100% Oxygen free copper and precision wound technology
• Produces accurate and transparent sound reproduction
• Utilizes a super-flex PVC jacket and custom metal barrel connector
• Nickel-plated split tips and rings
• Color-coded high tech barrels
• Length: 17 feet
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
