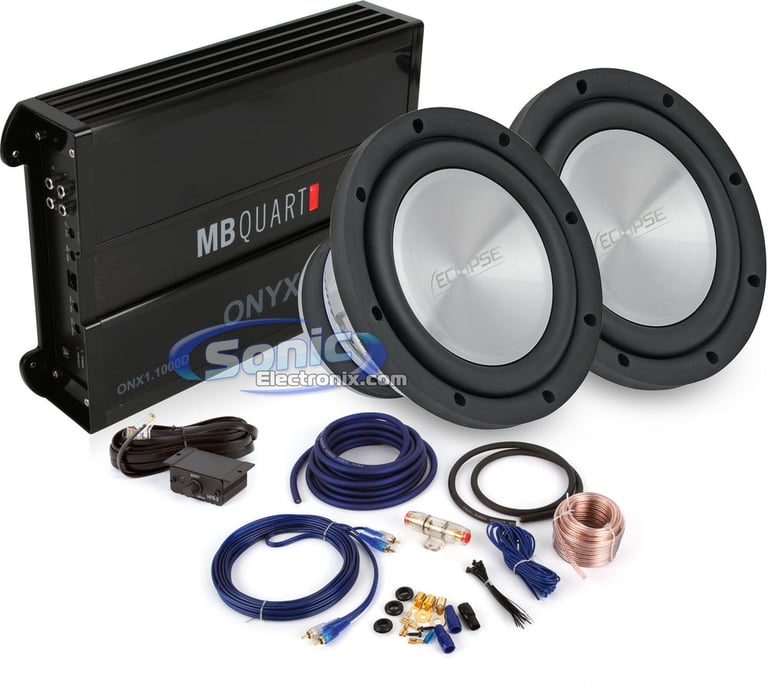

1000W MB Quart + Eclipse Bass Package

MB Quart ONX1.1000D Class D Amplifier + 2 Eclipse SW6010 Subwoofers + AK4 4-Gauge Amp Wiring Kit

MB Quart
Shop all MB Quart
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: MB Quart ONX11000D Amplifier + 2 Eclipse SW6010 Subwoofers + 4 Gauge Amp Kit • 1000W RMS Monoblock Class D Amp • Two 10" Dual 4 Ohm SW 6200 Series Subwoofers • Sonic Electronix Exclusive Combo Package

Learn more about the onx11000d_2-sw6010

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Product Highlights


Bass Package: MB Quart ONX11000D Amplifier + 2 Eclipse SW6010 Subwoofers + 4 Gauge Amp Kit • 1000W RMS Monoblock Class D Amp • Two 10" Dual 4 Ohm SW 6200 Series Subwoofers • Sonic Electronix Exclusive Combo Package

Description


MB Quart brand icon

Authorized dealer

Sonic Electronix Exclusive Combo Package

MB Quart and Eclipse. Two of the finer names in the car audio realm united at last in this epic deal of the century. Warning: This package is not for the faint of heart. With the amount of power you'll be seeing, you better make sure you're ready for it. Asides from how great the two look paired up to each other, with the brushed aluminum cone on the Eclipse SW6010 woofers and the glossy piano black finish on the ONX1.1000D amplifier, there is some serious sound to be heard from this combo. Eclipse is known to keep both audiophiles and bass heads in mind when it comes to their woofers and the SW6010 is no exception. And beware, with the wattage you'll be crankin' out with the ONX1.1000D you WILL be heard for blocks around. And to top it all off, you get a complete 4 gauge amp kit to make the installation a piece of cake. Step in and enjoy the power... Did we mention the savings as well?

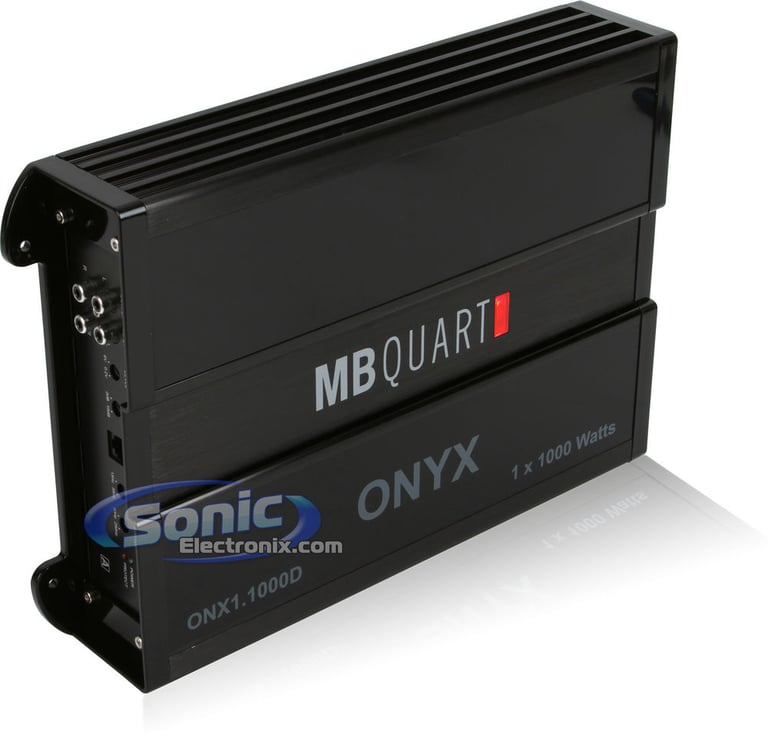

MB Quart Amplifier Features
  • ONYX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply

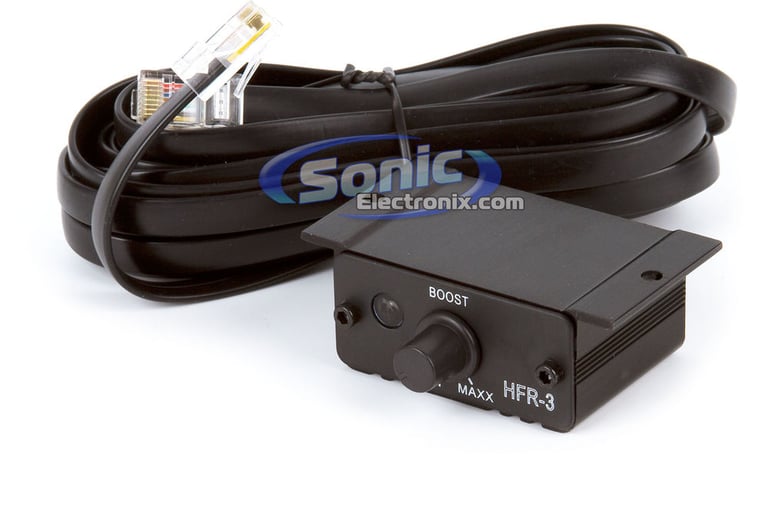

  • MB QR-2 Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz
  • Mono channel operation

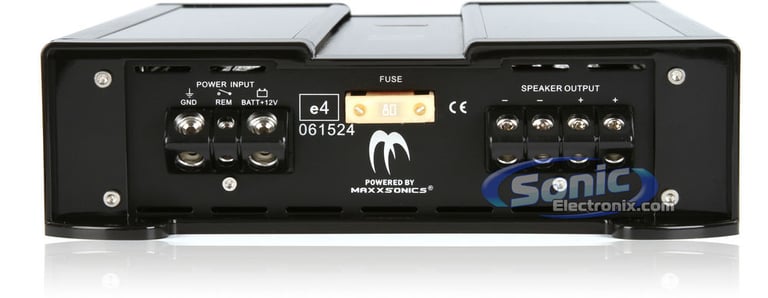

  • Dual speaker terminals simplify the hookup of multiple speakers

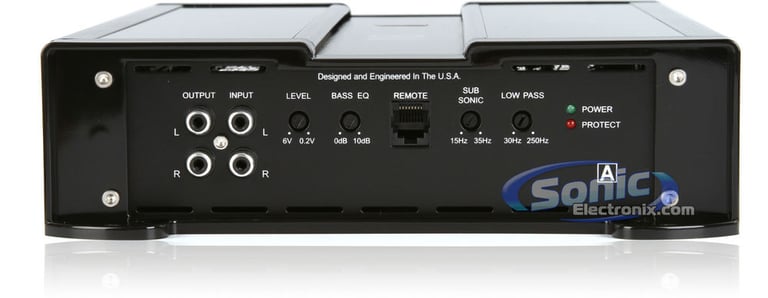

  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)

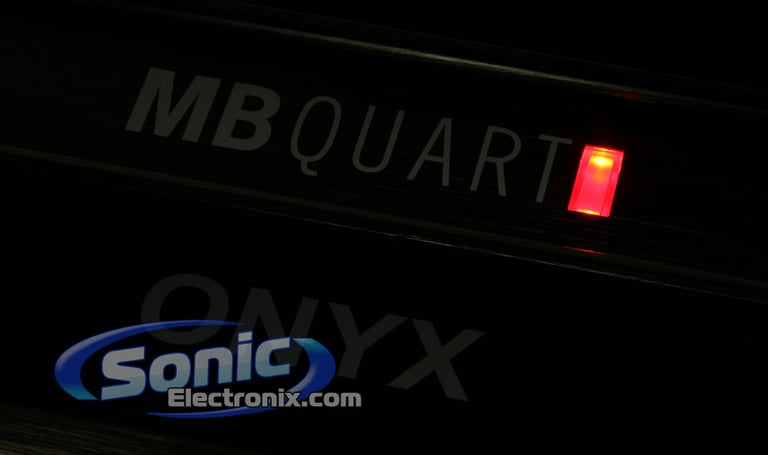

  • Piano black gloss finish with illuminated logo
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15-35 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 13-11/16"L x 9"W x 2-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

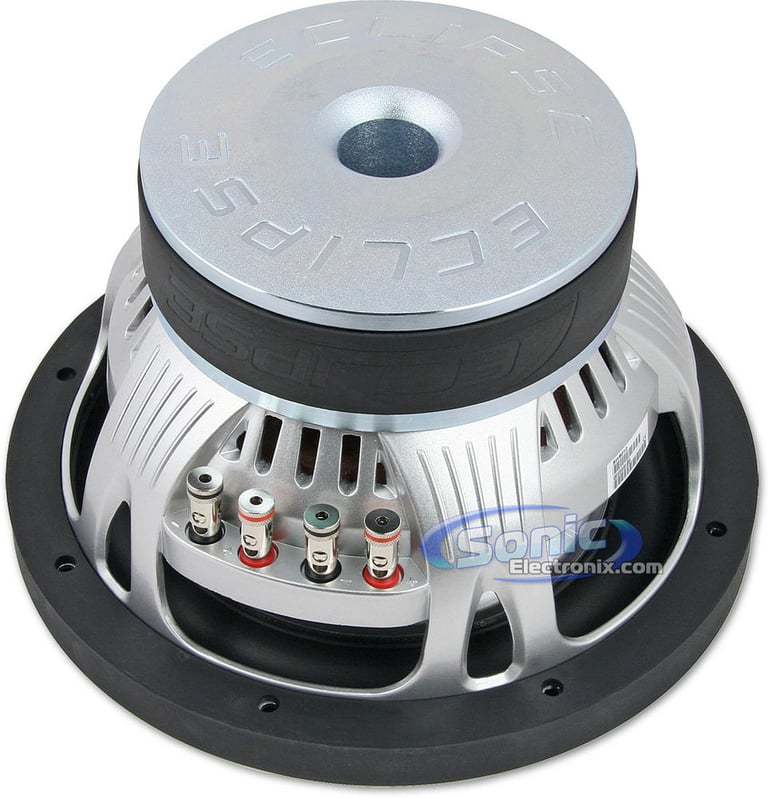

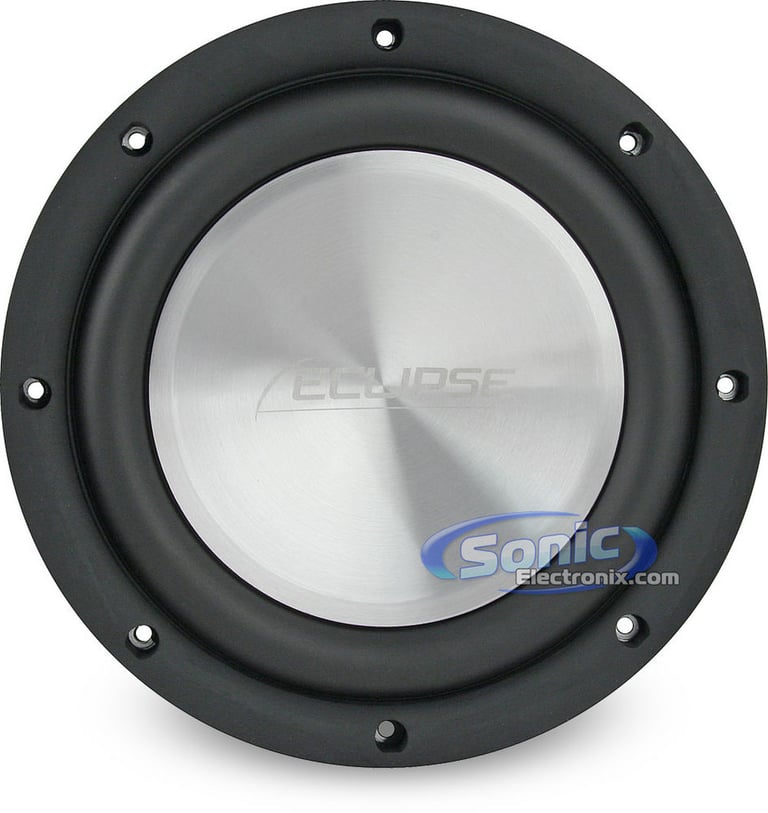

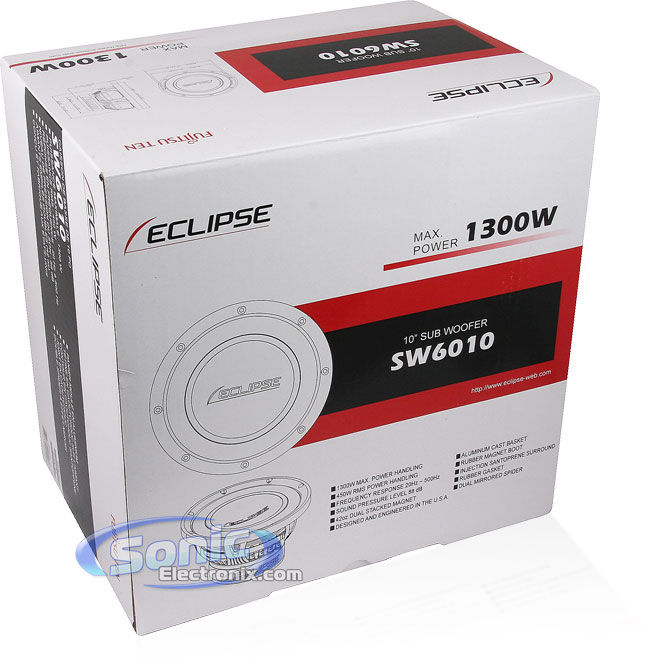

Eclipse Subwoofer Features

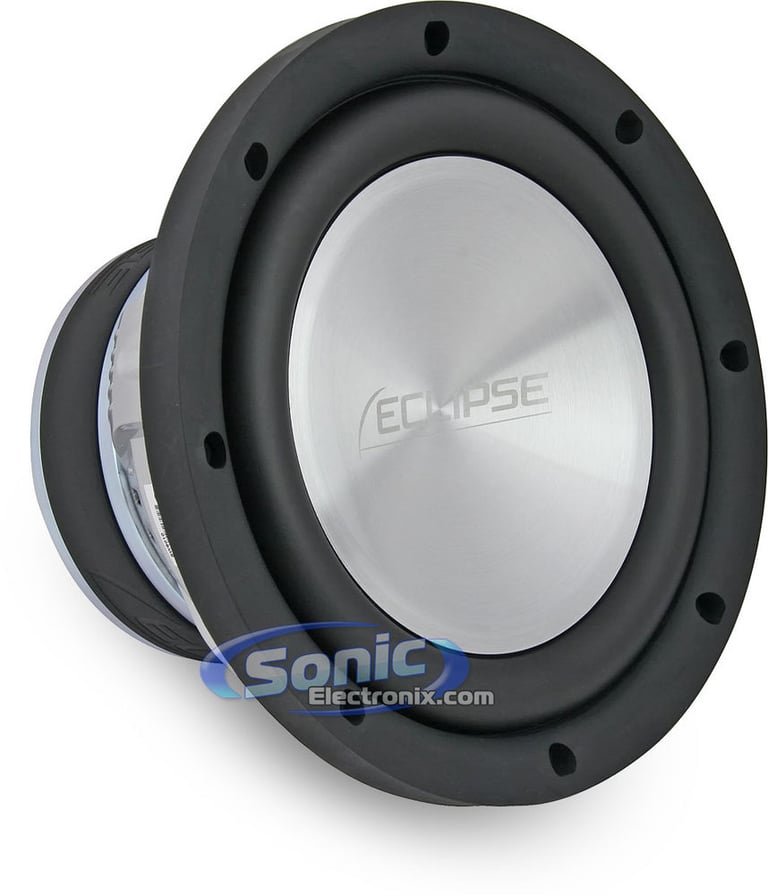

  • 10" Dual 4 Ohm SW 6200 Series Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 450 watts
  • Impedance: Dual 4 ohm
  • Kevlar-aluminum composite cone woofer
  • Santoprene surround
  • ABS + 15% Fiber filled construction
  • Rubber gasket
  • Flat PC spider
  • Four 10-gauge chrome terminals (2 pairs)
  • Air vent cooling system
  • 4-Layer dual 4 ohm aluminum voice coil
  • 30oz. Ferrite magnet
  • Sensitivity: 88 dB
  • 1-year SonicElectronix.com warranty

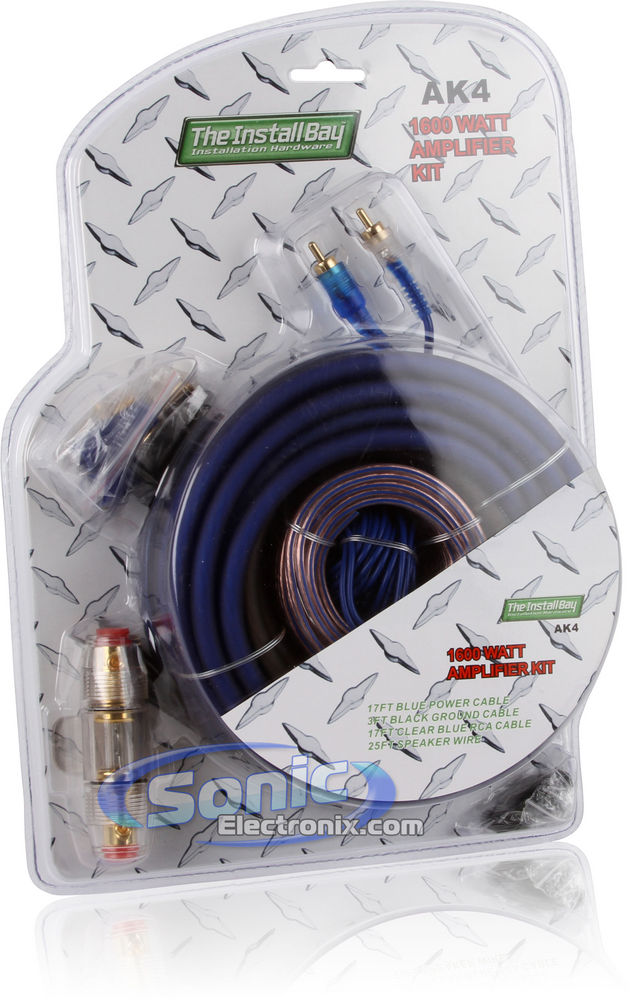

InstallBay Amp Kit Features
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier

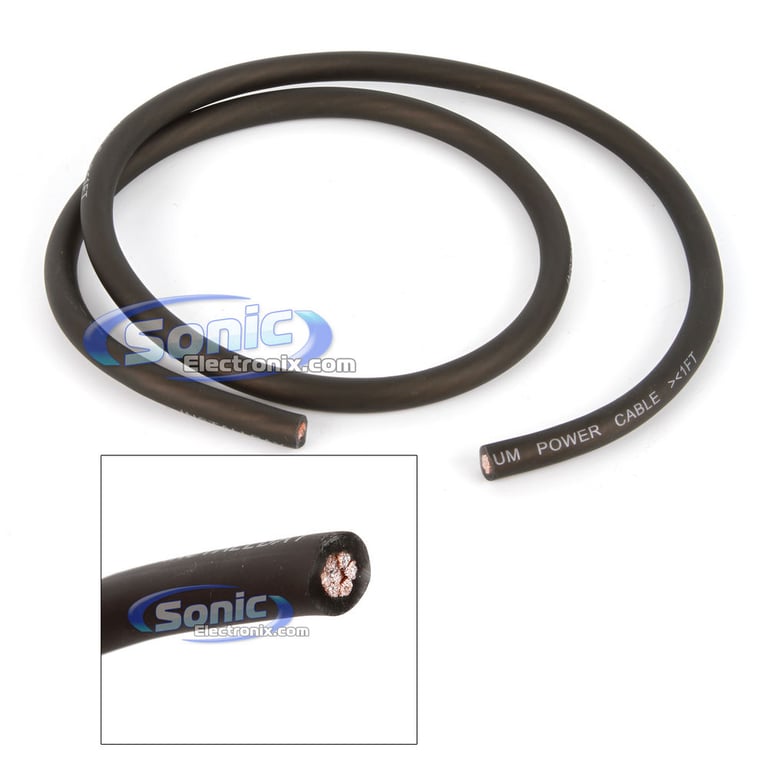

  • Premium power and ground cable
  • 1-year Manufacturer's warranty
Amp Kit Includes:

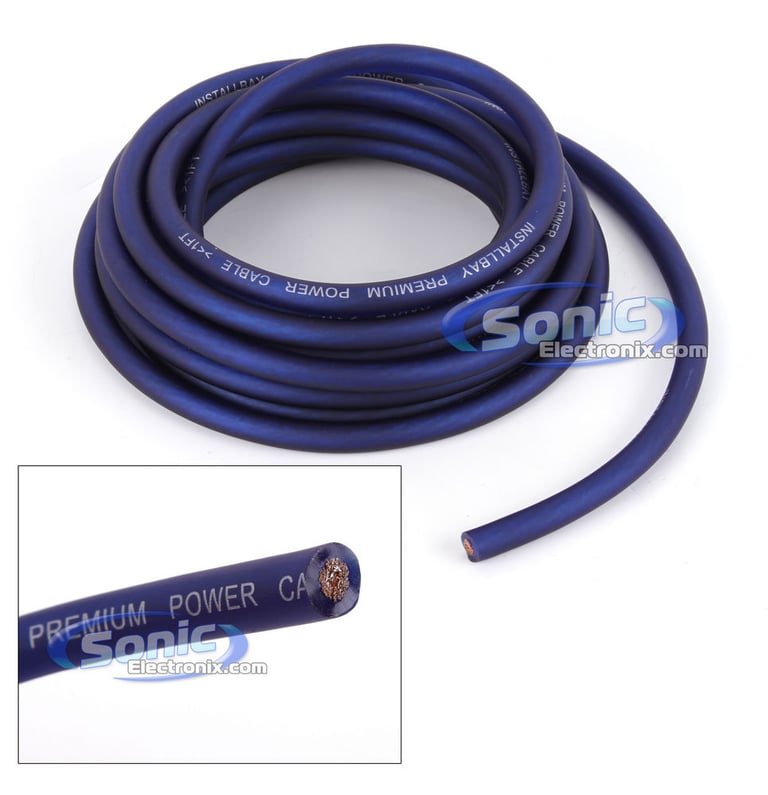

  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable

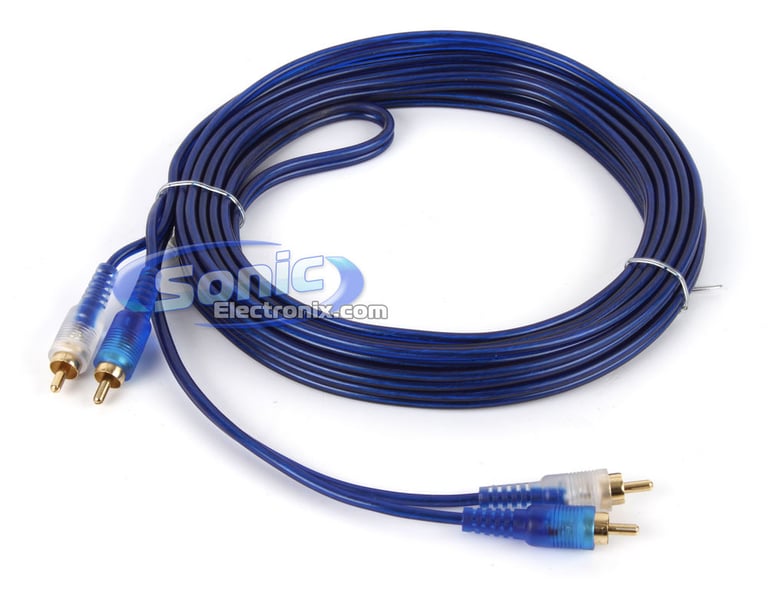

  3. 17 ft. of Clear/blue RCA cable

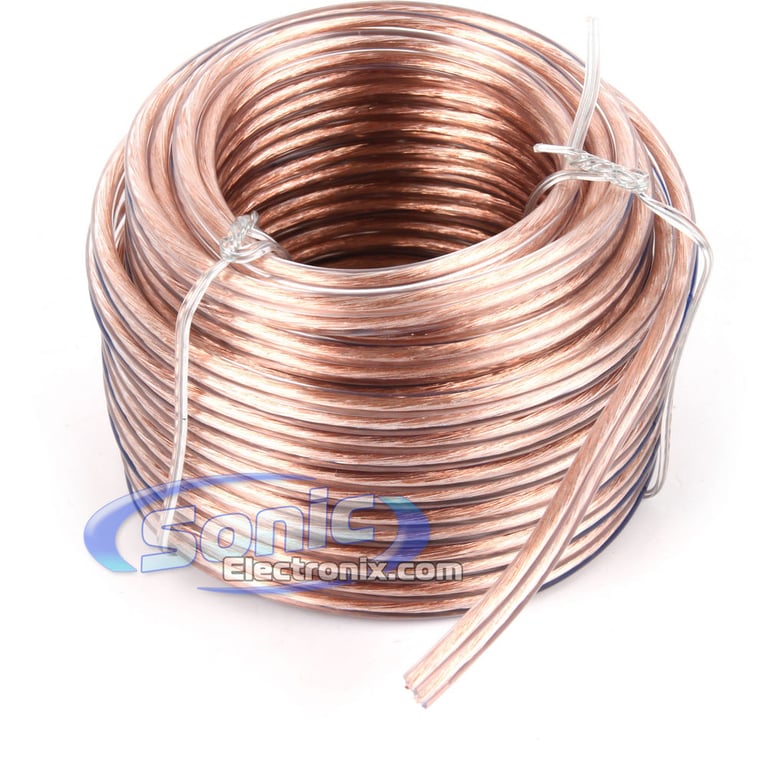

  4. 25 ft. of Speaker wire

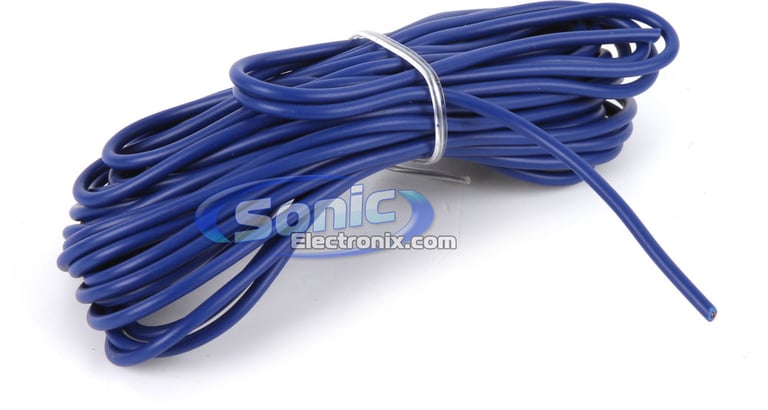

  5. 17 ft. of Remote turn-on wire

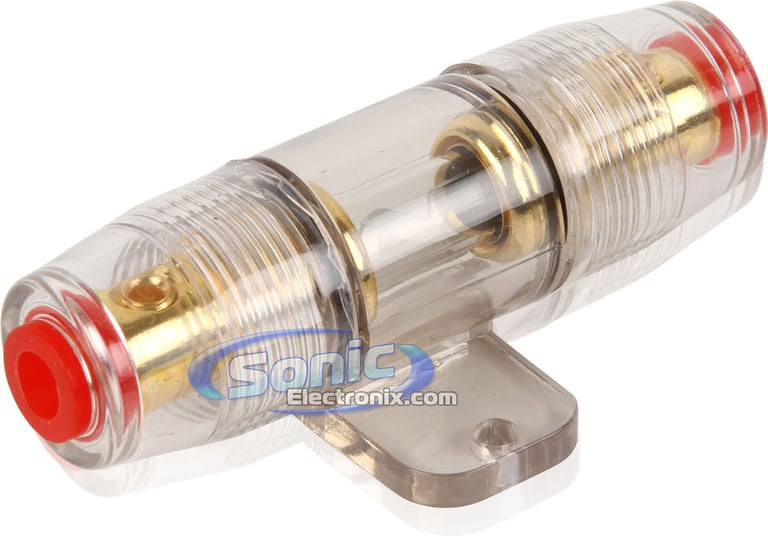

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

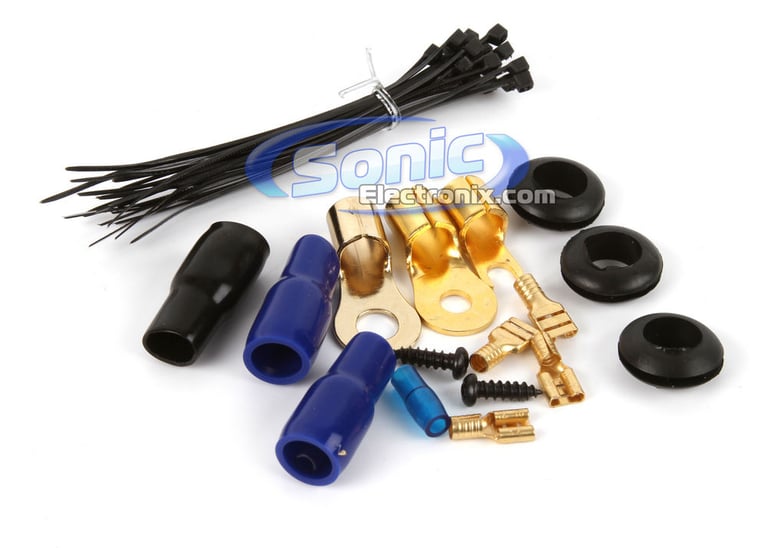

  8. Installation hardware

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

No picture

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

-17.26%

$239.95

List price $290.00

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
Limited time!
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
-7.69%

$59.99

List price $64.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
70A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
450 watts
Total RMS Power Handling
900 watts
Peak Power Handling
1300 watts
Total Peak Power Handling
2600 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar-Aluminum Composite
Sensitivity
88 dB
Frequency Response
20 - 500 Hz
Xmax (millimeters)
12 mm
Top-Mount Depth (Mounting Depth)
5-30/32"
Cutout Diameter
9-5/32"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX1.1000D_2-SW6010

Weight:

52.55lbs

Internal SKU:

onx11000d_2-sw6010

Internal Product ID:

29634

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


1000W MB Quart + Eclipse Bass Package thumbnail image

5 star
59%
4 star
27%
3 star
10%
2 star
2%
1 star
2%



Durability
4.4
Value
4.7
Features
4.4
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

has it all

The following review is for AK4, which is a part of the bundle you are viewing.

Kit has everything you need for a hassle free installation, I was thinking I wasn't going to need it, but was glad I had it after things got going.

By steven on September 10, 2012

110 found this helpful


Great Value!!!

The following review is for AK4, which is a part of the bundle you are viewing.

If your looking for an amp install kit with all of the necessities that doesn't cost and arm and a leg this is it. The kit came with everything needed to get power to my amp the length was perfect for a extended cab pickup. The RCA's lack a little but I just used these single channel RCA's to run my sub amp and I bought some Streetwire 4 ch RCA's for the 4 ch amp and it's turned out great. I've always had good luck with Install Bay products!!! I would recommend to any one in search of a good Amp Install Kit!!!

By Dalton on October 5, 2013

106 found this helpful


Love

The following review is for AK4, which is a part of the bundle you are viewing.

I bought this my my 2007 jetta. It work really good the it was easy to put on. I would buy this again.

By Kiera on February 1, 2013

109 found this helpful


2nd time with this install bay kit

The following review is for AK4, which is a part of the bundle you are viewing.

its a great kit for the price. I bought it once for a buddys Suby and then for my father in laws econoline van. never had a problem with either. sonic can be slow at shipping. but if on a budget this kit kicks butt for the price....not much online can compare for a 4 gauge and price. never a problem with feed back or crappy rca. might have to get a few better connectors but hey its a given. anyways great kit. also great for a basic systems. I wouldn't run more then 100 amps of power max.

By marklar on September 17, 2013

104 found this helpful


Does what its suppose to do!

The following review is for AK4, which is a part of the bundle you are viewing.

This product is exactly what it is, a kit! I LOVE IT, everything i needed was included and durable! the 4ga wire is true to size! (not just labeled 4ga IT REALLY IS!) if needed, id purchase again!

By Alex on August 14, 2012

103 found this helpful


New amp kit

The following review is for AK4, which is a part of the bundle you are viewing.

Not much to review, It works fine. The only issue is that the power cable doesn't fit into the fuse holder. The fuse glass and holder plastic actually cracked when trying to close it. I'm sure I'll have to replace them soon. Other then that, it's good enough to power my amp with no issues. Yes, I would recommend it to others, just be careful when connecting the fuse holder and power wire. Don't use force!

By Rey on November 12, 2013

103 found this helpful


Decent Install Kit

The following review is for AK4, which is a part of the bundle you are viewing.

This kit isn't too bad it does the job. The fuse holder seems a little bit cheap on the plastic material but it works. The power cable held up to my abuse when I ran it through my tight space trims in my vehicle and I had to really pull them hard to get through. The RCA cable is a bit thin but I used it for my subs anyways so no problems there.

By Michael on September 10, 2012

99 found this helpful


Decent for the money

The following review is for AK4, which is a part of the bundle you are viewing.

I originally bought and 8 gauge cuz that's what my amp called for, it was a joke so I returned it and got this 4. Easy return/ exchange. Sounds like it happens a lot...
I think these kits are measured on the outside including plastic diameter not the inside wire.

Anyways buy the next size down from what you need. Kit came with lots of little parts to make the install ez. Would buy again for a 200-400 watt amp

By Land rover on November 7, 2013

98 found this helpful


AK4

The following review is for AK4, which is a part of the bundle you are viewing.

Bought the Installbay AK4, pretty decent pricing although its wire is very brittle and falls apart when splicing it so be careful. Also remember your going to need a crimping tool so look for one before getting too excited. Overall good product, no problems encountered

By image on March 3, 2011

97 found this helpful


Great product!

The following review is for AK4, which is a part of the bundle you are viewing.

Now my 1993 honda accord sounds better than ever! Exellent product 100% recomended!

By Andres L. San Miguel on October 31, 2014

100 found this helpful




6X9BOX-2 small

6 x 9 Speaker Box (Priced Individually)

(AKA: 69C, 6X9BOX)

(12)

$10.99

List price $19.99

No picture

Audiobahn A1502DP R/B

True Digital Series 2-Channel Amplifier (Factory Refurbished)

$129.99

List price $449.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 BMW 745i

2013 Acura RDX

2015 Mazda 6

2022 MINI Cooper

2016 Nissan Versa

2008 Lexus LS460

2004 Hyundai Santa Fe

2018 Audi S7

2015 Audi S7

2007 Mazda RX-8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
