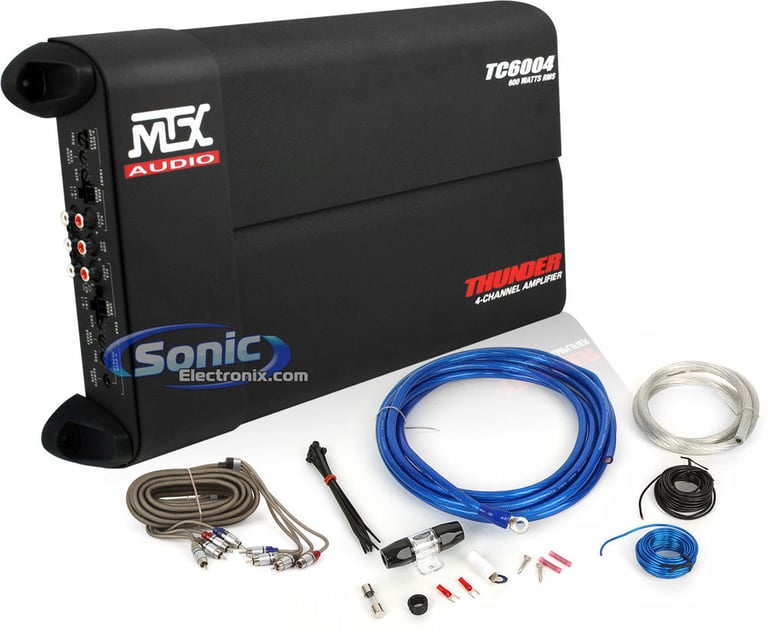

MTX Audio TC6004 + Amplifier Kit

1800W Max 4-Channel Amplifier w/ 4 Gauge Amplifier Kit and 4 Channel RCA Interconnects

MTX
Shop all MTX
Product videos
highlight-star-icon

Thunder Series 4-Channel Class A/B Car Amplifier • 1800W Max • 150 Watts x 4 Chan. @ 2 Ohm • Speaker Level Inputs • Preamp Summed RCA Output • Wired Remote Bass Level Control • Includes Amp Kit & RCA Interconnects

Learn more about the tc6004_amp850bl

We apologize

This item has been discontinued


Loading...
LEX5VT2 main

GROM Audio LEX5VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2006-2009 vehicles from Lexus, Toyota

1

$549.95

List price $559.95

LEX5VL2 main

GROM Audio LEX5VL2 VLine Lexus Infotainment Video Interface

For select 2006-2009 vehicles from Lexus, Toyota. Upgrade your factory radio to an Android infotainment display with music streaming, navigation and more

4
-16.67%

$679.95

List price $815.99

TSB920 main

American International TSB920

6" to 6.5" Speaker Mounting Adapters for select 1998-2020 vehicles from Toyota, Scion, Lexus

6
-58.38%

$9.99

List price $24.00

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

NVX XSP69KIT

600W Peak (300W RMS) 6x9" X-Series 2 Way Component Car Speakers

4
-16.67%

$169.99

List price $203.99

Product Highlights


Thunder Series 4-Channel Class A/B Car Amplifier • 1800W Max • 150 Watts x 4 Chan. @ 2 Ohm • Speaker Level Inputs • Preamp Summed RCA Output • Wired Remote Bass Level Control • Includes Amp Kit & RCA Interconnects

Description


MTX brand icon

Authorized dealer

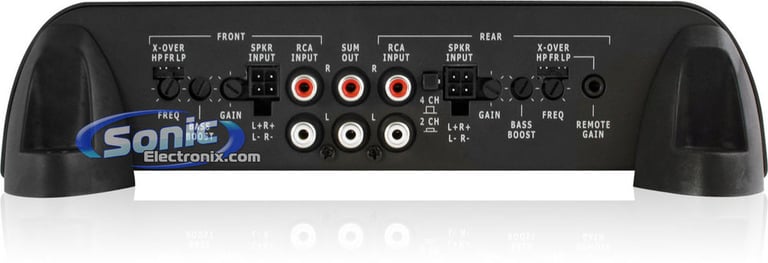

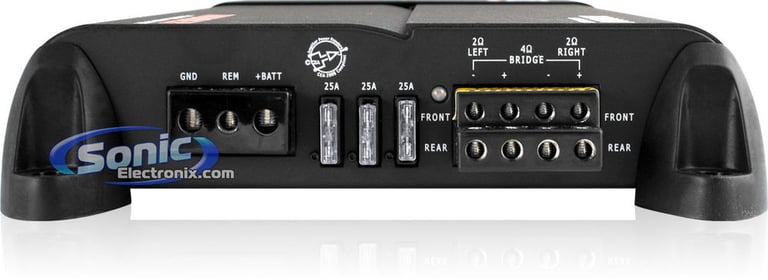

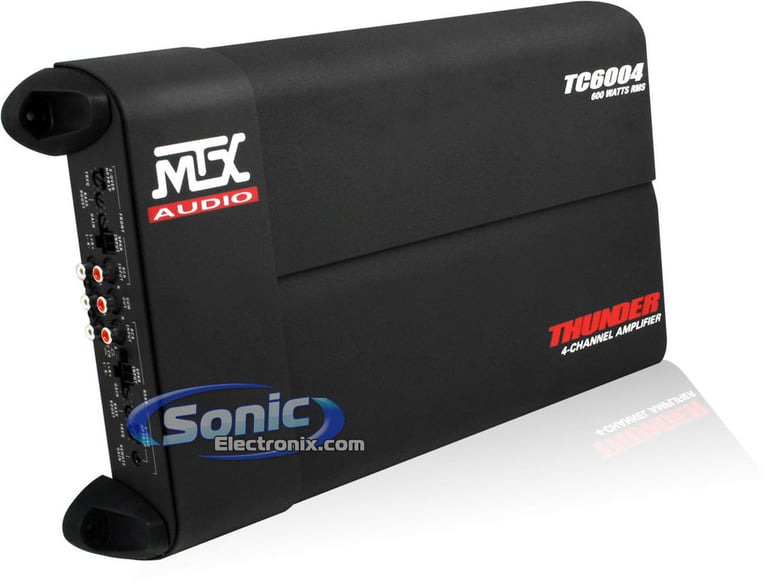

MTX Audio TC6004 Amplifier Features:
Authorized MTX Dealer
  • Thunder Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Max power output: 1800 watts
  • Class A/B (Patented Pure N-Channel)
  • Patented state-of-the-art power supply and output stage
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 40 Hz)
  • Soft Start Turn-on
  • 4/3/2 Channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp summed RCA output to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-5V
  • Variable high-pass filter (40-350 Hz, 12 dB/octave)
  • Variable low-pass filter (40-350 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9-7/8"D x 17-5/8"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer’s warranty

Read more about the MTX Audio TC600.4 in our blog!

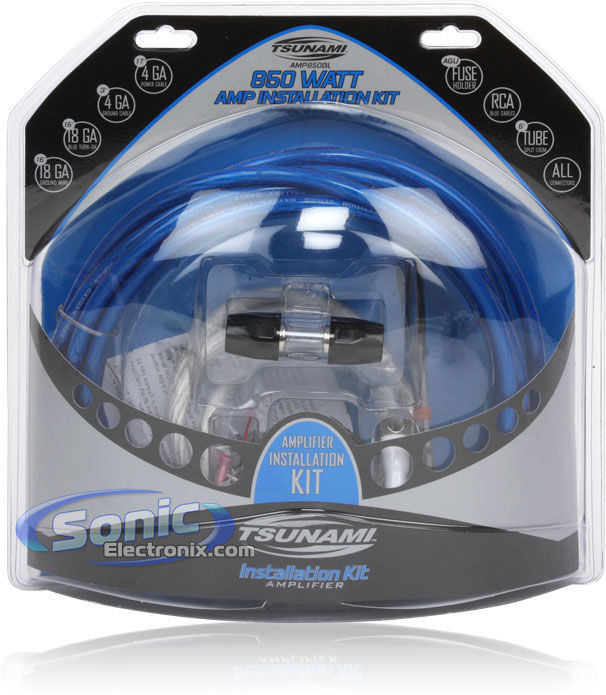

Amplifier Kit Features
  • 4-gauge power kit: Give your amplifier the best wiring possible for peak performance.
  • Tsunami competition series oxygen free power and ground cable
  • Includes all the hardware you need to safely wire your amplifier with 4-gauge power and ground cables and a 60 amp AGU fuse
  • Wire ties and terminals provide a clean, secure connection between your amplifier and battery
  • Designed for use with amplifiers up to 850 watts
Amplifier Kit includes:

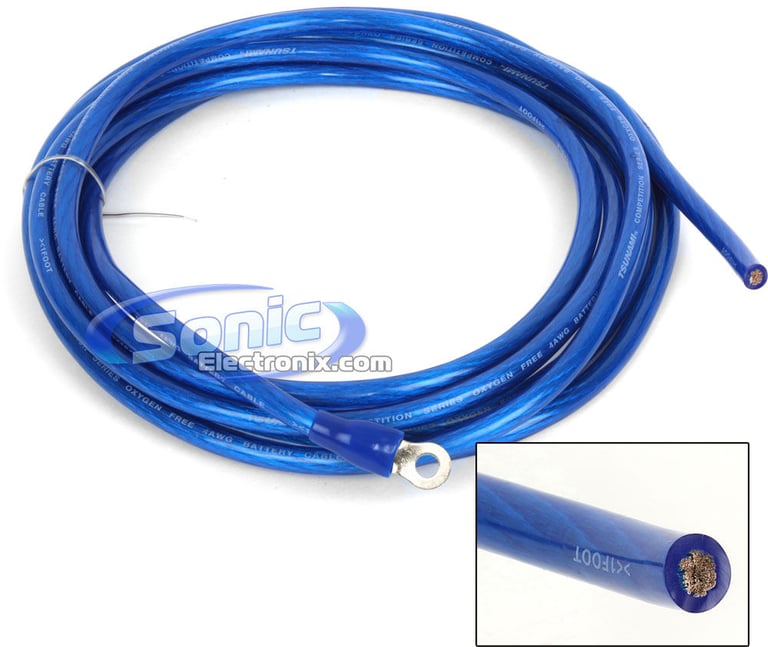

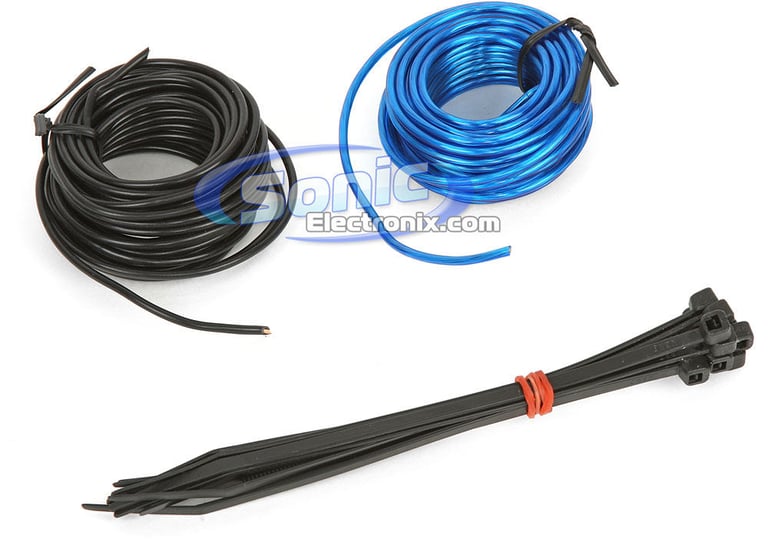

  1. 17ft. 4 Gauge blue power wire

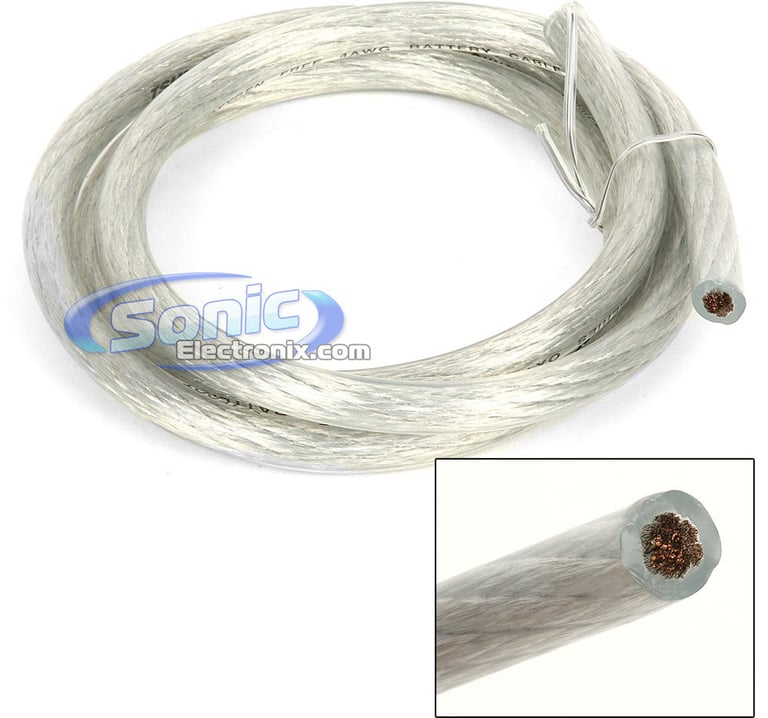

  2. 3ft. 4 Gauge silver ground wire
  3. 16ft. 18 Gauge blue turn-on wire

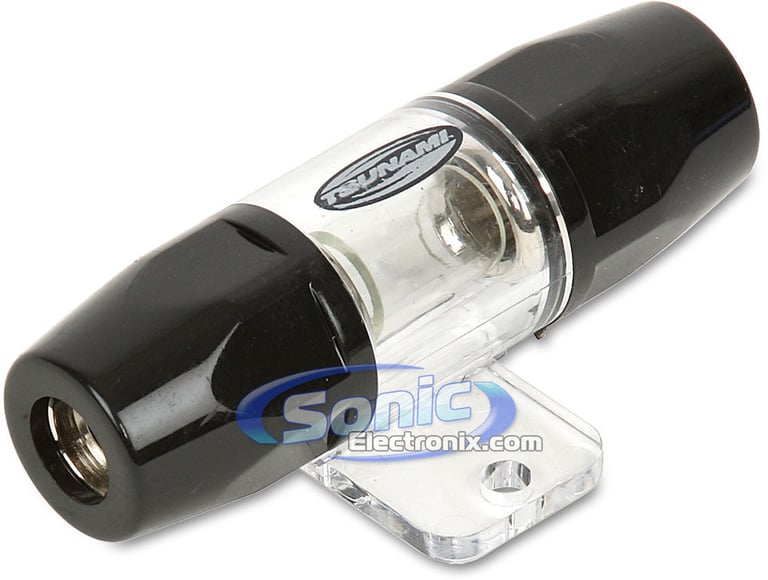

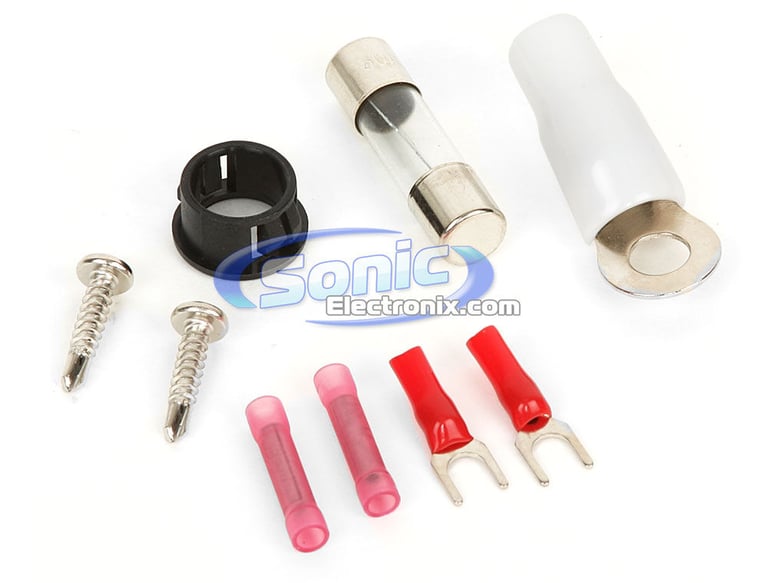

  4. AGU Fuse holder with 60 AMP fuse
  5. Push-in grommet
  6. (10) 4ft. Black wire ties
  7. (2) 4 Gauge 5/16" Ring terminals
  8. (10) 6" Black wire ties
  9. (2) Red vinyl butt connectors
  10. (2) Red vinyl #10 spade connectors
  11. (4) #8 Pan head phillips screws

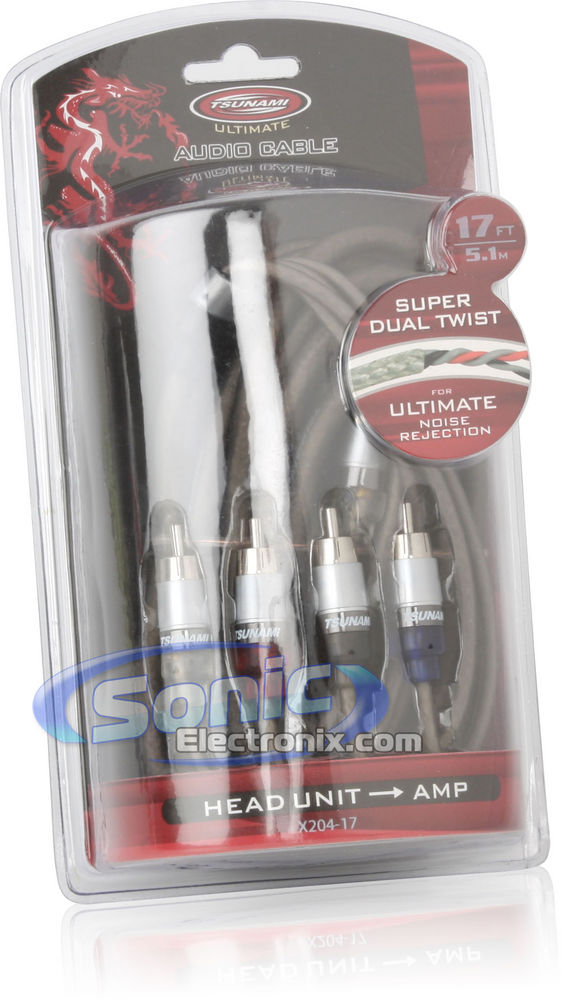

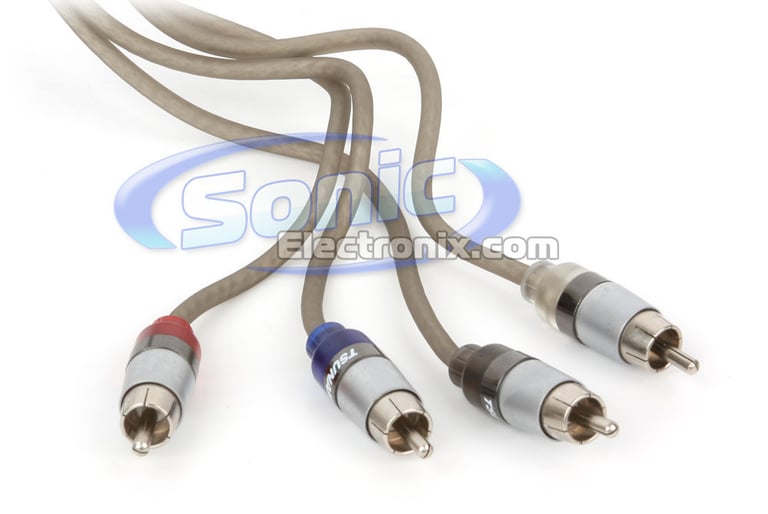

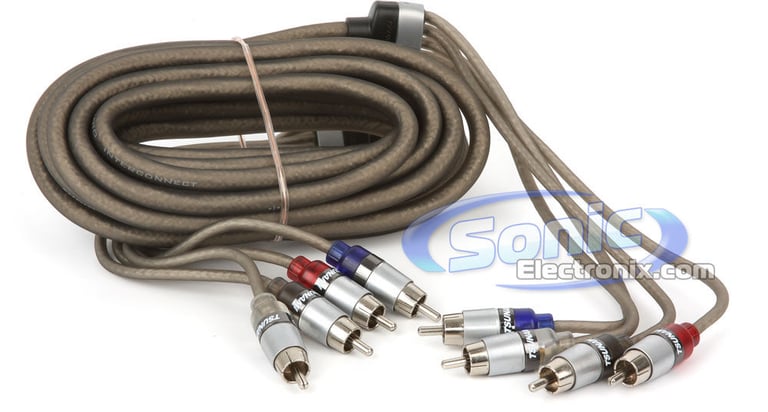

RCA Interconnect Features:
  • 4-Channel Twisted Pair of Advanced Audio RCA Interconnect Cables
  • Features the latest in CAT-5 Technology with a double braided outer shield for the ultimate in noise rejection
  • 100% Oxygen free copper and precision wound technology
  • Produces accurate and transparent sound reproduction
  • Utilizes a super-flex PVC jacket and custom metal barrel connector
  • Nickel-plated split tips and rings
  • Color-coded high tech barrels
  • Length: 17 feet
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channel
Peak Power Output
450 watts x 4 channel
Amplifier Specifications
Number of Channels
4-Channel
Total Peak Power Output
1800 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.25%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 350 Hz
Low-Pass Crossover Frequency
40 - 350 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 3
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
16 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AGU
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TC6004_AMP850BL

Weight:

19.90lbs

Internal SKU:

tc6004_amp850bl

Internal Product ID:

29697

Product and How-to Videos


Customer Ratings & Reviews


MTX Audio TC6004 + Amplifier Kit thumbnail image

5 star
77%
4 star
20%
3 star
3%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp

The following review is for TC6004, which is a part of the bundle you are viewing.

This amp is rated at 75W RMS, but on the birth sheet it was tested at 123W RMS! I am impressed with the sound quality that this amp produces and would highly recommend it. It was a very good buy at a decent price.

By Kurt on September 10, 2010

17 found this helpful


Good price lots of power

The following review is for TC6004, which is a part of the bundle you are viewing.

I replaced my factory speakers with Infinity Kappa 6x8's in my 4 door ford explorer. I have this Mtx Thunder Amp powering them and they hit really hard, furthermore on more acoustic songs they sound wonderful as well. I used 4 gauge amp kit to hook this amp up. i would recommend this amp. one more thing the piece of paper with the actual specs this amp was tested or at least the one i got are a lot better then the specs listed on this website.

By Darin on July 1, 2010

17 found this helpful


good amp

The following review is for TC6004, which is a part of the bundle you are viewing.

It does what it says and hasn't cut out yet but it does get a bit warmer than I would prefer(kinda scary), but other than that it works very well.

By Bruce on December 11, 2010

17 found this helpful


Great Quality

The following review is for X204-17, which is a part of the bundle you are viewing.

This is a really a nice set of RCA wires, one of the nicest sets i have ever bought, i would reccommened, thank you Sonic.

By Carlos on December 13, 2011

7 found this helpful


Good for the Price

The following review is for X204-17, which is a part of the bundle you are viewing.

For the price, the cable as no serious flaws. This is a cheap cable for a cheap price. It has better construction than other run of the mill cables and not as good as big names like Monster. The purpose of a cable is to deliver the music signal cleanly to the amp without noise from the vehicle, it does that. However, I had to pinch in the ground lugs to maintain a tight connection, no big deal but like I said not the quality of a Monster cable OR the price of a Monster cable.

By Thomas on December 6, 2010

6 found this helpful


Name says it all

The following review is for AMP850BL, which is a part of the bundle you are viewing.

True to gauge size, same wire as Kicker. Very easy to work with! Never had a bad product from Tsunami. THANK YOU SONIC! KEEPIN THE PRICES DOWN FOR THE FINANCIALLY CHALLENGED!YOU GUYS ROCK!

By MICHAEL on October 25, 2010

6 found this helpful


cheap amp kit

The following review is for AMP850BL, which is a part of the bundle you are viewing.

Good amp kit. Lead wire was long enuff to reach into my trunk. Wire was more than flexible enuff to get it thru the tight spots. All in all for the money it was the best bet. Thanks

By ian on August 20, 2010

6 found this helpful


Pretty good

The following review is for AMP850BL, which is a part of the bundle you are viewing.

This kit has everything you need but the wire quality isnt the best but it still gets the job done

By cityslick on June 29, 2009

6 found this helpful


Superior wireset!

The following review is for AMP850BL, which is a part of the bundle you are viewing.

This is ACTUAL 4awg wire! Very flexable and durable... I was kind of disapointed that I had to get my own RCA's but I found a great set for a great price!

By Kyle on June 9, 2011

5 found this helpful


Good kit for the money

The following review is for AMP850BL, which is a part of the bundle you are viewing.

The kit was as expected for a very reasonable price. I would prefer an ANL type fuse holder.

By Bradley on October 29, 2009

5 found this helpful



6212T small

Directed 6212T

Responder One Replacement Antenna

(1)

$39.99

List price $84.99

12PSV small

Atrend 12PSV

Empty Single 12" Vented Enclosure for Pioneer Pro Series Subwoofer

$98.80

List price $114.99

12PDS small

Atrend 12PDS

Empty Dual 12" Sealed Enclosure for Pioneer Pro Series Subwoofer

$98.80

List price $119.99

TLD22 small

Phoenix Gold TLD22

8 Volt, 2-Channel Line Driver

(38)

$32.99

List price $159.99

IBBAF52 small

Install Bay IBBAF52

5" Shallow Foam Acoustic Speaker Baffles

$11.99

List price $13.99

MPC-S402-SW-5M small

Monster Cable MPC S402 SW 5M

16.5 ft. (5 Meters) of Monster 402 XLN+ XTREME Subwoofer Speaker Cable (2-Conductor)

(21)

$27.00

List price $29.99

3MBVRT8 small

Install Bay 3MBVRT8

3M 16/14 Gauge #8 Vinyl Ring Terminals - Blue

$22.99

List price $25.99

MSMP694LK small

Diamond Audio MSMP694LK

6x9" Saddlebag Lid Cut-in Kit for Harley-Davidson Touring 2014 Up

$999.99

List price $959.99

40PS692 small

Kicker PS692 (40PS692)

360W Peak (180W RMS) 6x9” PS Series 2 Way Coaxial 2-ohm Powersports and Motorcycle Speakers

$159.96

List price $219.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Lexus GX470

2010 Ford Flex

2012 Ford Edge

1982 Ford Escort

2003 Dodge Durango

2007 Buick Rendezvous

1973 Ford LTD

1999 Mitsubishi Eclipse

2012 Ford Expedition

2011 Mazda 6

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
