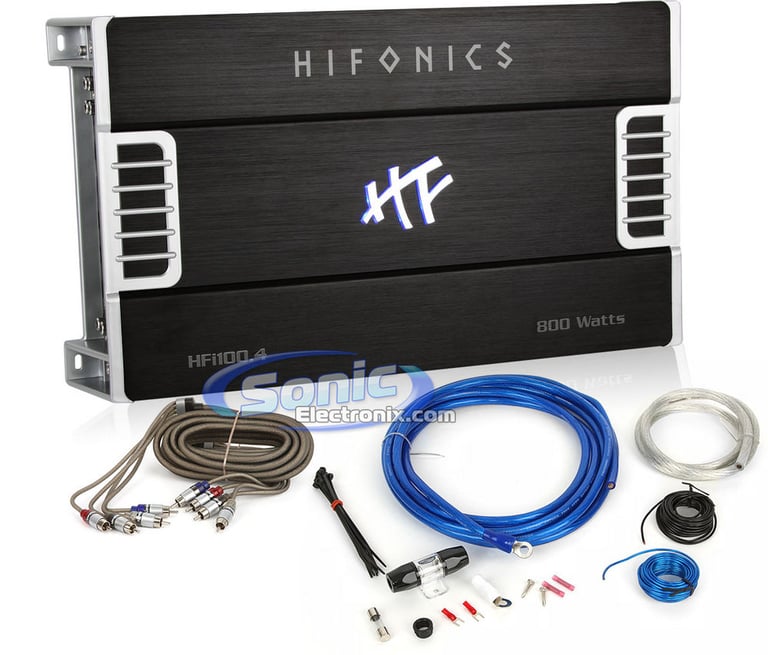

Hifonics HFi100.4 + Amplifier Kit

800W RMS, 4-Channel HFi Series Amplifier (HFi 100.4) with 4 Gauge Amplifier Kit

Hifonics
Shop all Hifonics
EXCLUSIVE
Product videos
highlight-star-icon

HFi Series 4-Channel Class A/B Car Amplifier • 200W x 4-Chan. @ 2 Ohm • 100W x 4-Chan. @ 4 Ohm • Tri-Mode Speaker Operation • 4-Way System Protection Circuitry • Preamp RCA Outputs • Included 4 AWG Amplifier Kit

Learn more about the hfi1004_amp850bl

We apologize

This item has been discontinued


Loading...
82-7400 main

Metra 82-7400

Speaker Adapter for select 2000-2024 vehicles from Nissan, Audi, Mazda

5
-10.00%

$26.99

List price $29.99

72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

72-8601 main

Metra 72-8601

Install New Speakers in select 2008-2024 vehicles from Audi

1
-40.55%

$21.99

List price $36.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

51KSC2704 main

Kicker KSC270 (51KSC2704)

200W Peak (100W RMS) 2.75" KS Series Midrange 4-ohm Speakers with Custom Brackets for GM, Chrysler, Subaru, Toyota and Jeep Models

3
-14.29%

$59.99

List price $69.99

Product Highlights


HFi Series 4-Channel Class A/B Car Amplifier • 200W x 4-Chan. @ 2 Ohm • 100W x 4-Chan. @ 4 Ohm • Tri-Mode Speaker Operation • 4-Way System Protection Circuitry • Preamp RCA Outputs • Included 4 AWG Amplifier Kit

Description


Hifonics brand icon

Authorized dealer

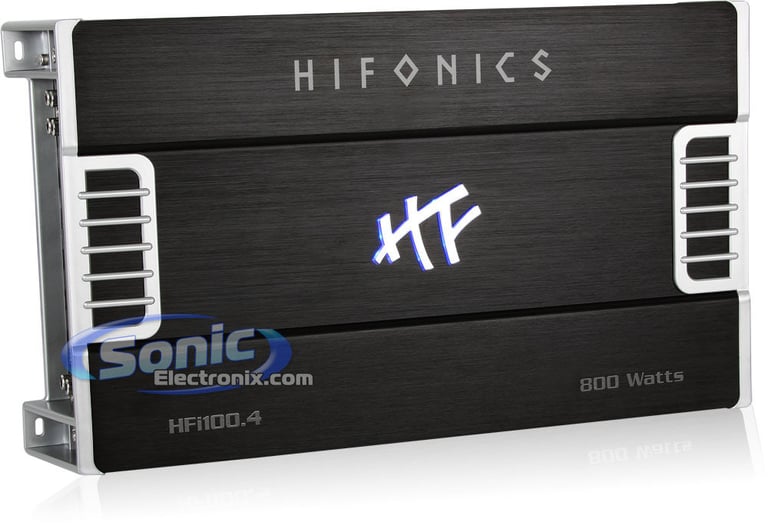

Retro Look with New Design

The Hifonics HFi100.4 informs you of its main objective in the name, Hi-Fi audio. High end sound processing is the designs main focus, however it continues to bring value to the table by providing high power output in an pleasantly small chassis. The illuminating retro Hifonics logo brings an old-school look back into a new series.

This four channel HFi series amplifier integrates Pulse Width Modulated MOSFET power supplies to allow for affordable power, while causing minimal draw on your cars electrical system. Its bridging options allow bridging from their 4 channel down to 3 channels. This allows the amplifier to drive a bridged channel for a sub, and two unbridged channels for normal output for components such as door speakers. The bridging options also allow for bridging to two separate dedicated channels, to allow for high output to subwoofers, or high powered components.

This incredible power output is combined with the HFi series of amplifiers integrated high-dissipation heat-sink design, and built-in system diagnostics. Affordability does not have to sacrifice value or sound quality – making the HFi100.4 multi-channels the perfect choice.

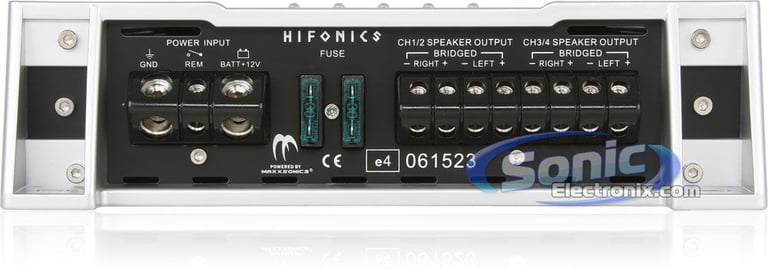

Hifonics HFi100.4 Amplifier Features:
  • HFi Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged, 4 ohm: 400 watts x 2 chan.
  • Max power output: 800 watts
  • Includes 4 Gauge Amplifier Kit and 4 Channel RCA's
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)
  • Tri-mode speaker operation
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals

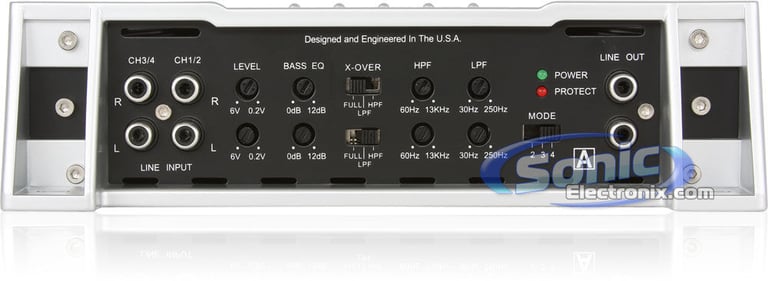

  • Input sensitivity:
    • Variable level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz, 12 dB/octave)
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Damping factor: >180
  • Frequency response: 30-12,000 Hz
  • Dimensions: 16-1/4"L x 8-13/16"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

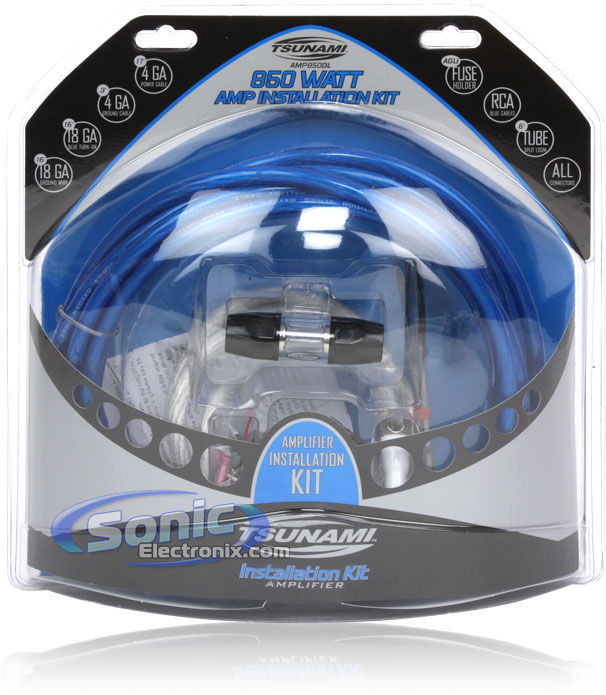

Amplifier Kit Features
  • 4-gauge power kit: Give your amplifier the best wiring possible for peak performance.
  • Tsunami competition series oxygen free power and ground cable
  • Includes all the hardware you need to safely wire your amplifier with 4-gauge power and ground cables and a 60 amp AGU fuse
  • Wire ties and terminals provide a clean, secure connection between your amplifier and battery
  • Designed for use with amplifiers up to 850 watts
Amplifier Kit includes:

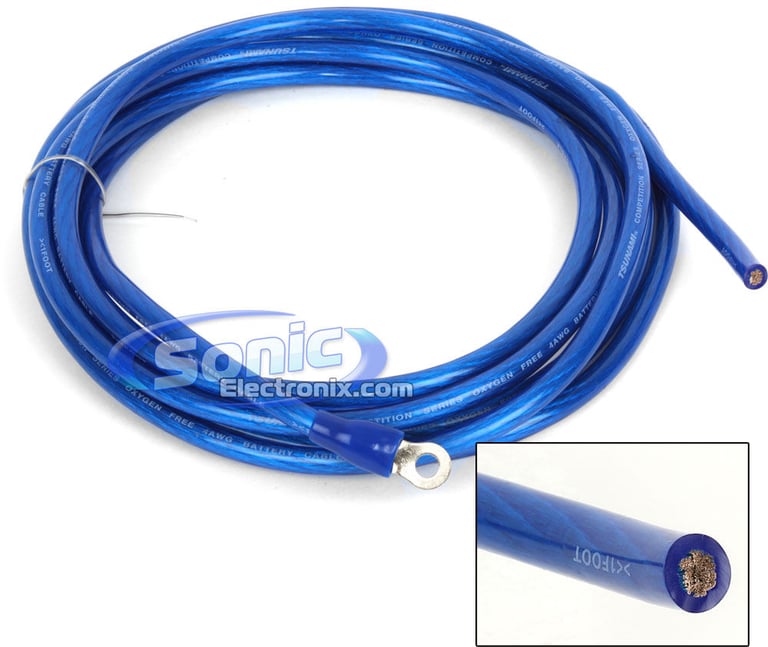

  1. 17ft. 4 Gauge blue power wire

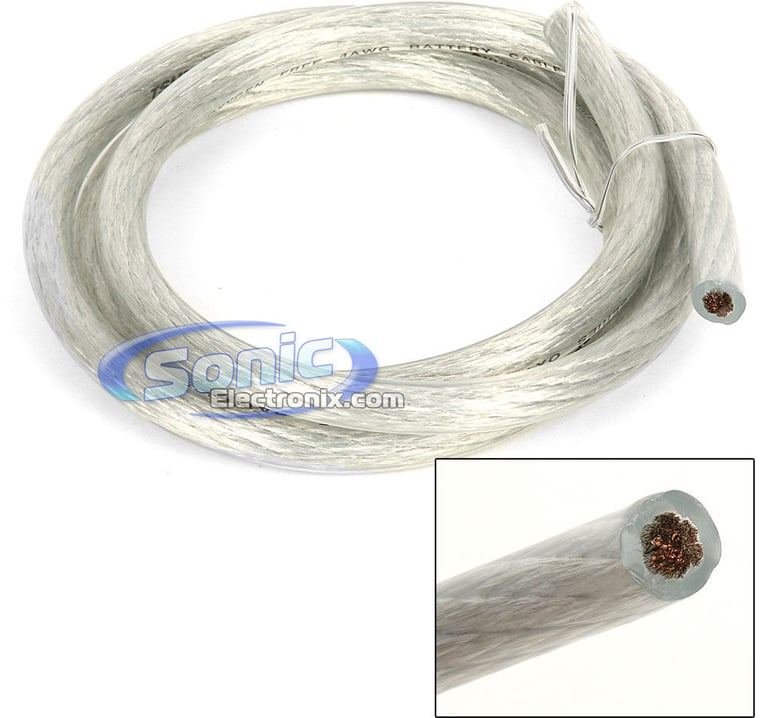

  2. 3ft. 4 Gauge silver ground wire

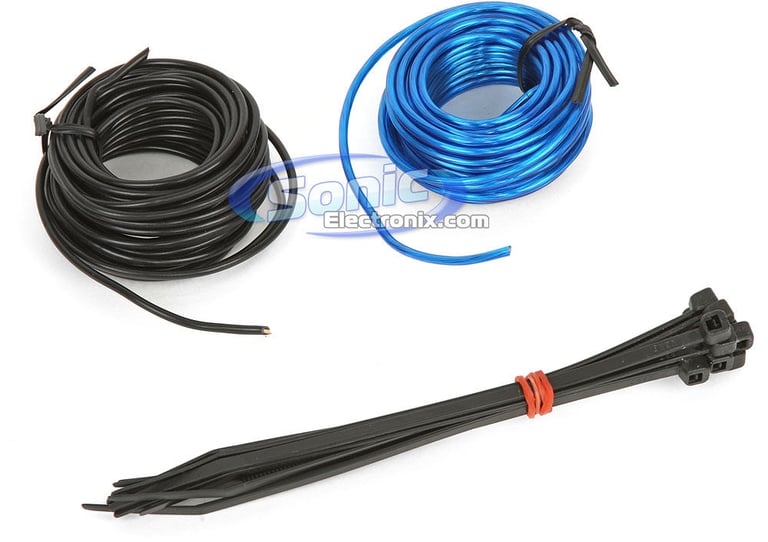

  3. 16ft. 18 Gauge blue turn-on wire

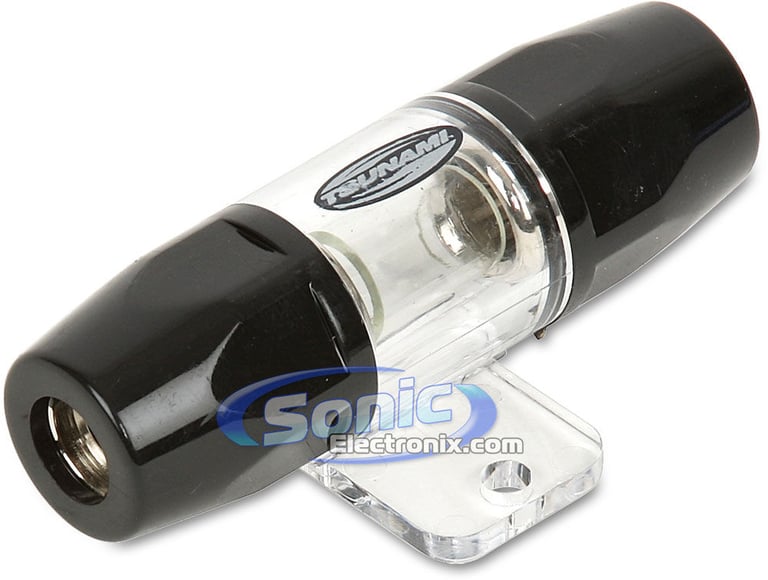

  4. AGU Fuse holder with 60 AMP fuse

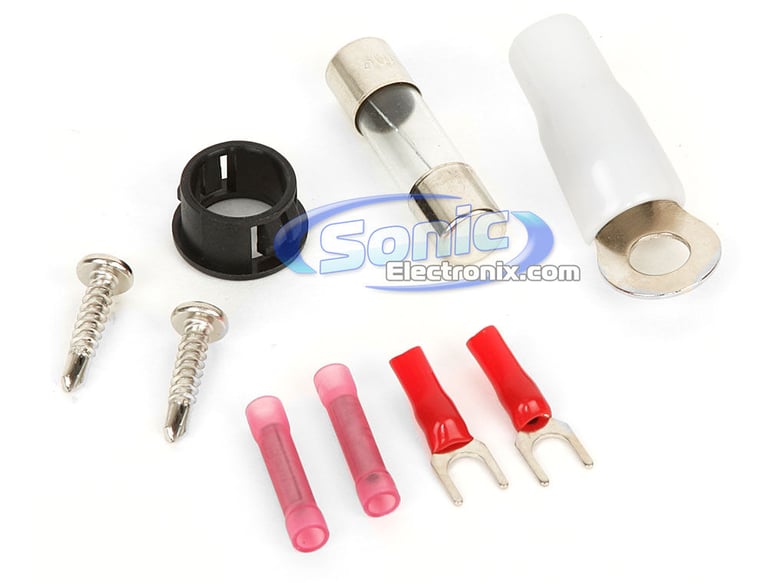

  5. Push-in grommet
  6. (10) 4ft. Black wire ties
  7. (2) 4 Gauge 5/16" Ring terminals
  8. (10) 6" Black wire ties
  9. (2) Red vinyl butt connectors
  10. (2) Red vinyl #10 spade connectors
  11. (4) #8 Pan head phillips screws

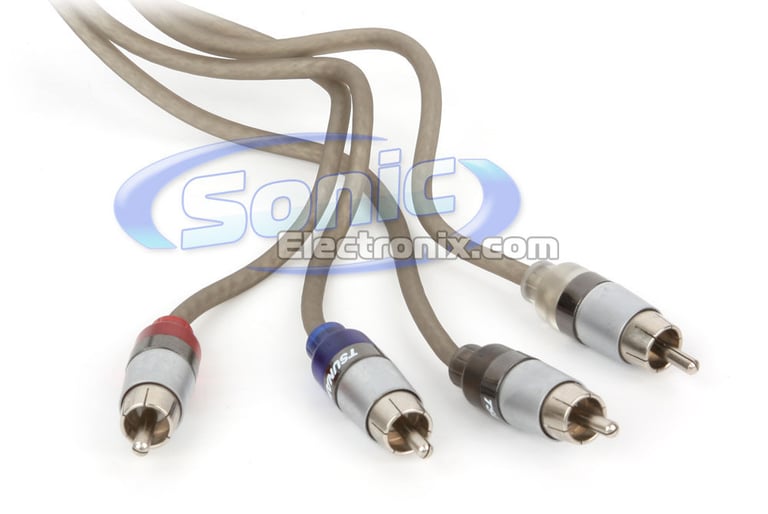

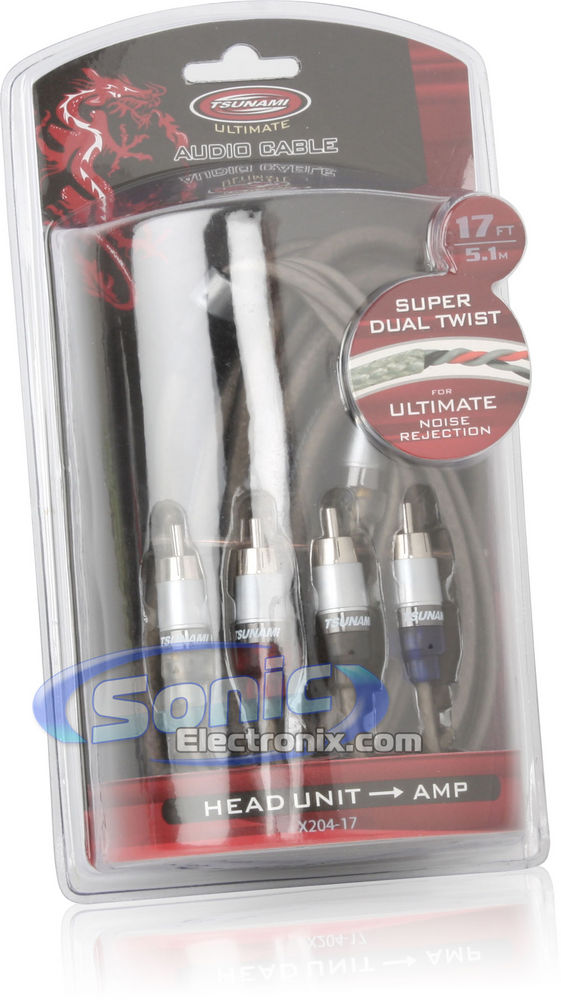

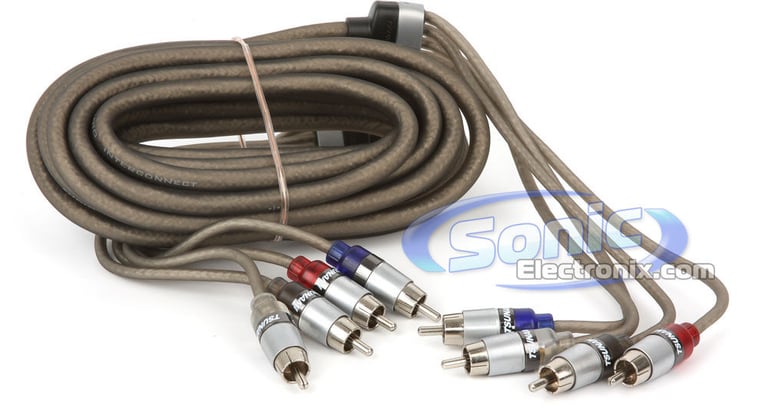

RCA Interconnect Features:
  • 4-Channel Twisted Pair of Advanced Audio RCA Interconnect Cables
  • Features the latest in CAT-5 Technology with a double braided outer shield for the ultimate in noise rejection
  • 100% Oxygen free copper and precision wound technology
  • Produces accurate and transparent sound reproduction
  • Utilizes a super-flex PVC jacket and custom metal barrel connector
  • Nickel-plated split tips and rings
  • Color-coded high tech barrels
  • Length: 17 feet
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 12,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
16 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
AGU
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFi100.4_AMP850BL

Weight:

17.90lbs

Internal SKU:

hfi1004_amp850bl

Internal Product ID:

29853

Product and How-to Videos


Customer Ratings & Reviews


Hifonics HFi100.4 + Amplifier Kit thumbnail image

5 star
64%
4 star
27%
3 star
9%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.5
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Pretty good

The following review is for HFi100.4, which is a part of the bundle you are viewing.

It's good for its price. Had it powering a set of Hifonics ZXi6.5s on the doors. They sounded great but I came across a RF punch 400.2 and it now the components sound way better. I'd say this amp does from 60-80 rms a channel instead of the 100 RMS. But I will be using this amp for my tweeters!

Can't rate on durability since I used it for about a month.

By JB on April 13, 2011

27 found this helpful


Hifonics

The following review is for HFi100.4, which is a part of the bundle you are viewing.

I was able to tune it to my EQ, very easy set up...one down fall...goes into protection after a while on hot summer days

By Luis on January 13, 2011

26 found this helpful


Best amp for the money

The following review is for HFi100.4, which is a part of the bundle you are viewing.

This is the best amp for your mid's and high's for the money. I have owned it for 6 months and I would recommend it to any one if you are a beginner or like me have thousands invested in your system you would not be disappointed. The other neat trick about this amp is that if you get eight 4 ohm speakers you can actually increase the 400watts output to 800 watts pushing all eight speakers with no problem and trust me you won’t need more power than that. This is the best little amp for your money.

By Pete on October 2, 2011

25 found this helpful


Not bad for the price ...

The following review is for HFi100.4, which is a part of the bundle you are viewing.

Recently purchased this amplifier and to be honest I don't think the RMS values are accurate at all ,... like a recent comment I read, I agree that the values are stretched a bit ... I put these numbers to the test and this amplifier did not hold up at all but for the price it does its job, just don't expect 400 R.M.S. out of this amplifier bridged

By ramon on April 27, 2011

25 found this helpful


great amp!

The following review is for HFi100.4, which is a part of the bundle you are viewing.

I purchased this amp to replace a 780 watt 2 channel pioneer amp. I have it hooked up to a pair of Alpine components in the front and SPL components in the rear. ( also purchased from SONIC) And I can not be happier. There is plenty of power and clarity. The Amp puts out a great deal of power and do not distort. Great amp for the price no complaints on it. I have been beating the heck out of it for several months now and it does not sweat.

By kasper4278 on September 17, 2011

24 found this helpful


Very nice.

The following review is for HFi100.4, which is a part of the bundle you are viewing.

Well only having this installed for 2 days so far, I must say im pretty impressed. I have it in 4 channel mode powering 2 sets of the T1652-s of the R. Fosgate components. Easy install and setup. Pretty cool here on the East Coast atm but this amp can and does get really hot. I love the amp it works exactly how I want and need it too. Overall I would recommend this amp for a fairly cheap 4 channel. So 2 things that I have small issues with is the amp getting hot and at top volume for long periods of time the amp will lower its output due to being hot. And yes I have it in a well vented spot in my trunk.

By Jay on February 21, 2010

23 found this helpful


Great Amp

The following review is for HFi100.4, which is a part of the bundle you are viewing.

Has lots of power and sounds great.

By gone boating on February 6, 2011

23 found this helpful


Good Amp

The following review is for HFi100.4, which is a part of the bundle you are viewing.

Great amp although it does get warm, puts out close to what it says.

By Kenneth on January 2, 2011

23 found this helpful


HFi100.4

The following review is for HFi100.4, which is a part of the bundle you are viewing.

I purchased this amp to power a pair of planet audio bb690's and a pair of Alpine spe-5000 and they sound as clear a a bell.

By Tennessee's Finest on October 25, 2012

21 found this helpful


worth the money

The following review is for HFi100.4, which is a part of the bundle you are viewing.

Good amp. Clear highs. Have had it for 1 year no problems.

By cesar on December 16, 2011

21 found this helpful



72-5512 small

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

(26)

$10.99

List price $14.99

47KBRW10 small

Kicker 47KBRW10 ReFLEX™

10" Passive Radiator - Get more bass without ported enclosure

$59.99

List price $69.99

MDR2.0W small

MB Quart MDR2.0W

Single DIN Digital Audio Marine Receiver with Bluetooth

$178.99

List price $198.99

SI413 small

Stinger SI413

4000 Series 3.5mm Twisted Pair Interconnect - 3 FT

$13.99

List price $29.00

SE-P24 small

Stinger SE-P24

8GB iGo Navigation MicroSD Card with SD Card Adapter for HORIZON12, HORIZON10, and HEIGH10+ Stereos

$179.00

List price $239.00

VEDODRAMQCCG3D12S-CWRT122 small

NVX BOOST Box Package with Kicker 12" Subwoofers

For select 2002-2018 1500 and Ram 1500 Quad, Crew Cab - Dual 12" BOOST Sealed Enclosure with Two Kicker CWRT122 Subwoofers

(5)

$519.91

List price $727.97

REV 10 W-FC SS V2 small

Wet Sounds REV 10 W-FC SS V2

1200W Peak (600W RMS) 10" Revolution Series 2 Way Coaxial 4-ohm Marine Tower Speakers with Stainless Steel Fixed Clamps (White)

$1829.99

List price $1829.99

12ZXS1500.1 + 2 11S12L72 small

Kicker ZXS1500.1 Amp + (2) Kicker S12L72

Matched Combo with Kicker ZXS 1500W RMS Amp + 2 Kicker L7 12" Dual 2 ohm Subs

$933.93

List price $1599.85

19-25-CHEVY-SLVRDO1500-ECSP small

NVX E-Series Complete Speaker Upgrade Kit (Crew Cab)

Fits select 2019-2025 Silverado 1500 ; Includes Speakers Harness and Speaker Adapters

(72)

$151.94

List price $207.94

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 BMW M6

2019 Nissan Versa Note

2018 Audi RS5

2007 Lexus RX350

1978 BMW 320i

2009 Audi TT

2000 Chevrolet Corvette

1985 Buick Century

2014 Audi RS7

2012 Dodge Charger

Vehicle
Store
Delete

2009 Harley Davidson FXDC Super Glide Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
