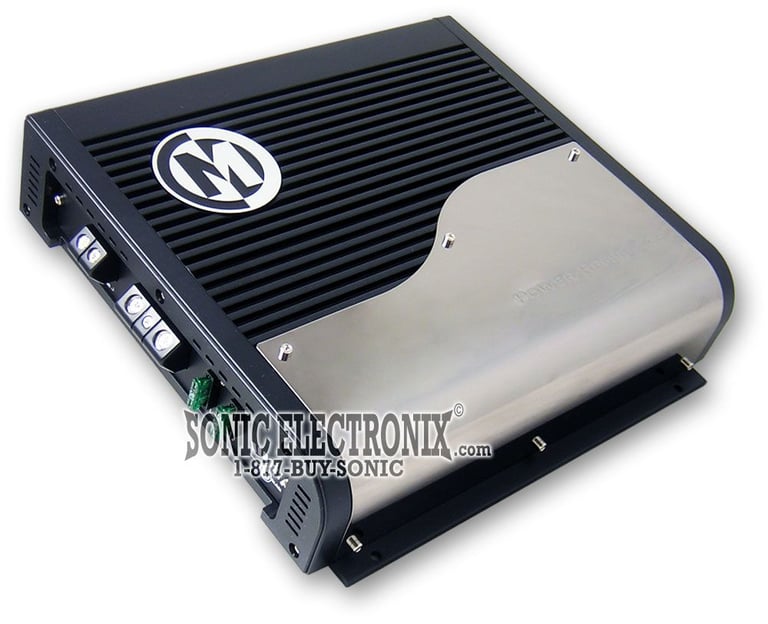

Memphis 16-PRD500.1

500 watts, Class D Monoblock Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

500W Class-D Monoblock Amplifier • 500W RMS x 1 @ 1 ohm • 0 - 18 dB Bass Boost • RCA Outputs • Adjustable Gain • LPF(50-350Hz), Subsonic(20-50Hz)

Learn more about the 16prd5001

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

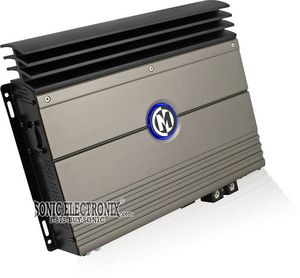

16pr1500 thumbnail

Memphis 16-PR1.500

OUR PRICE: $249.99

View item

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


500W Class-D Monoblock Amplifier • 500W RMS x 1 @ 1 ohm • 0 - 18 dB Bass Boost • RCA Outputs • Adjustable Gain • LPF(50-350Hz), Subsonic(20-50Hz)

Description


Memphis brand icon

Authorized dealer

  • Class-D Monoblock Amplifier
  • RMS Power Ratings:
    • 150 watts x 1 chan. @ 4 ohm
    • 300 watts x 1 chan. @ 2 ohm
    • 500 watts x 1 chan. @ 1 ohm
  • Black Textured Finish Heatsink with Black Chrome Trim and Injection Molded End Plates

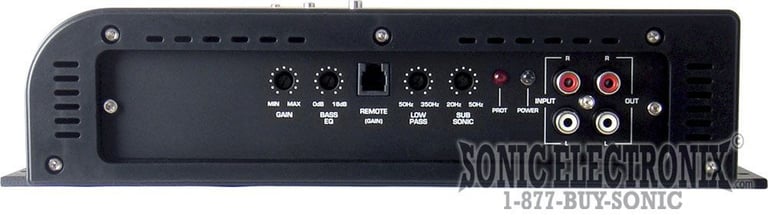

  • Fully Variable Low-Pass Crossover (50 - 350 Hz)
  • Power and Protection LEDs
  • Adjustable Gain Control
  • 0 - 18 dB Bass Boost
  • Subsonic Filter: 20 - 50 Hz
  • Low Level Input
  • RCA Outputs: 1 Pair
  • Optional Remote Gain Control
  • PWM MOSFET Power Supply
  • Platinum Finish Terminals
  • Dimensions: 9.5" W x 2" H x 10.75" L
  • 1-year parts only warranty by Sonic Electronix (any labor related warranty charges are the responsibility of the customer)

Product history:

Memphis 16-PR1.500 thumbnail
(newest, current model)
Memphis 16-PRD500.1 thumbnail
(previous model, replaced by Memphis 16-PR1.500)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 350 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating

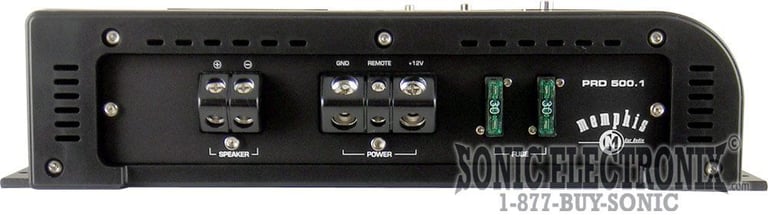

30A x 2

Item Details


Manufacturer:

Model Number:

16-PRD500.1

Weight:

10.00lbs

Internal SKU:

16prd5001

Internal Product ID:

3006

Product and How-to Videos


Customer Ratings & Reviews


Memphis 16-PRD500.1 thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.6
Design
4
Usability
4.8

Customer Reviews

Sort by:

Loading...

nice amp

This is by far one of the most powerful 500 watt amps ever!!! I had it hooked up 2 2Audiobahn Eternal Series Subwoofers. These subs are 1100 rms watts (2200 max watts)each thats 2200rms and 4400 max watts. It pushed them finee for about 1 1/2 months then it blew. These subs where to much for it. But the eternal are really good subs and i made this amp work hard. If u have some subs that are a good brand and put out anywhere from 1000rhs watts to 3000rhs watts this is the amp to go with. You cant beat the price.

By Billy on April 13, 2006

5 found this helpful


bulletproof

this amp is amazing. for the price its unbeatable! i used to have this amp(before my system got stolen) and i put it through the ringer. not once did it give me any problems, and i would recommend this amp to anyone who wants a good, tough and powerful amp.

By shane on July 12, 2007

3 found this helpful


Great Amp!

This is one of the best amps I have ever owned. Durability and power are like no other 500watt in its class. I purchased this same amp from a local shop and spent $315 I wish I had seen it here when I bought mine. This is truly an exceptional value.

By Jeremy on February 17, 2006

3 found this helpful


Big Boom! Small Price!

For those of you that are unfamiliar with Memphis you will soon be seeing alot more from them! I bought one of these at my local audio shop about 5 months ago and I was amazed at what was coming from this compact "power-house"!!!! Memphis is not like "Pyle" or "Pyramid" who highly overrate their products and mention "MAX POWER" ratings that mean absolutely nothing, Memphis, in my book, is up their competing with high-end car audio companies, such as "JL Audio" and "Rockford Fosgate". I highly reccomend you pick one of these up!
I suggest wiring it at 1 0hm for optimal performance.

By Devin on May 30, 2005

2 found this helpful


UNBEATABLE!!

I HAVE THIS AMP HOOKED UP @ 1 OHM PUSHING A 12" HE2. GAIN ALL THE WAY UP, BOOST ALL THE WAY UP AND IT POUNDS!! I WOULD RECOMMEND THIS AMP TO ANYONE WHO IS LOOKING FOR DURABILITY AND PEAK PERFORMANCE. THIS AMP STAYS COOL AFTER BEING PLAYED FOR HOURS. MEMPHIS IS BY FAR A TOP CONTENDER WITH JL AND PPI AMPS. QUALITY AND PERFORMANCE ARE ALL RIGHT THERE!!!!

By Matthew on October 3, 2007

1 found this helpful
