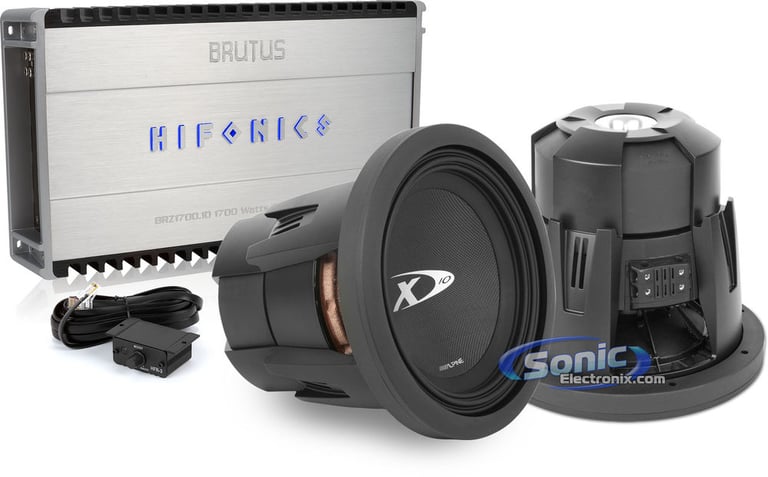

(2) Alpine SWX-1043 10" Subs + Hifonics BRZ1700.1D Amp

Pair of 10" Dual 4 Ohm SWX Series Subwoofers and a 1700W RMS Hifonics 1-Channel Monoblock Amplifier

Alpine
Shop all Alpine
EXCLUSIVE
highlight-star-icon

Brutus Series Monoblock Class D Car Amplifier • 1700W x 1-Chan. @ 1 Ohm • 1200W x 1-Chan. @ 2 Ohm • Wired HFR-3 Remote • 4-Way System Protection • Two 10" Dual 4 ohm Type-X Series Subwoofers • Kevlar-Rohacell® Parabolic Cone

Learn more about the brz17001d_2-swx1043d

We apologize

This item has been discontinued


Loading...
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

INFSPKRF607FSLUS main

Infinity REF607FSL (INFSPKRF607FSLUS)

330W Peak (110W RMS) 6.5" Reference Series 2-Way EZFit Coaxial 3-ohm Shallow Speakers

2
-21.44%

$109.95

List price $139.95

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C1-650se main

JL Audio C1-650se

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Speaker System

2
FKB116 main

MB Quart FKB116

240W Peak (120W RMS) 6.5" Formula Series 2-Way 4-ohm Coaxial Car Speakers

12
-56.26%

$34.99

List price $79.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Description


Alpine brand icon

Authorized dealer

Distinguished Output

Performance is something we're all interested in. With better performing components in your vehicle, you'll have more efficiency for higher powered applications. No one likes to have to wait for their amplifier to catch up with their demand for music. Take a stand against inferior efficiency with this exclusive combination package from Sonic Electronix.

The included Hifonics BRZ1700.1D amplifier provides high power output for any subwoofers that dare think they can handle it. The 10" Alpine Type X subwoofers packaged in this combo answer the call with an impressive 1000 watts of power handling for each subwoofer. This combined required output will run perfectly with the Hifonics BRZ1700.1D when wired down to a 1 Ohm load. This is achieved by wiring the Alpine Type X's Dual 4 Ohm voice coils in series/parallel which will reach a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

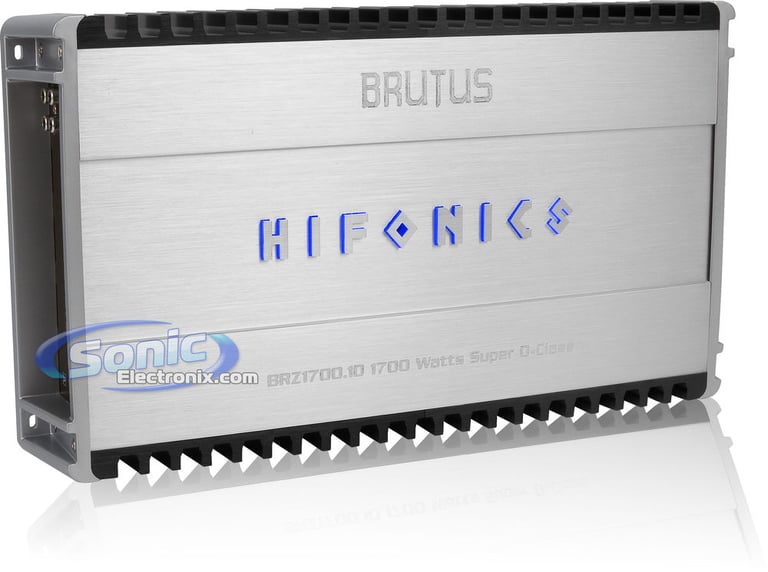

Hifonics Amplifier Features:
  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • MOSFET power supply

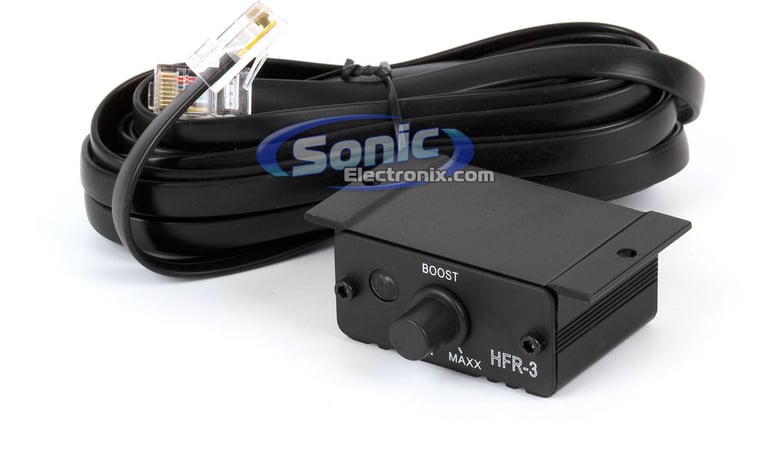

  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation

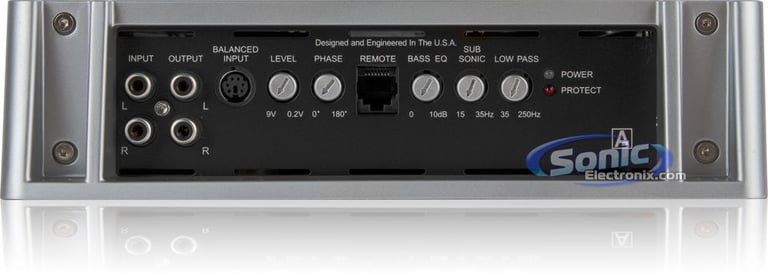

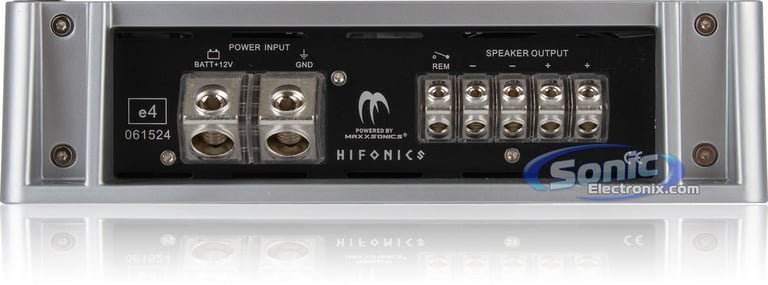

  • Silver-plated unbalanced RCA level inputs
  • Silver-plated molded screw terminals
  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-8V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 16-15/16"L x 9-1/4"W x 2-7/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

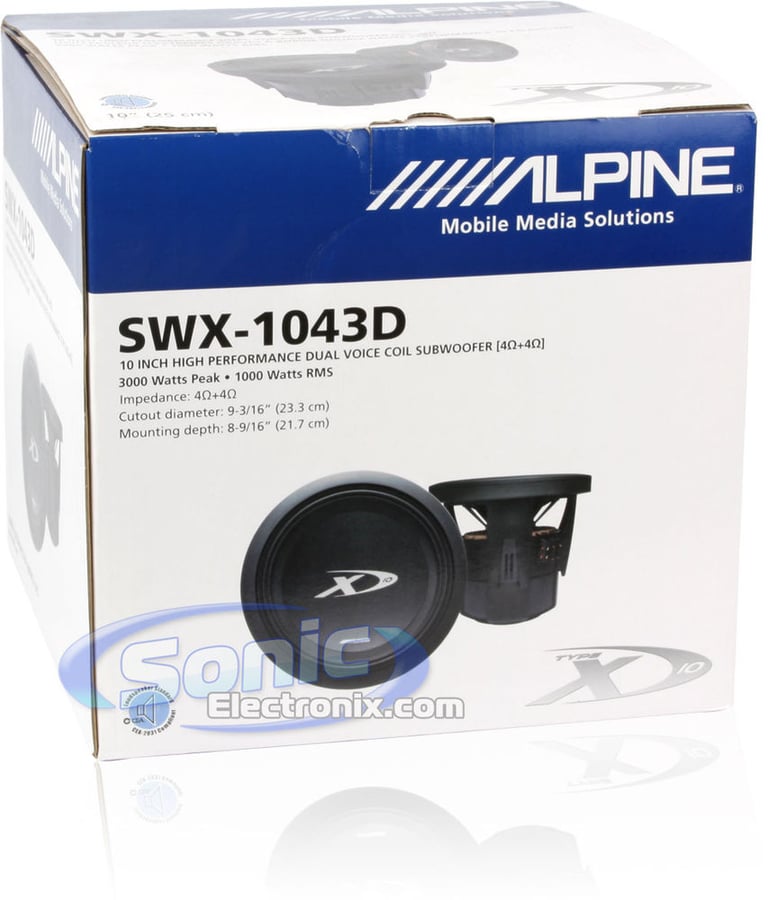

Alpine Subwoofer Features:

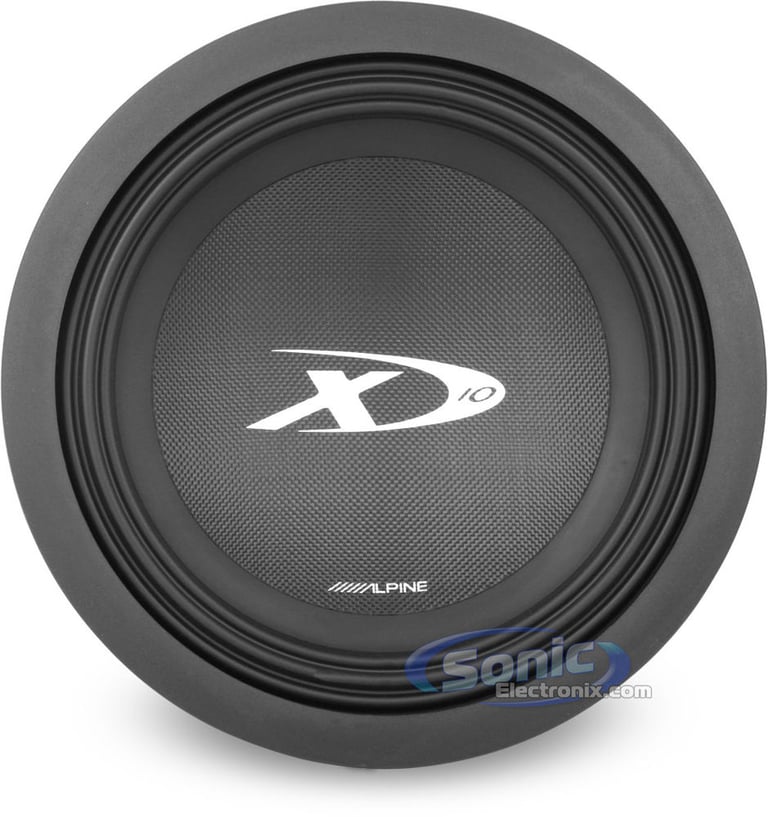

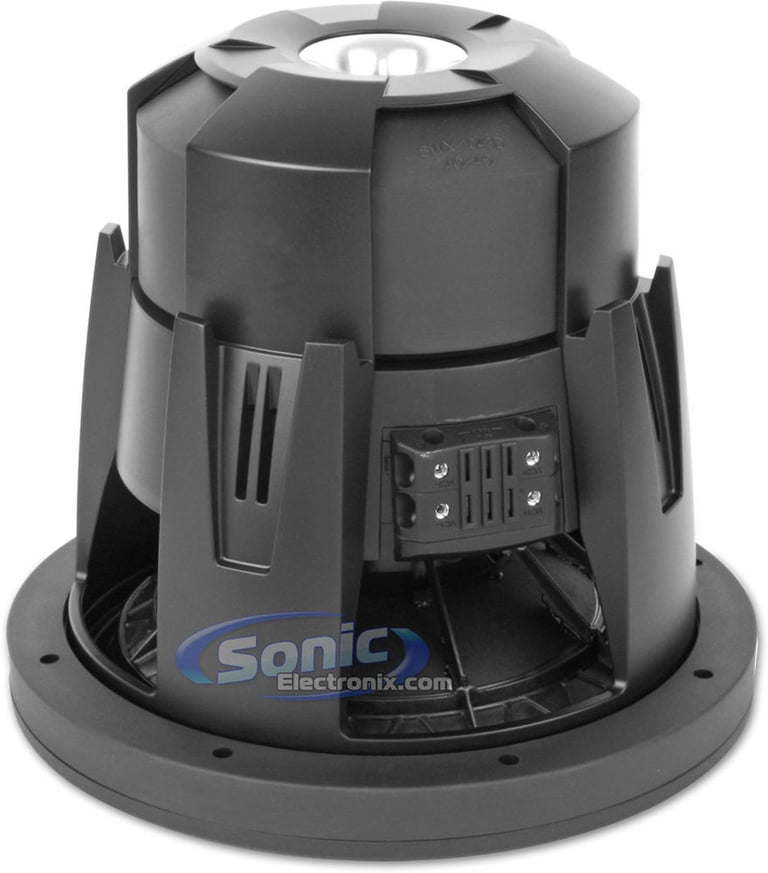

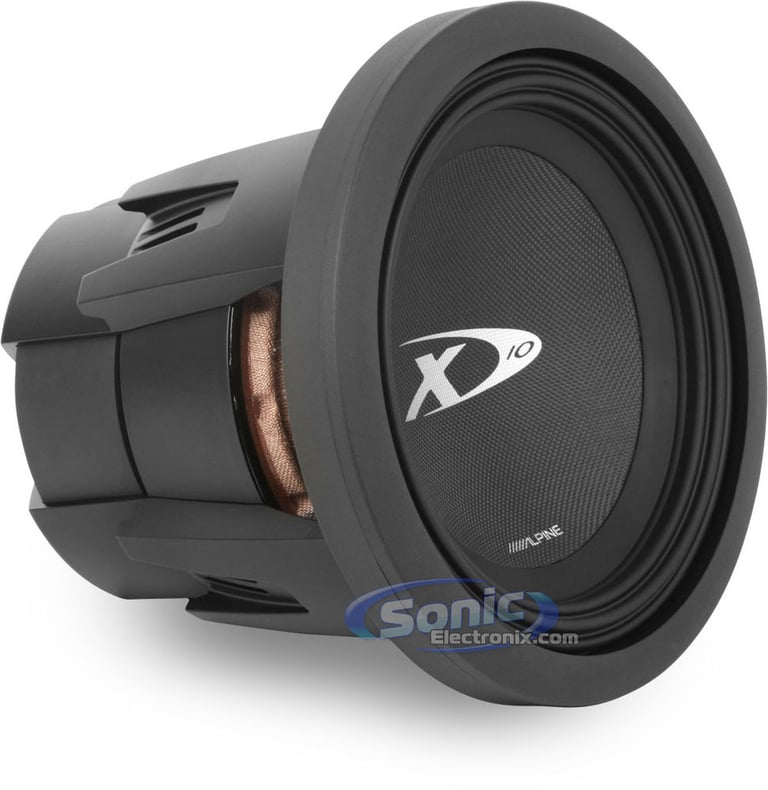

  • Two 10" Dual 4 ohm Type-X Series Subwoofers
  • Power Handling:
    • Peak: 6000 watts total / 3000 watts each
    • RMS: 2000 watts total / 1000 watts each
  • Impedance: Dual 4 ohm
  • Kevlar-Rohacell® parabolic cone
  • Injection Molded Santoprene®
  • Concealed Mount Gasket System
  • Reinforced Layer Spider Integration

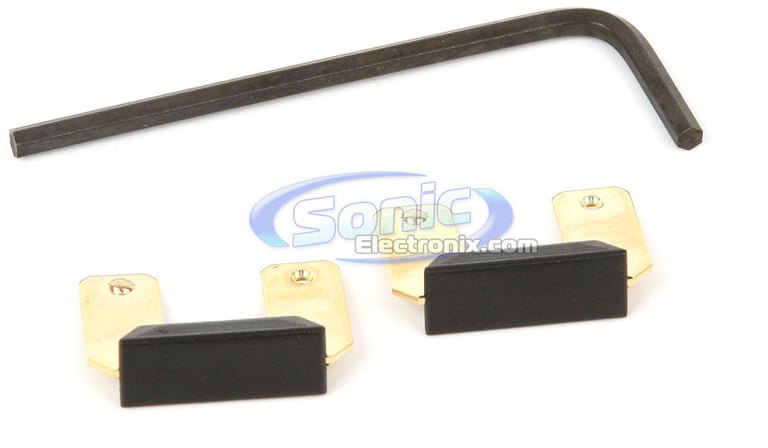

  • Heavy Duty 8 gauge Push, Banana Plug Jumper
  • Perimeter Vented
  • Custom High Strength Steel
  • Airflow Optimized Extended/Vented Pole
  • 220°C High Temp Wire on Glass Fiber (TIL) Former
  • 6-Layer Dual 4 ohm Voice Coil
  • Frequency response: 26-200 Hz
  • 1-year SonicElectronix.com warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
160A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1000 watts
Total RMS Power Handling
2000 watts
Peak Power Handling
3000 watts
Total Peak Power Handling
6000 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Glass Fiber and Pulp/Kevlar
Frequency Response
26 - 200 Hz
Top-Mount Depth (Mounting Depth)
8.6"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

BRZ1700.1D_2-SWX-1043D

Weight:

76.55lbs

Internal SKU:

brz17001d_2-swx1043d

Internal Product ID:

30240

Customer Ratings & Reviews


(2) Alpine SWX-1043 10

5 star
85%
4 star
10%
3 star
2%
2 star
1%
1 star
2%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great Amp!!

The following review is for BRZ1700.1D, which is a part of the bundle you are viewing.

I have this amp pushing 2 12" kicker cvx and the amp is a quarter of the way up and im scared to turn it up cause its slamming them. Amp is a beast. Great purchase for a great price and you cant go wrong dealing with sonicelectronix!! Very pleased customer!!

By Pete on April 8, 2014

56 found this helpful


Great 10" sub hits hard

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

I have this sub with a kenwood KAC-9105D amp 900w rms at 2 ohms. I've had it for a month now, and just now the sub is starting to break in and is sounding better every day. I was worried about the distortion at first but it seems to be clearing up...I wonder if anyone else has had issues with this. It seems as though it shouldn't waffle or distort being 1000w rms and 3000 peak. But it truly sounds a lot better now than at first maybe it was just break in period. Sonix got all the deals and I won't shop anywhere else.

By Everedee on October 22, 2011

55 found this helpful


Best speaker i have owned

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

I would recommend loud as hell and i only have one 10" in a probox. Only bad thing is that it smells funny for the first couple of months when u push it, but after that either you don't notice or u get use to the smell better than kicker punch and JL audio i have owned them all.

By Joe on February 21, 2013

51 found this helpful


worth every penny . thanks hifonics

The following review is for BRZ1700.1D, which is a part of the bundle you are viewing.

I had amp 1608d 1610d and now brz 1700d u can tell the difference between thees amps. 1608d and 1610d were good amps no problems. The brz line is way better . I got this pushing 2 kicker l7 12s in a 6 cubic foot box tuned at 40 htz . And all i got to say is amazing!!!!!!!!!!!!!!!!!!!!. Buy this amp its worth it . If u feel like the amp is not putting out properly upgrade your wiring. Also add a yellow top battery and maybe a high out put alternator. And then see what happens . U will be impressed

By brandon on October 4, 2010

50 found this helpful


amazing sound quality for the money

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

wow for a 10 in sub you cant go wrong. i have just 1 in a ported box tuned to 32 htz, custom made with 1.5 in mdf all around running on a hifonic bxi2010 with about less than 3/4 gain. perfect combination the sub is getting about 900 watts rms it could handle alot more but i cant handle the madness of the bass that why it is set there. nice clean bass with no distortion and the low notes i just can't describe just amazing beating the crap out of my 07 nissan quest. sonicelectroix is the store to beat great prices on everything.

By GANESH on April 30, 2010

51 found this helpful


Great

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

This sub is very top of the line. Glad to have it. Sounds great.

By dustin on September 27, 2011

51 found this helpful


Sound good but be careful

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

I have had these 2 of these subs for a week now. They do have excellent sound quality if put in the correct box. I have them in a dual 10" separately sealed box. With 1.25 cubic feet per. They sound very nice. Problem is i have them running on a Rockford Fosgate T-2500bdcp. I do have the gain turned way down. I had everything professionally installed or so i thought. After two weeks of playing them easy to break in 1 blew at a fairly low level. I didnt have in bumping. Just heard a crack then pop. Boom sub is gone. I am going to replace it with another but turn gain down even farther. All in all i do recommend them but make sure you properly power them. Use SMD products to watch clipping. Be easy on them for awhile and you should be good. I listen to mainly metal music death, black, and industrial metal. They kept up with the double bass drum beautifly. Try them.

By LitlChevy on February 5, 2014

49 found this helpful


Upgrade from Walmart Brand

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

Upgraded From 2 12' Dual Subwoofers in a bandpass box with Dual 300W RMS Amp, to 1 Of these in a 1.3^ft Ported Box bought here on sonic Powered by a Alpine MRX-M100, 1000W RMS Amp. This Subwoofer is Considerably louder then my Old Setup, Takes up 1/2 of the trunk space of my old setup, and the sound quality of the Old setup isn't even comparable. Amazing Product for sure.

By Christopher on June 23, 2012

50 found this helpful


alpine swx-1043d

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

This sub it precision audio at its best. I know theres better out there but when you on a budget this sub surpasses them all and is deff my prefered choice.

By reece on August 25, 2011

50 found this helpful


great

The following review is for SWX-1043D, which is a part of the bundle you are viewing.

This is a great sub. This subs makes the most noise for how big it is you should get it but i did buy the 12" after i bought the 10"

By Justin on August 8, 2011

50 found this helpful




TS-WH500A small

Pioneer TS-WH500A (LIKE NEW DAMAGED PACKAGE)

150W HVT 8-1/4" Sealed Active Subwoofer Enclosure

$169.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 BMW X1

2017 Honda CR-V

1970 Chevrolet Nova

2014 Toyota Highlander

2005 Ford F-150

2010 Kia Soul

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
