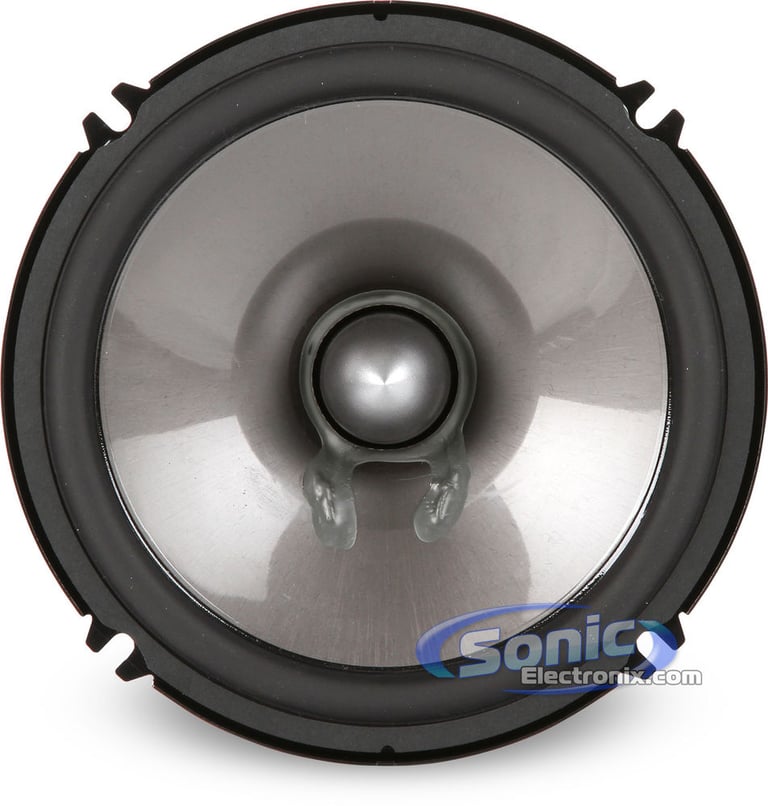

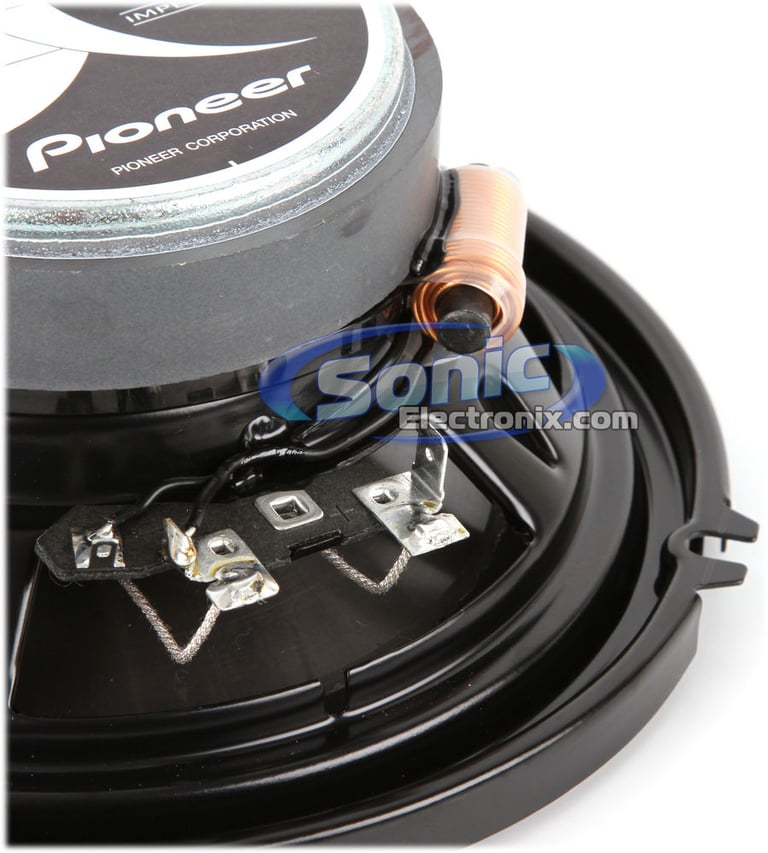

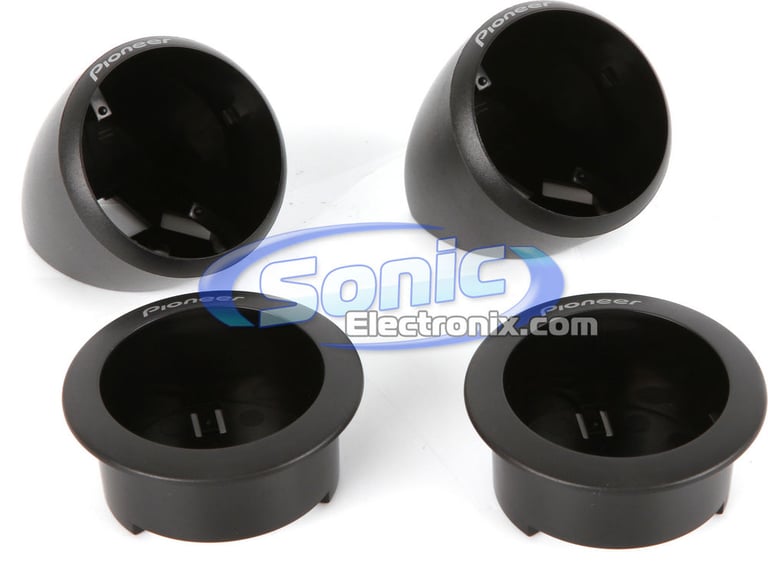

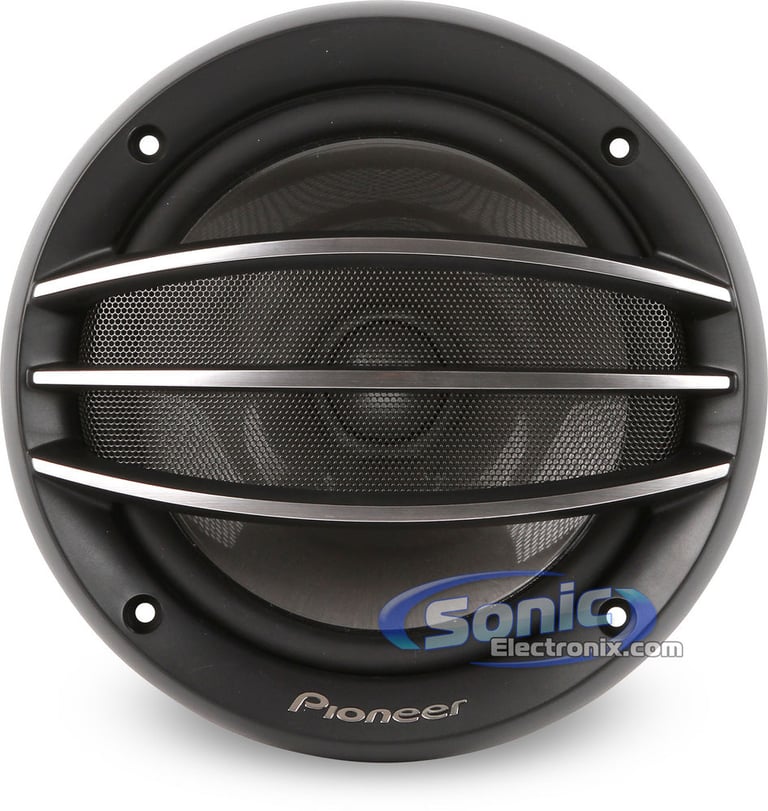

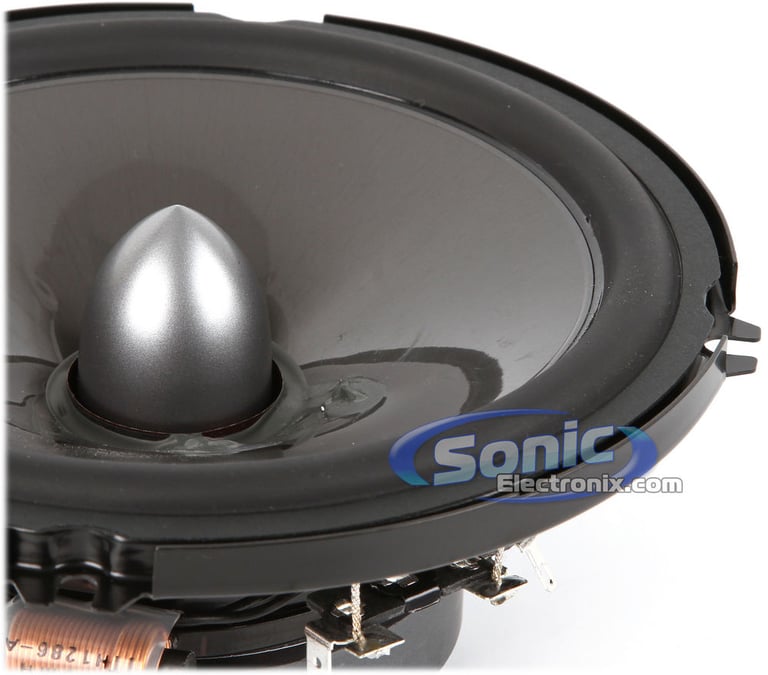

Pioneer TS-A1604C

6-1/2" 2-Way A-Series Component Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

6.5" A Series Car Speakers • 2-Way Design • 350 Watts Max • 50 Watts RMS • Carbon Graphite IMPP Interlaced Aramid Fiber Cone • Light Weight Elastic Polymer Surround • High Sensitivity and Power Handling • Shallow Basket Design

Learn more about the tsa1604c

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsa1606c thumbnail

Pioneer TS-A1606C

OUR PRICE: $81.99

View item

Loading...
PR5012ISAM main

Infinity Primus PR5012IS (PR5012ISAM)

240W Peak (80W RMS) 5.25" Primus Series 2 Way Coaxial 2.7-ohm Speakers

-54.19%

$54.95

List price $119.95

Description


Pioneer brand icon

Authorized dealer

2011 Pioneer A-Series Car Speakers
Improving on the previous design of the Pioneer A-Series speakers, the new 2011 Pioneer TS-A1604C prove to be a big step forward for the already award winning speakers. The most notable improvement on these new speakers is the enhanced power handling of the speakers. With an RMS power handling of 50 watts. The Pioneer TS-A1604C becomes a great solution for a factory replacement speaker. However, Pioneer increased the Max power handling to 350 watts, which is great for those that want to power these speakers with an aftermarket amplifier. Using Carbon graphite IMPP interlaced aramid fiber cone and an elastic polymer surround, the diaphragm response is smooth and results in natural, crisp sound. For those that want the latest in car audio loudspeaker technology, Pioneer is an excellent choice and a leader in the mobile loudspeaker industry. Improve your ride for 2011 with the Pioneer TS-A1604C.

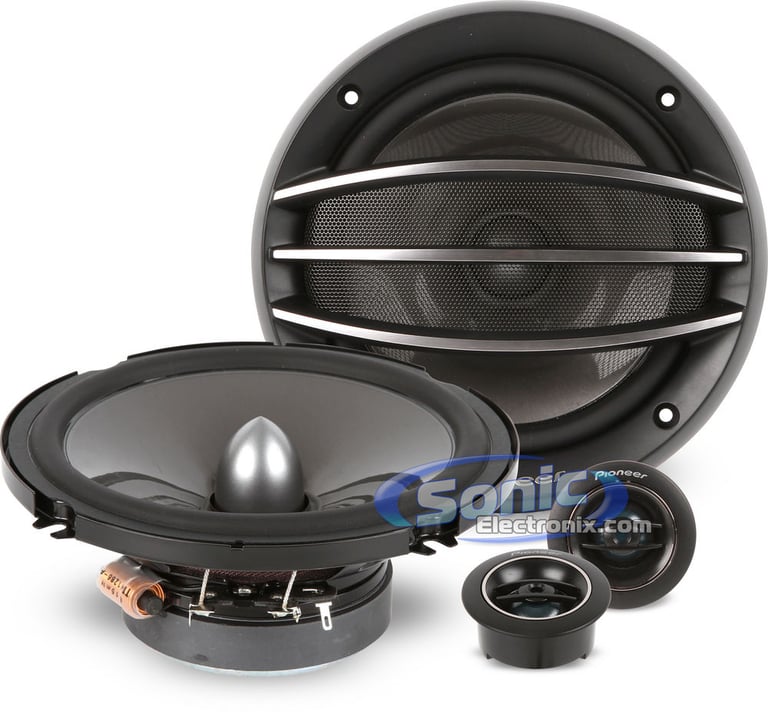

  • 6-1/2" A Series 2-Way Car Component System
  • Power Handling:
    • Peak: 700 watts per pair / 350 watts each side
    • RMS: 100 watts per pair / 50 watts each side

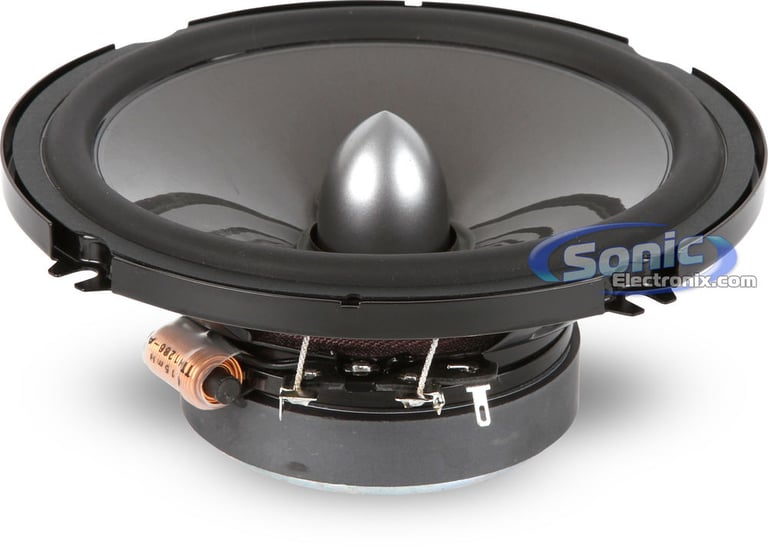

  • Carbon graphite IMPP interlaced aramid fiber cone
  • Light weight elastic polymer surround

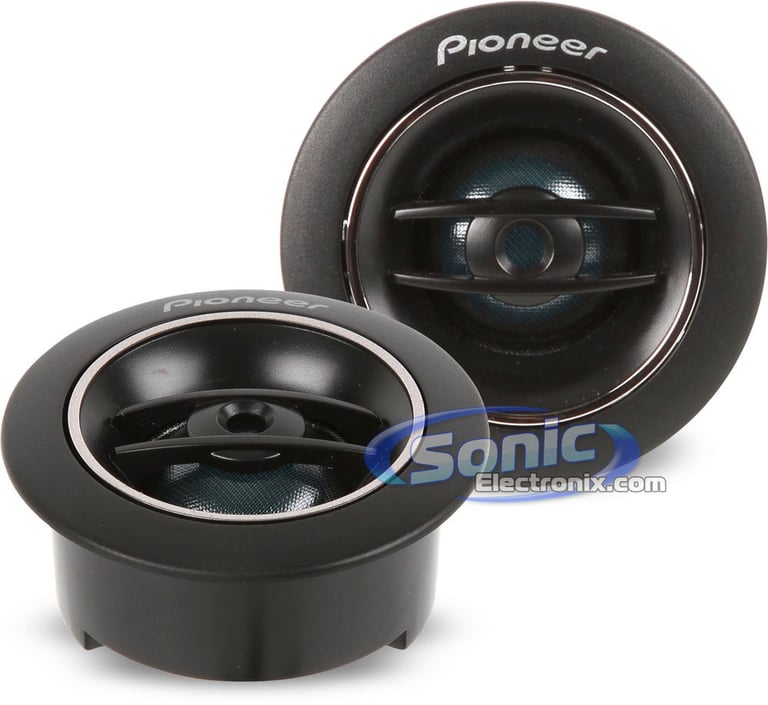

  • 3/4" Soft dome tweeter with lightweight diaphragm and neodymium magnet
  • High sensitivity and power handling
  • 4 ohm impedance
  • Heat-resistant voice coil

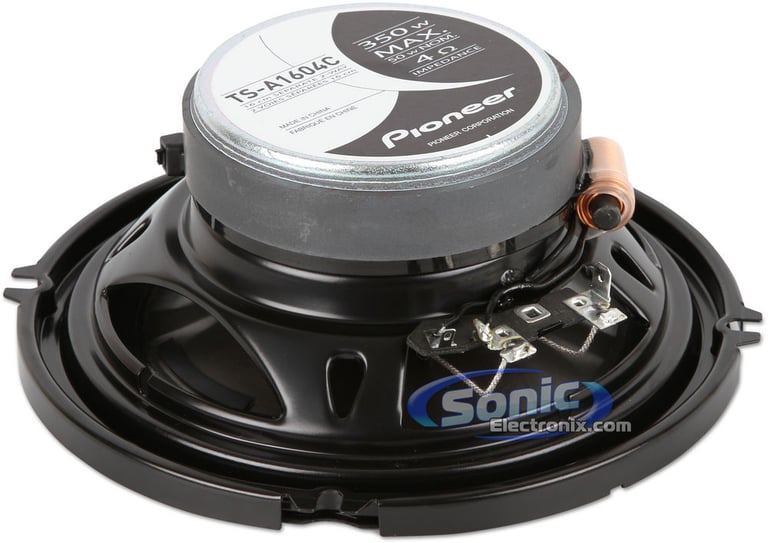

  • 220 g (7.6 oz) Strontium woofer magnet
  • Top-mount depth: 2-1/8"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Product history:

Pioneer TS-A1606C thumbnail
(newest, current model)
Pioneer TS-A1605C thumbnail
(previous model, replaced by Pioneer TS-A1606C)
Pioneer TS-A1604C thumbnail
(previous model, replaced by Pioneer TS-A1605C)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Limited time!
RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
-15.00%

$152.96

List price $179.95


Best selling similar products

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

Reference 6530CX small

Infinity Reference REF-6530cx (REF6530CXAM)

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(14)

$108.99

List price $249.95

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Soft Dome
Woofer Composition
Carbon Graphite IMPP Interlaced Aramid Fiber
Woofer Surround
Elastic Polymer
Peak Power Handling
350 watts
RMS Power Handling
50 watts
Sensitivity
90 dB
Frequency Response
29 - 29,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/8"
Bottom-Mount Depth
2-3/4"
Cutout Dimensions
5" x 5"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1604C

Weight:

5.00lbs

Internal SKU:

tsa1604c

Internal Product ID:

31089

Customer Ratings & Reviews


Pioneer TS-A1604C thumbnail image

5 star
69%
4 star
20%
3 star
8%
2 star
0%
1 star
2%



Durability
4.5
Value
4.7
Features
4.5
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

ok but not great

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

i have these in my truck and they sound great but the cross over does not block tweeter. i melted all 4 of my tweeters on 75rms woofers still going strong took cross overs off because they shut woofer down at high volume. now i just use amp cross over and it works fine. IMO just by amp and run tweeters off radio and u will be happy. rms rating is for woofer only i wish i paid the 20$ more and got the better ones

By pa72 on August 12, 2014

60 found this helpful


Pioneer Speakers

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

Outstanding sound! Love the cross overs. If using these for the front and rear, I would not recommend using the cross overs for the rear.
Over all awesome speakers at a great price.

Sonic Electronix is excellent to deal with. Fast shipping and great service.

By Gene on October 25, 2014

55 found this helpful


thanks

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

Great price great product .sounds clear will order two more .

By carlos on October 4, 2014

52 found this helpful


good speakers

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

not bad for entry level component speakers, works fine with no amps

By jessica stephani on May 18, 2014

50 found this helpful


Pioneer TS-A1605C

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

This is the first set of components I have bought and I must say that I am beyond satisfied with them. Pioneer delivered again.

These suckers get loud and are tuned perfectly on the passive crossover.

By Jacob on March 9, 2014

49 found this helpful


exeeded my expectations. rock solid value.

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

I payed for the product. I had it in my hands 2 days later. I installed them bridged to a lanzar optidrive 600a.2 amp at mid pass and about half gain. They produce full, crisp, and clear sound at all volume settings. Killer price!

By little ether on January 8, 2014

48 found this helpful


sound great

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

Good price, fit perfect and sound great. I have them hooked up to a pioneer in dash DVD and have not had one problem.

By tony on June 15, 2014

45 found this helpful


Awesome product for an amazing price

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

These speakers are very good, good sound quality, very crisp at all volumes, well worth the price

By Nick on March 1, 2014

47 found this helpful


gr8 for the price

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

These are a great buy for the money, excellent highs not much on bass.....but 61/2 "so really over all great

By gr8nitrojack on November 21, 2013

45 found this helpful


Good Product

The following review is for TS-A1605C, which is a part of the bundle you are viewing.

They Are Really Good. I Install this on My Scion XB 2010 and They Work Great. I have these about 6 Months Now and The Sound is Really Good But if You Have a 4 channel amp of 900 watts like I do, U need a EQ 4 sho because if You give them bass and have the Volume at a High Level, It wont sound Great at all so I have a EQ and lower down the Bass from them and Man, They do a Great Job but I am Going to Replace them soon with something that can handle some pretty good bass.

By PoYo on September 17, 2013

44 found this helpful
