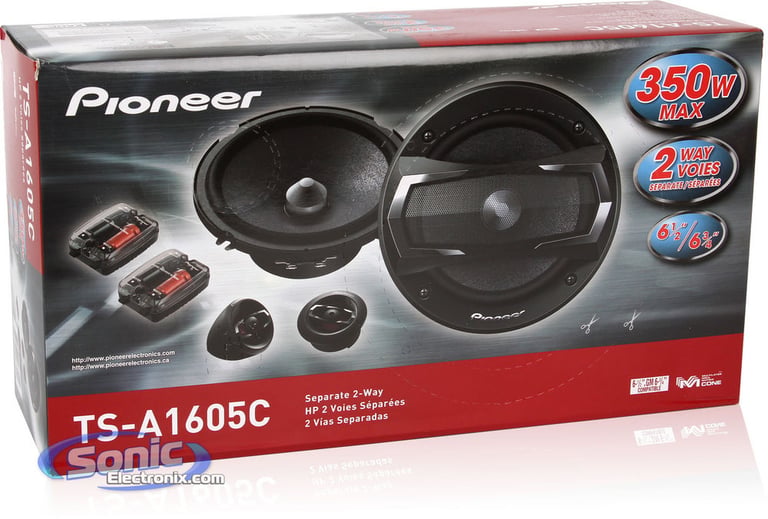

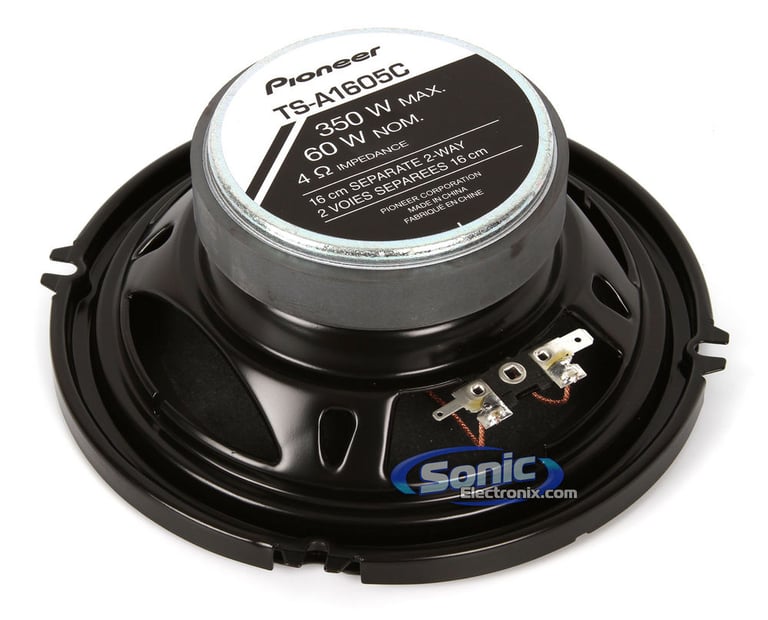

Pioneer TS-A1605C

6.5" 2-Way A-Series Component Car Audio Speaker System

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 175W
• RMS Power: 60W
• Soft Dome Tweeter
• Mounting Depth: 2-1/8"
• Multilayer Mica Matrix
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the tsa1605c

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsa1606c thumbnail

Pioneer TS-A1606C

OUR PRICE: $81.99

View item

Loading...
72-8104 main

Metra 72-8104 Speaker Harness for 1990-2024 Toyota, Subaru, Mitsubishi

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

AXRSEH-T main

Axxess AXRSEH-T

Install a New Car Stereo and Retain Rear Seat Entertainment (RSE) in select 2003-2014 vehicles from Toyota

-10.01%

$17.99

List price $19.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
DMH-WC5700NEX main

Pioneer DMH-WC5700NEX

6.8” Double DIN Touchscreen Digital Multimedia Receiver with Apple CarPlay, Android Auto and Sirius XM Ready

2
-11.76%

$750.00

List price $850.00

Stadium 962C main

JBL Stadium 962C (JBLSPKSD962CAM)

870W Peak (290W RMS) 6x9" Stadium Series 2-Way Component 3-ohm Speaker System

3
-8.62%

$529.95

List price $579.95

Limited time!
Kappa 503CF main

Infinity Kappa 503CF (INFSPKKA503CFAM)

480W Peak (160W RMS) 5.25" Kappa Series 2-Way Component 3-ohm Speaker System

1
-37.77%

$279.99

List price $449.95

Product Highlights


• Peak Power: 175W
• RMS Power: 60W
• Soft Dome Tweeter
• Mounting Depth: 2-1/8"
• Multilayer Mica Matrix
• 4 Ohm Impedance
• Sensitivity: 90dB

Description


Pioneer brand icon

Authorized dealer

Quality Sound by Pioneer

The A-Series speakers are your solution to upgrading those worn out factory speakers. The cone is composed of a multilayer mica matrix material that is rigid enough to resist warping during playback, but soft enough to produce smooth and subtle mids. The soft dome tweeter uses Wave Guide technology in order to increase the sensitivity, thus providing great articulation in the high frequency spectrum. The passive crossover network will blend the mid-woofer and tweeter for a perfectly balanced sound all throughout the audible frequency range. These speakers are designed with a wide frequency response to ensure you are hearing every note of your favorite songs. The high temperature voice coil will reduce distortion by dissipating heat quickly, which will protect your investment for years to come. These speakers can be ran off either a head-unit or an amplifier, making them very versatile and applicable for most vehicles. Available in most common sizes, the A-Series speakers make for a great audio upgrade.

Best Bang for Your Buck!

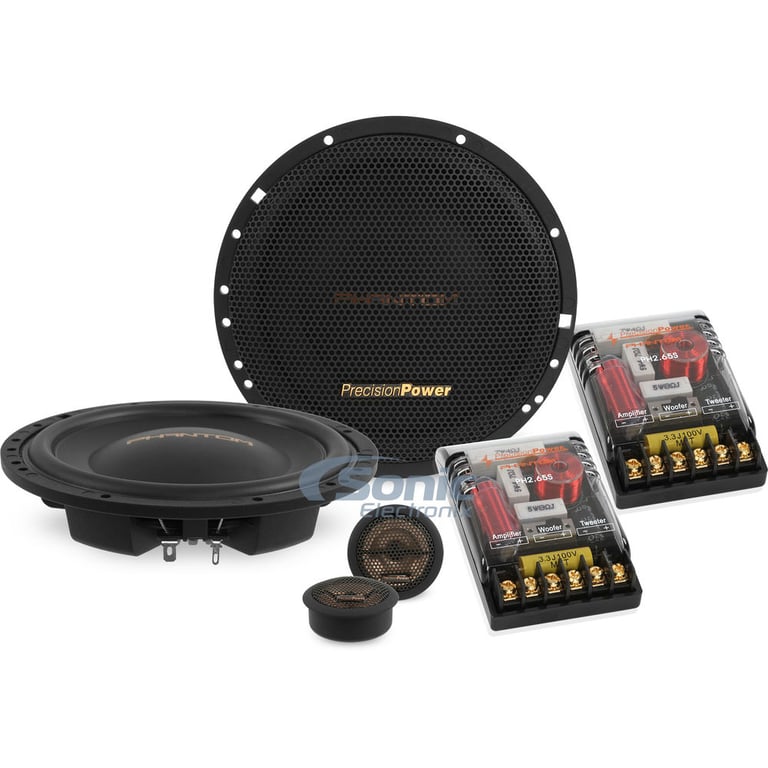

Precision Power PH2.65S
Precision Power
PH2.65S
Pioneer TS-A1605C
Pioneer
TS-A1605C
6-1/2" Component
Speaker Size
60 watts
Power Handling
2-way Speaker
Design
Sale
Price
$49.99 $69.99


General Features:

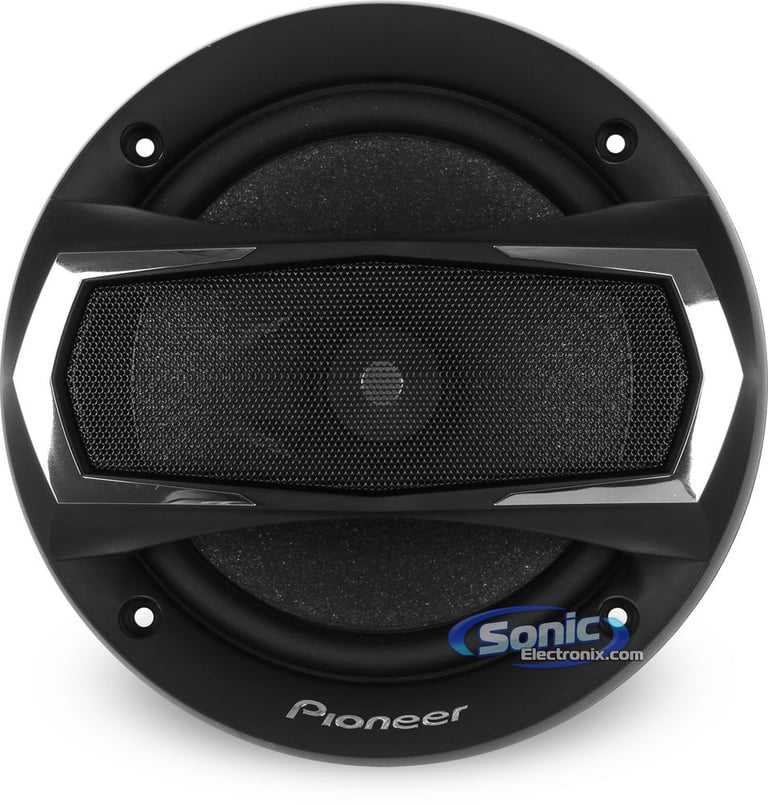

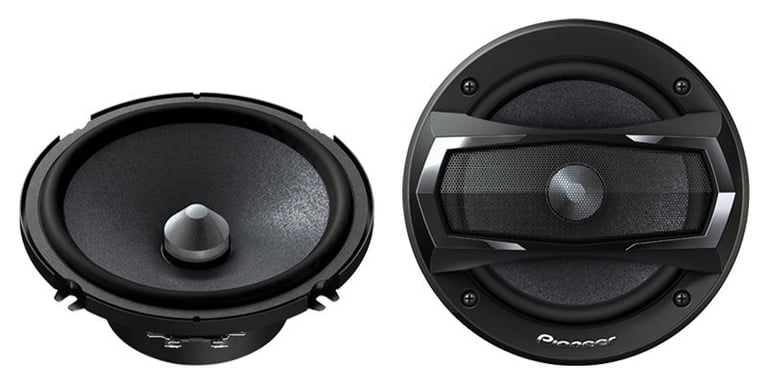

  • 6-1/2" A-Series 2-Way Component System
  • Power Handling:
    • Peak: 350 watts per set / 175 watts each side
    • RMS: 120 watts per set / 60 watts each side

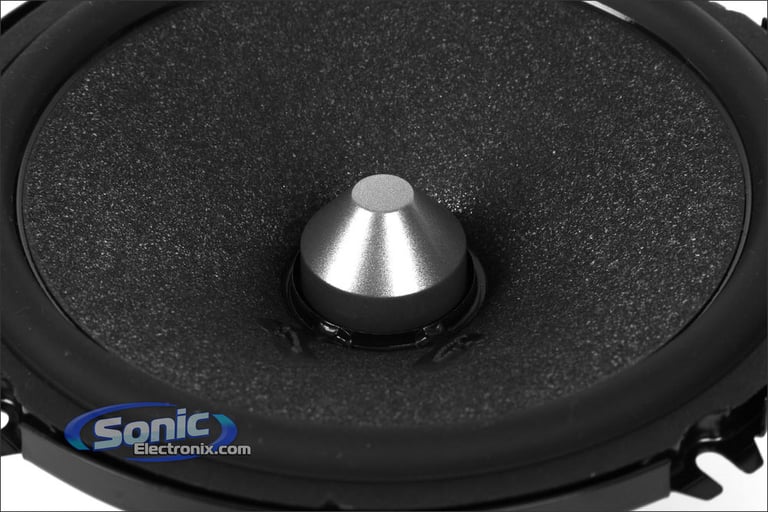

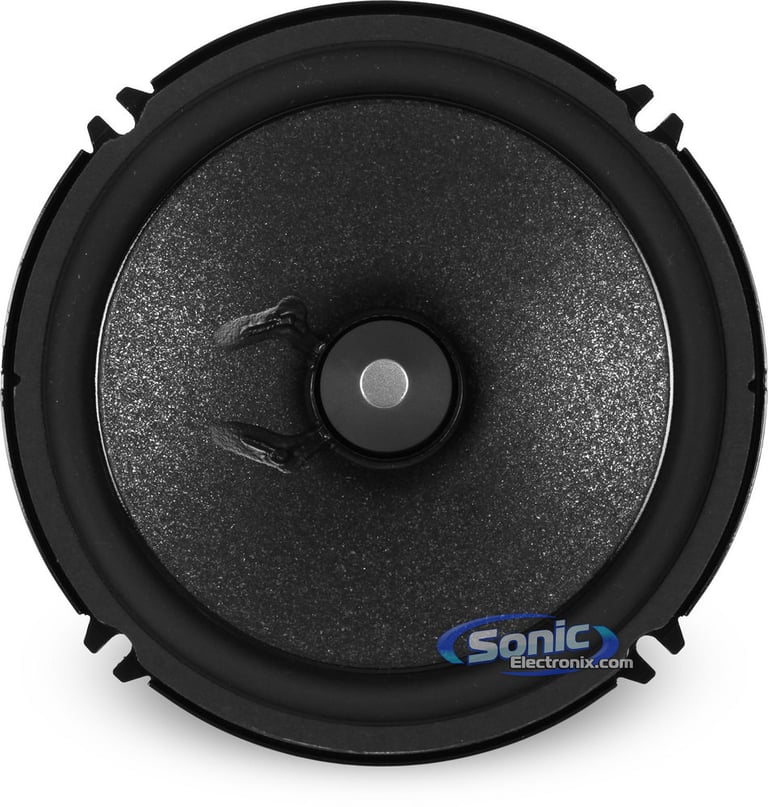

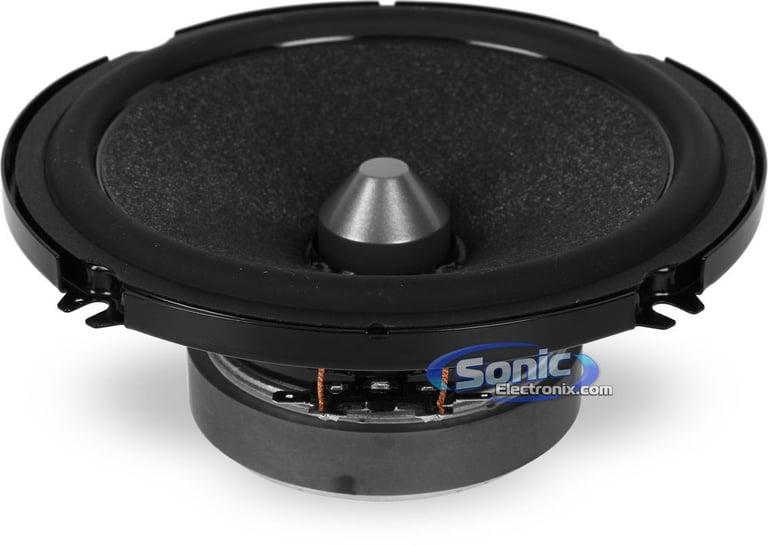

  • Multilayer Mica Matrix cone material
  • Elastic Polymer speaker surround

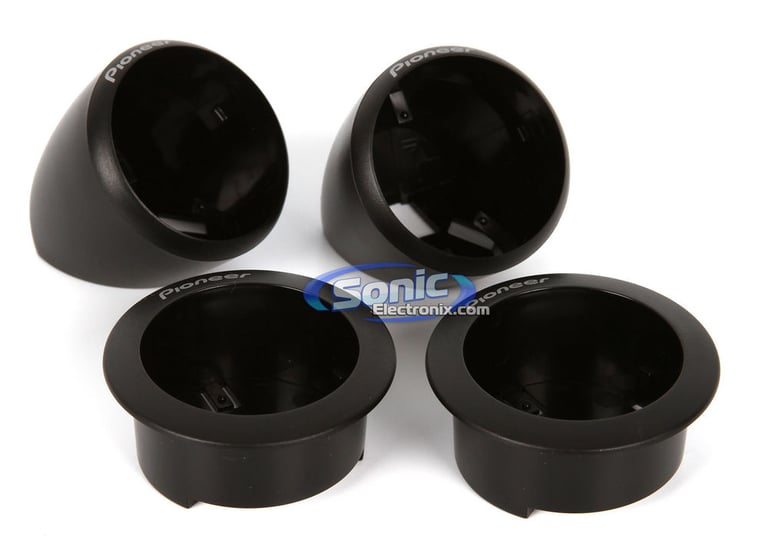

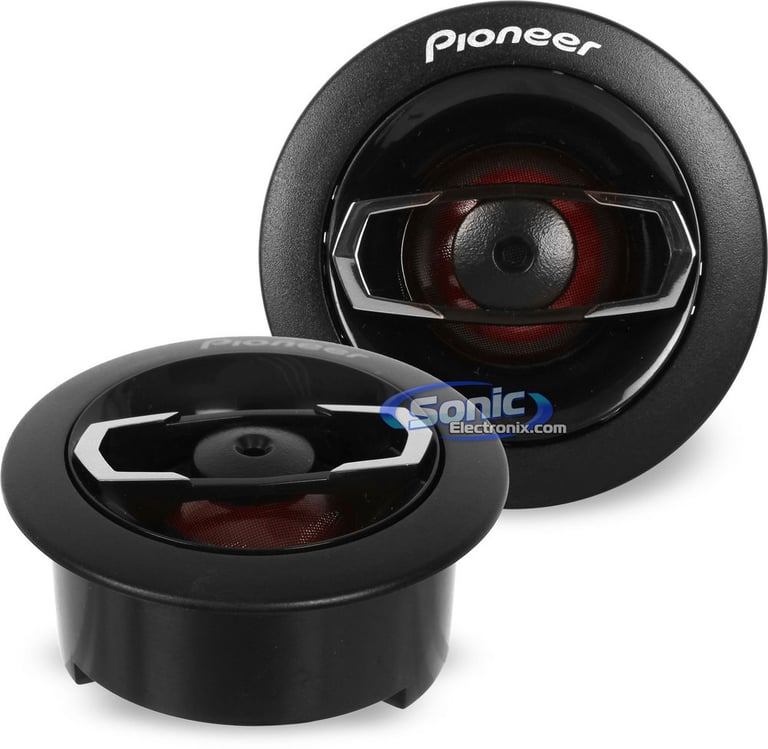

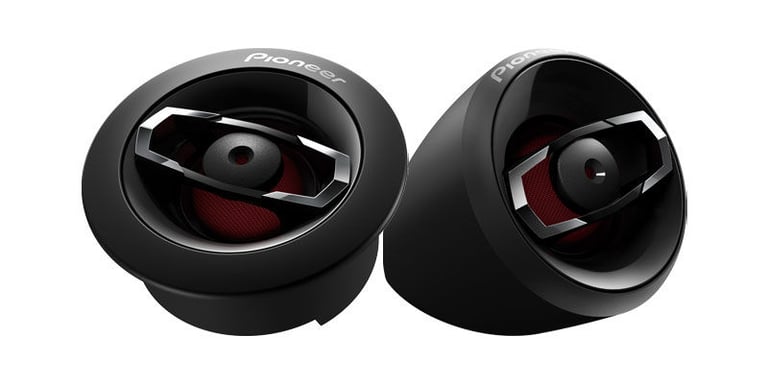

  • Soft Dome tweeter with Wave Guide for increased sensitivity
  • High temperature voice coil

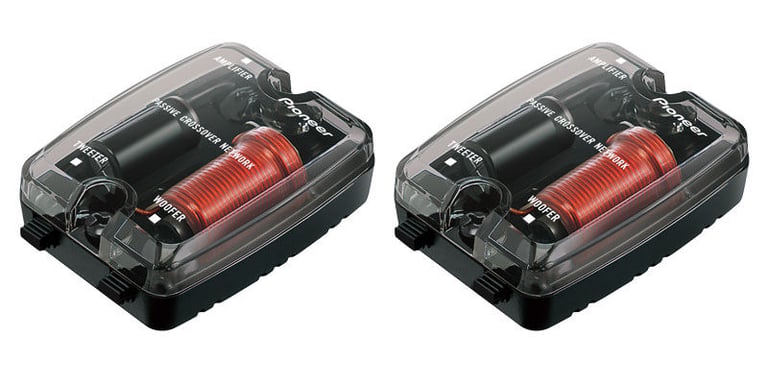

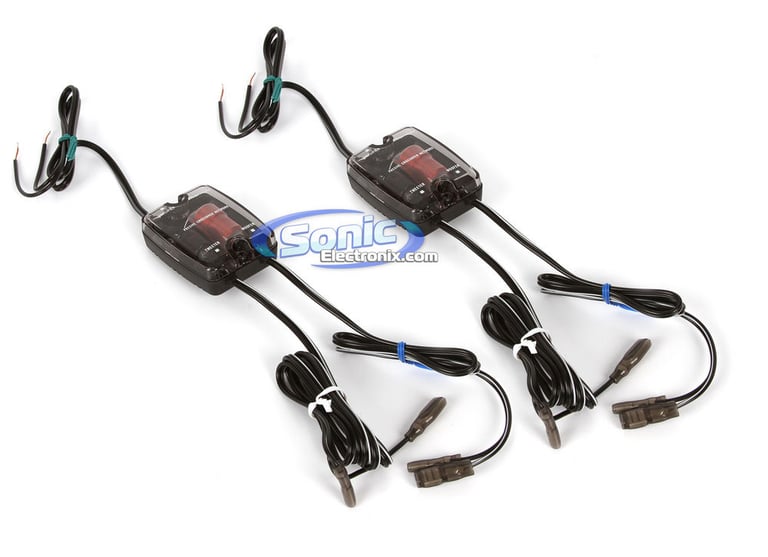

  • Passive crossover network included
  • 4 ohm impedance
  • Protective speaker grilles
  • Frequency response: 34-32,000 Hz
  • Top-mount depth: 2-1/8"
  • Sensitivity: 90dB
  • 1-year Sonic Electronix Warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.
Also Found As: TSA1605C, TS A1605C, TSA-1605C

Product history:

Pioneer TS-A1606C thumbnail
(newest, current model)
Pioneer TS-A1605C thumbnail
(previous model, replaced by Pioneer TS-A1606C)
Pioneer TS-A1604C thumbnail
(previous model, replaced by Pioneer TS-A1605C)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-12.50%

$349.99

List price $399.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

Reference 6530CX small

Infinity Reference REF-6530cx (REF6530CXAM)

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(14)

$108.99

List price $249.95

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Elastic Polymer
Peak Power Handling
175 watts
RMS Power Handling
60 watts
Sensitivity
90 dB
Frequency Response
34 - 32000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
5" x 5"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1605C

Weight:

5.00lbs

Internal SKU:

tsa1605c

Internal Product ID:

63995

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-A1605C thumbnail image

5 star
69%
4 star
20%
3 star
8%
2 star
0%
1 star
2%



Durability
4.5
Value
4.7
Features
4.5
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

ok but not great

i have these in my truck and they sound great but the cross over does not block tweeter. i melted all 4 of my tweeters on 75rms woofers still going strong took cross overs off because they shut woofer down at high volume. now i just use amp cross over and it works fine. IMO just by amp and run tweeters off radio and u will be happy. rms rating is for woofer only i wish i paid the 20$ more and got the better ones

By pa72 on August 12, 2014

60 found this helpful


Pioneer Speakers

Outstanding sound! Love the cross overs. If using these for the front and rear, I would not recommend using the cross overs for the rear.
Over all awesome speakers at a great price.

Sonic Electronix is excellent to deal with. Fast shipping and great service.

By Gene on October 25, 2014

55 found this helpful


thanks

Great price great product .sounds clear will order two more .

By carlos on October 4, 2014

52 found this helpful


good speakers

not bad for entry level component speakers, works fine with no amps

By jessica stephani on May 18, 2014

50 found this helpful


Pioneer TS-A1605C

This is the first set of components I have bought and I must say that I am beyond satisfied with them. Pioneer delivered again.

These suckers get loud and are tuned perfectly on the passive crossover.

By Jacob on March 9, 2014

49 found this helpful


exeeded my expectations. rock solid value.

I payed for the product. I had it in my hands 2 days later. I installed them bridged to a lanzar optidrive 600a.2 amp at mid pass and about half gain. They produce full, crisp, and clear sound at all volume settings. Killer price!

By little ether on January 8, 2014

48 found this helpful


sound great

Good price, fit perfect and sound great. I have them hooked up to a pioneer in dash DVD and have not had one problem.

By tony on June 15, 2014

45 found this helpful


Awesome product for an amazing price

These speakers are very good, good sound quality, very crisp at all volumes, well worth the price

By Nick on March 1, 2014

47 found this helpful


gr8 for the price

These are a great buy for the money, excellent highs not much on bass.....but 61/2 "so really over all great

By gr8nitrojack on November 21, 2013

45 found this helpful


Good Product

They Are Really Good. I Install this on My Scion XB 2010 and They Work Great. I have these about 6 Months Now and The Sound is Really Good But if You Have a 4 channel amp of 900 watts like I do, U need a EQ 4 sho because if You give them bass and have the Volume at a High Level, It wont sound Great at all so I have a EQ and lower down the Bass from them and Man, They do a Great Job but I am Going to Replace them soon with something that can handle some pretty good bass.

By PoYo on September 17, 2013

44 found this helpful
