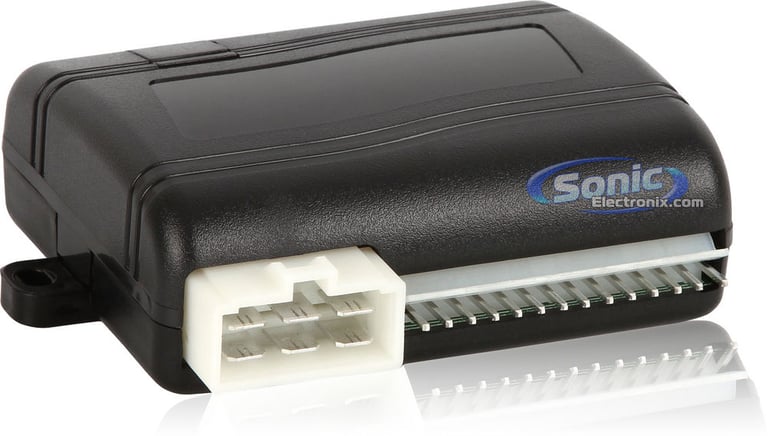

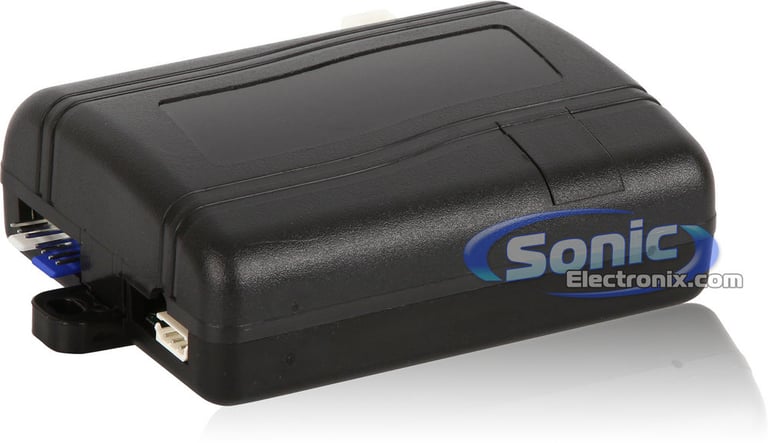

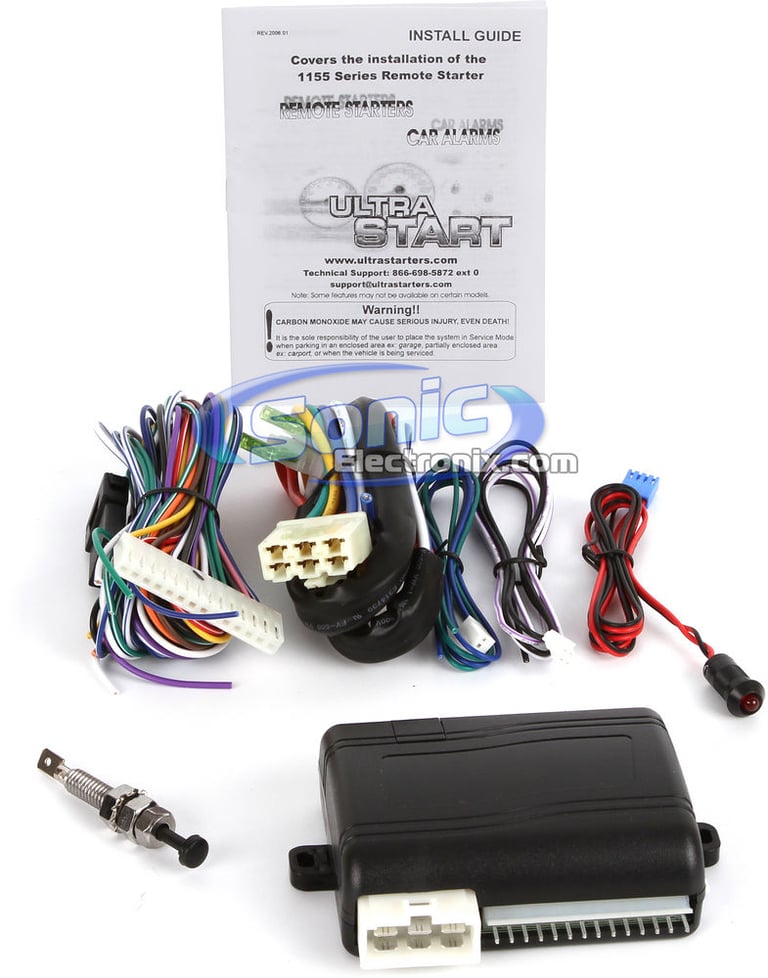

Ultra Start by AST U1155TL

Add on Remote Start System Works with Factory and After Market Alarms

Product videos
highlight-star-icon

Add on Remote Start System For Use With Factory and Aftermarket Alarms • Industrial Rated • Programmable Diesel Mode • System Diagnostic Memory

Learn more about the u1155tl

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

-16.67%

$79.99

List price $95.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

39
-30.71%

$51.96

List price $74.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-38.45%

$79.99

List price $129.95

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Product Highlights


Add on Remote Start System For Use With Factory and Aftermarket Alarms • Industrial Rated • Programmable Diesel Mode • System Diagnostic Memory

Description


This model allows your factory remote or aftermarket alarm to activate the Remote Start function.

General Features:

  • Add on Remote Start System works with factory and after market alarms
  • 8 Bit micro processor
  • Industrial rated components

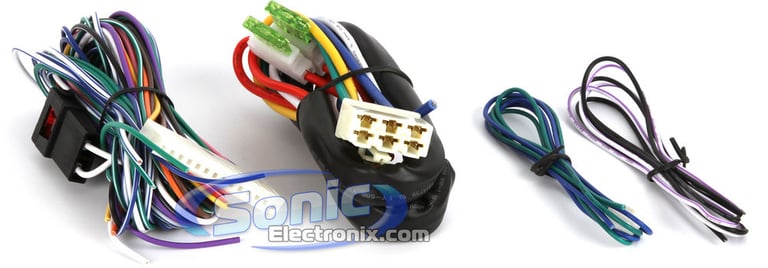

  • Comes with one bypass kit plug
  • Ultra Tach detection system
  • Tachless mode
  • Optional connection to long range remotes
  • Five on-board relays
  • Extreme duty relays
  • Safety start feature
  • Programmable diesel mode
  • Passive starter disable
  • Programmable crank time
  • Programmable number of crank attempts
  • Programmable auto ignition locks
  • Programmable run time
  • Panic features
  • Keyless idle mode
  • System diagnostic memory

Inputs:

  • Two (-/+) programmable trigger inputs
  • Optional antenna input
  • Safety Shutdown inputs
  • Negative and positive glow plug input

Outputs:

  • Park Light Output: 10 AMP Fused
  • Ignition Output: 40 amp
  • Accessory Output: 40 amp
  • Selectable Output: 40 amp
  • Programmable outputs: 9
  • Alarm disarm output
  • Alarm rearm output
  • Horn honk output
  • Door lock output
  • Door unlock output
  • Trunk release output
  • 2 Negative when run outputs
  • Starter disable output
  • Anti-grind output
  • 1-year SonicElectronix.com warranty
