Kicker PECVR12 (11PECVR12)

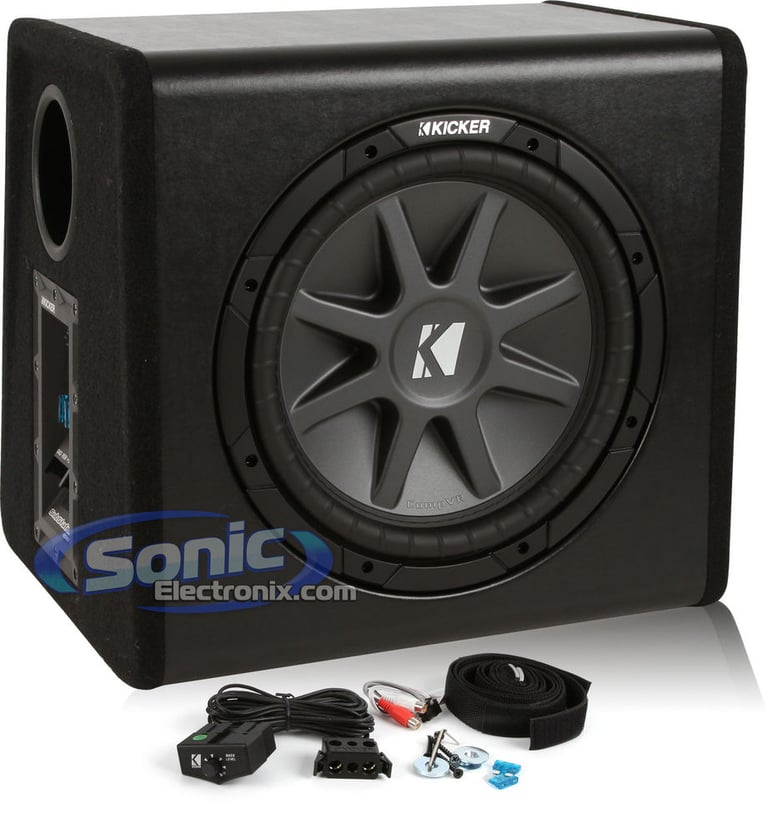

400W RMS, Single 12" CompVR (CVR) Subwoofer Loaded Into Amplified Ported Enclosure (11PECVR-12)

Kicker
Shop all Kicker
highlight-star-icon

• 12" Amplified Loaded Enclosure
• 800W Peak
• 400W RMS
• 4 ohm Final Impedance
• Kevlar Fiberglass Cone
• Inverted Rubber Surround
• Anti Resonance Bass Support System
• Pressure Wedge 2
• TurboPort
• Port Plug

Learn more about the 11pecvr12

We apologize

This item has been discontinued

Description


Kicker brand icon

Authorized dealer

General Features:

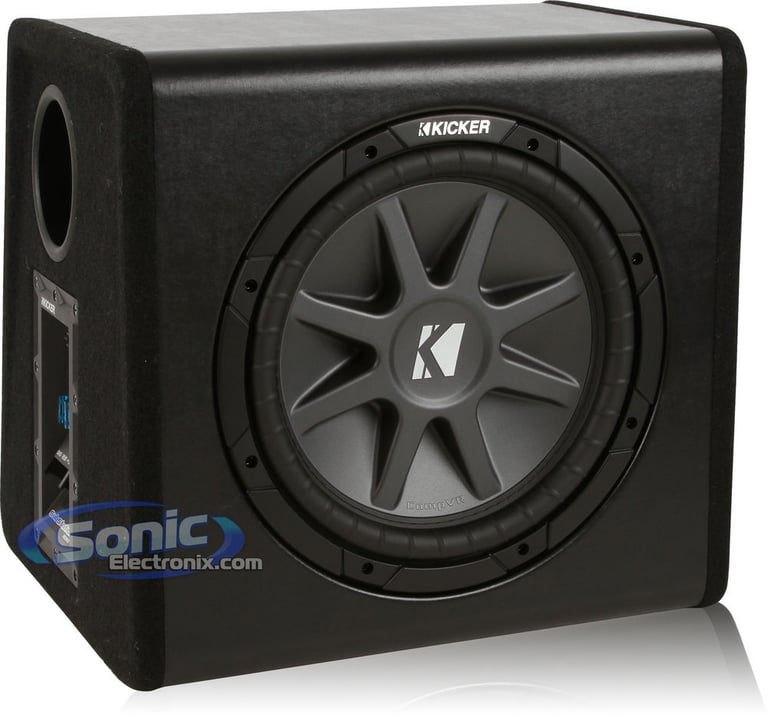

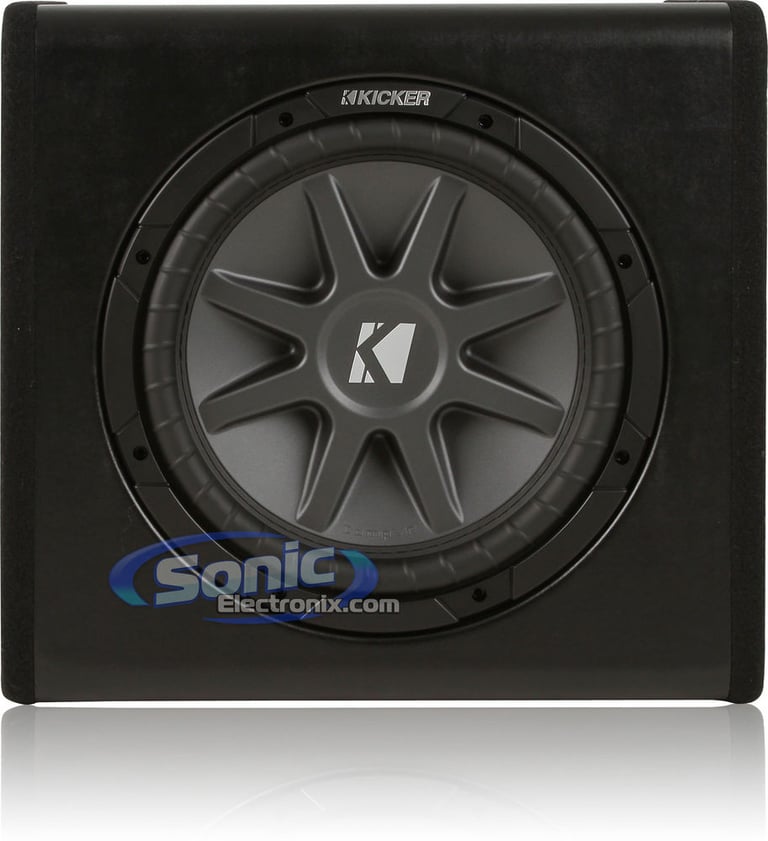

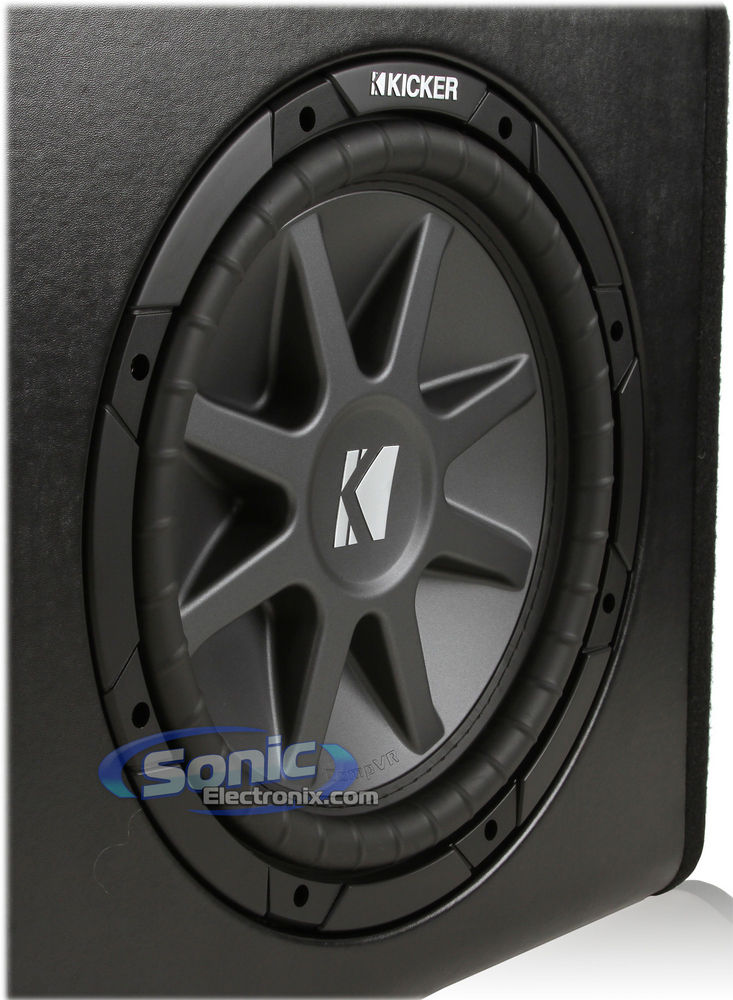

  • 12" CompVR (CVR) Series Subwoofer Loaded into a Kicker Enclosure
  • Built-In Amplifier Makes Installation Simple
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 Ohm
  • Injection molded SoloKon cone
  • Ribbed Santoprene surround
  • Double stitched surround for enhanced cone-to-surround strength
  • Extra strong adhesive and stitching prevents the cone from detaching from the surround
  • Spiralead tinsel lead technology weaves the tinsel leads into the spider
  • Progressive-roll polycotton spider
  • Super rigid cone and 360-degree back bracing eliminate distortion
  • Sturdy steel basket holds the subwoofer mounted firmly
  • Steel basket features perimeter venting around the dual voice coils
  • Large, high-mass pole piece for dissipating potentially damaging heat
  • Strong spring-loaded terminals
  • High-Temperature voice coil
  • Powerful rear magnet
  • Frequency response: 25-500 Hz
  • Sensitivity: 86.9 dB
  • Mounting depth: 6-1/4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Enclosure Features:
  • Vented enclosure designed specifically to match with the CompVR's technologies

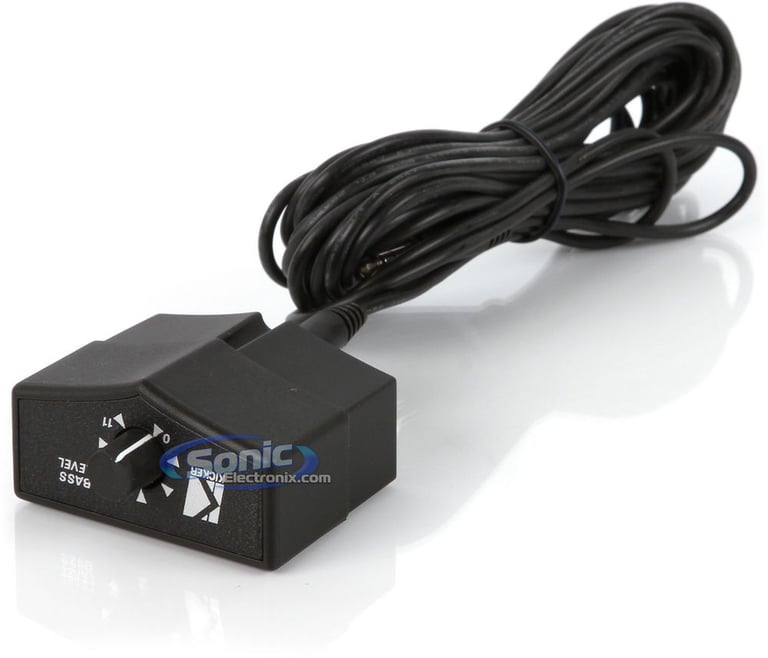

  • Remote Bass Knob Included

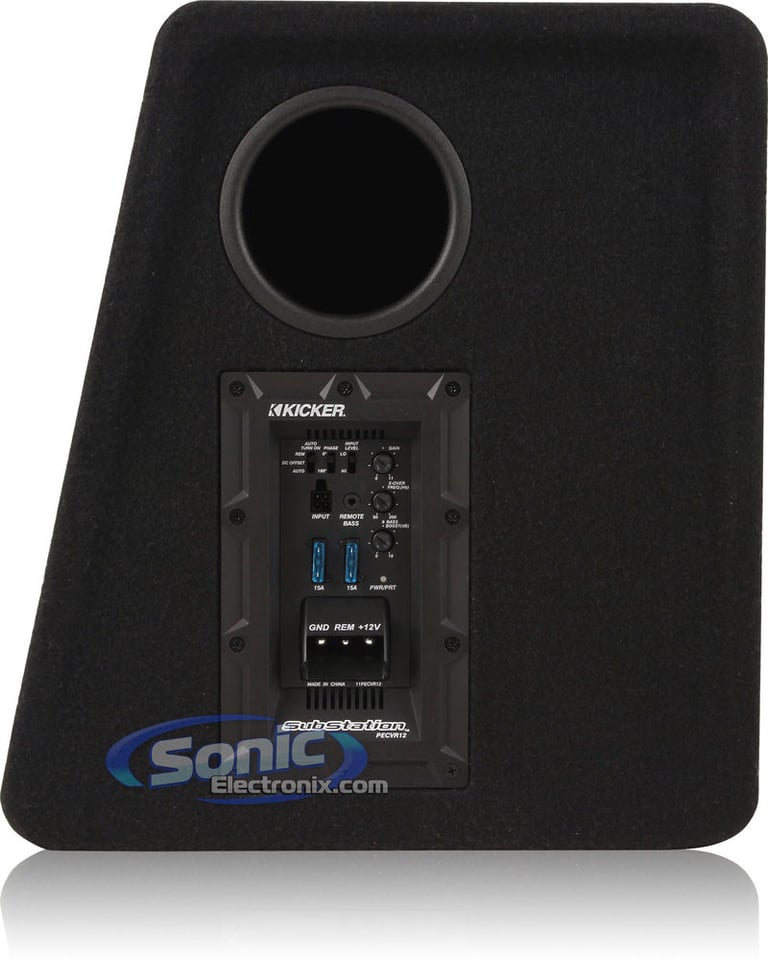

  • Built-in 400-watt Class-D digital amplifier

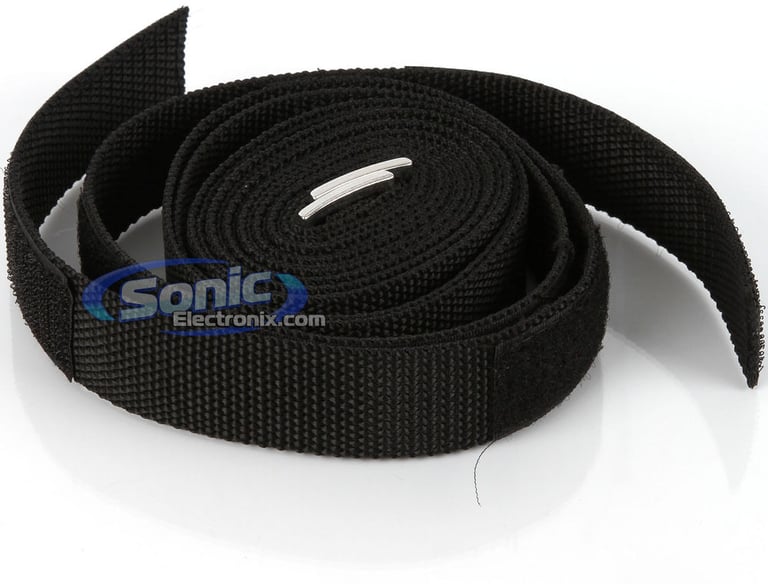

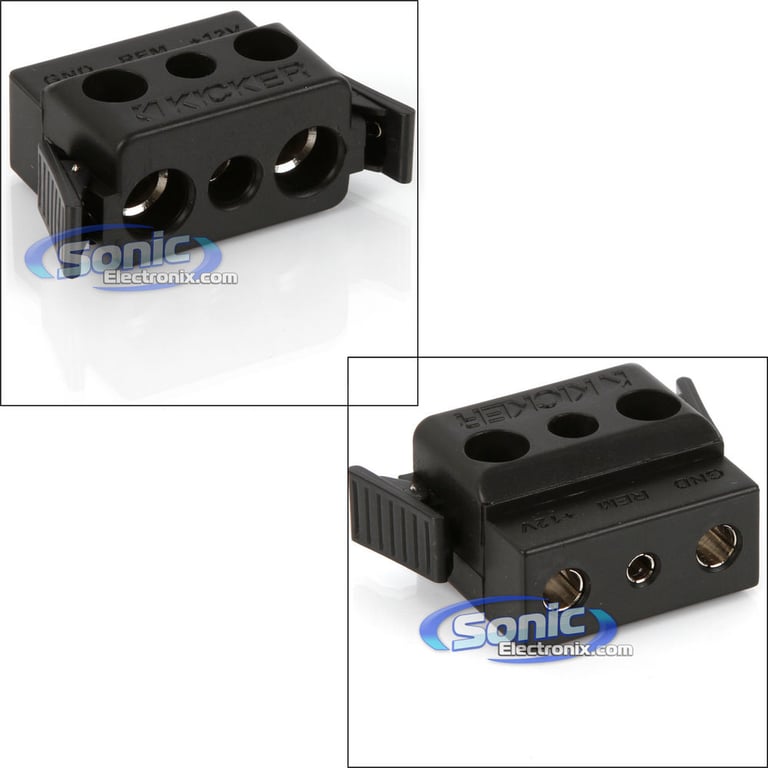

  • Velcro straps easily secures enclosure, and quick-connect wire harness lets you remove it when needing hauling space
  • Amplifier features selectable automatic turn-on modes
  • KickEQ Boost: variable to +12dB @ 40Hz
  • Crossover: 12dB/octave low pass at 50-120Hz
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Signal To Noise Ratio: >95dB
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier
  • Dimensions: 11-1/4"TD x 14-1/2"BD x 17-1/16"W x 16"H
2011 Kicker Authorized Online Dealer and eBay Seller

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
Not Specified
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
Not Specified
Speaker Level Inputs

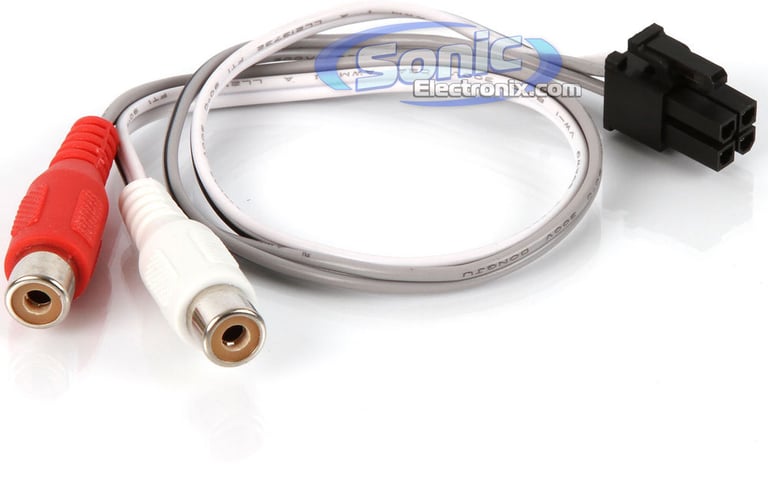

Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

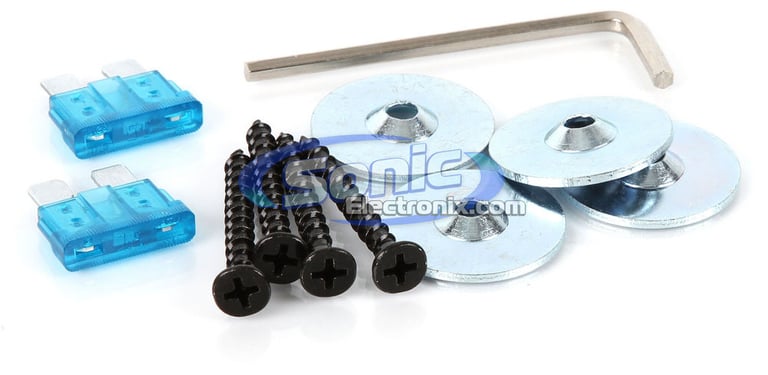

Fuse Rating
15A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
400 watts
Total RMS Power Handling
400 watts
Peak Power Handling
800 watts
Total Peak Power Handling
800 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
SoloKon Polypropylene
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Sensitivity
86.9 dB
Frequency Response
25 - 500 Hz
Enclosure Specifications

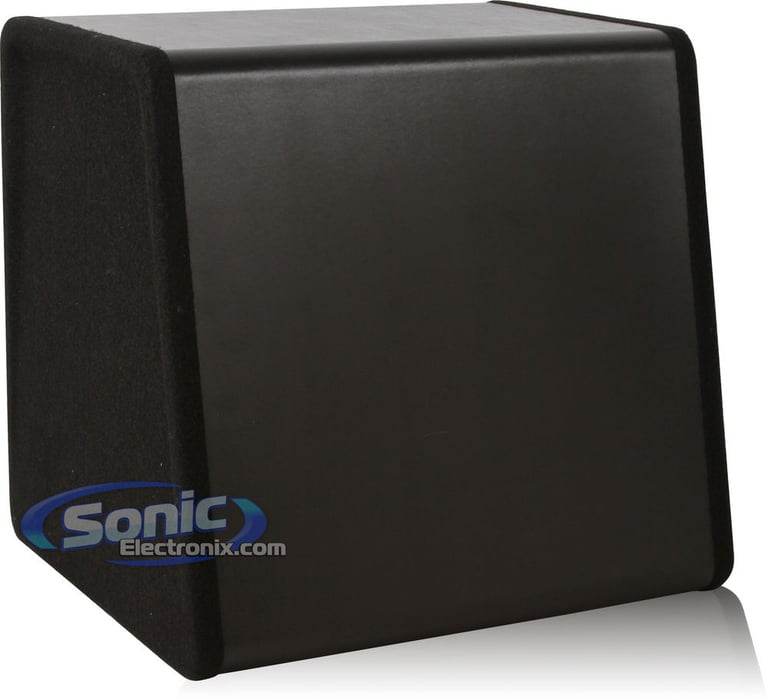

Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
16"
Width
17-1/16"
Depth
14-1/2"
Second Width
11-1/4"
Wood Thickness
3/4"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11PECVR12

Weight:

46.00lbs

Internal SKU:

11pecvr12

Internal Product ID:

31844
