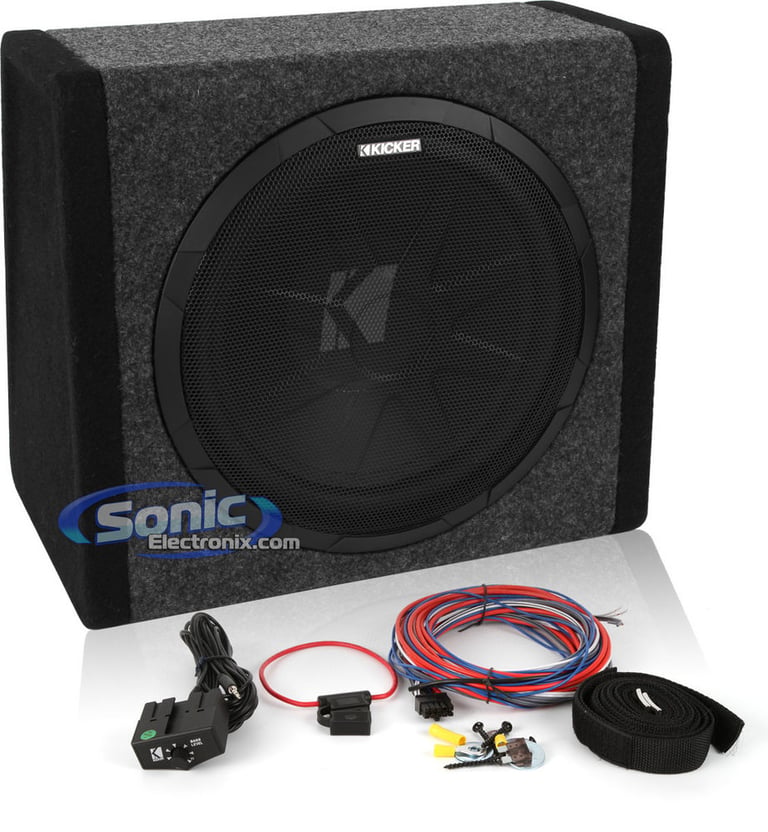

Kicker 11PH12 (PH12)

100W Bass Station Loaded 12" Carpeted Subwoofer Enclosure with Integrated Amplifier

Kicker
Shop all Kicker
highlight-star-icon

• 12" Bass Station Amplified Enclosure
• 100W RMS
• Included Remote Bass
• Nylon Velcro Straps
• Phase Canceling Switch
• Subsonic Filter
• Low Pass Filter
• Variable Bass Boost

Learn more about the 11ph12

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Kicker brand icon

Authorized dealer

All In One BassStation

Want to add some bass to your car's audio system, but don't want to go through the hassle of messy installations? Kicker's 2011 BassStation Powered Subs are the perfect solution for those looking to add some bass with simple installation. This new amplified loaded enclosure series comes in four different models, a 12", 10", 8" and a dual subwoofer 12" model. Equipped with a quick connect Molex power harness, this loaded enclosure will make for easy set up and removal, making it easy to transfer from one location to the next. Nylon Velcro straps will ensure security while your vehicle is in motion. With an included remote bass control, the new BassStation series adds versatility and Kicker quality to any vehicle's car audio system.

General Product Features:
  • Specifically designed 12" heavy duty subwoofer
  • RMS power rating of 100 watts

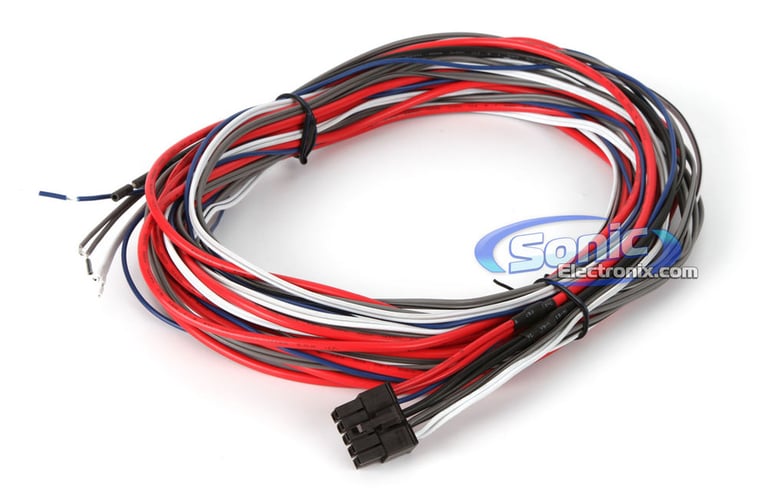

  • Quick-connect Molex power

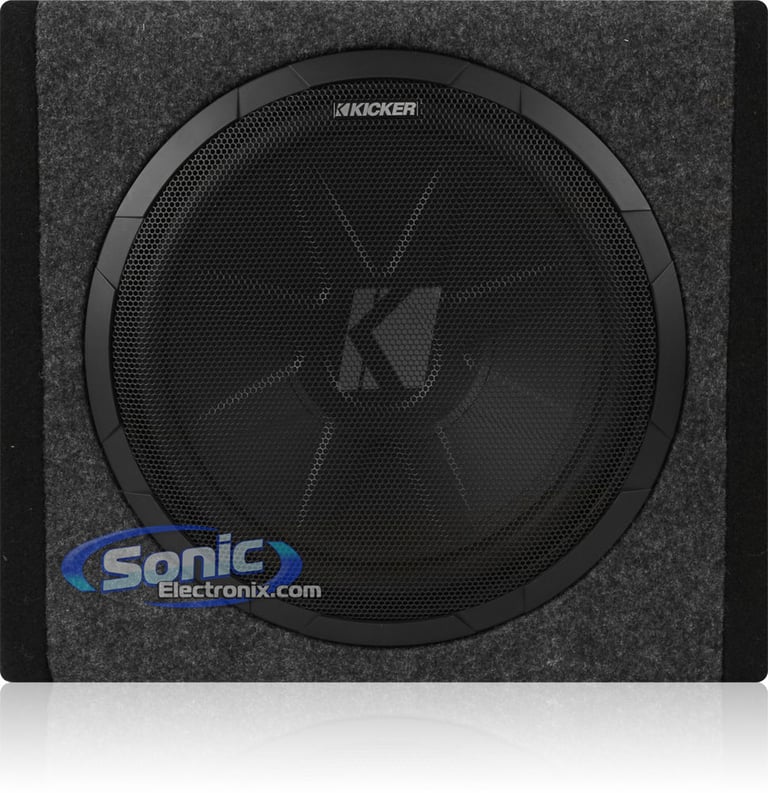

  • Subwoofer grille for added protection
  • Harness/plug for simple set up or removal

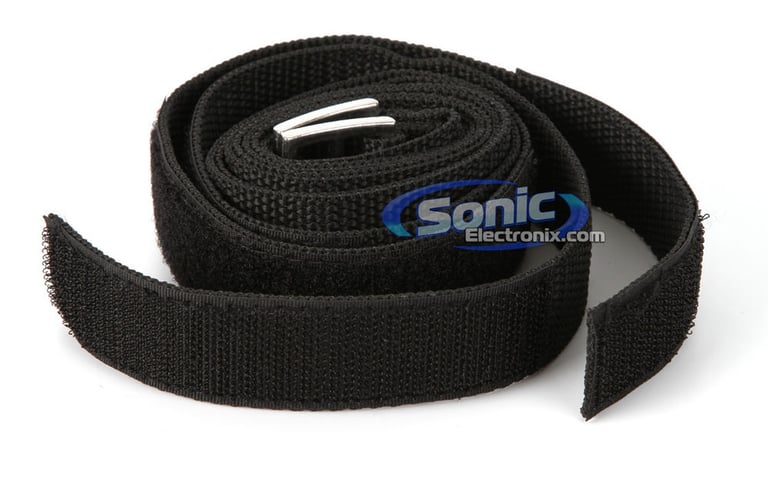

  • Nylon straps with Velcro help secure enclosure in place
  • Carpeted enclosure ideal for any car interior
  • Frequency response: 25-120 Hz
  • Sensitivity: 95 dB
  • 1-year Manufacturer's Warranty

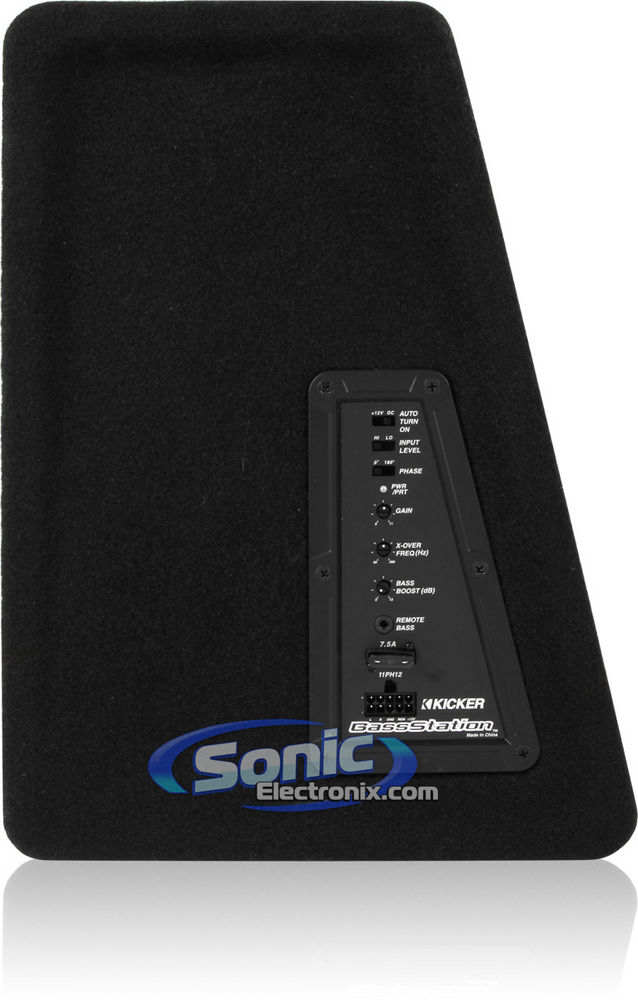

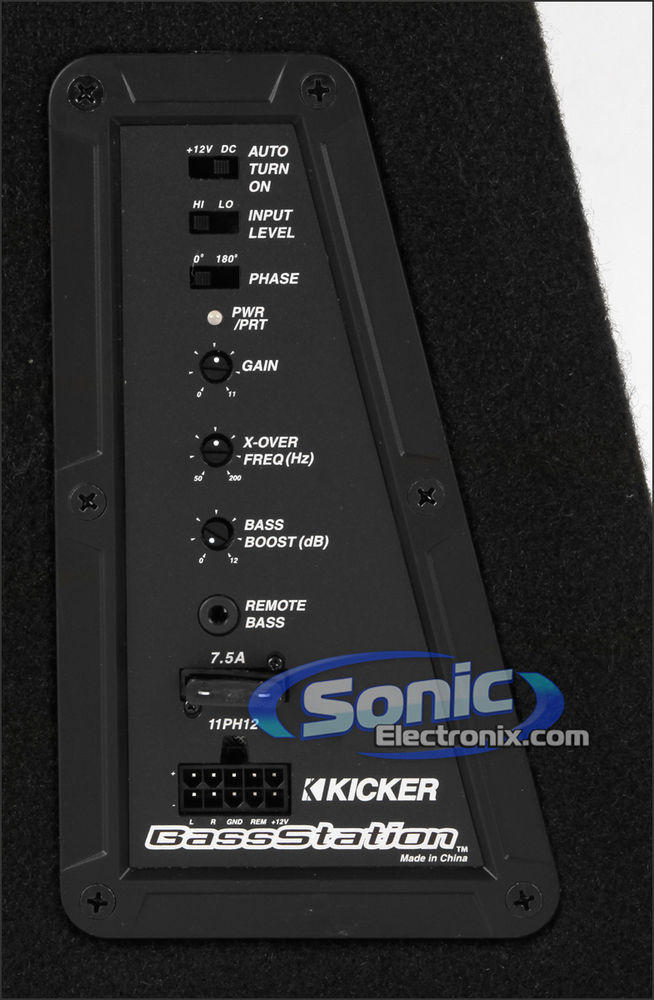

Amplifier Features:
  • RMS power output: 100 watts

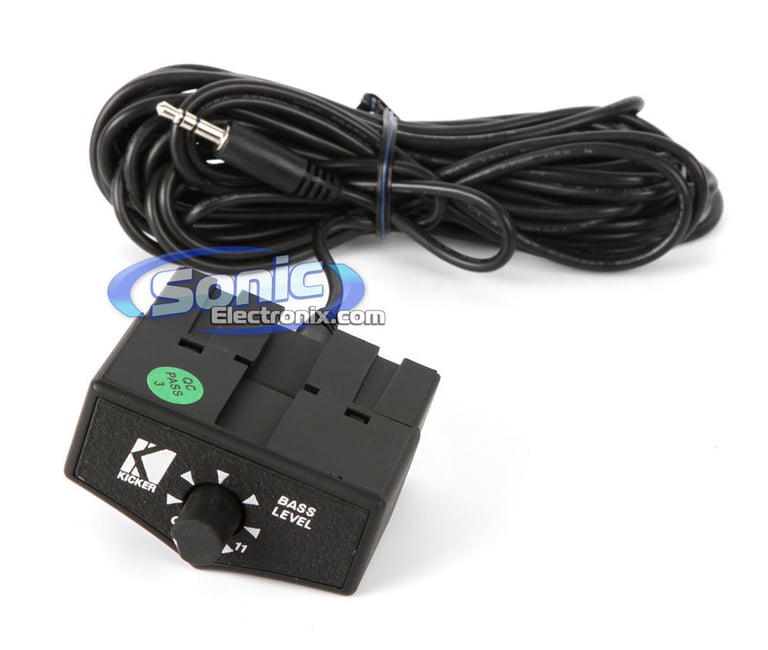

  • Wired remote bass level control included
  • KickEQ bass boost: Variable 0-6dB @ 40Hz
  • Auto turn on (12v or DC)
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-120 Hz, 12 dB/octave)
  • Subsonic filter (24dB/octave highs pass @ 25Hz)
  • Phase Shift: 0-180°
  • Frequency response: 25-120 Hz

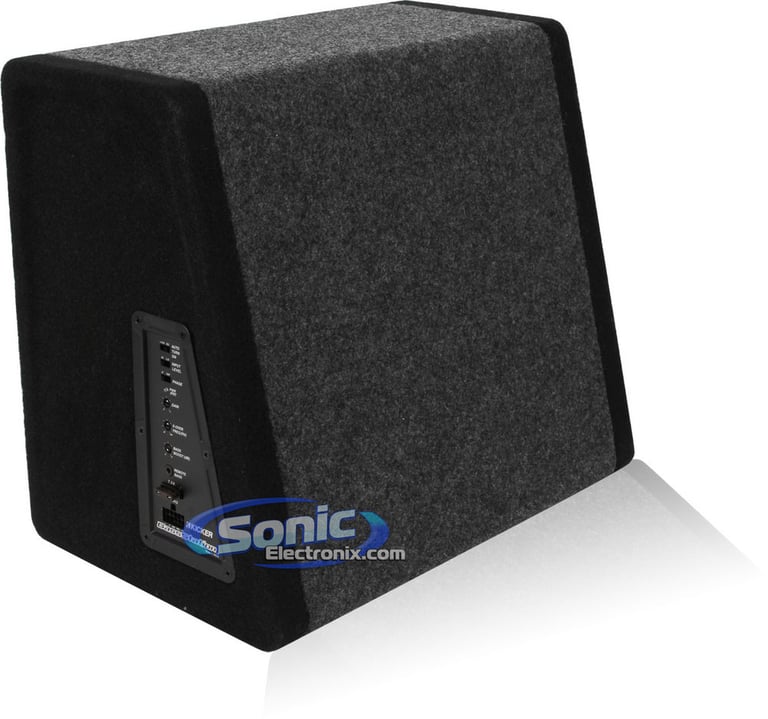

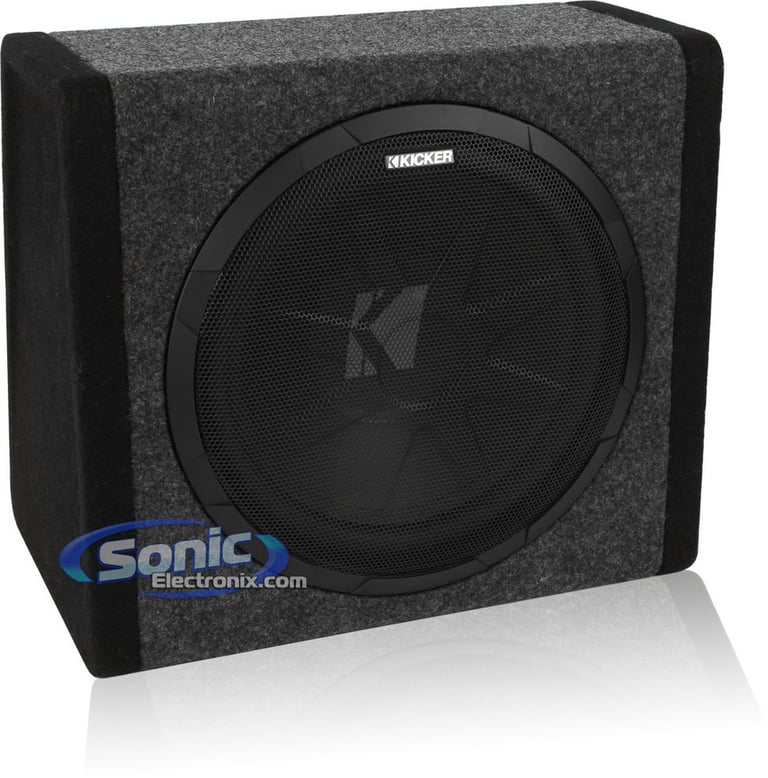

Enclosure Specifications:
  • 12" Amplified Enclosure
  • Sealed design
  • 3/4" MDF
  • Two tone carpeted finish
  • Subwoofer grille manufactured into enclosure
  • Angled slim design ideal for limited space
  • Molex power terminal for quick set up and removal
  • Dimensions: 7-11/16"TD x 11-1/4"BD x 16-13/16"W x 14-15/16"H

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Amplifier Specifications
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
24dB/octave @ 25hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes

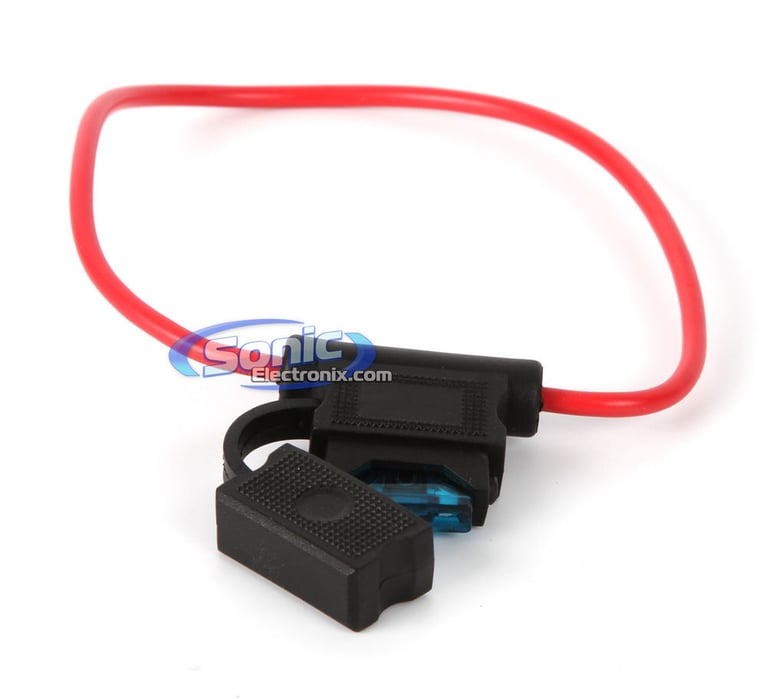

Fuse Rating
7.5A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
100 watts
Sensitivity
95 dB
Frequency Response
25 - 120 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-15/16"
Width
16-13/16"
Depth
7-11/16"
Second Width
11-/14"
Wood Thickness
3/4"
Box Exterior Color
Two Tone Color
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11PH12

Weight:

30.00lbs

Internal SKU:

11ph12

Internal Product ID:

31846
