Kicker Solo-Baric S10L34 (11S10L34)

10" Dual 4 ohm Solo-Baric L3 Series Car Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

10" Solo-Baric L3 Series Subwoofer • 800W Max • 400W RMS • Double-Stitched Santoprene Rubber Surround • Stamped Steel Basket • Vented 360° Back Bracing • Poly-Cotton Semi-Progressive Spider

Learn more about the 11s10l34

We apologize

This item has been discontinued

Product Highlights


10" Solo-Baric L3 Series Subwoofer • 800W Max • 400W RMS • Double-Stitched Santoprene Rubber Surround • Stamped Steel Basket • Vented 360° Back Bracing • Poly-Cotton Semi-Progressive Spider

Description


Kicker

Authorized dealer

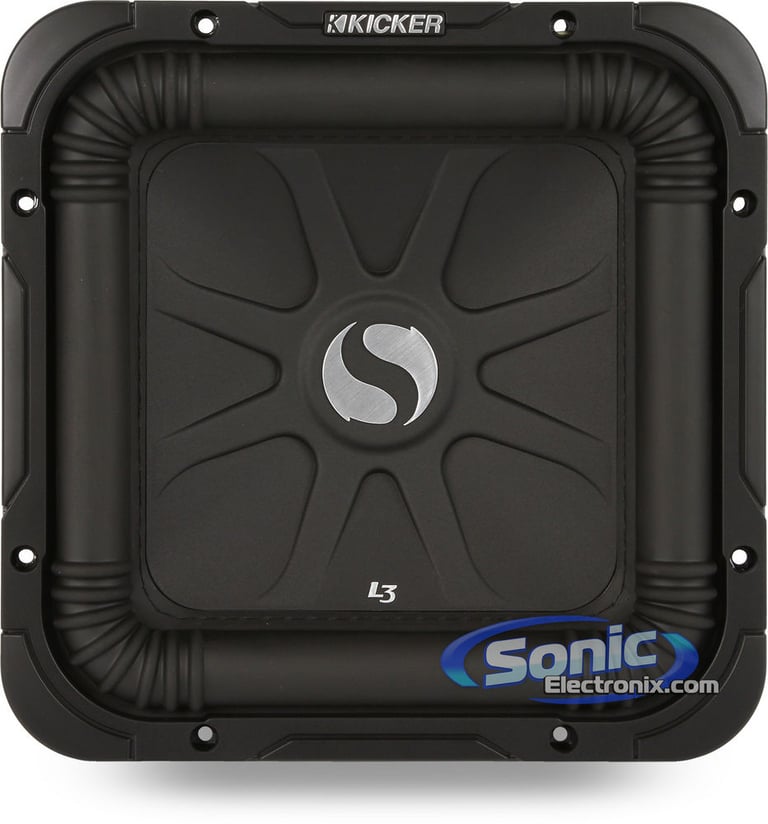

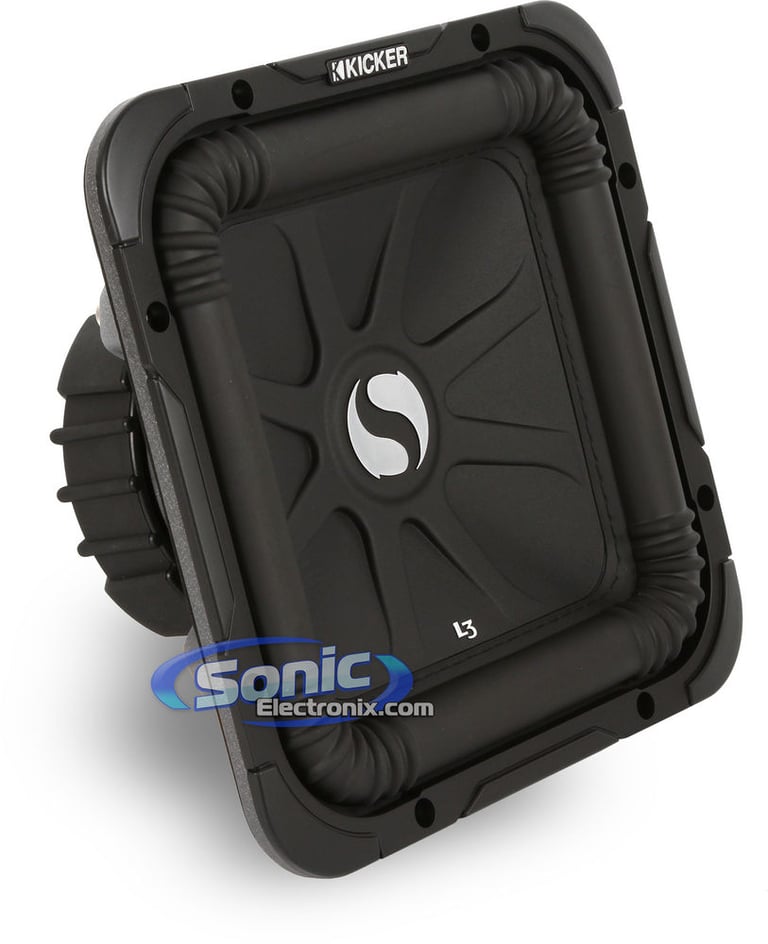

  • 10" Dual 4 Ohm Solo-Baric L3 Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm

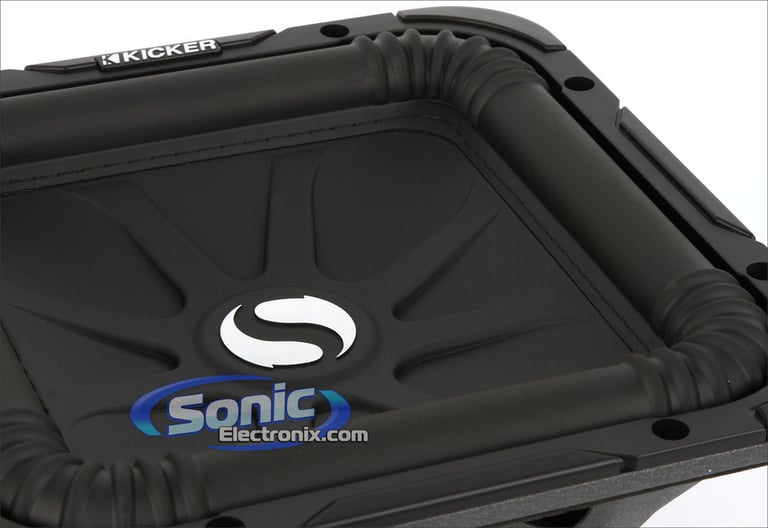

  • Patented corner-ribbed, double-stitched Santoprene rubber surround
  • Stamped steel basket protects massive internal motion
  • Titanium deposit impregnated cone with rolled outer edge

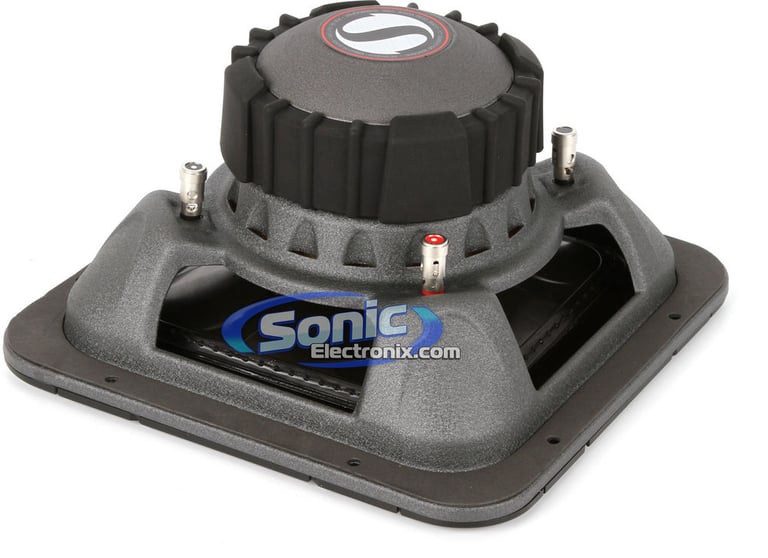

  • Vented 360° back bracing
  • Rear foam gasket
  • Heat-dissipating, solid pole piece and high-temp coil wire for longer woofer life
  • Spring loaded terminals
  • Poly-cotton semi-progressive spider
  • Heat-dispersing, solid pole piece
  • Spiralead tinsel leads
  • High-temperature dual 4 ohms voice coils
  • Sensitivity: 85.3 dB
  • Other search terms: S10L3, S10L34, 10L3, 10L34, 11S10L34
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker Solo-Baric S10L34 (11S10L34) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker Solo-Baric S10L34 (11S10L34) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker Solo-Baric S10L34 (11S10L34) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker Solo-Baric S10L34 (11S10L34) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Solo-Baric L3 Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Sensitivity
85.3 dB
Subwoofer Design
Square
Main Cone Color
Black
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
3.0 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
9-5/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11S10L34

Weight:

13.20lbs

Internal SKU:

11s10l34

Internal Product ID:

31859

Product and How-to Videos


  • Kicker SoloBaric L3 Car Sub | Mid-Level Square Subwoofer
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews



5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.3
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Simply awesome

I bought one 10" L3, made a box with internal volume of .9 and I'm impressed. This sub definately sounds more like a Comp VR 12". It hits a much wider range of frequencies than other 10" subs. It actually sounds pretty clean in a sealed box to. I can't really comment about the durability cause I only had it hooked up for a couple days, but this thing bangs! The sub is rated at 400 RMS but, only handles 350 RMS so watch how much you put on it. Buy it and you'll be happy!

By jake on March 8, 2011

7

found this helpful.

clean sound

Definitely recommend to anyone. Have one of these in a small box behind the seat of my work van being pushed with a kicker DX1000.1 and it handles no problem. Definitely baby it till it breaks in then no problems handling anything after that.

By tricky on October 27, 2012

6

found this helpful.

Solid Bass

Got this L3 wired up to a 450 watt RMS amp in a sealed box this sub puts out loud high impact bass sounds like a 12" sub except with harder knockin bass. I think maybe the sound quality is a bit better with the round subwoofer I don't know maybe its just me. Also I think its a bit pricey.

By Anthony on April 6, 2011

7

found this helpful.

Great deep sound!!!

I have a 97 Eclipse Spyder. Since is a convertible I don't have much room for subwoofers in the limited trunk. So, I went to an audio store owned by a friend of mine and asked for a good subwoofer where I could only need one and still have a great loud sound. He recommended me the 12" Kicker L3, mounted on a just perfect size box for the space I have. And boy........ I'm glad I bough it, great sound, deep, and loud. Definitely sounds like I have more than one sub in the trunk. Love it.

By Ed on March 20, 2011

5

found this helpful.
