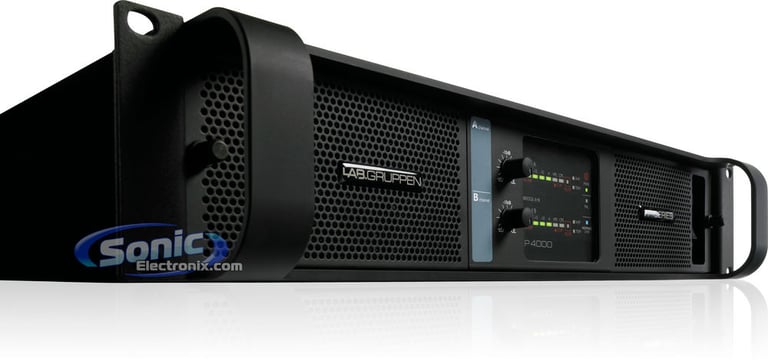

Lab Gruppen FP4000 Image 1 — Lab Gruppen FP4000

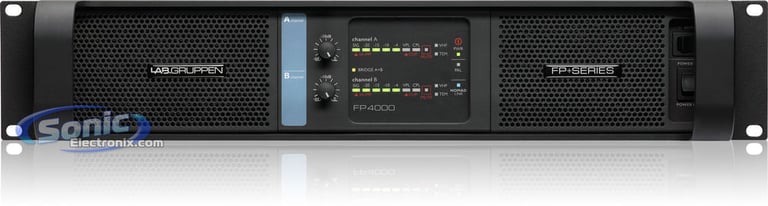

Lab Gruppen FP4000 Image 2 — Lab Gruppen FP4000

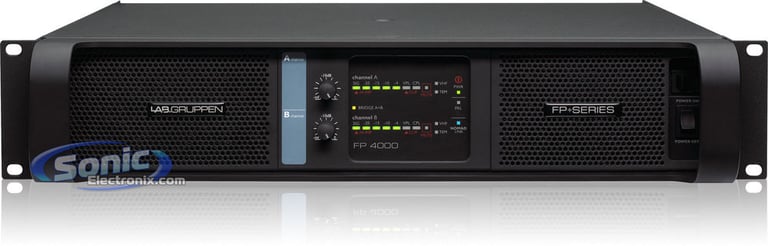

Lab Gruppen FP4000 Image 3 — Lab Gruppen FP4000

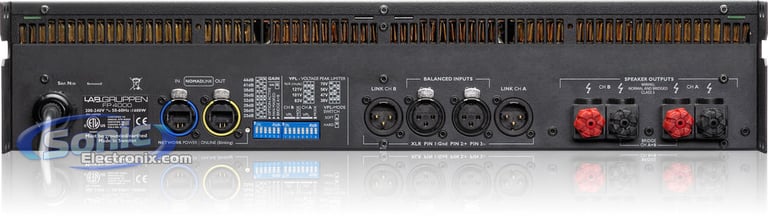

Lab Gruppen FP4000 Image 4 — Lab Gruppen FP4000

Product highlights

2-Channel Touring Amplifier • High Power Density • Transparent Mid and High Frequency Performance • NomadLink Network Ready • Patented Class TD Amplifier Topology

Learn more about the fp4000

Other products for your GMC G3500

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

Add to cart

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

$179.95

Add to cart

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

-10.10%

$257.99

List price $286.99

Add to cart

Out of stock

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

Notify Me

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Add to cart

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

$263.95

Add to cart

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

$399.99

Add to cart

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

$399.99

Add to cart

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

Add to cart

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

$389.99

Add to cart

Description

Refined, Optimized, Effortless

Although an output rating of 2000 W per channel places it at the low end of the FP+ Series, the value-priced FP 4000 has ample reserves for a wide variety of applications, including effortless driving of mid- and high-frequency bands in line array systems as well as the top or bottom end of monitor wedges.

A refined Class TD® output stage is optimized for effortless reproduction of extreme low frequency content, while the Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content. The FP 4000 is shipped with a NomadLink® network interface as standard. In conjunction with DeviceControl software, NomadLink allows monitoring of all key amplifier parameters and remote control of power on/off, channel mutes, and channel solo functions. (NomadLink requires the separate NLB 60E NomadLink Bridge & Network Controller)

General Features:

2 Channel Touring Amplifier with Binding Posts
High power density – The FP 4000 delivers a total of 4000 W (2 x 2000 W @ 2 ohm) in only 2U
Lab.gruppen sound quality – FP 4000 amplifiers maintain the Lab.gruppen’s reputation for sound quality, with transparent mid- and high-frequency performance and new circuit designs optimized for sustained low-frequency output
NomadLink® network ready – Monitoring and control of key functions accessible via the intuitive DeviceControl software and the robust, daisy-chained NomadLink® network, as well as by the leading third party control platforms
Patented Class TD® amplifier topology – Road-proven output stage delivers Class B audio quality with Class D efficiency
Regulated Switch Mode Power Supply (R.SMPS™) – Output power remains constant even with significant drops in the mains voltage
Efficient cooling system – Unique, lightweight Intercooler® copper cooling system dissipates more heat to allow extended peak output
Adjustable parameters – Selectable Gain, scalable Voltage Peak Limiter (VPL™), and bridge-mode operation allow custom configuration for any system or application
XLR input and link connectors
Heavy-duty binding post or Speakon™ output connectors
Comprehensive protection and warning – Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start
1-year Manufacturer's warranty

Power Output:

Number of channels: 2
Peak total output both channels driven: 4000 W
Peak output voltage per channel: 121 V
Max. output current per channel: 50 A peak
MAX Power Rating:
- 16 ohm: 400 watts x 2 chan.
- 8 ohm: 800 watts x 2 chan.
- 4 ohm: 1600 watts x 2 chan.
- 2 ohm: 2000 watts x 2 chan.
MAX Power Rating Bridged:
- Bridged, 16 ohm: 1600 watts x 1 chan.
- Bridged, 8 ohm: 3200 watts x 1 chan.
- Bridged, 4 ohm: 4600 watts x 1 chan.

Performance with Gain: 35 dB and VPL: 150 V

THD 20 Hz - 20 kHz for 1 W: <0.1%
THD at 1 kHz and 1 dB below clipping: <0.05%
Signal To Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz: >70 dB
Frequency response (1 W into 8 ohm) +0/-3 dB: 2 Hz - 34.2 kHz
Input impedance: 20 kOhm
Input Common Mode Rejection, CMR: 45 dB
Output impedance @ 100 Hz: 56 mOhm

Voltage Peak Limiter (VPL), max. peak output

VPL, selectable per ch: 121, 101, 83, 70, 56, 47, 38V
VPL, selectable when bridged: 242, 202, 166, 140, 112, 94, 76V
Voltage Peak Limiter mode (per ch.): Hard / Soft

Gain and Level:

Amplifier gain selectable (all channels) rear-panel switches: 23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain: 38 dB
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

Connectors and Switches:

Input connectors (per ch.): 3-pin XLR, electronically balanced
Output connectors (per ch.): Neutrik Speakon or Binding Posts (must be specified upon order)
Output bridge mode: A+B - Ch. A is signal input source
NomadLink® network: On board, 2 x RJ45 EtherCon connectors, IN and OUT
Intelligent fans (on/off): Yes, depending on presence of output signal
Power on/off and Remote enable on/off: Individual switches on front-panel
Cooling: Two fans, front-to-rear airflow, temperature controlled speed

Front-panel indicators:

Common: NomadLink Network; Power Average Limiter (PAL) 2); Power on
Per channel: Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal; Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); High temperature; Fault; Mute

Power:

Operating voltage (230V / 115V nominal): 130-265V / 65-135V
Minimum power-up voltage: 230V / 115V 171V / 85V
Power Average Limiter (PAL): Yes
Soft start / Inrush Current Draw Yes / max. 5 A
Mains connector 230 V CE: 16 A, CEE7; 115 V ETL: 20 A / NEMA 5-20P

Specifications:

Dimensions: (W/H/D) W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)
Weight: 12 kg (26.4 lbs.)
Finish: Black painted steel chassis with gray painted steel front
Approvals: CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
