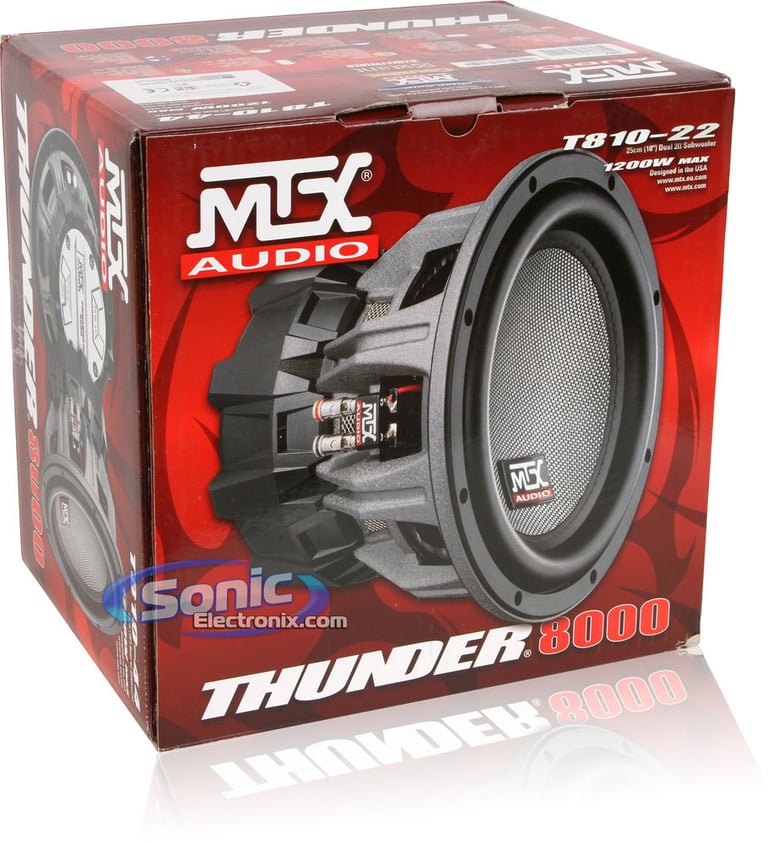

MTX Audio T810-22

400W 10" Thunder 8000 Series Dual 2 ohm Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

• 1200W Peak
• 400W RMS
• Impedance: Dual 2 ohm
• Glass Fiber Cone Woofer
• Stitched NBR Surround
• 2.4" High Temperature Voice Coil
• 93oz. Triple Stacked Magnet

Learn more about the t81022

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

H46 main

Cerwin-Vega H46

300W Peak (100W RMS) 4x6" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$79.99

List price $95.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Product Highlights


• 1200W Peak
• 400W RMS
• Impedance: Dual 2 ohm
• Glass Fiber Cone Woofer
• Stitched NBR Surround
• 2.4" High Temperature Voice Coil
• 93oz. Triple Stacked Magnet

Description


MTX brand icon

Authorized dealer

Elegance and Performance

Thunder 800 series subwoofers are MTX Audio's new 2011 addition to their already popular subwoofer family. The new Thunder 800 series woofers are available in a 10",12" and 15" size with either Dual 4 ohm or Dual 2 ohm voice coils for each respective size. These woofers will power handle 400 watts RMS up to 600 watts RMS, depending on the size of the woofer. Thunder 800 series subwoofers feature unsurpassed technologies that will set them apart from other subwoofers within their category.

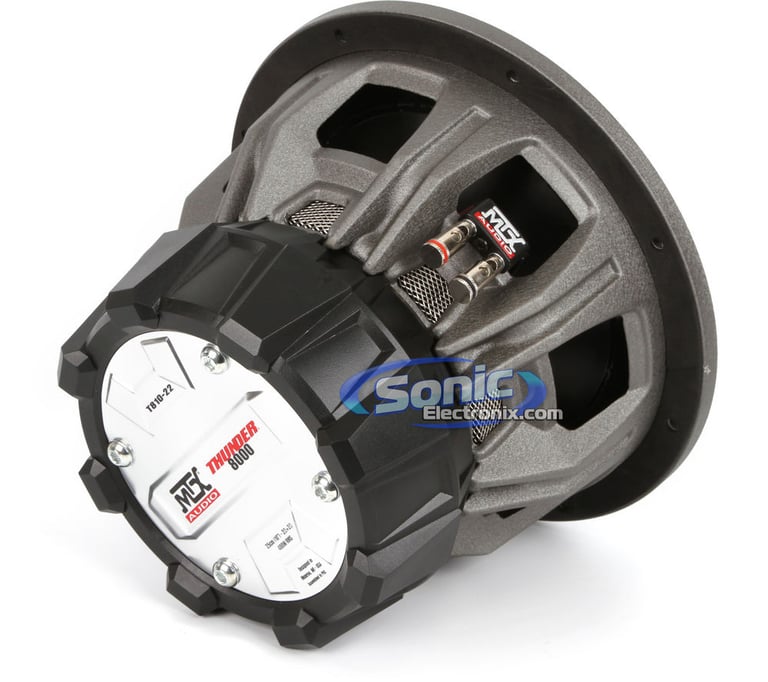

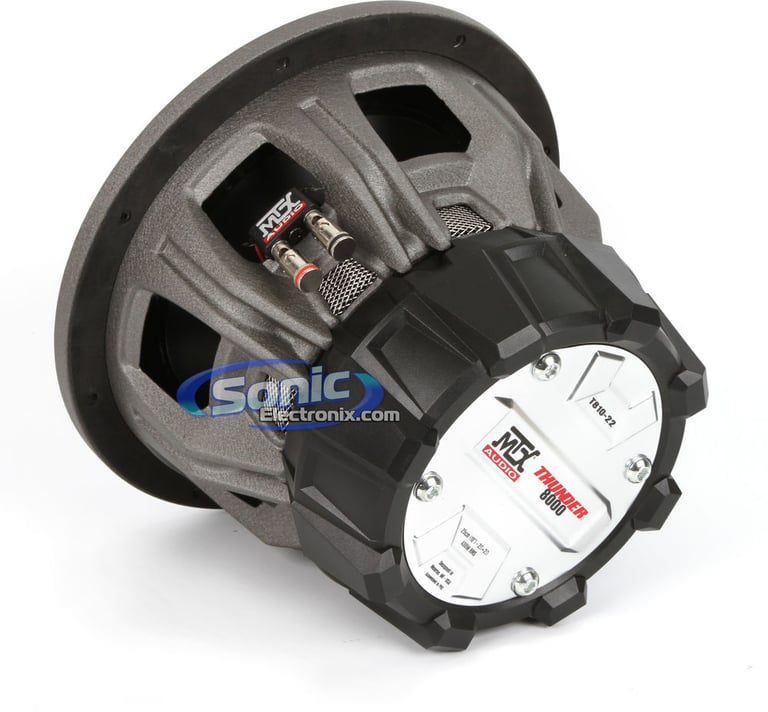

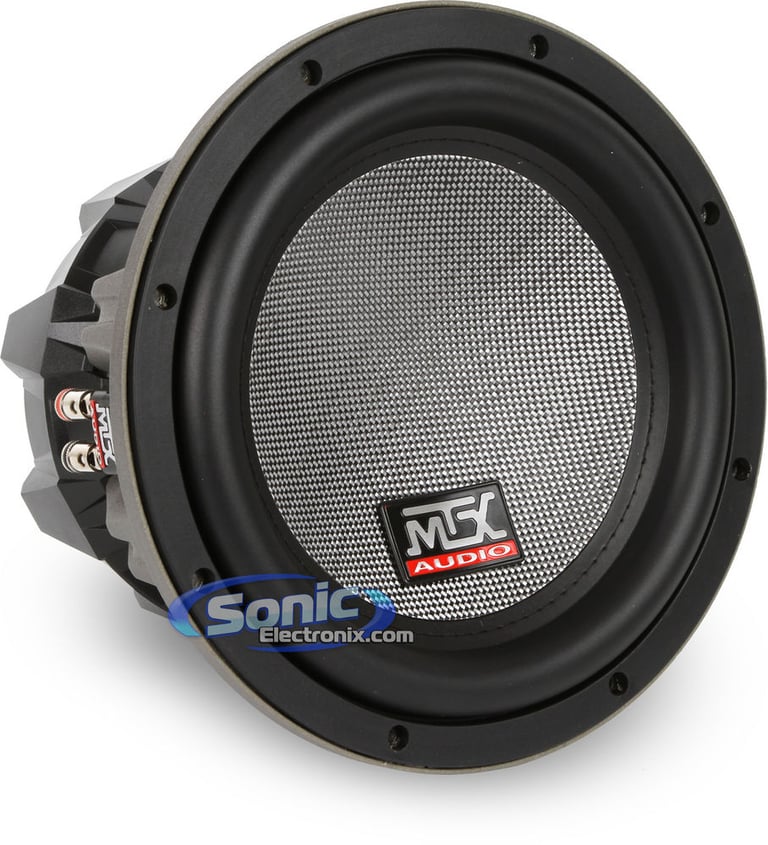

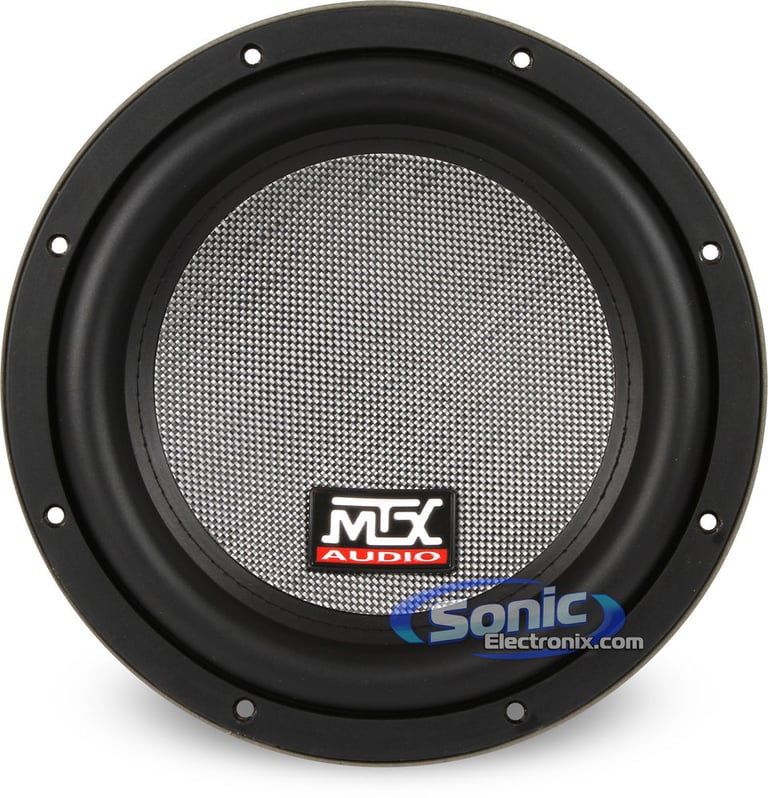

The MTX Audio T810-22 is a 10" Dual 2 ohm subwoofer that has a power handling rating of 1200 watts Max and 400 watts RMS. The woofer features staple MTX technologies such as Spider Plateau Venting, which cools the voice coil directly for increased performance and power handling. The woofer also features an Asymmetrical Linear Driver System (ALDS) that allows higher output with less distortion by creating constant linear movement that increases performance and sound quality. To give it elegance this woofer features a glass fiber cone that provides superb stiffness-to-weight ration, which increases sensitivity and performance. The woofer also features an original MTX die-cast aluminum frame that reduces resonance and improves the quality in your sound reproduction. With compression terminals and a 428º aluminum voice coil wire, these woofers are manufactured to endure any playing condition, making the a smart and great selection when shopping for quality subwoofers.

Authorized MTX Dealer
  • 10" Dual 2 ohm T8000 Thunder Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts
  • Impedance: Dual 2 ohm

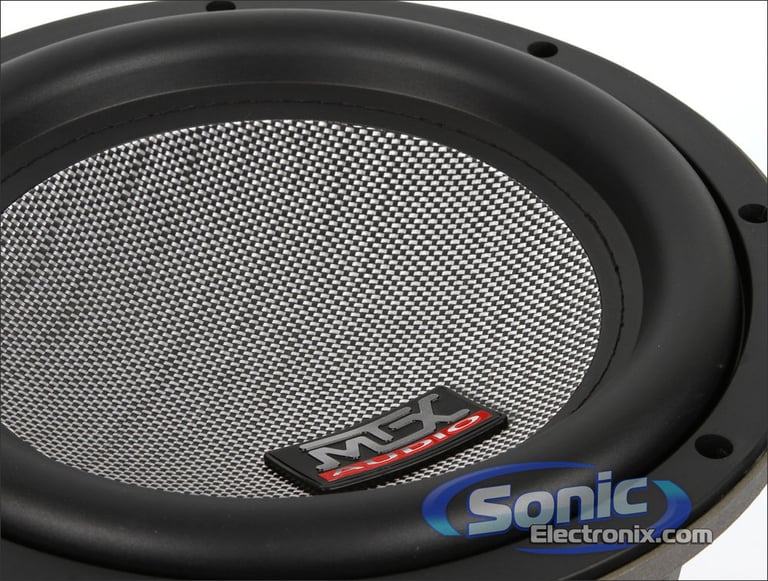

  • Glass fiber cone woofer
  • Spider Plateau Venting (SPV Technology)
  • Congruent Edge Technology (CET)

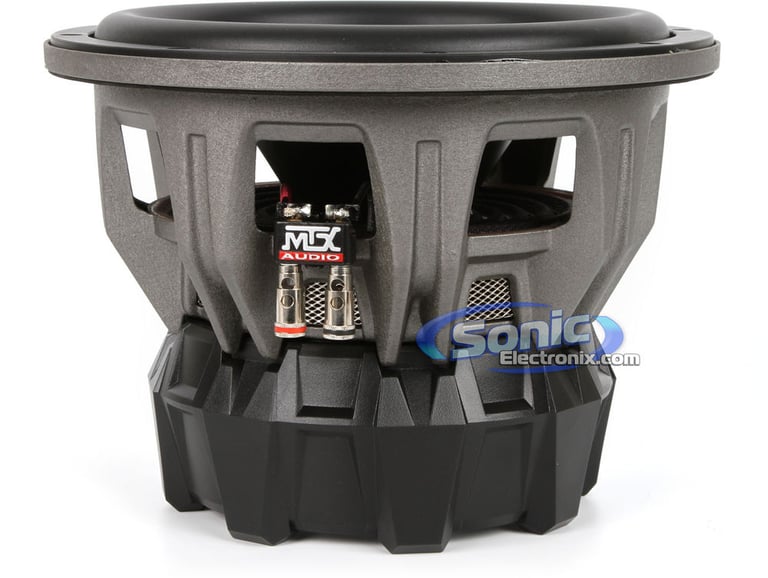

  • Original MTX die cast aluminium frame
  • Spider with interlaced tinsel leads

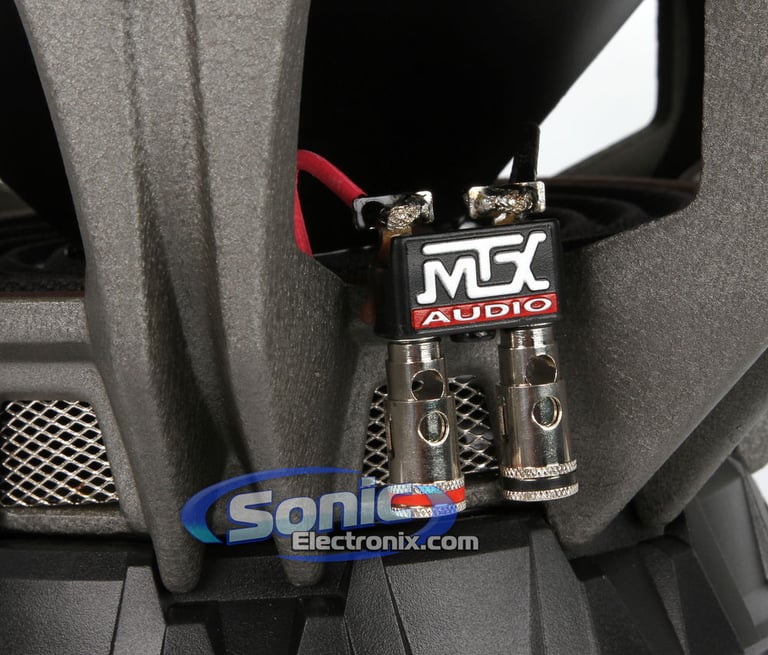

  • High-end, heavy duty terminals designed by Streetwires
  • Stitched cone to surround
  • Butyl rubber surround
  • ALDS (Asymmetrical Linear Drive System)
  • Extended pole piece for smooth, linear, piston like drive
  • Exclusive spider plateau venting cooling system
  • 2.4" High temperature dual 2 ohm voice coil
  • 93oz. Triple stacked magnet
  • Sensitivity: 90.7 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MTX T810-22 thumbnail
(newest, current model)
MTX T8510-04 thumbnail
(previous model, replaced by MTX Audio T810-22)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio T810-22 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio T810-22 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio T810-22 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio T810-22 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Thunder 8000 Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
39 - 200 Hz
Sensitivity
90.7 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Glass Fiber
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.45 cubic feet
Maximum Ported Box Volume
1.45 cubic feet
Top-Mount Depth (Mounting Depth)
7.12"
Cutout Diameter
9.25"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

T810-22

Weight:

21.00lbs

Internal SKU:

t81022

Internal Product ID:

32946
