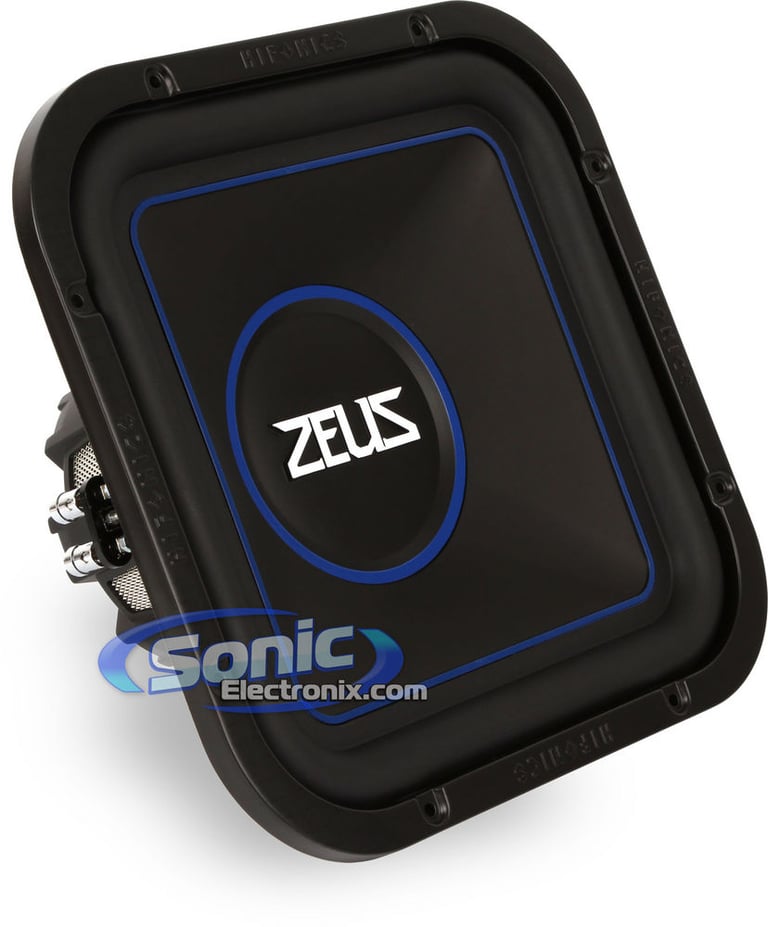

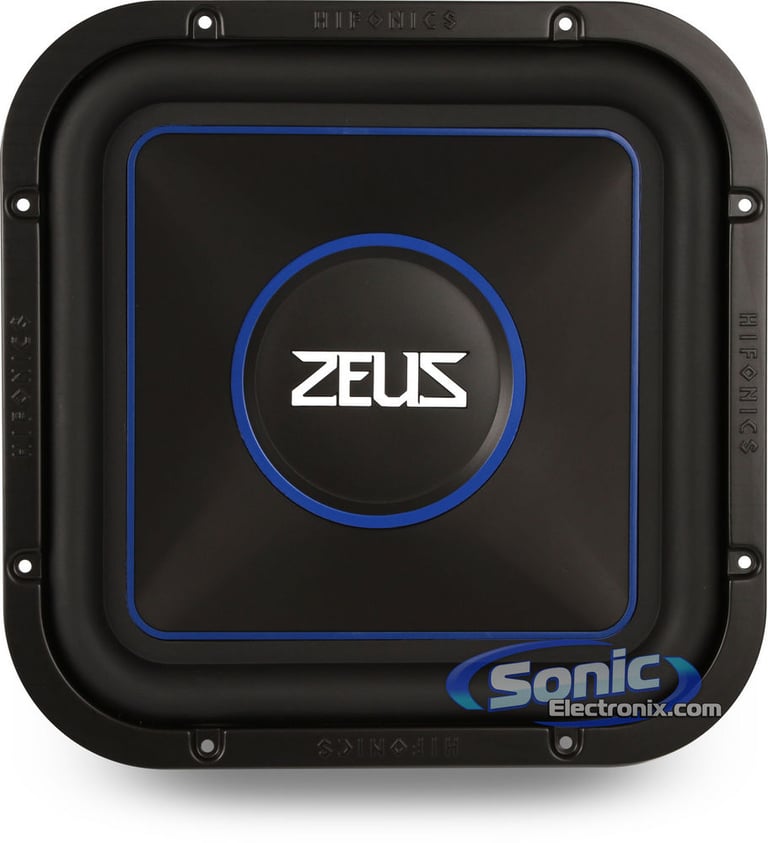

Hifonics ZRX12SQD4

12" Dual 4 ohm Zeus Series Square Car Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

12" Dual 4 ohm Zeus Series Square Subwoofer • 1000W Peak • 500W RMS • Polypropylene Cone • High Excursion Rubber Surround • Nomex Spider • Woven Tinsel Leads • Embossed PP Dust Cap • ABS Magnet Cap Structure

Learn more about the zrx12sqd4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

NSH-5602 main

NVX NSH-5602 Speaker Harness for 2009-2024 Ford, Mazda, Lincoln

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

-38.49%

$7.99

List price $12.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

14
-18.19%

$44.99

List price $54.99

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

31

Product Highlights


12" Dual 4 ohm Zeus Series Square Subwoofer • 1000W Peak • 500W RMS • Polypropylene Cone • High Excursion Rubber Surround • Nomex Spider • Woven Tinsel Leads • Embossed PP Dust Cap • ABS Magnet Cap Structure

Description


Hifonics brand icon

Authorized dealer

Product Features:

  • 12" Dual 4 ohm Zeus Series Square Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 4 ohm
  • Polypropylene cone provides excellent durability
  • High excursion rubber surround for deep bass notes

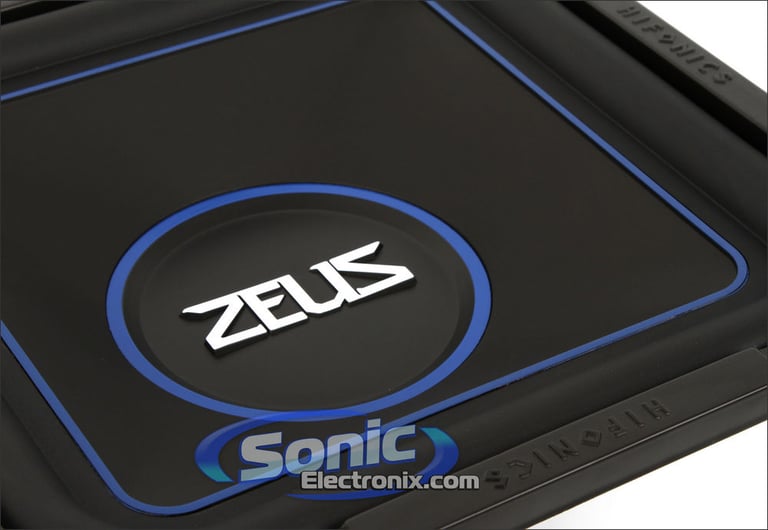

  • Embossed PP dust cap
  • Nomex spider with woven tinsel leads
  • 2" High-temperature multi-layer coice coil

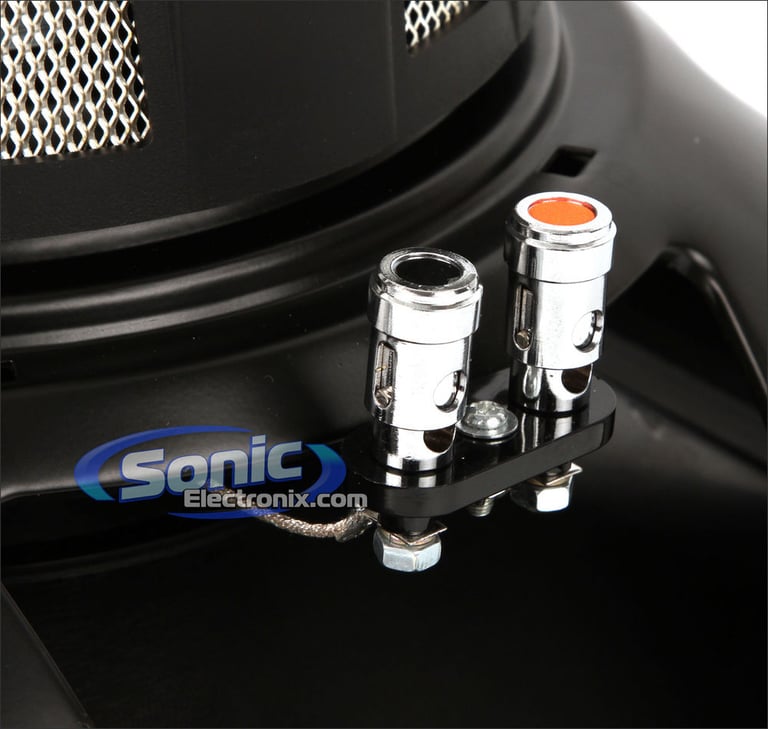

  • Nickel plated push and insert speaker terminals for quick and easy connection

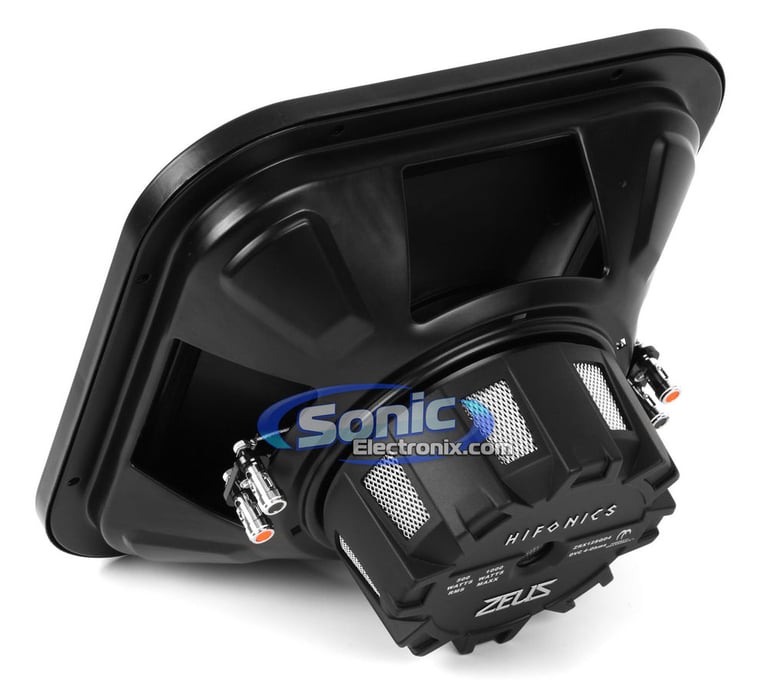

  • Ported nickel plated back plated for increased heat dispertion
  • Ridged stamped steel basket
  • ABS Magnet cap structure
  • Xmax: 7 mm
  • Sensitivity: 86.9 dB
  • Mounting Depth: 5-5/16"
  • Cutout Dimensions: 11-3/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Note: Due to the vented backplate, it is advised that you allow for an additional 2" behind the subwoofer when designing your subwoofer enclosure.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics ZRX12SQD4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics ZRX12SQD4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics ZRX12SQD4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics ZRX12SQD4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Zeus Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.9 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Square
Main Cone Color
Black
Blue
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
11-3/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX12SQD4

Weight:

11.00lbs

Internal SKU:

zrx12sqd4

Internal Product ID:

32996

Product and How-to Videos


Customer Ratings & Reviews


Hifonics ZRX12SQD4 thumbnail image

5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Nice Subs!!!

i have 2 Hifonics ZRX12SQD4 on a ported box hooked on audiobahn AMA24002H at 4ohms sounds pretty good nice start up system with no distortion, if you have it well setup,. nice and easy to install, i dont know if hits like a L3 but it does the job for me for the price i would recommend it, if you need something that hits you would have to expand your budget. but over all price and sounds its worth the buy! it would beat a few 12 inch round subs.

By nr4mpg on March 12, 2013

2 found this helpful


For the Money These Are Great

Hits hard, looks cool and easy to set up. Very pleased with my purchase. Would recommend to a friend. I'm only giving three stars on durability because i havent had it very long.

By Allan on January 25, 2012

2 found this helpful


Good for the price!!!

Hits really hard in the correct enclosure!!!cant handle alot of power but will put out alot of deep sub bass with little
Power!!!!! Will hit close to L-5,will outperform L-3!!!!

By Djquebedeaux on August 16, 2012

1 found this helpful




9500IX-BLUE small

Escort Passport 9500ix (Blue)

Radar & Laser / LIDAR Detector w/ AutoLearn Intelligence & GPS Mode For Custom Location Based Protection

$414.31

List price $499.95

TP160S-CH small

DCM Loudspeakers TP160S-CH

6-1/2" 2-Way Bookshelf Speaker System (Cherry)

$229.99

List price $349.99

No picture

Cerwin Vega X9E10DV

XED DUAL 10" VENTED ENCLOSURE, 800W MAX/125W RMS

$0.00

List price $199.99

HM-50GR small

Cuisinart HM-50GR

Power Advantage™ 5-Speed Hand Mixer (Green)

$49.95

List price $90.00

HM-70PKSLT small

Cuisinart HM-70PKSLT

Power Advantage 7-Speed Hand Mixer (Pink)

$59.95

List price $110.00

GLA2-600 small

SPL GLA2-600

600W Max 2-Channel Gorilla Series Class AB Car Amplifier

$51.95

List price $159.95

No picture

Cerwin Vega X9E12DV

XED DUAL 12" VENTED ENCLOSURE, 1000W MAX/125W RMS

$0.00

List price $249.99

SEI-SEWHP2 small

Sound Extreme by ECOXGEAR SEI-SEWHP2

2 ft. Extreme LEDCast Lighting Whip and Controller

$129.99

List price $129.99

PD-2.2RED small

Phonics Digital PD-2.2 (Red)

2.0 Farad Digital Capacitor with 24 VDC Max Surge, LED Voltage Meter and Built-in Relay

$39.99

List price $69.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Chevrolet Express 1500

2020 Ford Fusion

1979 Ford Pinto

2020 Audi RS5

1985 Ford Mustang

2007 Mazda Mazdaspeed3

2005 Lexus RX330

2013 Dodge Challenger

2023 Audi A4

1979 Lincoln Continental

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
