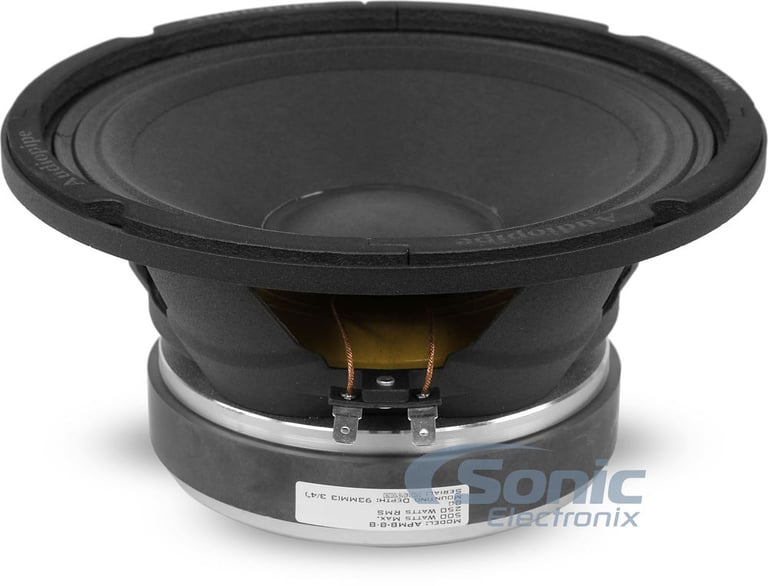

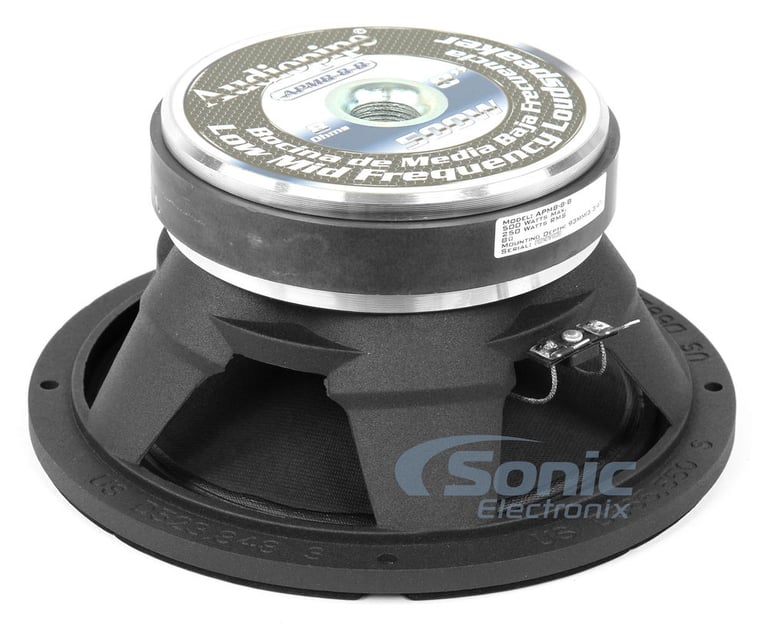

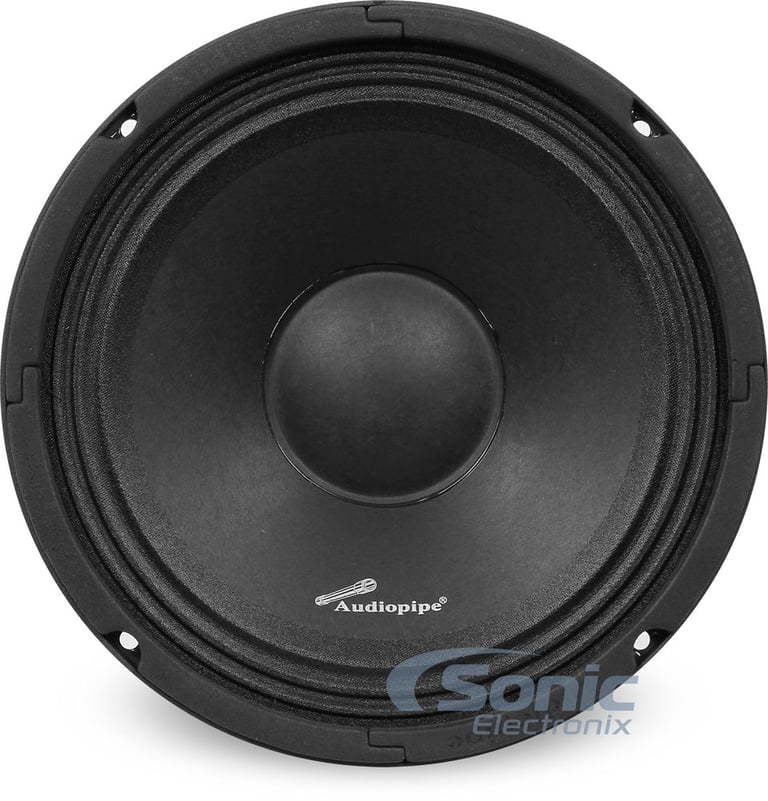

Audiopipe APMB-8-B

8" 8 Ohm APMB-8-B Series Loudspeaker

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 8" APMB Series Midbass Driver
• Peak: 1000 Watts Per Pair
• 2" Til Voice Coil
• Frequency Response: 65 - 6,000 Hz
• Sensitivity: 95 dB

Learn more about the apmb8b

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

apmb8c thumbnail

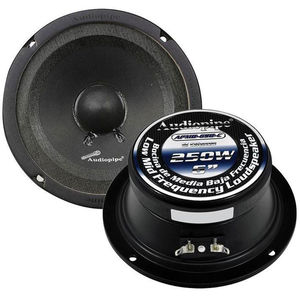

Audiopipe APMB-8-C

OUR PRICE: $39.99

View item

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• 8" APMB Series Midbass Driver
• Peak: 1000 Watts Per Pair
• 2" Til Voice Coil
• Frequency Response: 65 - 6,000 Hz
• Sensitivity: 95 dB

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Classic Sound Dust Cap Sound Quality and Protection

Utilizing the classic dust cap design, the 8-B speaker retains the original shape and form of a loudspeaker while providing the overall most impressive and best sounding of all speaker types. The high quality paper dust cap also keeps the internal components of your speaker free of dust and other sound diminishing particles, ensuring your sound will stay in peak form.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 8-B speaker features a light weight yet incredibly stiff paper cone. This cone delivers outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 8" APMB Series Midbass Driver
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Pressed paper cone
  • Corrugated surround
  • Durable 2" Til voice coil
  • Frequency Response: 65 - 6,000 Hz
  • Sensitivity: 95 dB
  • Die-Cast aluminum basket
  • 8 ohm impedance
  • Heavy duty 35 oz Magnet
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications:

  • FS (Free Air Resonance): 85 Hz
  • RE (DC Resistance): 6.3 ohm
  • Le (Voice Coil Inductance): 0.36 mH
  • QMS (Mechanical Q Value): 6.5
  • QES (Electrical Q Value): 0.38
  • QTS (Total Speaker Q Value): 0.36
  • VAS (Equivalent Compliance): 9.3 L (0.32 cu ft.)
  • Xmax (One-Way Linear Excursion): 1 mm (0.04")
  • F3 (for Sealed Enclosure):
    • 0.30 cu ft.: 96 Hz
    • 0.61 cu ft.: 90 Hz
  • F3 (for Vented Enclosure):
    • 0.39 cu ft.: 79 Hz

Priced Individually

Product history:

Audiopipe APMB- 8-C thumbnail
(newest, current model)
Audiopipe APMB-8-B thumbnail
(previous model, replaced by Audiopipe APMB-8-C)

Best selling similar products

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$229.99

List price $229.99

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$169.99

List price $169.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

51KSC2704 small

Kicker KSC270 (51KSC2704)

• 100 watts Peak Each, 50 watts RMS Each
• Composite Paper cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(3)

$59.99

List price $69.99

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
8"
Design
Mid-range
Woofer Composition
Paper
Woofer Surround
Corrugated
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Sensitivity
95 dB
Frequency Response
65 - 6,000 Hz
Impedance (Per Voice Coil)
8 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-11/16"
Cutout Dimensions
7-1/4"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-8-B

Weight:

7.40lbs

Internal SKU:

apmb8b

Internal Product ID:

33324
