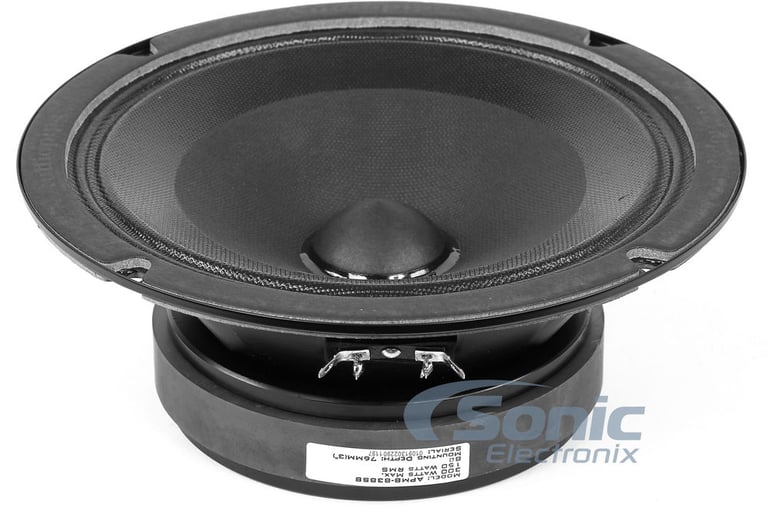

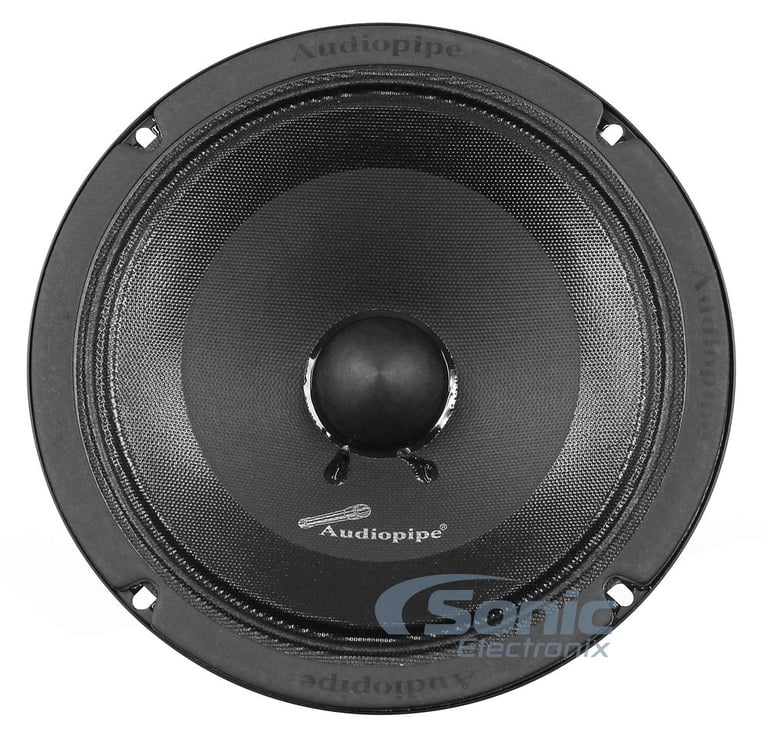

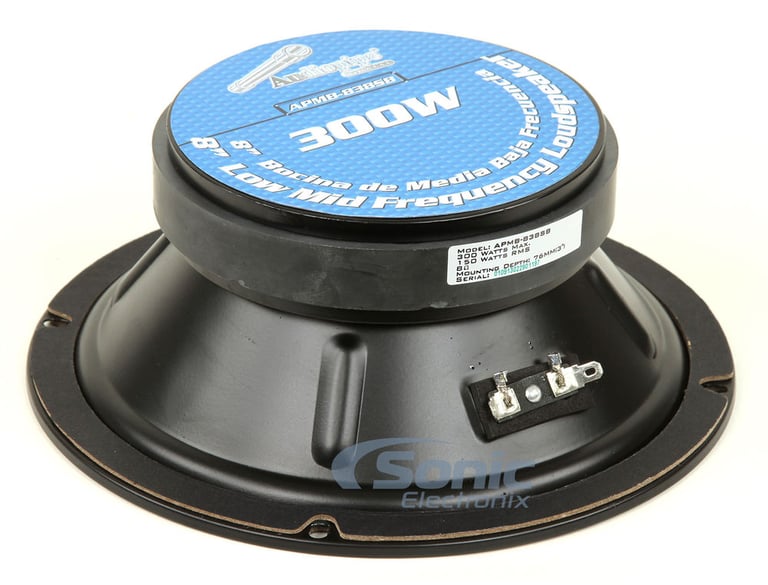

Audiopipe APMB-838SB

300W Peak (150W RMS) 8" APMB Series 8-ohm Low Mid Frequency Loudspeaker w/ Sealed Back

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 8" APMB Series Midbass Drivers
• Peak: 300 Watts Per Pair
• 1-1/2" Til Voice Coil
• Frequency Response: 350 - 5,000 Hz
• Sensitivity: 99 dB
• Mounting Depth: 3"

Learn more about the apmb838sb

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Product Highlights


• 8" APMB Series Midbass Drivers
• Peak: 300 Watts Per Pair
• 1-1/2" Til Voice Coil
• Frequency Response: 350 - 5,000 Hz
• Sensitivity: 99 dB
• Mounting Depth: 3"

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 838SB speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Sealed Basket Design Sealed Basket Limits Cone Movement and Improves Speaker Life

The Audiopipe 838SB sealed back design speaker limits the cone movement by utilizing a basket design that encloses the rear of the speaker entirely. As a result of the minimal movement within, sealed back speakers are incredibly durable, very difficult to damage speakers, ensuring use for years to come.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 838SB speaker features a light weight yet incredibly stiff pressed paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear some of the best sound reproduction possible.


General Features:

  • 8" APMB Series Sealed Back Midrange Driver
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Recommended power range: 15 - 150 watts RMS
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • Pressed paper cone
  • Corrugated surround
  • Sealed basket design for improved speaker life
  • Durable 1-1/2" KSV voice coil
  • Heavy duty 38 oz Magnet
  • Frequency Response: 350 - 5,000 Hz
  • Sensitivity: 99 dB
  • Mounting Depth: 3"
  • Mounting Diameter: 7-3/16"
  • 8 ohm impedance
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

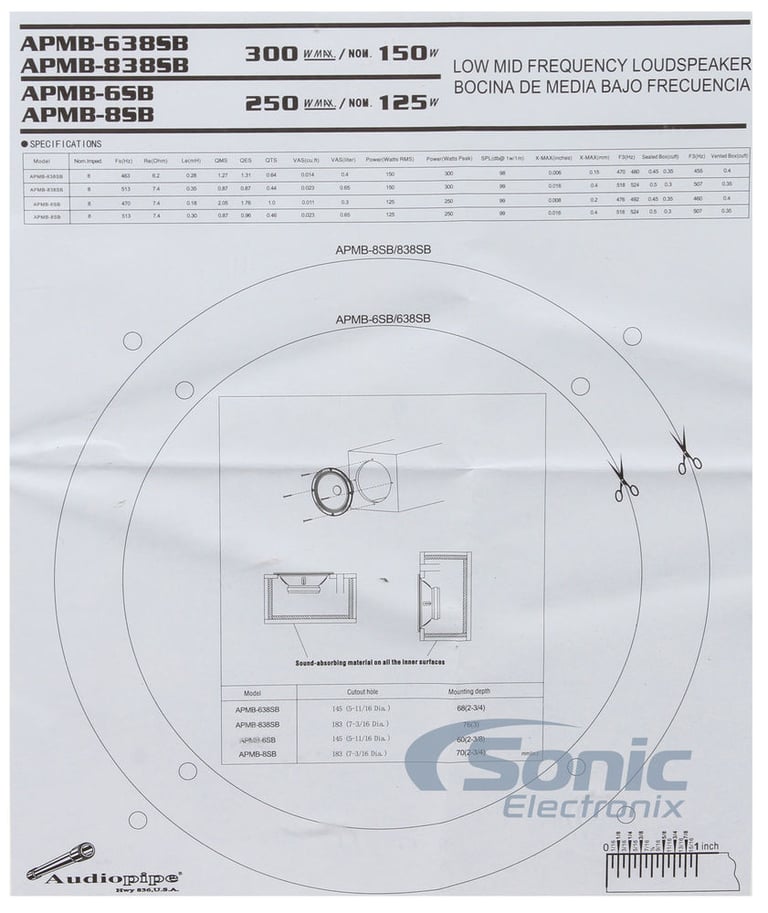

Specifications:

  • FS (Free Air Resonance): 513 Hz
  • RE (DC Resistance): 7.4 ohm
  • Le (Voice Coil Inductance): 0.35 mH
  • QMS (Mechanical Q Value): 0.87
  • QES (Electrical Q Value): 0.87
  • QTS (Total Speaker Q Value): 0.44
  • VAS (Equivalent Compliance): 0.65 L (0.023 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.4 mm (0.016")
  • F3 (for Sealed Enclosure):
    • 0.3 cu ft.: 524 Hz
    • 0.5 cu ft.: 518 Hz
  • F3 (for Vented Enclosure):
    • 0.35 cu ft.: 507 Hz
