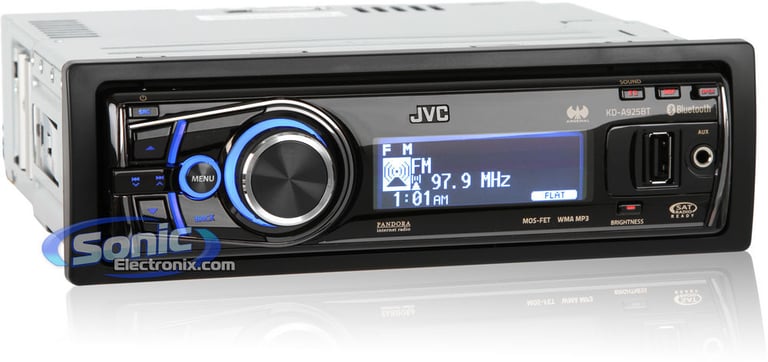

JVC Arsenal KD-A925BT

In-Dash Single DIN CD/MP3/WMA Car Receiver with Built-In Bluetooth, Pandora, USB Direct iPod Control

JVC
Shop all JVC
Product videos
highlight-star-icon

In-dash AM/FM, CD, MP3 Receiver • 3-Line Full Dot LCD Text Display • 50W x 4 Chan. MAX • 20W x 4 Chan. RMS • 3 Sets of 5V Preamp Outputs • My Sound EQ 5-band digital equalizer • TI/Burr-Brown 24-bit DAC • Variable-Color Illumination • Pandora Internet Radio • Built-In Bluetooth

Learn more about the kda925bt

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF697CF main

Infinity REF697CF (INFSPKRF697CFUS)

750W Peak (250W RMS) 6x9" Reference Series 2-Way 3-ohm Component Speaker System

-9.68%

$279.95

List price $309.95

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Product Highlights


In-dash AM/FM, CD, MP3 Receiver • 3-Line Full Dot LCD Text Display • 50W x 4 Chan. MAX • 20W x 4 Chan. RMS • 3 Sets of 5V Preamp Outputs • My Sound EQ 5-band digital equalizer • TI/Burr-Brown 24-bit DAC • Variable-Color Illumination • Pandora Internet Radio • Built-In Bluetooth

Description


JVC brand icon

Authorized dealer











General Features:

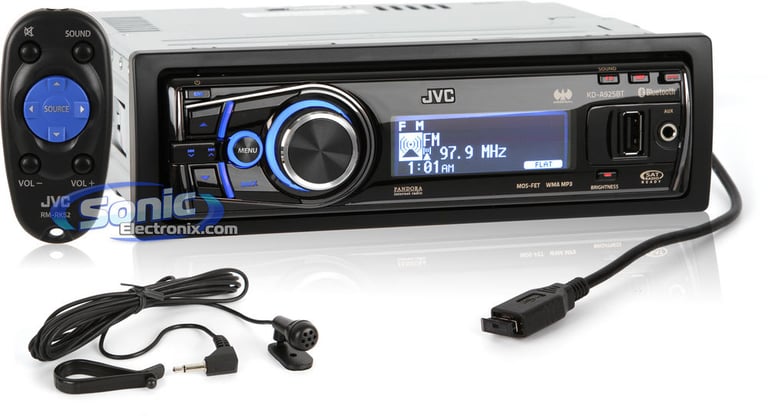

  • In-dash AM/FM, CD, MP3, WMA player with Remote
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio

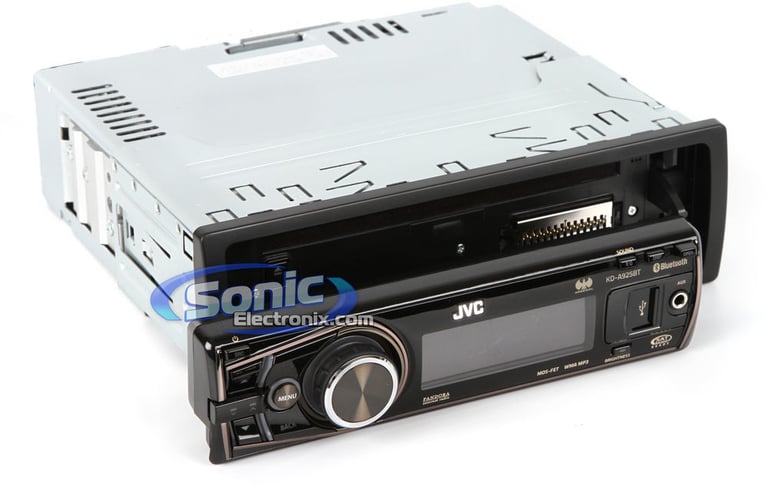

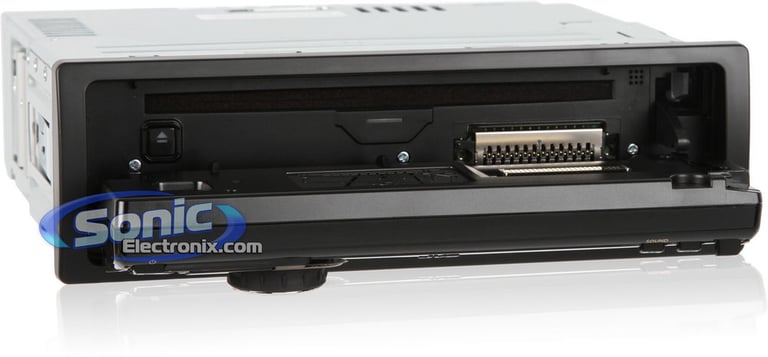

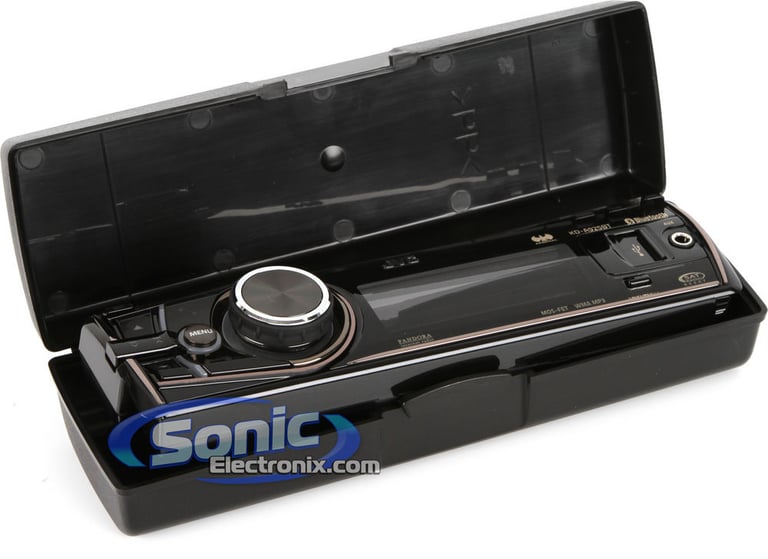

  • Flip-down, detachable face
  • 3-Line Full dot LCD text display with source icons

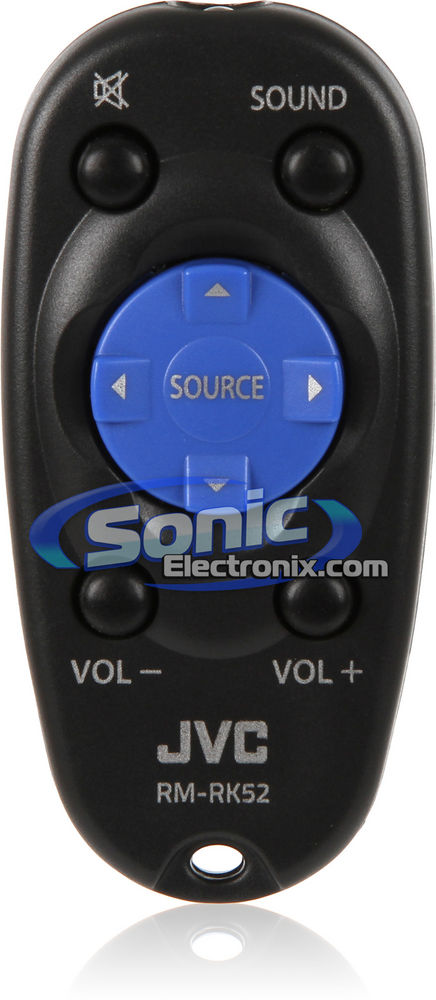

  • Wireless remote control included
  • Separated variable color illumination
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, and WMA
  • HS-IVi tuner with 18FM/6AM presets
  • TI/Burr-Brown 24-bit DAC (Digital to Analog Converter)
  • Time Alignment
  • Digital Track Expander
  • Variable high-pass filter 30-200 Hz (–12dB oct, –18dB oct, or –24dB oct)
  • Variable low-pass filter 30-200 Hz (–12dB oct, –18dB oct, or –24dB oct)
  • Loudness Control in 3 Patterns
  • My Sound EQ with DSP 5-band digital equalizer with 9 selectable tone curves (5 Preset, 4 User)
  • Application mode for iPod/iPhone
  • Two-way control for iPod/iPhone
  • Subwoofer control

Expandability Options:

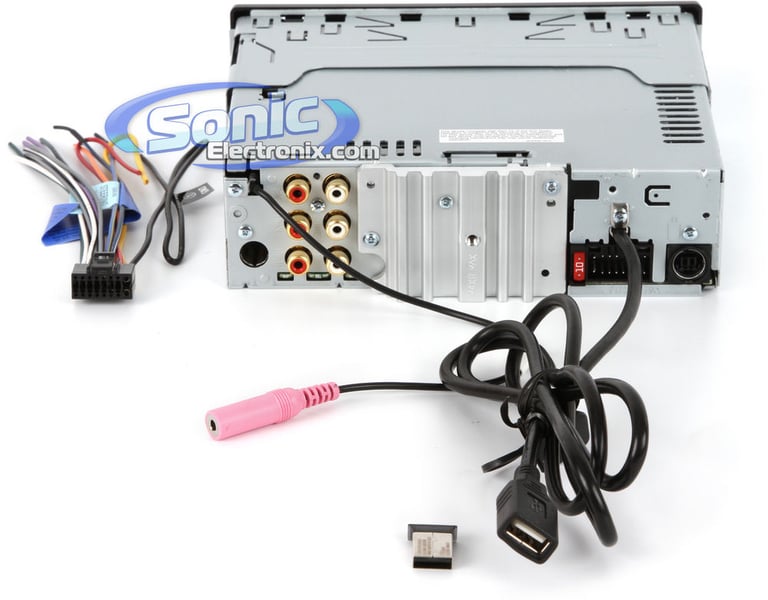

  • 3 Sets of 5V preamp outputs (front, rear and subwoofer)
  • SIRIUS or XM Satellite Radio Ready: SIRIUS Radio Package or XM Radio Package subscription required and sold separately
  • HD Radio Ready: JVC KT-HD300 required and sold separately
  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
  • Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.

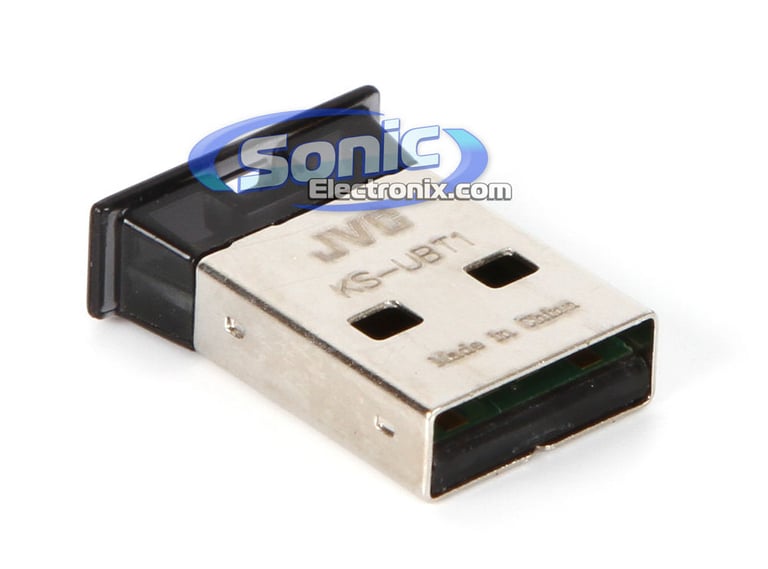

  • Dual full speed USB connection for iPod, iPhone, USB drives, Bluetooth dongles, and other digital audio players
  • Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.1 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports SMS message notifications (Receipt notification only) and A2DP audio streaming
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

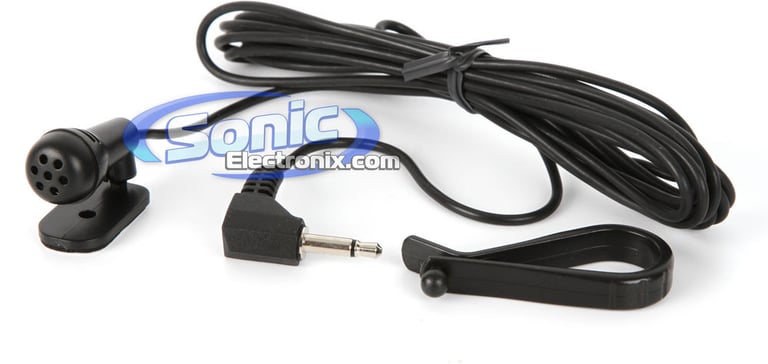

  • Includes a external wired microphone for distortion-free talking

Product history:

JVC KD-A925BT thumbnail
(newest, current model)
JVC KD-A815 thumbnail
(previous model, replaced by JVC Arsenal KD-A925BT)
JVC KD-A805 thumbnail
(previous model, replaced by JVC Arsenal KD-A815)
JVC KD-AR880 thumbnail
(previous model, replaced by JVC Arsenal KD-A805)
JVC KD-AR870 thumbnail
(previous model, replaced by JVC Arsenal KD-AR880)

Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(3)

$339.99

List price $420.00

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• NFC-compatible for select Android devices
• Built-in amplifier

(44)

$149.95

List price $180.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

DMH-W3050NEX small

Pioneer DMH-W3050NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Amazon Alexa
• 3 sets of 4 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatibility
• Built-in Wi-fi

(1)

$469.99

List price $620.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

DMX709S small

Kenwood eXcelon DMX709S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Short chassis for flexible installation

(20)

$399.00

List price $600.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
5 volts
Built-In Equalizer
My Sound EQ with DSP 5-band digital equalizer with 9 selectable tone curves (5 Preset, 4 User)
Display Type
LCD Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-A925BT

Weight:

4.25lbs

Internal SKU:

kda925bt

Internal Product ID:

33426

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


JVC Arsenal KD-A925BT thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

JVC KD-A925BT

Ok say what you will about JVC and in most cases i would agree but this one is by far a great deal of control and sound quality for the money. Your going to be hard pressed to find 5v ouputs x3, 5 band EQ, Iphone control with pandora, charges the Iphone, and allows for 2 phones to be charged at once and music to be switched from either USB input. The Burr Brown DAC is a nice touch and does indeed sound very clean with the highs and lows present with out sounding tinny or muffled bass. Controls are a bit small but easy to get used to with a decent size dipslay to read your songlist.
Pros: 5v preamp out puts
Burr Brown Dac
great fuction with Ipod/ Iphone
Charges 2 phones
Cons: forward and back buttons are small
5 band EQ could use lower band and a higher band (7 band Eq)

Overall this a great SQ unit with many functons that allow a simple setup or a more complex 3way amplified system with excellent controls and user friendly.

By Rob on August 1, 2011

23 found this helpful


Just Amazing

Power internal amp with great clarity and 5 band eq for exact tuning and xovers a lone make this head unit worth while blue tooth works great i can just go on and on i would buy again and tell all my friends to buy it too.

By Stephen on August 16, 2011

17 found this helpful


Great head unit for the money

Although I was a little skeptical at first of JVC I purchased this head unit and found myself purchasing another JVC unit (KW-XR810) as well for another car. The only con I have for this unit, or any of the current JVC models with bluetooth is the dongle. I don't understand why this little flashdrive-like device cannot be an intregal part of the head unit. It forces you to use either the front or rear USB port to use bluetooth. Overall though it's a great unit and I would recommend it to anyone looking for a single din aftermarket head unit under $300.00. I also prefer this unit over the KW-XR810.

By Dallin on September 23, 2011

14 found this helpful


Best

This is one of the best head units i have ever had and love it. It works flawlessly.

By Paul Nelson on January 21, 2012

13 found this helpful




AXAMP-TY4 small

Axxess AXAMP-TY4

Amplifier Integration Interface for select 2011-2022 vehicles from Toyota, Lexus

$410.99

List price $456.99

MJMECHEV8D1 small

Memphis MJMECHEV8D1

3600W Peak (1800W RMS) 8" MOJO Mini Series Dual Subwoofer Enclosure

(2)

$849.95

List price $999.95

99-7811B small

Metra 99-7811B

Single DIN Stereo Dash Kit for select 2017-2020 Ridgeline and Passport (Matte Black)

$35.99

List price $59.99

ST 1 12-BLACK small

Ground Shaker ST 1 12-BLACK

12” Single Sealed Single Cab Truck Subwoofer Box

$39.95

List price $79.95

THUNDER61_THUNDER65_B4_TC4KIT-84B small

MTX + Cerwin Vega Ultra-Compact 4-Channel Full-Range 6½" Speaker System

Thunder Series Component Speaker System + Thunder Series Coaxial Speakers + Cerwin-Vega B4 4-Ch. Class-D Amplifier + TruConnex Amp Wiring Kit

(53)

$406.00

List price $879.91

09-18-RAM-1500-VCSPKG small

NVX V-Series Complete Speaker Upgrade Kit

Fits select 2011-2018 1500 ; Includes Speakers Harness

(56)

$235.96

List price $289.96

AP-T25 NEO small

Deaf Bonce AP-T25 NEO

180W Peak (90W RMS) 3.54” Apocalypse Series 4-ohm Pro Audio Bullet Tweeters

(2)

$109.90

List price $109.90

S100S small

MTX Audio Thunderform S100S

Dual 10" Split Unloaded Bass Slammer Wood Enclosures (Designed to Fit Thunder Thin TT6510 Subwoofers)

$69.99

List price $99.99

ZXi4006 small

Hifonics ZXi 4006

400 watts, Zeus ZXi 2-Channel Amplifier

(1)

$119.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Buick Encore

2000 Buick Century

1995 Subaru SVX

1995 Geo Tracker

1987 Dodge 600

1981 Ford B700

2007 Ford Edge

2020 Jeep Gladiator

2011 Audi TT

1985 Chevrolet Spectrum

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
