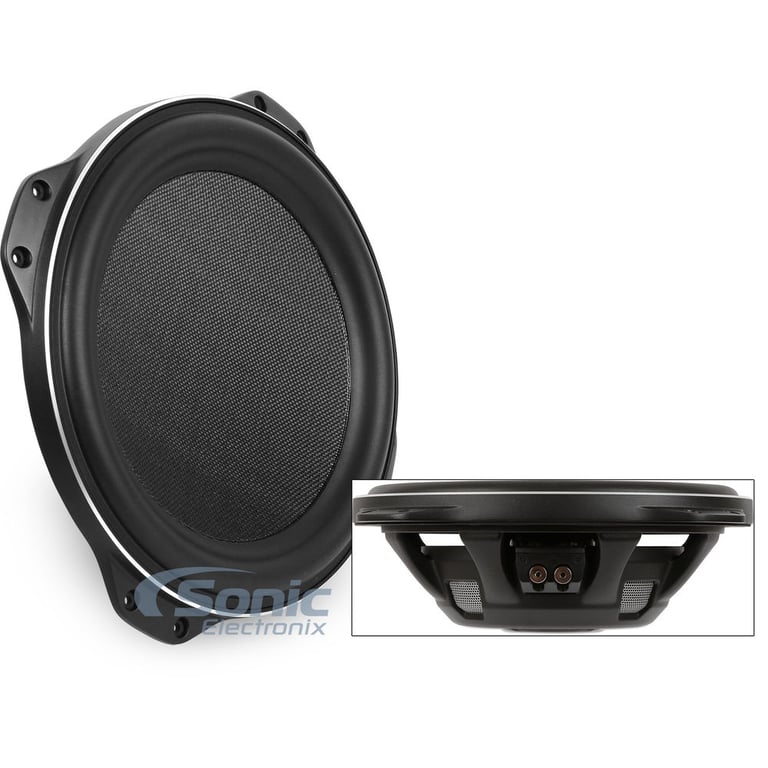

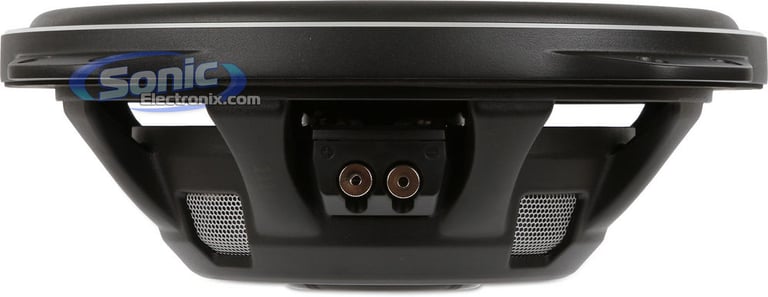

Kenwood eXcelon XR-W12F

1500W Peak (450W RMS) 12" eXcelon Series Shallow Mount Single 4 ohm Slim Subwoofer

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• 1500W Peak
• 450W RMS
• Butyl Rubber Surround
• Carbon-Glass Fiber Composite Honeycomb Cone
• Frequency Response: 38 Hz - 200 Hz
• 83.5dB Sensitivity

Learn more about the xrw12f

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


• 1500W Peak
• 450W RMS
• Butyl Rubber Surround
• Carbon-Glass Fiber Composite Honeycomb Cone
• Frequency Response: 38 Hz - 200 Hz
• 83.5dB Sensitivity

Description


Kenwood brand icon

Authorized dealer


General Features:

  • 12" eXcelon Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 450 watts
  • Recommended power range: 100 - 450 watts RMS
  • Impedance: Single 4 Ohm

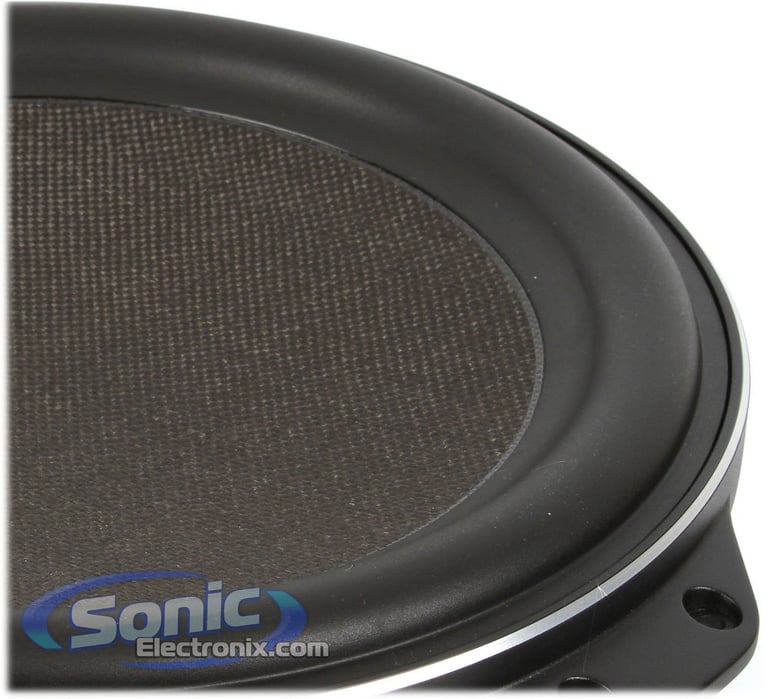

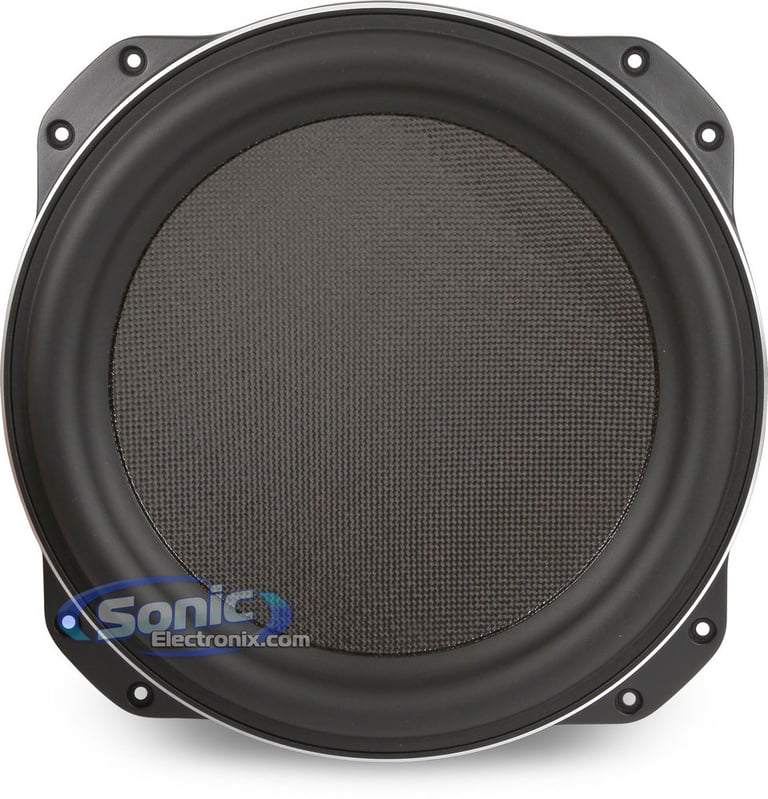

  • Carbon-glass fiber composite honeycomb cone
  • Butyl Rubber Surround

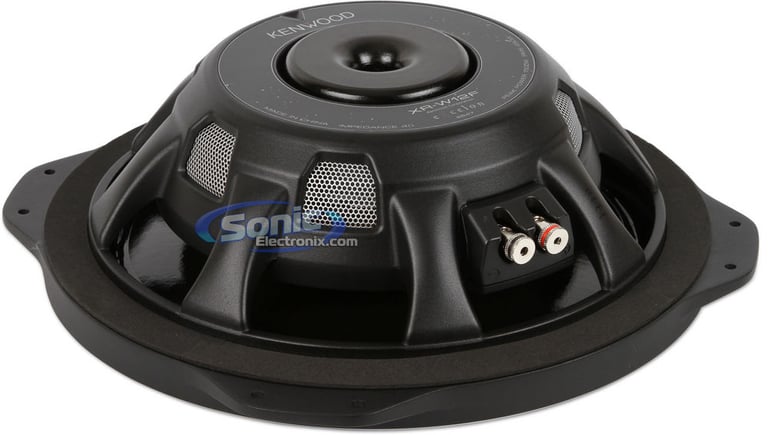

  • Cast aluminum basket
  • Frequency response: 38-200 Hz
  • Sensitivity: 83.5 dB
  • Mounting depth: 3-7/16"
  • Cutout dimensions: 11"
  • 2-year Sonic Electronix warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood eXcelon XR-W12F Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood eXcelon XR-W12F Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood eXcelon XR-W12F Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kenwood eXcelon XR-W12F Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
eXcelon Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
450 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
38 - 200 Hz
Sensitivity
83.5 dB
Xmax (millimeters)
8.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Carbon Fiber
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.80 cubic feet
Maximum Sealed Box Volume
0.80 cubic feet
Top-Mount Depth (Mounting Depth)
3-7/16"
Cutout Diameter
11"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23 Hz
Equivalent Compliance (Vas)
118.2 liters
Total Speaker Q Value (Qts)
0.566
Electrical Q Value (Qes)
0.616
Mechanical Q Value (Qms)
6.962
What is in the box?
Paperwork

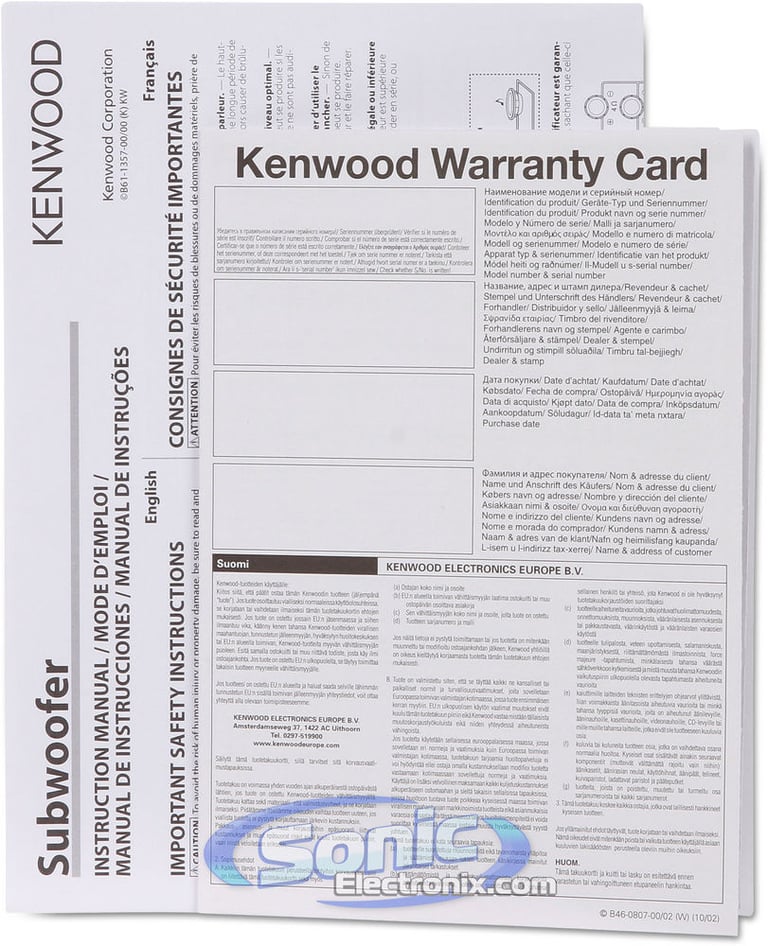

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XR-W12F

Weight:

16.50lbs

Internal SKU:

xrw12f

Internal Product ID:

33493

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon XR-W12F thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Great!

I purchased 2 of these a month ago. I have had the KFC-W3011 and KFC-W3012 was nervous about getting the shallow mounts. But I needed more trunk space. Turns out the best subs I have had. There both in .80 cf sealed boxes. All around better subs. Saved about half the room in my trunk. Recommend to any one.

By Austin on November 10, 2011

24 found this helpful


So legit!

Was nervous about getting this sub because of the lack of reviews, but it is freaking amazing. I get happier and happier every time i here it. I used to have two type r 12's and was bummed when i got my new truck and could not fit them, thought about getting the type r shallow but they cost way too much. I bought one of these and am so happy, i will deffinitely buy another. I have it in a .68 box which is a lil small for the sub, but it still sounds amazing. It hits rediculously hard, it does struggle just a bit with the lows but they still sound pretty good, it might just be because my box is too small; ill find out when i build a bigger new box to fit two they will have 1.65 shared air space.

By Trent on January 1, 2012

23 found this helpful


Good sub

Back in November my truck got broken into in my subwoofer was stolen. The subwoofer I had in there was a JL AUDIO 13TW5-3. I had 2 in a stealth box behind the seat of my tundra. The other one wasn’t stolen because I had my sons car seat in the way and the thieves couldn’t remove it. Since the 13tw5-3 are discontinued I either had to go with the 13tw5-4 or something else. I went this kenwood. It keeps up great with my JL audio one. Fit in the stealth great and am extremely satisfied what I got for price I paid. It picks up the bass on songs that are for a subwoofer to pick up. It is a good replacement for the 13tw5-3 that was stolen from truck. I didn’t want to buy another Jl audio one because it was just too damn expensive. At least if someone breaks in and steals this one it won’t hurt as bad as when the 13tw5-3 was stolen. I was hesitant because this is a kenwood one but it did not disappoint. If you ever find yourself in a similar situation like mine then this is definitely your solution.

By Toby on January 8, 2023 Checkmark Icon Verified purchase

1 found this helpful
