Audiobahn AW1204J

12" Dual 4 ohm Low Profile Series Car Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

12" Low Profile Series Subwoofer • 500W RMS • Spun Aluminum 1 Piece Cone • Phat 1-3/4” EPDM Rubber Surround • Aluminum Black Anodized Voice Coil Former • Flat Spider Design • Multi-Connect Lug Lock Terminals

Learn more about the aw1204j

We apologize

This item has been discontinued


Loading...
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


12" Low Profile Series Subwoofer • 500W RMS • Spun Aluminum 1 Piece Cone • Phat 1-3/4” EPDM Rubber Surround • Aluminum Black Anodized Voice Coil Former • Flat Spider Design • Multi-Connect Lug Lock Terminals

Description

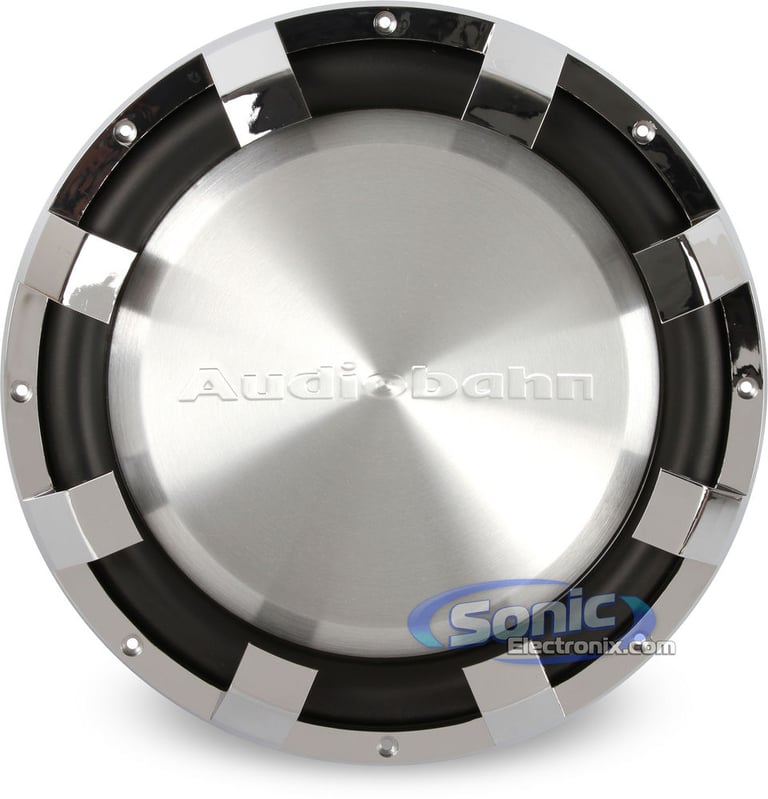

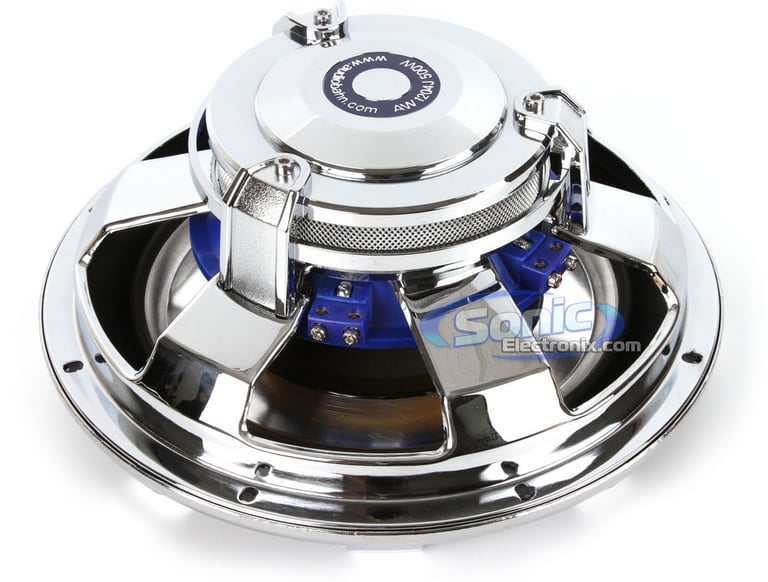

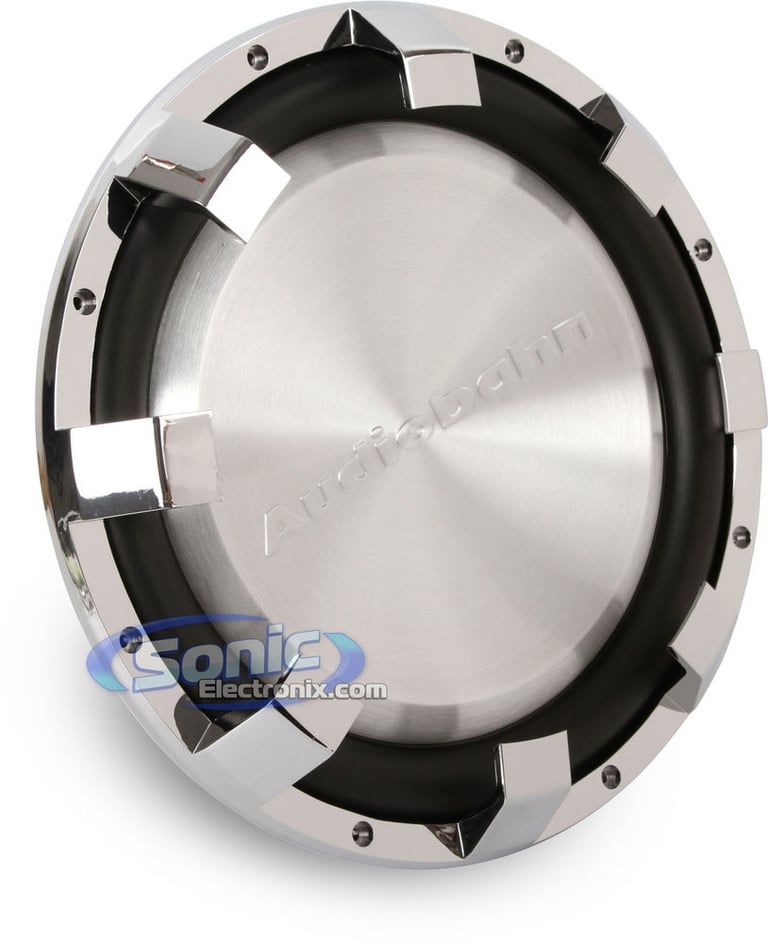

Audiobahn AW1204J 12" Subwoofer

Sonic Electronix is now carrying Audiobahn's new 2011 subwoofers. The Low Profile series features the same attractive appearance you're used to from Audiobahn. The high excursion features a spun aluminum cone that provides high stability, PHAT 1-3/4" EPDM rubber surrounds, and a dual 4 ohm voice coil. These subwoofers can operate in a 2 ohm or 8 ohm configuration and come in a 12" or a 10" model, each featuring a aluminum black anodized voice coil former. Featuring multi-connect lug lock terminals, the low profile series offers increased versatility in wiring multiple subwoofers.

Product Features
  • 12" Low Profile Series Subwoofer
  • Power Handling
    • RMS: 500 watts
  • Dual 4 Ohm voice coil
  • Spun aluminum 1 piece cone provides high stability
  • Phat 1-3/4” EPDM rubber surround for enhanced excursion
  • Aluminum black anodized voice coil former for highly efficient thermal transfer
  • Flat spider design
  • 50 oz magnet
  • Multi-Connect lug lock terminals offer increased versatility in wiring multiple subwoofers
  • Operates in 2 or 8 ohm configurations
  • Frequency Response: 24-500 Hz
  • Efficiency: 93.8 dB
  • Mounting Depth: 4-3/4"
  • Hole Cut Out: 11-1/4"
  • Outer Diameter: 12-3/8"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1204J Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1204J Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1204J Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1204J Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
Low Profile Series
Subwoofer Size
12"
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 500 Hz
Sensitivity
93.8 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
3.15 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
11.-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW1204J

Weight:

12.00lbs

Internal SKU:

aw1204j

Internal Product ID:

33650
