Alphasonik PSW112E

12" Dual 4 ohm 100 Series Car Subwoofer

Alphasonik
Shop all Alphasonik
Product videos
highlight-star-icon

12" Dual 4 ohm 100 Series Car Subwoofer • 230W RMS • Mineral-Filled Composite Cone • Foam Surround • Stamped Steel Polished Basket • Motor Assembly Heat Sink • High Tinsel Strength • 8-Gauge Lug-Lock Input Terminals

Learn more about the psw112e

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
AXBUCH-GM3 main

Axxess AXBUCH-GM3

Retain the Factory Backup Camera in select 2012-2025 vehicles from Chevrolet, GMC, Buick

4
-13.64%

$18.99

List price $21.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

129
-14.29%

$119.99

List price $139.99

51KSS6904 main

Kicker KSS69 (51KSS6904)

300W RMS 6x9" KS Series 2-Way 4-ohm Component Speaker System

2
-10.71%

$249.99

List price $279.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


12" Dual 4 ohm 100 Series Car Subwoofer • 230W RMS • Mineral-Filled Composite Cone • Foam Surround • Stamped Steel Polished Basket • Motor Assembly Heat Sink • High Tinsel Strength • 8-Gauge Lug-Lock Input Terminals

Description

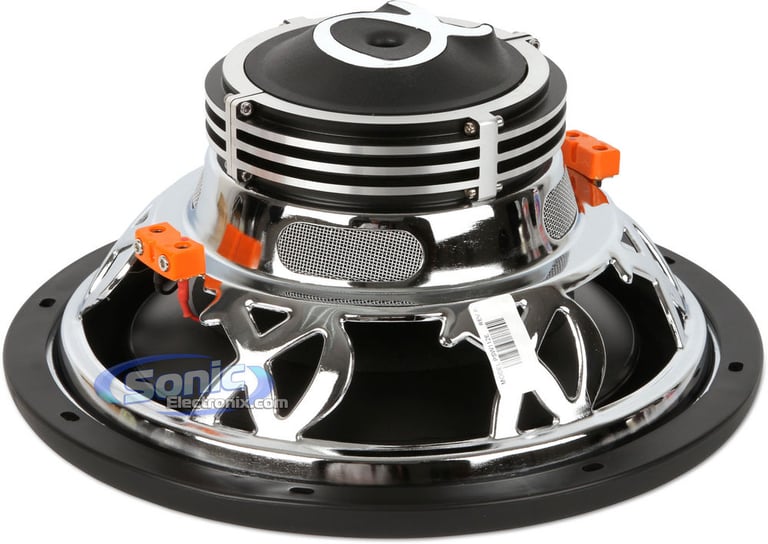

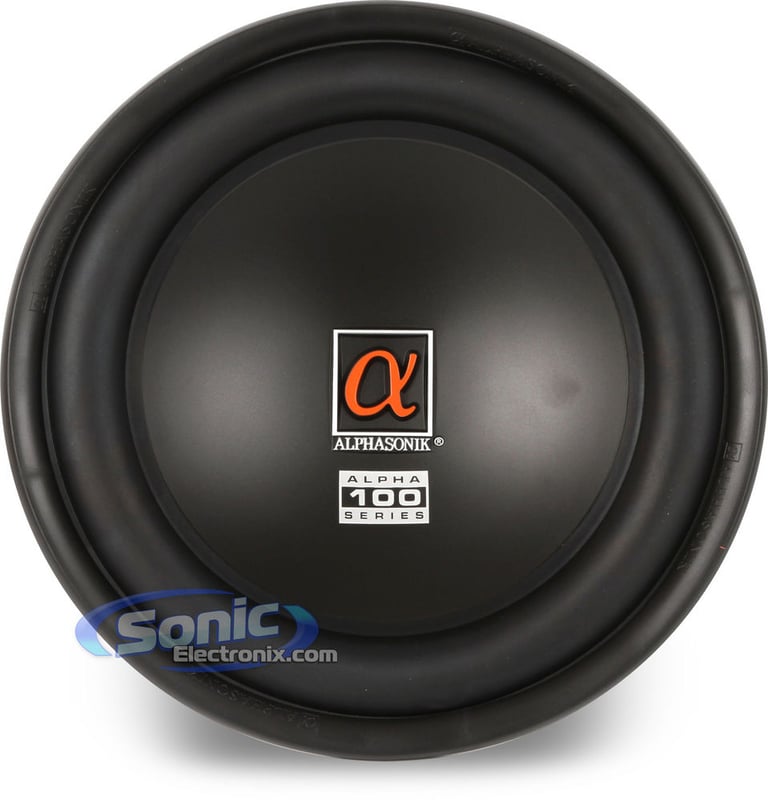

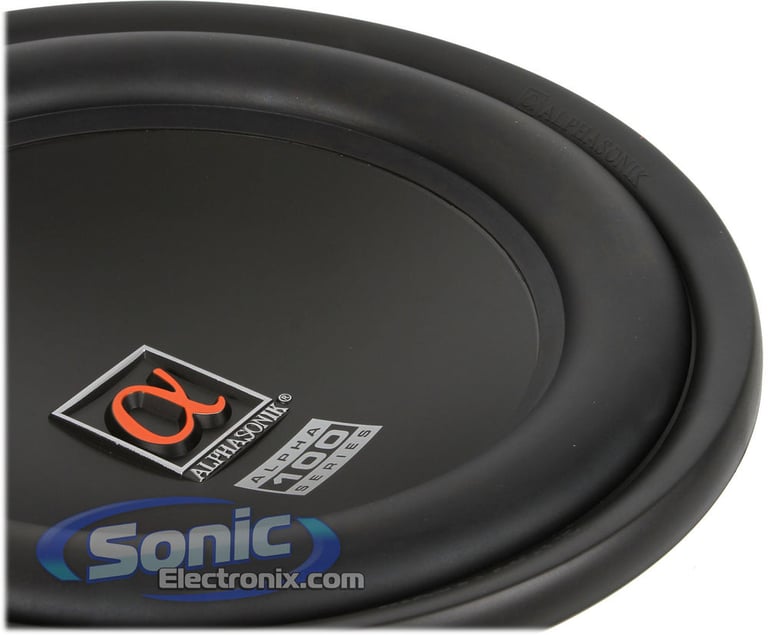

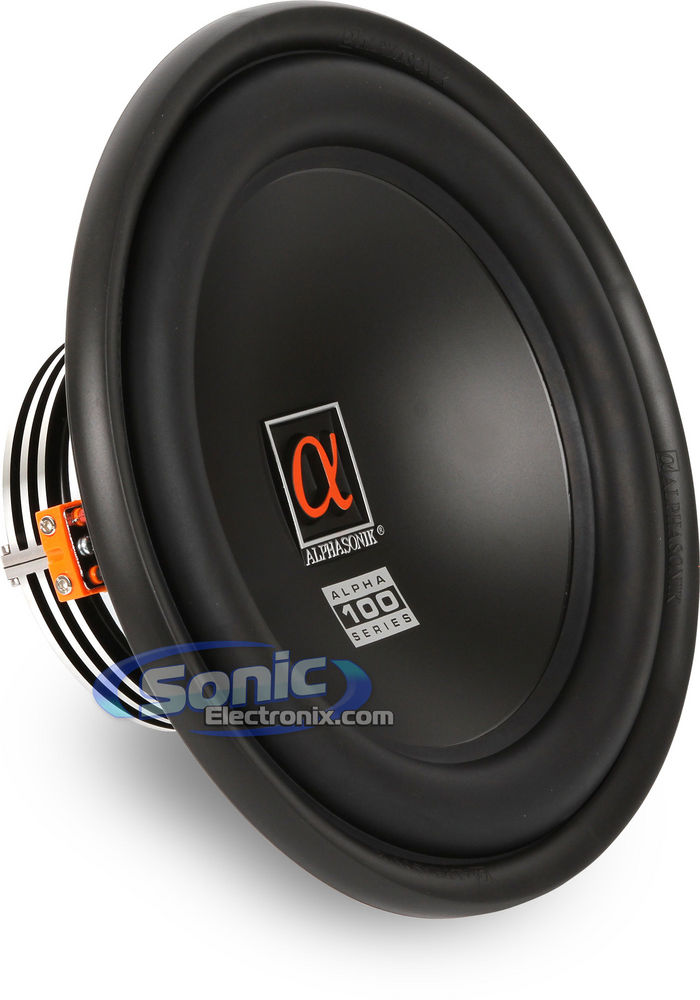

Alphasonik PSW112E 100 Series Subwoofer

Sonic Electronix is now carrying the brand new 2011 line of Alphasonik 100 Series Car Audio Subwoofers. The PSW112E Alpha Series 12" Subwoofer has an RMS rating of 230 watts. This sub will produce some earth shaking bass and is constructed with a Mineral-Filled Composite Cone and a UV treated pressure-molded foam Surround. This woofer is also equipped with a Dual 4 ohm 1-1/2" Voice coil and a motor assembly heat sink. Add some bumps in your trunk and enhance your cars stereo system with this Alphasonik Alpha 100 Subwoofer.

Product Features
  • 12" Dual 4 ohm 100 Series Car Subwoofer
  • Power Handling:
    • RMS: 230 watts
  • Impedance: 4 ohm
  • High rigidity mineral-filled composite cone for stability and durability
  • UV treated pressure-molded foam surround for high amounts of excursion
  • Stamped steel polished with brushed hairlinge finished alpha basket
  • Motor assembly heat sink
  • High tinsel strength
  • Exclusive mounting ring

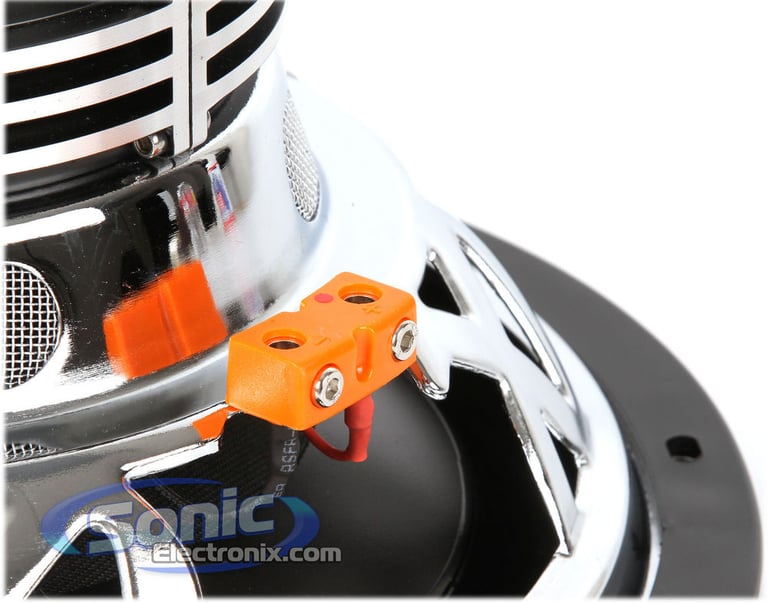

  • 8-Gauge lug-lock input terminals
  • Dual 4-ohm 1-1/2" voice coil
  • Frequency Response: 30-500 Hz
  • Sensitivity: 93 dB
  • Xmax: 7mm
  • Mounting Depth: 5-1/8"
  • Through Hole: 11-1/4"
  • Cutout Diameter: 12-1/2"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alphasonik PSW112E Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alphasonik PSW112E Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alphasonik PSW112E Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alphasonik PSW112E Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

REF697CF main

Infinity REF697CF (INFSPKRF697CFUS)

750W Peak (250W RMS) 6x9" Reference Series 2-Way 3-ohm Component Speaker System

-9.68%

$279.95

List price $309.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
100 Series
Subwoofer Size
12"
RMS Power Handling
230 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 500 Hz
Sensitivity
93 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled composite
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
2 cubic feet
Maximum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/8"
Cutout Diameter
12-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PSW112E

Weight:

9.00lbs

Internal SKU:

psw112e

Internal Product ID:

34627
