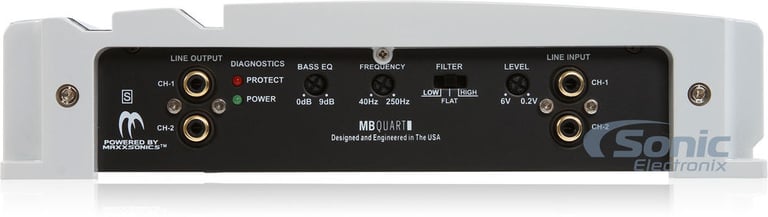

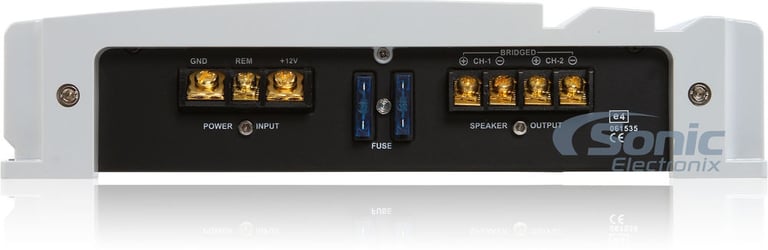

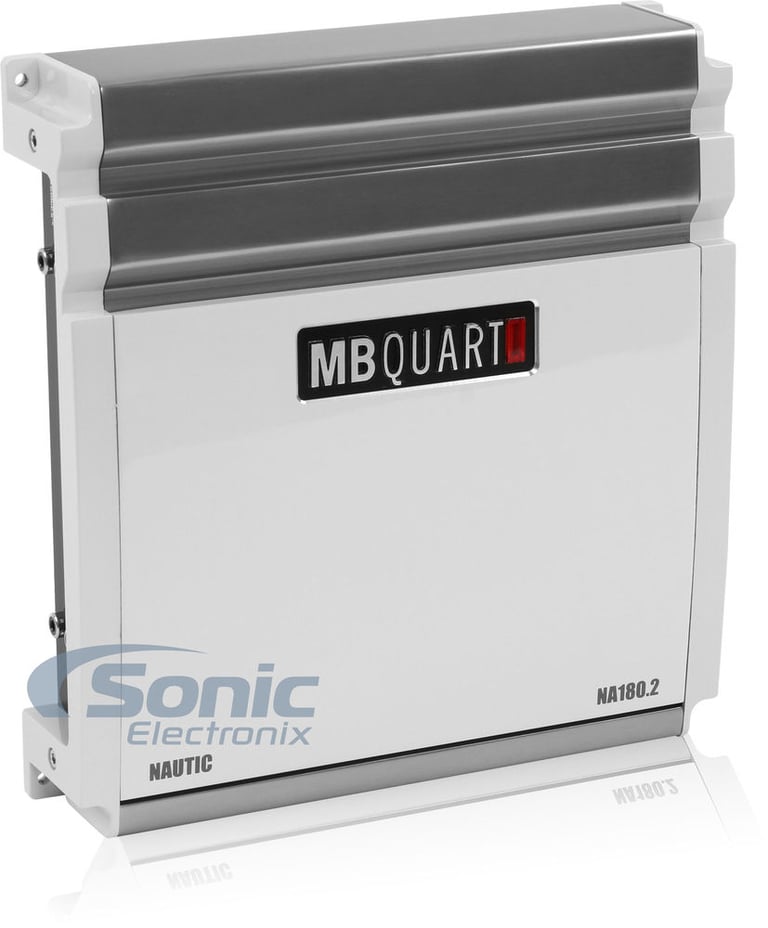

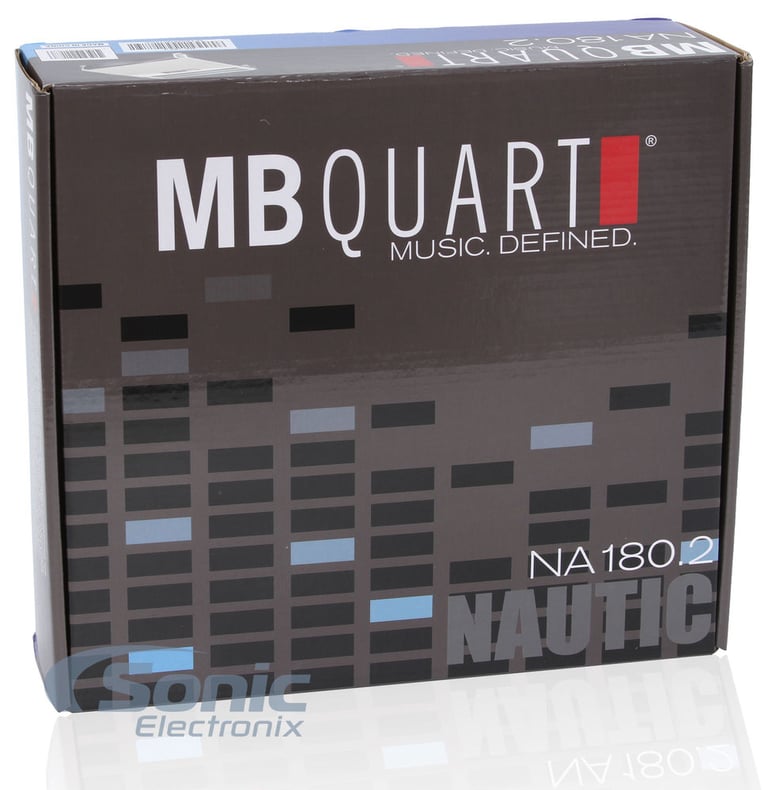

MB Quart NA180.2

180W RMS Nautical Series Class-AB Bridgeable 2-Channel 2-Ohm Stable Marine Amplifier

MB Quart
Shop all MB Quart
highlight-star-icon

• 60W x 2 Chan. @ 4 ohm
• 90W x 2 Chan. @ 2 ohm
• 180W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• 3-Way Protection Circuitry

Learn more about the na1802

We apologize

This item has been discontinued


Loading...
82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

51KSS6904 main

Kicker KSS69 (51KSS6904)

300W RMS 6x9" KS Series 2-Way 4-ohm Component Speaker System

2
-10.71%

$249.99

List price $279.99

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Nautical Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 90 watts x 2 chan.
    • Bridged, 4 ohm: 180 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Gold plated RCA, Power and Speaker connections
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 10 - 45,000 Hz
  • Signal to Noise Ration: >93 dB
  • Total Harmonic Distortion (THD): <1.0%
  • Selectable crossover modes: Low / Flat / High
  • Variable crossover filter: 40 - 250 Hz
  • Bass Boost: 0 ~ +9 dB
  • Fuse Rating: 15A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9-1/2"W x 8-15/16"L x 2-1/4"H
  • Authorized Internet Dealer

Product history:

MB Quart NA180.2 thumbnail
(newest, current model)
(previous model, replaced by MB Quart NA180.2)

Loading...
SB-F-EXPED4G/10TW1 main

JL Audio Stealthbox® SB-F-EXPED4G/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2018-2024 Expedition and Expedition Max

$1,449.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
90 watts x 2 channel
Bridged RMS Power
180 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
360 watts
Total RMS Power Output
180 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
>93 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
15A x 2
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

NA180.2

Weight:

6.00lbs

Internal SKU:

na1802

Internal Product ID:

69262

Customer Ratings & Reviews


MB Quart NA180.2 thumbnail image

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great value

Product arrived in record time and as advertised. Product was packed
good and in perfect shape upon arrival.

By Daled32708 on January 21, 2015

49 found this helpful


MB Quart NA180.2

Good small amp. I am powering a 12" sub with it bridged. It has good power but I would limit it to a 10" Sub. If you are going 12" or higher I would get a larger amp.

By Brian on January 27, 2014

44 found this helpful


MB Quality

Bought to power a 10 MB Quart marine sub in sealed box. I bridged the amp to meet the 4 ohm rating for the sub...amp has more than enough to power this sub on our boat. Good looking amp and the "MB Quart" logo glows red.

By Kevin on June 27, 2014

40 found this helpful


Awsome sound

Have tried alot of high dollar marine speakers, these jam hard, lots of bass and priced nicely.. Im going with these from now on!

By azndave on September 22, 2015

2 found this helpful


Bid Bang for the money.

This is a great amp for my 8" Pioneers in the boat. My Sonic sales rep really set me up and without spending more than necessary. These guys know their stuff and this MB Quart amp is a great value.

By David on November 20, 2015




No picture

Samsung N135 (Blue)

10.1" Netbook with Windows XP, Intel Atom Processor N270, 160 GB Hard Drive and 3 USB Inputs

$329.99

List price $329.99

DLC-2ARDSLT small

Cuisinart DLC-2ARDSLT

Mini-prep Plus Food Processor (Red)

$39.95

List price $75.00

DVD795SA-RB small

Philips DVD795SA (Factory Refurbished)

5 Disc DVD, CD Changer with Remote

$29.99

List price $119.99

RMP10AT-TN small

MTX Audio Thunderform RMP10AT-TN (Tan, Amplified)

Ford Ranger Regular Cab 1993-1997, Amplified 10" 4 ohm Loaded Car Specific Thunderform Sub Enclosure

$549.95

List price $649.95

SG14 small

Camp Chef SG14

Professional 14" x 16" Steel Fry Griddle with Carry Handle

$49.99

List price $75.00

ECR27W small

Haier ECR27W

2.7-Cubic Foot Energy-Star Refrigerator/Freezer, White

$117.99

List price $139.99

MB467LLA small

Apple MacBook 2.4GHz - MB467LL/A

2.4GHz Mac Book with Intel Core 2 Duo Processor, 2GB DDR3 Memory, 250GB Hard drive, and NVIDIA GeForce 9400M Graphics

$1499.99

List price $1599.99

No picture

Belva BXD3K (Open Box, Great)

3000W Peak BX-Series Class-D Monoblock Car Audio Amplifier with Bass Remote

(1)

$69.99

List price $139.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Ford Expedition

1997 Audi A8

1998 Subaru Outback

2013 Volvo C70

1999 Jaguar XK8

1985 Subaru DL

2012 BMW M6

2001 Ford Windstar

2009 Scion xD

2004 Pontiac Sunfire

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
