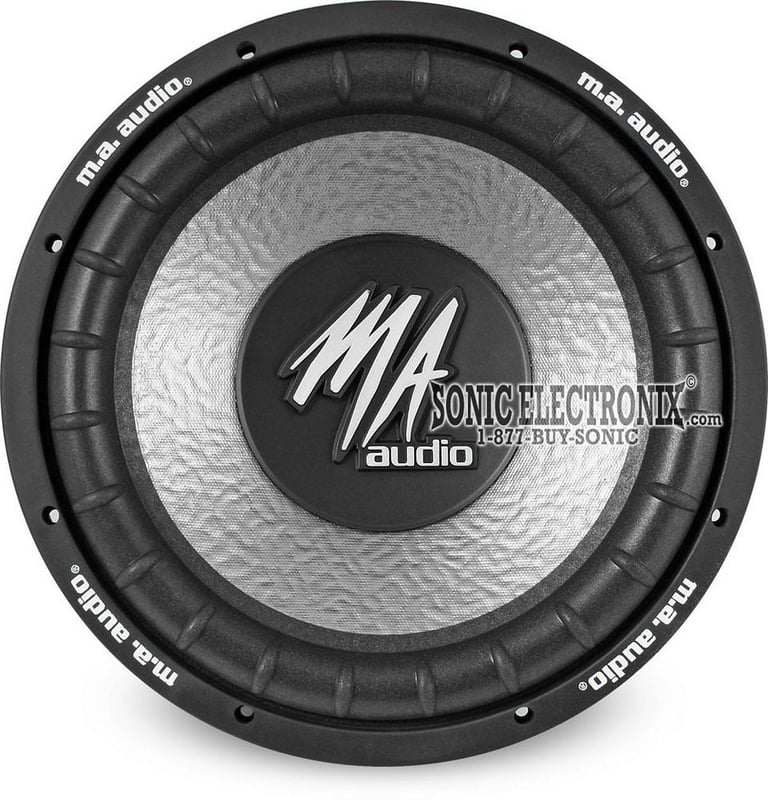

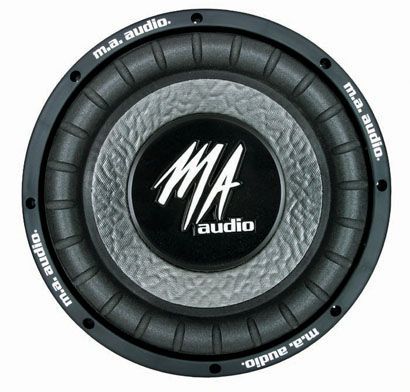

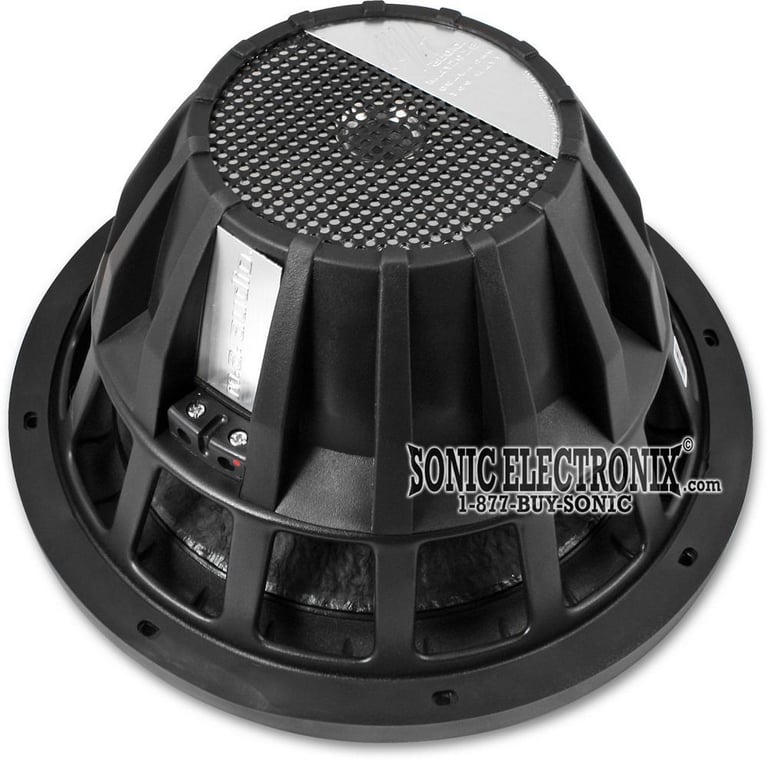

MA Audio MA80XE

8" Dual 4 ohms Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

8" Component Subwoofer • 250W RMS • Dual 4 Ohm • 80 oz. Double Stacked Magnets • Stamped Steel Basket • Non-Pressed Paper Cone • Reinforced Ribbed High Foam Surround

Learn more about the ma80xe

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

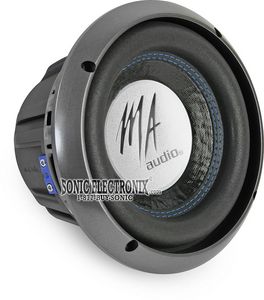

ma83xe thumbnail

MA Audio MA83XE

OUR PRICE: $59.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

99-6503 main

Metra 99-6503 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep

17
-45.48%

$11.99

List price $21.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Product Highlights


8" Component Subwoofer • 250W RMS • Dual 4 Ohm • 80 oz. Double Stacked Magnets • Stamped Steel Basket • Non-Pressed Paper Cone • Reinforced Ribbed High Foam Surround

Description


MA Audio brand icon

Authorized dealer

  • 8" Component Subwoofer
  • RMS Power Handling: 250 watts
  • Peak Power Handling: 500 watts
  • 80oz. Double Stacked Strontium Magnets
  • Reinforced Ribbed High Foam Surround Technology
  • Black Powder Coated Stamped Steel Basket
  • Ultra Strong Polypropylene Dust Cap
  • Platinum Plated Block Terminals
  • Copper Wound Voice Coils
  • Non-Pressed Paper Cone
  • Rubber Sealant Gasket
  • Dual 4 Ohm Voice Coils
  • 2-year Manufacturer's warranty

Product history:

MA Audio MA83XE thumbnail
(newest, current model)
MA Audio MA80XE thumbnail
(previous model, replaced by MA Audio MA83XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA80XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA80XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA80XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA80XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.28 dB
Woofer Surround
Ribbed Poly-Foam
Recommended Enclosure Specifications
Minimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
0.5 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet

Item Details


Manufacturer:

Model Number:

MA80XE

Weight:

7.00lbs

Internal SKU:

ma80xe

Internal Product ID:

3476

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MA80XE thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.8
Features
5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Worth The Money

pioneer deck with two "Ma80xe", with 1.5 farad "Power Acoustik" capacitor, and pyramid 1000W amp bridged. Wired with 4 gauge power wire, in a ported box.
vs.
pioneer deck with two 15" American Legacy subs in a sealed box with 1000W amp and no capacitor. 4 gauge power wire.

the MA Audio blew away the competition!!

By david on March 2, 2007

6 found this helpful


Awesome Price, Awesome Sub

Sounds great with a price that sound even better. Provides really tight bass, the only negative that is visible is possibly the woofer cone and rubber surround construction. The woofer cone is a rigid paper (the way speakers used to be, which is both good and bad). The surround is really flimsy, its like a foam rubber mixture and could be easily punctured. Don't get me wrong though an awesome sub for an awesome price.

By Lee on September 16, 2008

5 found this helpful


Nice

This item was bought by myself for my father last christmas. Before I put it in my dads van I hooked it up to my sisters 460 watt dual amp. Which was pushing out 165 watts rms. This thing pounded harder than the two 12 inch duals put together.

By Jordan on December 22, 2006

5 found this helpful


Are these 8's or 12's?

I have an Audiobahn 12" Eternal series hooked up to an Alpine M650. When I ordered a pair of these for my son's car, I did not expect a whole lot out of these. What I got was VERY suprising! I hooked one of them up to the Alpine, it bassed almost as hard as the eternal series! They are currently hooked up to an MA Audio 2-channel amp, HK298. My son's friends swore they were a pair of 12's the 1st time they heard them!

By Jason on August 21, 2007

4 found this helpful
