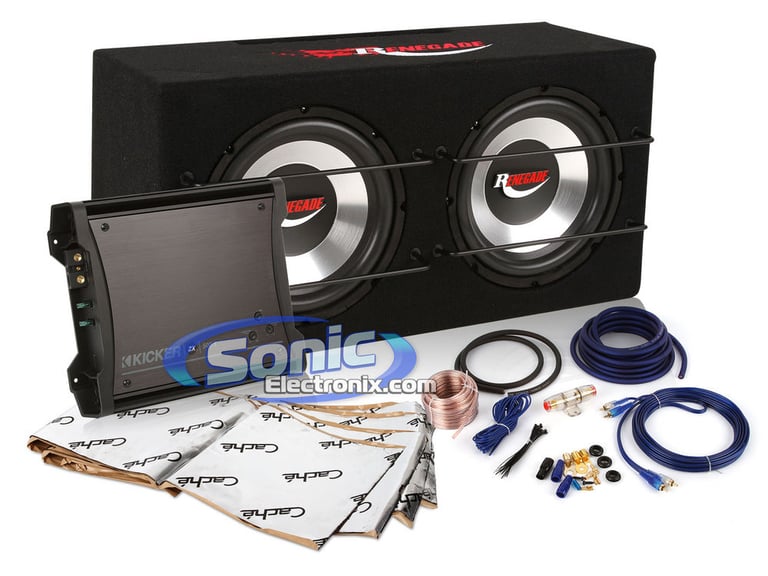

1000W Complete Renegade + Kicker Bass Package

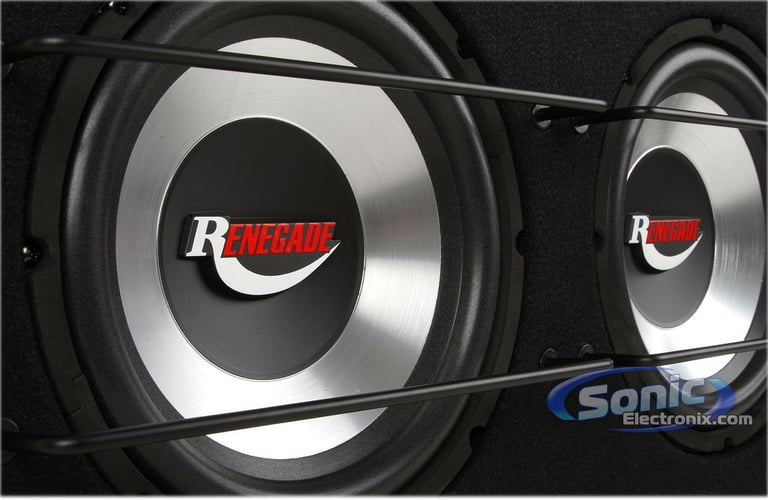

• 10" Single 4 Ohm GTW Series Subwoofer
• Power Handling:
• Peak: 1000 watts total / 500 watts each
• RMS: 500 watts total / 250 watts each
• Final Impedance: 2 Ohm
• Polypropylene silver woofer cone
• Black composite foam woofer surround

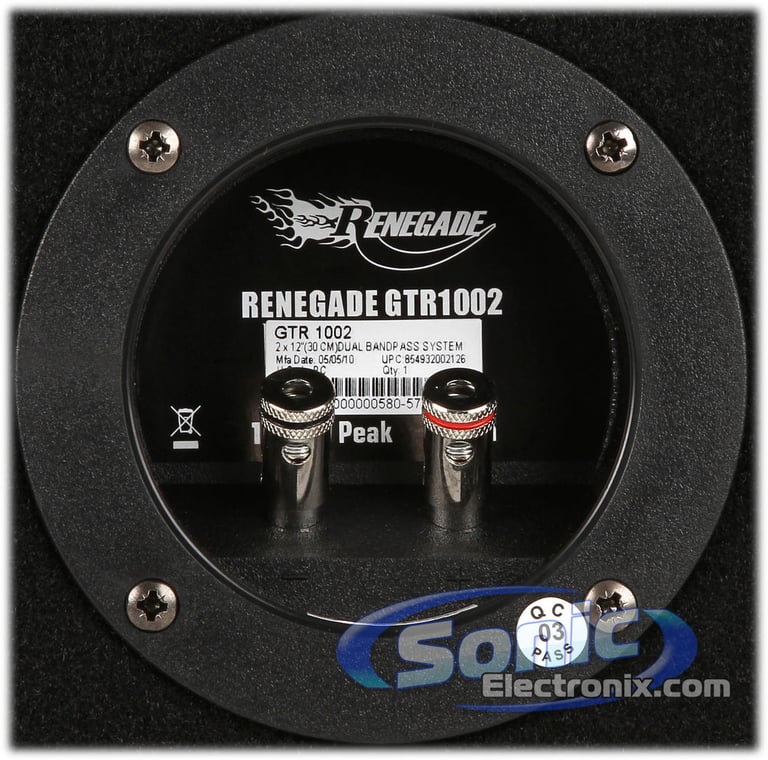

• Silver spring terminals
• Renegade logo dust cap
• Vented basket cooling system
• 2" Voice coil diameter
• Sensitivity: 85.2 dB
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

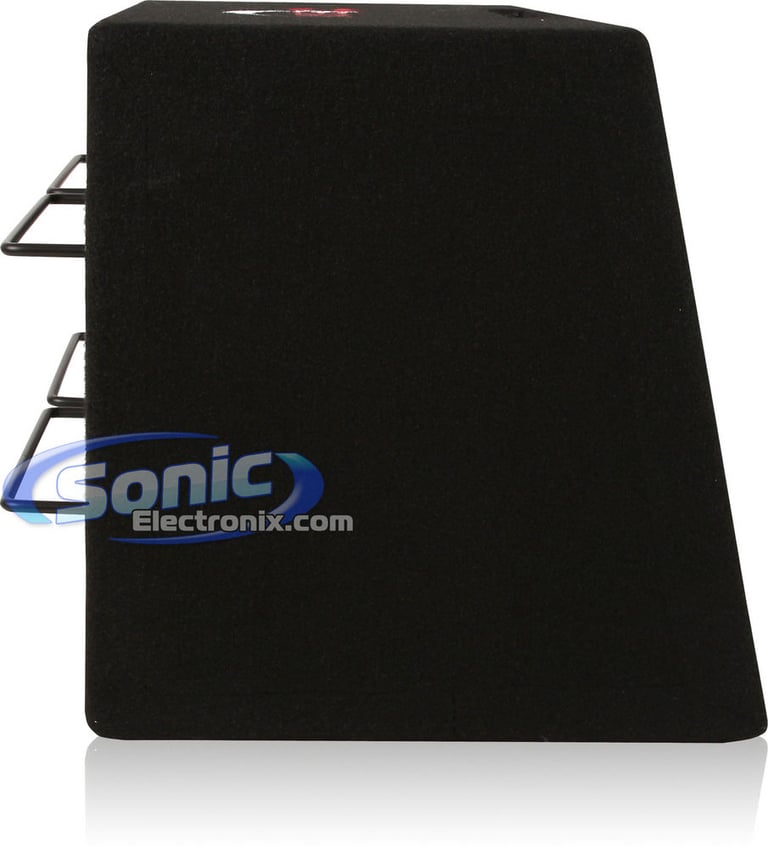

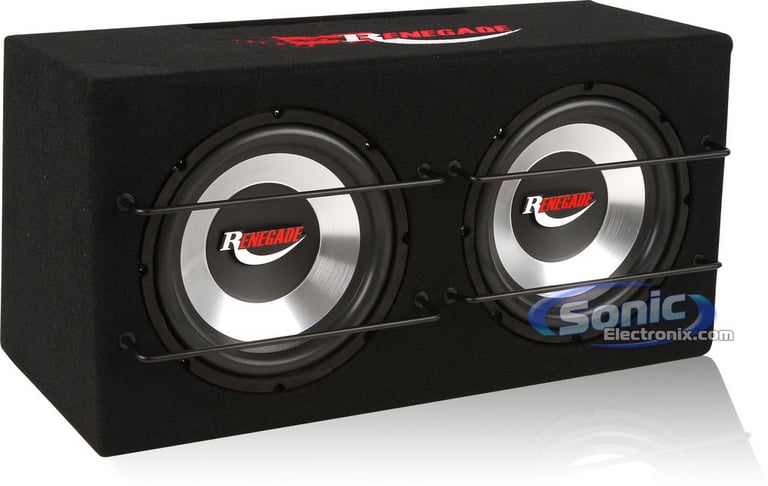

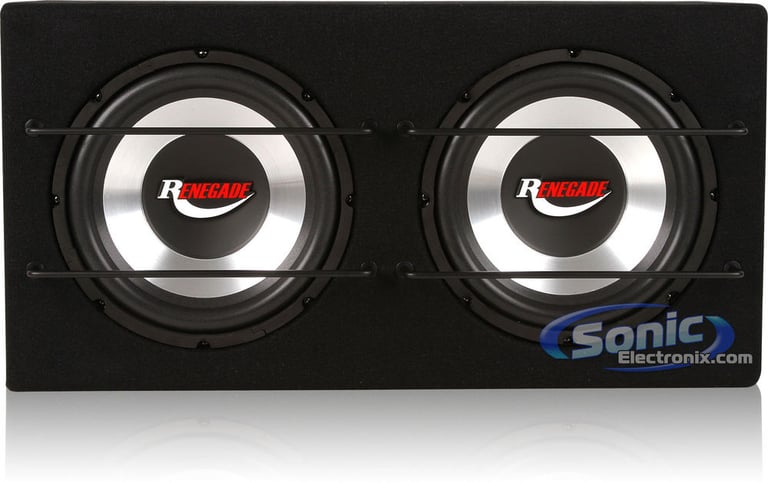

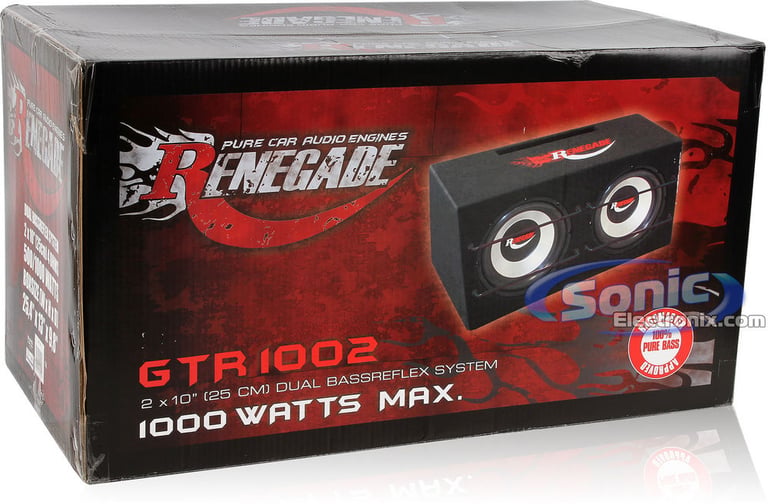

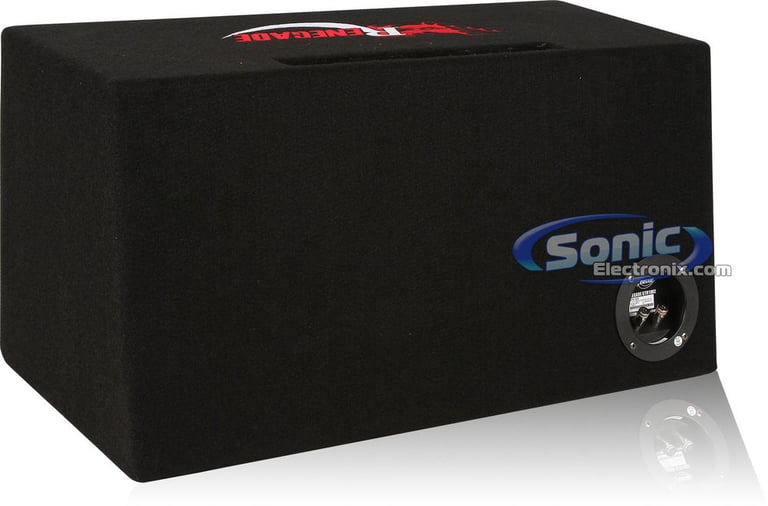

• 10" Dual Loaded Bass Reflex Enclosure

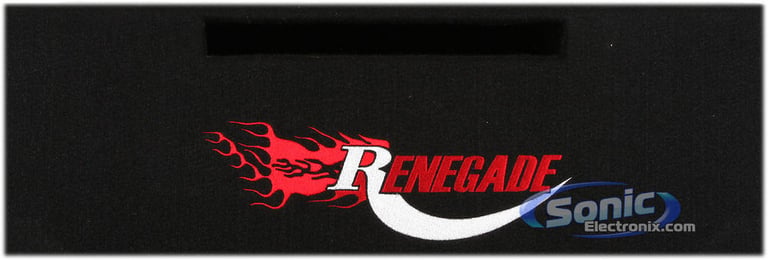

• Stitched Renegade logo

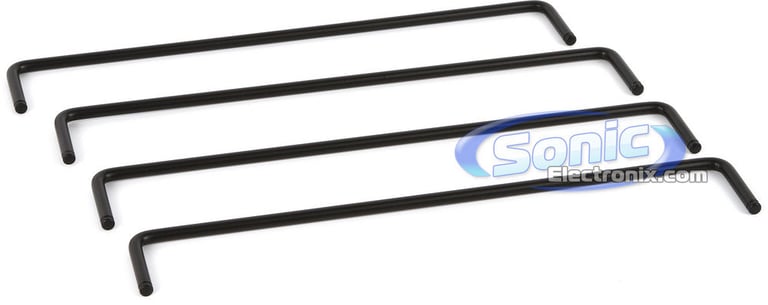

• Red metal protection bars
• Precious black carpet covered box
• Subwoofer mounting depth: 4-7/16"
• Subwoofer cutout diameter (or dimension): 9-1/4"
• Dimensions: 9-13/16"BD x 25-7/16"W x 13"H

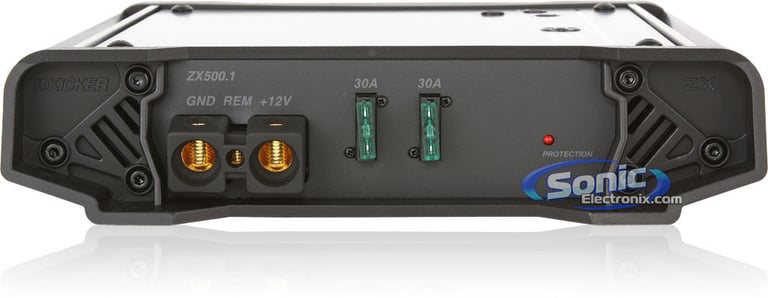

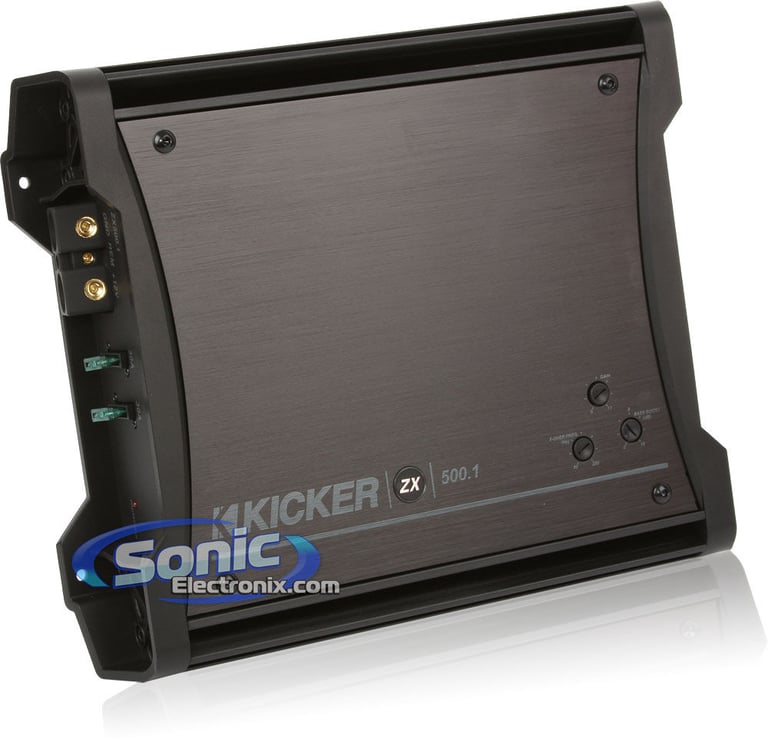

• ZX Series Class D Monoblock Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 250 watts x 1 chan.
  • 2 ohm: 500 watts x 1 chan.
• High efficiency MOSFET power supply
• LED power and protection indicators
• Remote bass level input (Kicker 10ZXRC remote level control sold separately)
• Tuned Bass EQ (0-18 dB bass boost at 40 Hz)

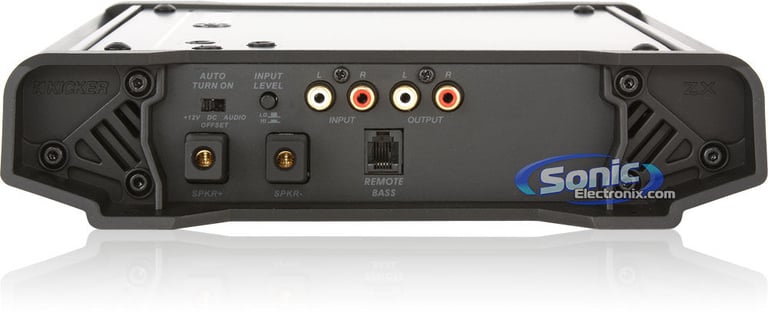

• Preamp RCA outputs
• Muting circuit cancels out unwanted noise

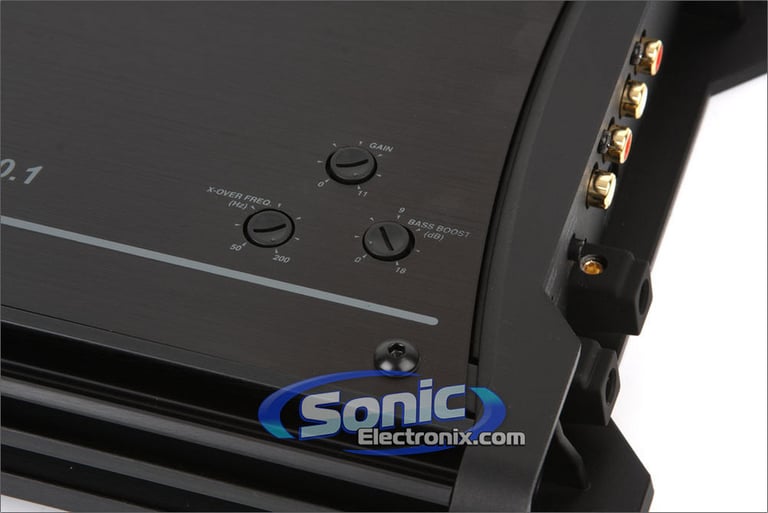

• Boost, gain, and crossover frequencies are top-mounted for easy access
• Balanced differential inputs for noise elimination and factory-radio compatibility
• 3 Automatic turn-on modes (remote, DC offset, signal sense)
• Optional edgy vinyl skins for personalizing heat sinks available
• Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
• High-density convection heat sink for extreme heat dissipation
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• High-pass subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz
• Dimensions: 12"L x 9-5/8"W x 2-1/8"H
• Actual power exceeds rated power, documented inside each carton
• 4-gauge power and ground leads recommended
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

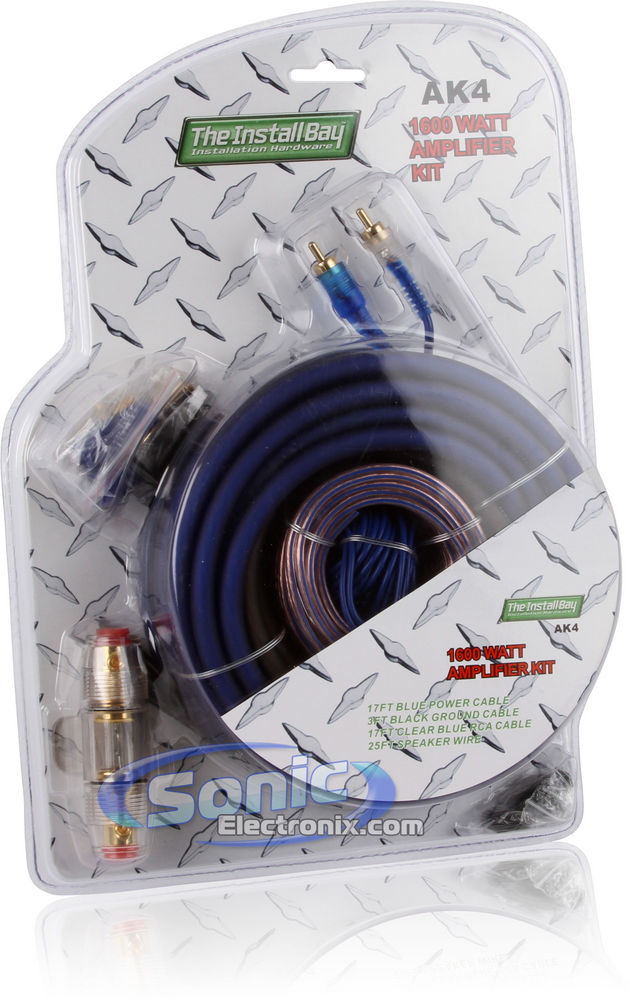

• Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
• Perfect for 1600 watts amplifier setup
• Includes everything that you need to install a single amplifier
• Premium power and ground cable
• 1-year Manufacturer's warranty

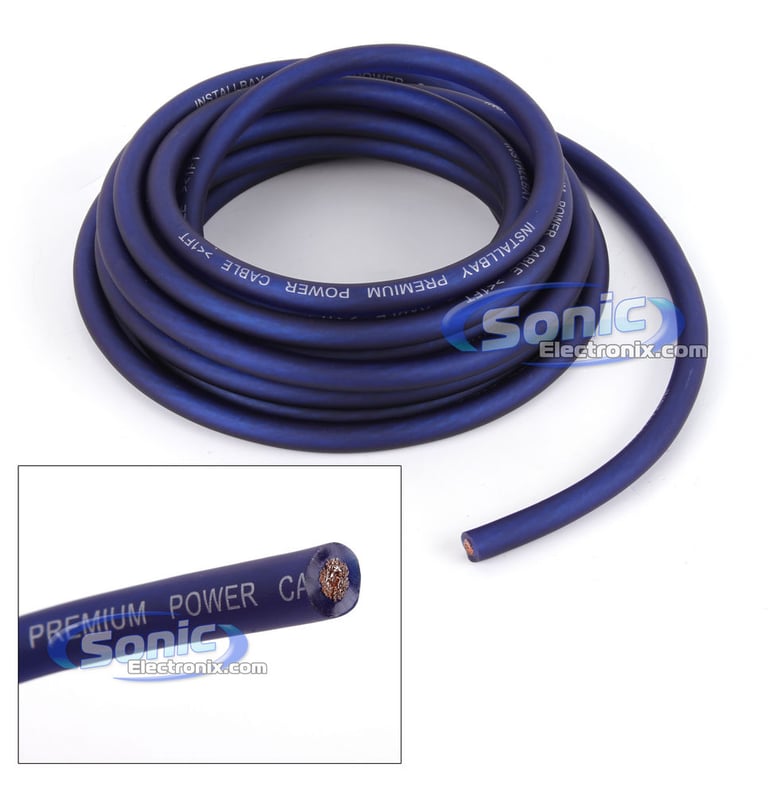

1. 17 ft. of Blue power cable
2. 3 ft. of Black ground cable

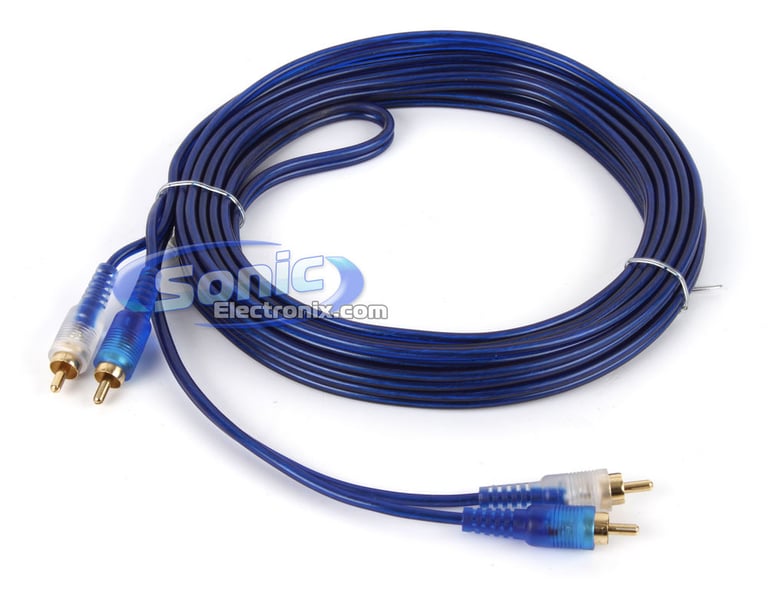

3. 17 ft. of Clear/blue RCA cable

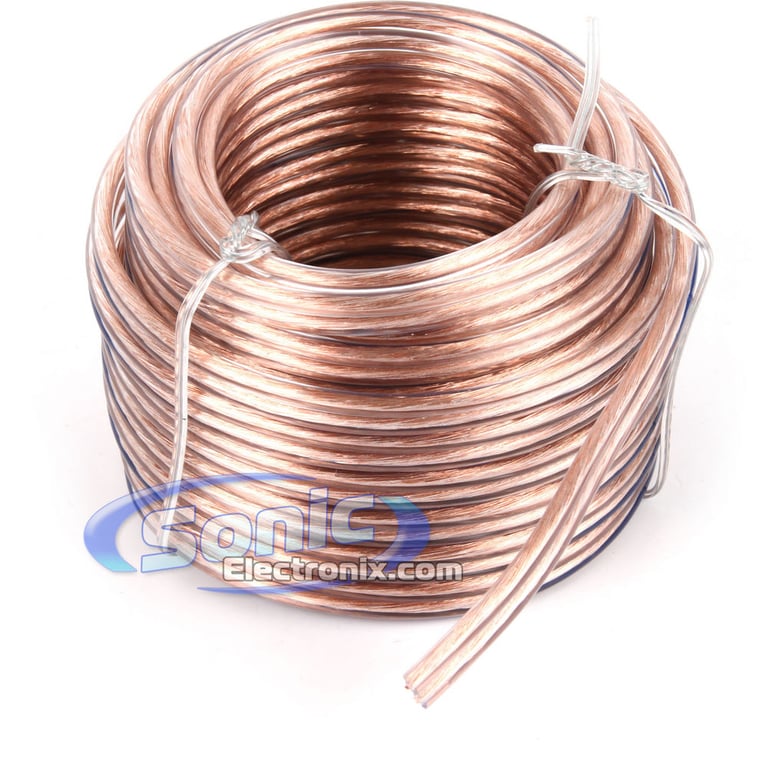

4. 25 ft. of Speaker wire

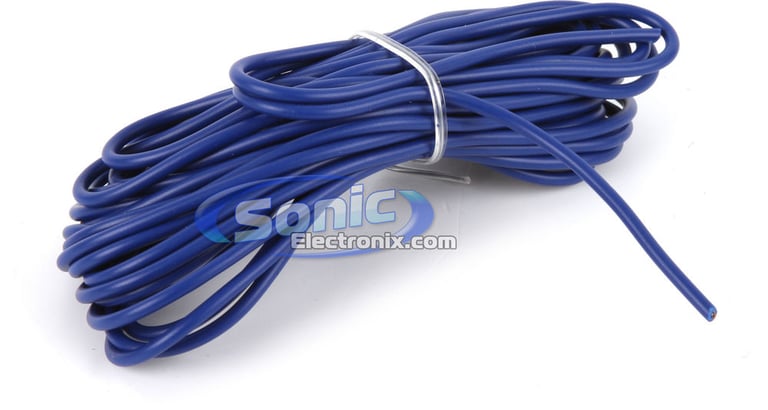

5. 17 ft. of Remote turn-on wire

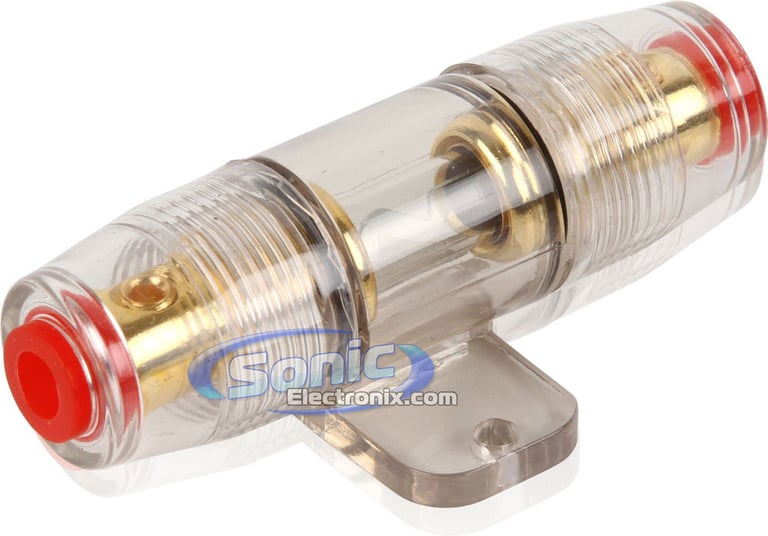

6. In-line AGU fuse holder
7. 60 Amp AGU fuse

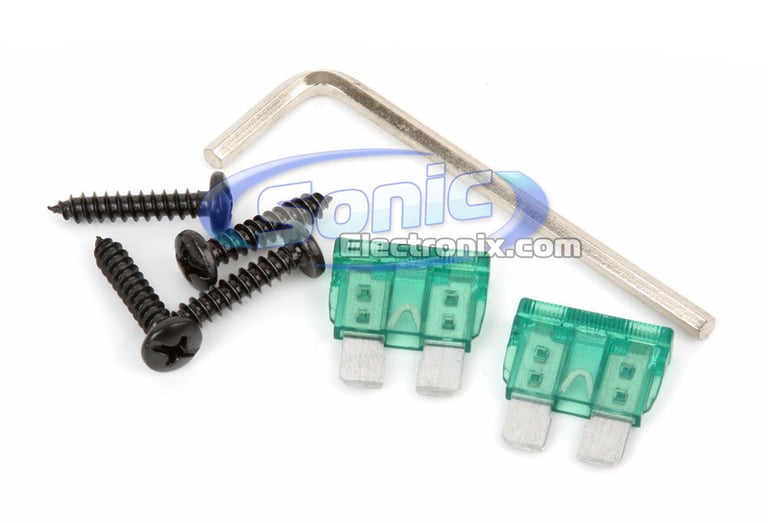

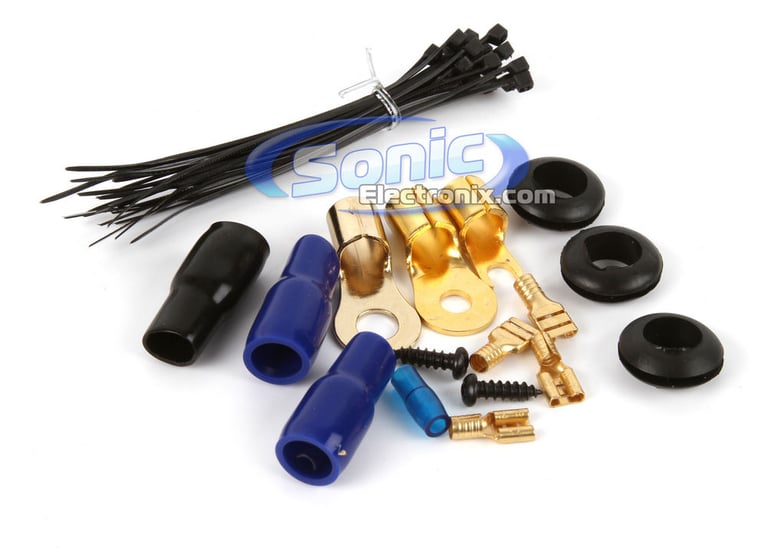

8. Installation hardware

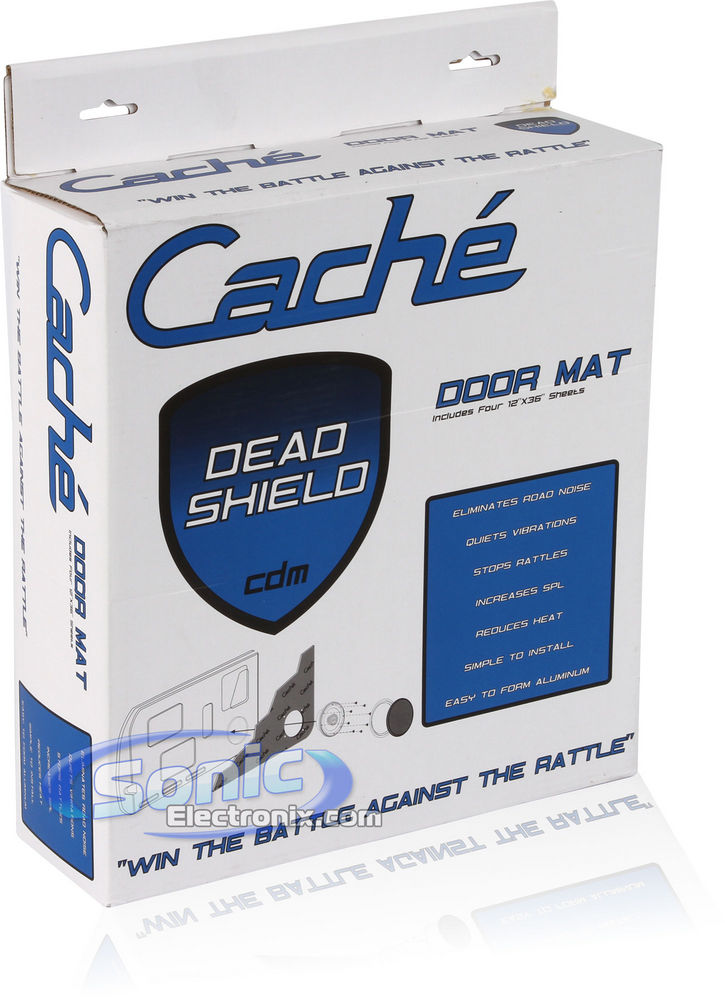

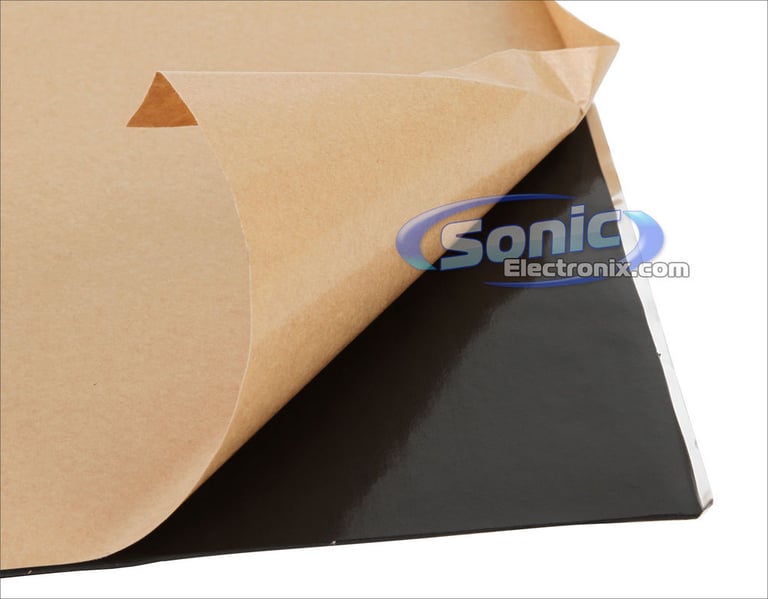

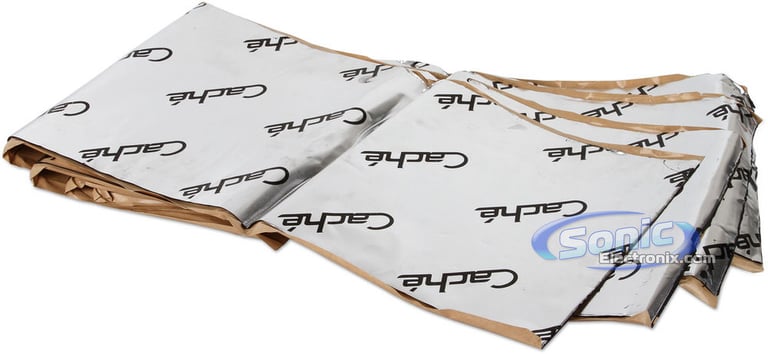

• Four 12" x 36" Pieces of Dead Shield Sound Dampening Material
• Eliminates Road Noise
• Quiets Vibrations
• Stops Rattles
• Increases SPL
• Reduces Heat
• Simple To Install
• Easy To Form Aluminum
• Four step peel and stick installation
• Increases sound quality and output
• Up to 30% thicker than the leading competitors
• Dimensions (each piece): 12"L x 36"W

Renegade products are imported from Germany and distributed to authorized dealers through Rockford Fosgate.
