Product Highlights


12" Dual 4 Ohm Power T0 Series Subwoofer • 1400W Max • 700W RMS • Grand Touring Series Class AB Monoblock Car Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • LED Power and Protection Indicators

Description


Rockford Fosgate brand icon

Authorized dealer

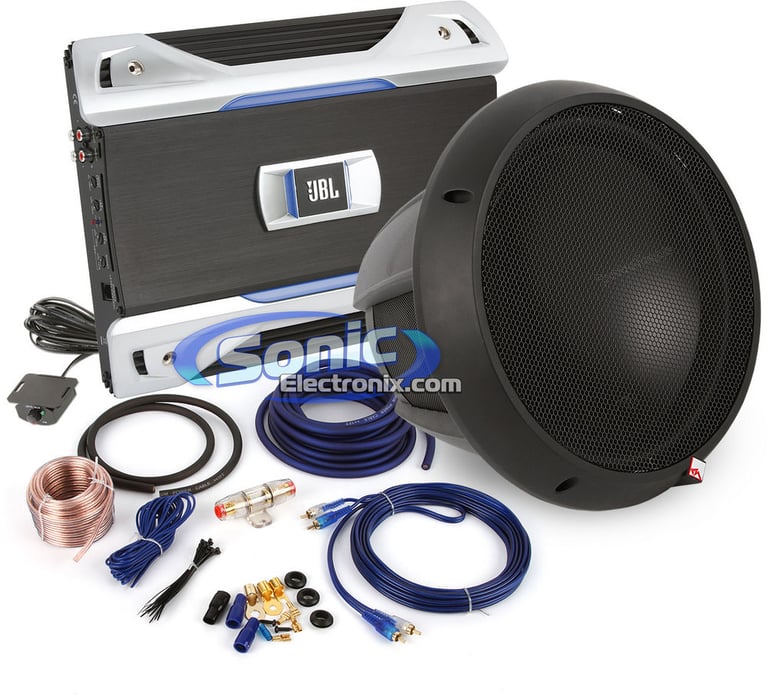

Rockford Fosgate and JBL Bass Bundle

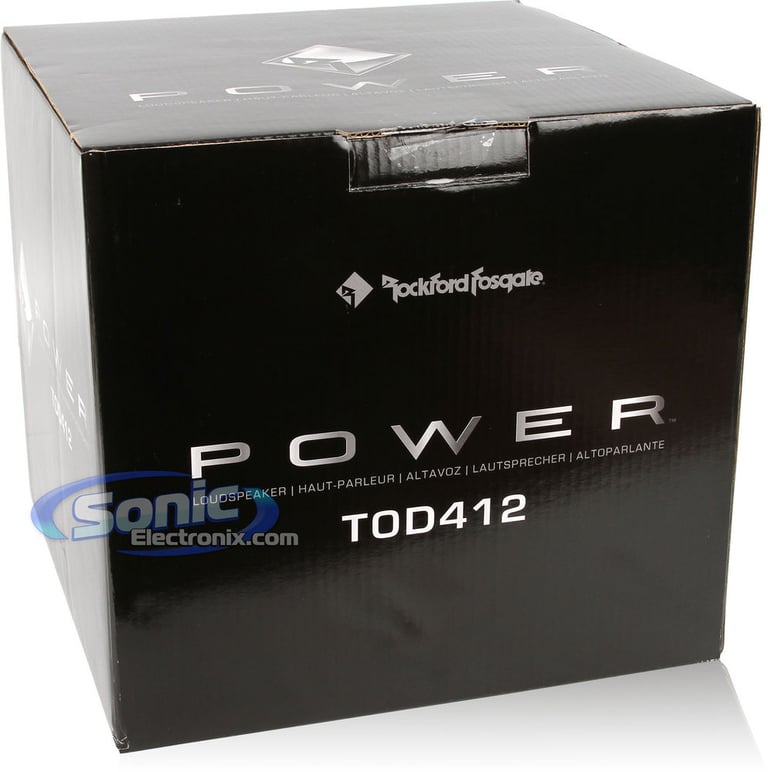

This Sonic Electronix Exclusive Bass package showcases a JBL GTO7001 Amplifier along with a 12" Power T0 Series Subwoofer. This excellent bass package pushes 700 watts of clean, continuous RMS power. The Rockford Fosgate Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Rockford Fosgate TOD4-12 Power T0 Series subwoofer requires 700 watts of RMS power. The included JBL GTO7001 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Rockford Fosgate subwoofer, JBL amplifier, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

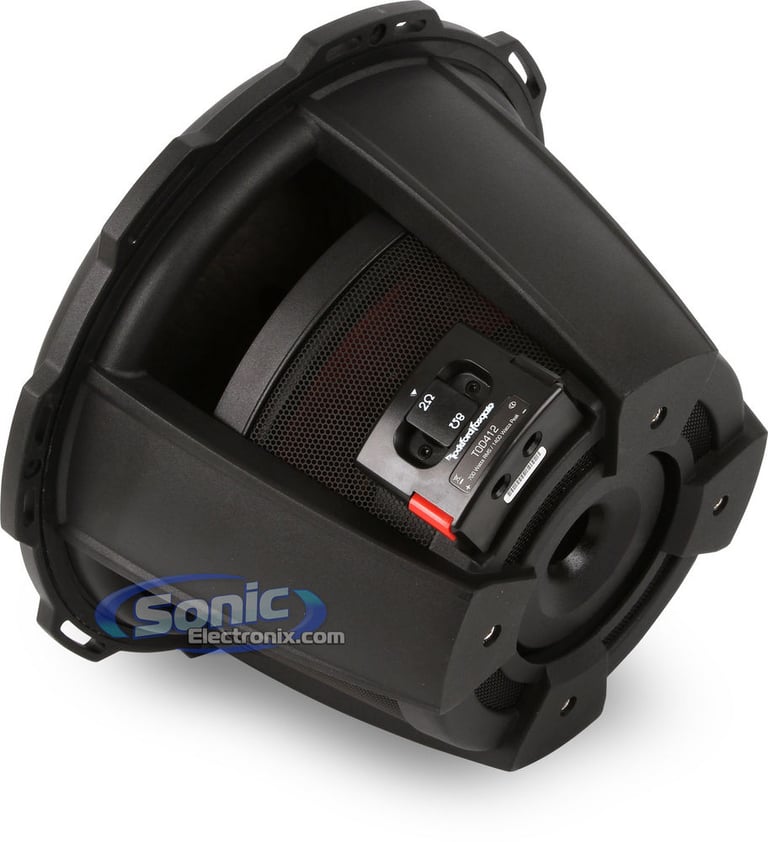

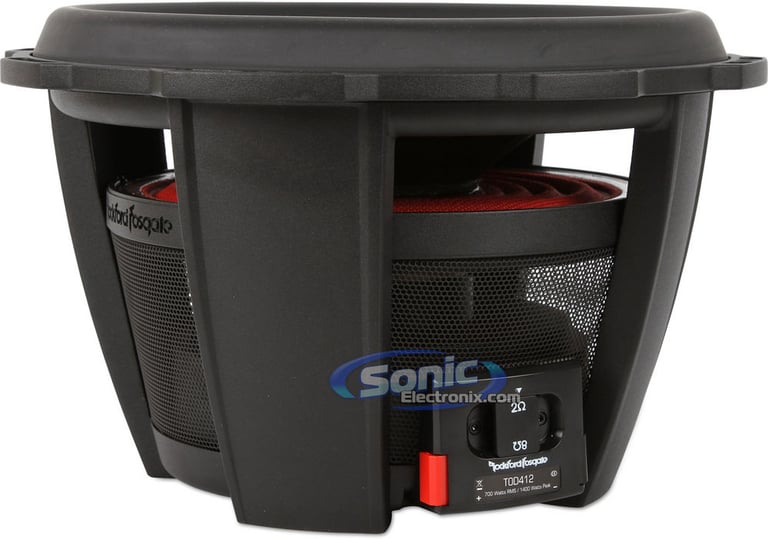

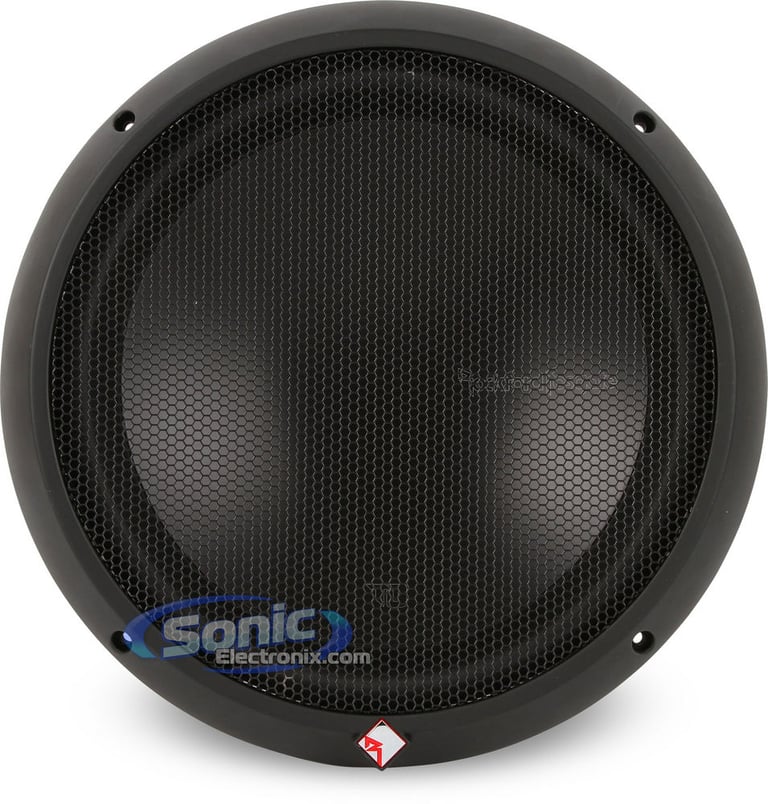

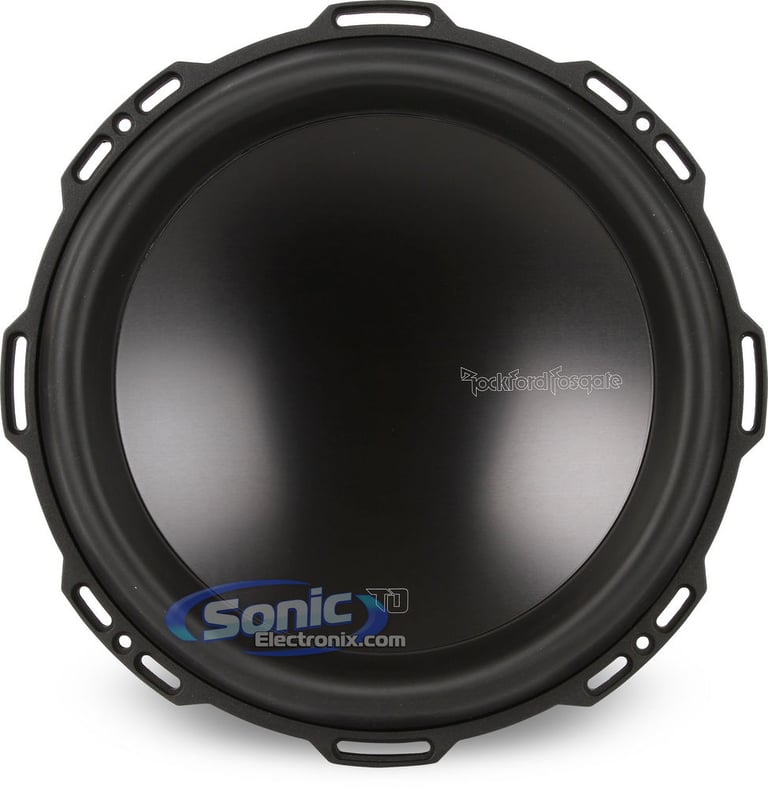

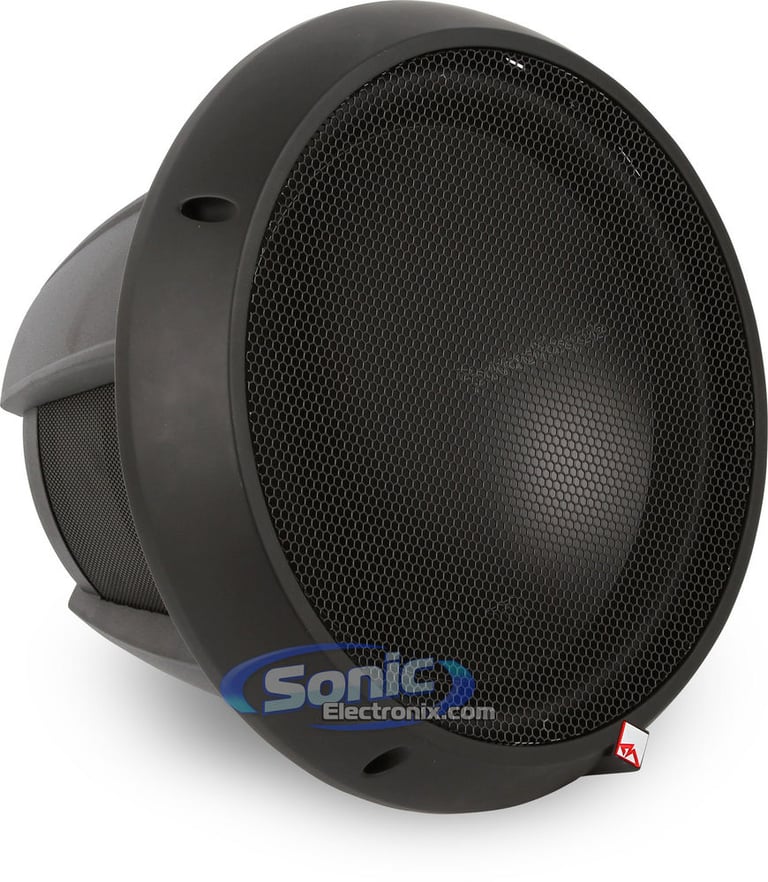

Rockford Fosgate TOD4-12 Features:
  • 12" Dual 4 Ohm Power T0 Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 700 watts
  • Impedance: 4 ohm
  • Kevlar fiber reinforced paper cone provides stability and durability

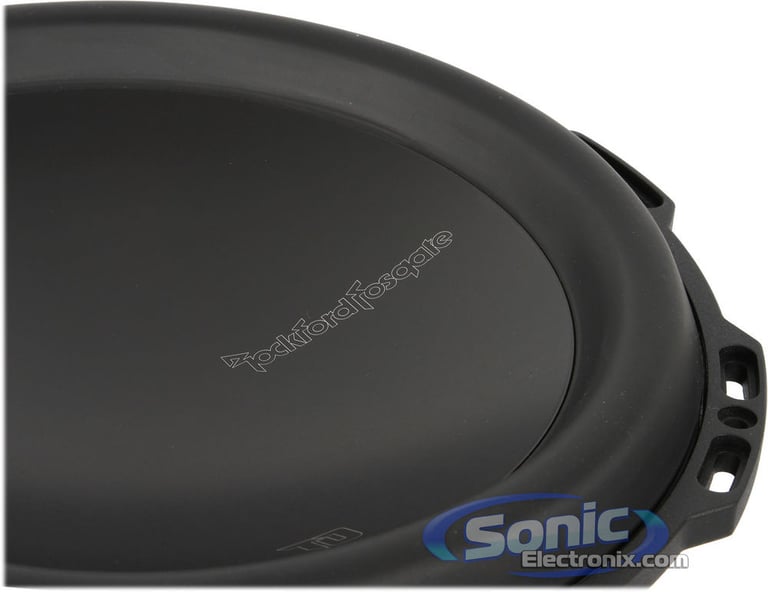

  • Vertical attach surround technique (VAST) provides up to 25% more effective radiating cone area
  • Anodized aluminum heat sinking dust cap allows air flow to keep woofer ventilated
  • Anodized aluminum voice coil former provides superior heat dissipation and keeps the subwoofer cool during high SPL conditions

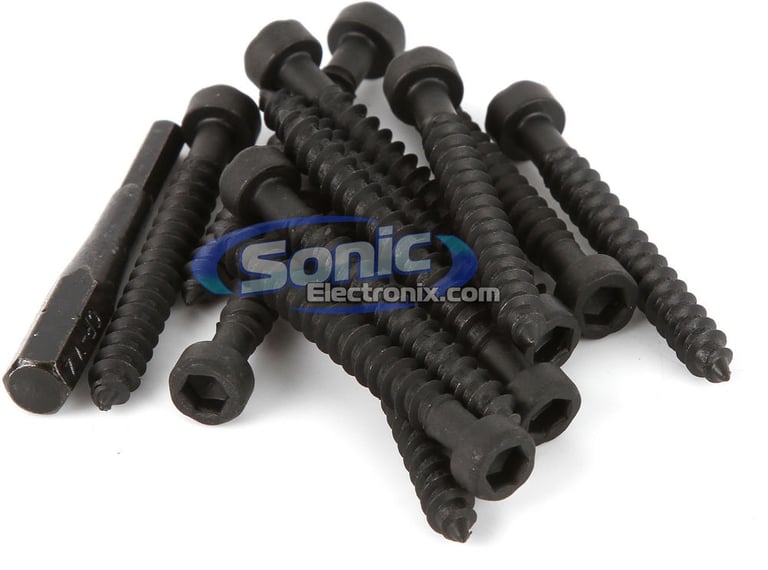

  • Flex fit basket utilizes slots instead of single screw sized holes and allows fine-tuning of the speaker's mounting position
  • Stitched tinsel leads withstand extreme duty cycles, fatigue and high current

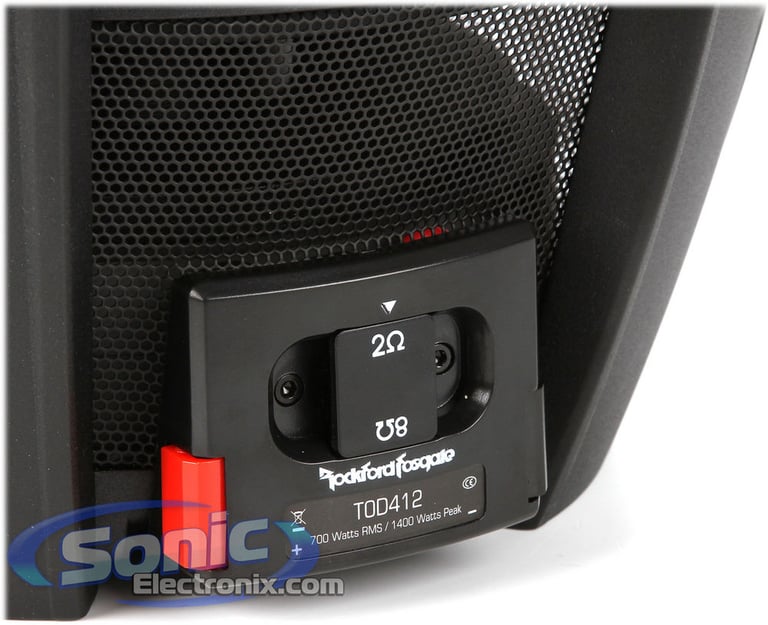

  • SWIFT terminals allow nominal impedance of voice coils to quickly be configured
  • CEA-2031 certified means your speaker has the capacity to handle power under continuous demand
  • 3" High-Temp voice coil with spun-laced Nomex re-inforcement collar
  • Double stacked ferrite magnet structure
  • Optimized and matched magnetic and compliance geometry
  • Optimized pole piece and spider venting keeps voice coil cool
  • Proprietary 8 AWG insulated all metal input spring terminal connection
  • Sensitivity: 84.1 dB
  • Xmax: 14.8 mm
  • Mounting Depth: 6-7/8"
  • Cutout Diameter: 11-1/4"
  • 1-year Manufacturer's warranty

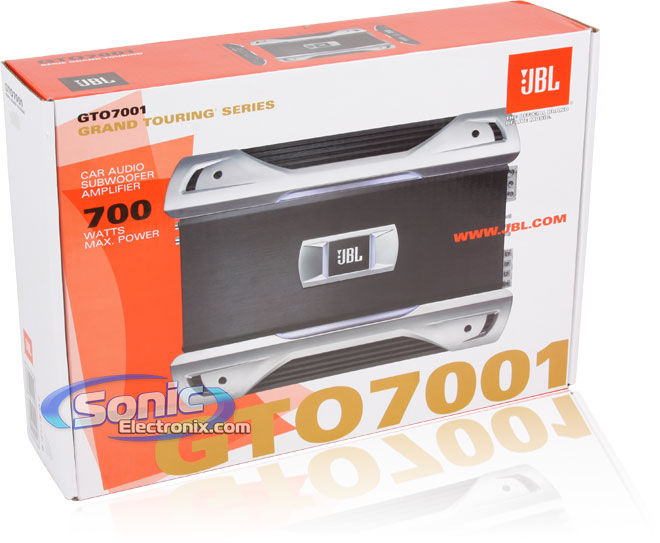

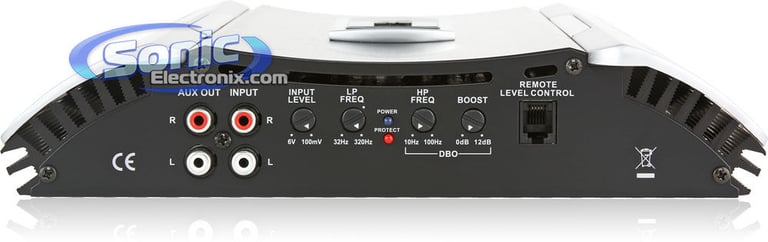

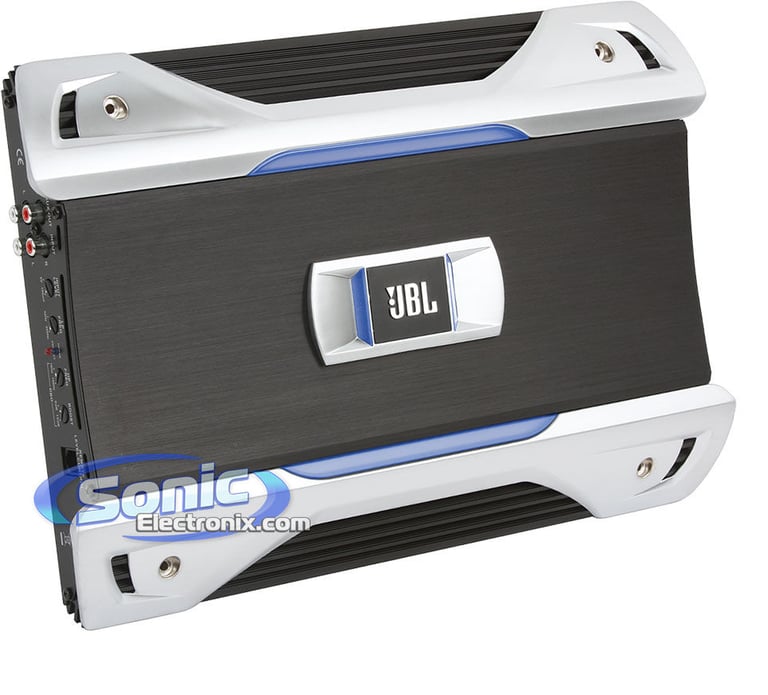

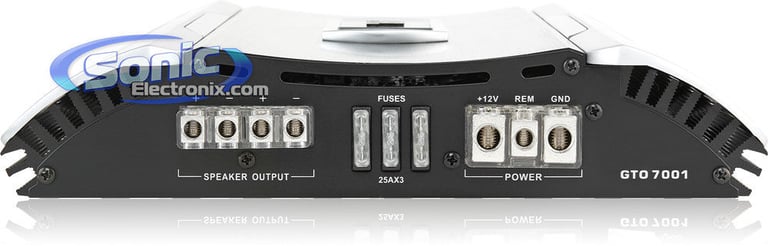

JBL GTO7001 Features:
  • Grand Touring Series Class AB Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 425 watts x 1 chan.
    • 2 ohm: 700 watts x 1 chan.
  • Max power output: 700 watts x 1 chan. (4 ohm)
  • LED power and protection indicators
  • Tuned Bass EQ (0-12 dB bass boost)
  • Preamp RCA outputs
  • Cast-aluminum heatsink
  • JBL patented DBOC (Dynamic Bass Optimization Circuitry)
  • Variable high-pass filter (10-100 Hz, 12 dB/octave)
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-330 Hz
  • Dimensions: 15"L x 10-3/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

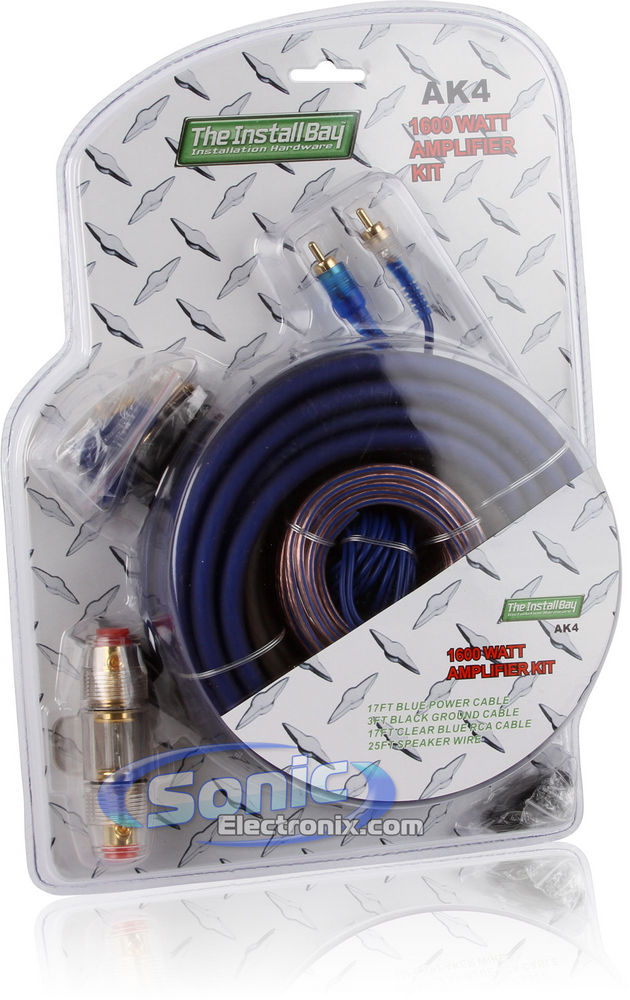

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

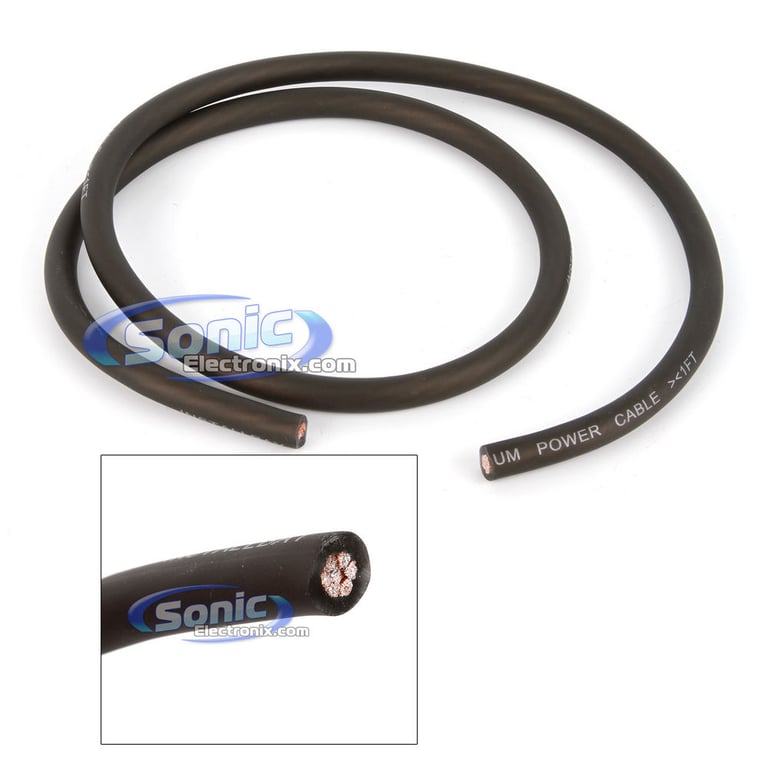

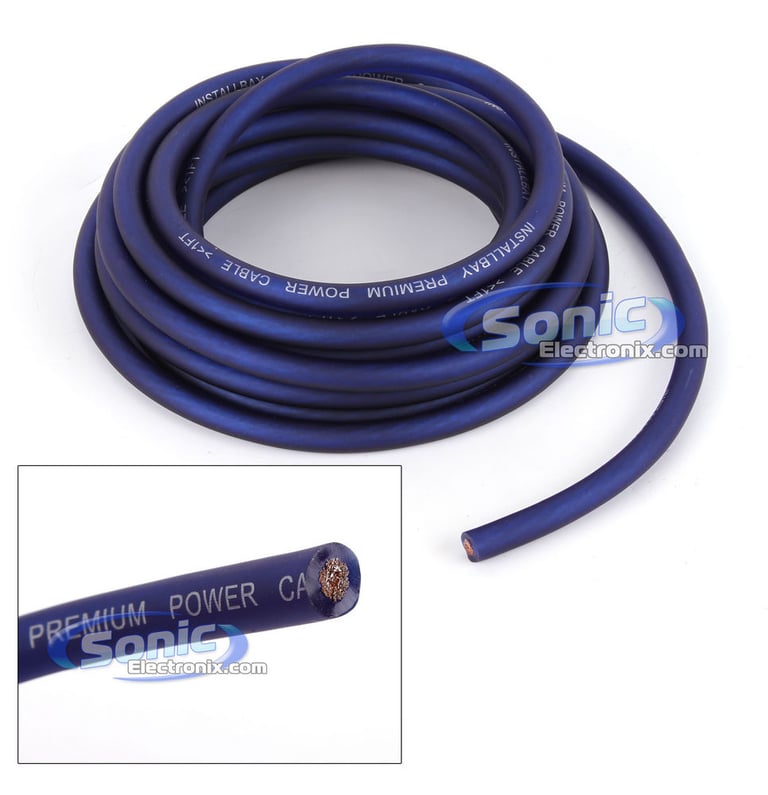

  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable

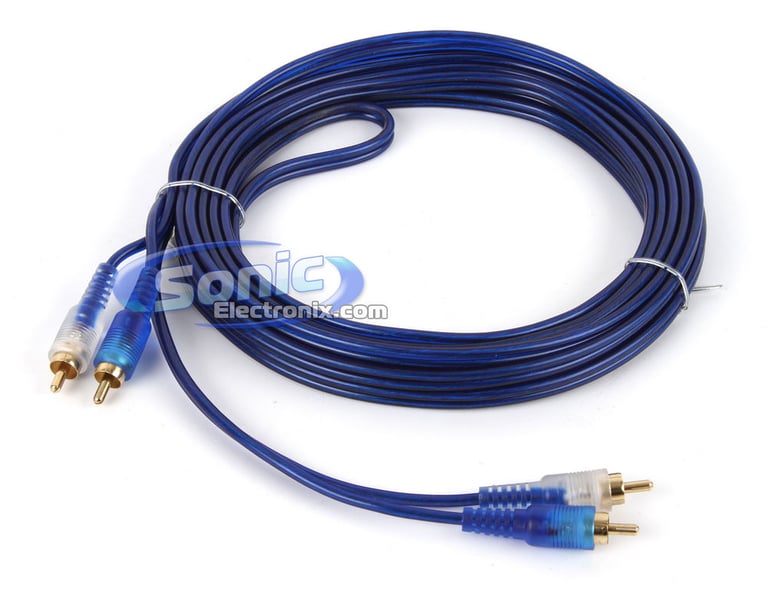

  3. 17 ft. of Clear/blue RCA cable

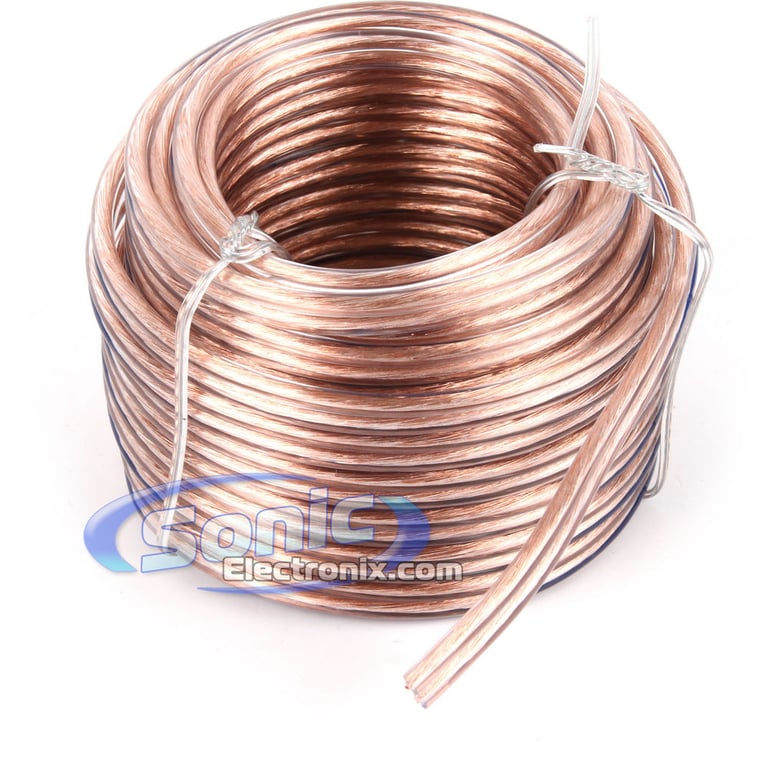

  4. 25 ft. of Speaker wire

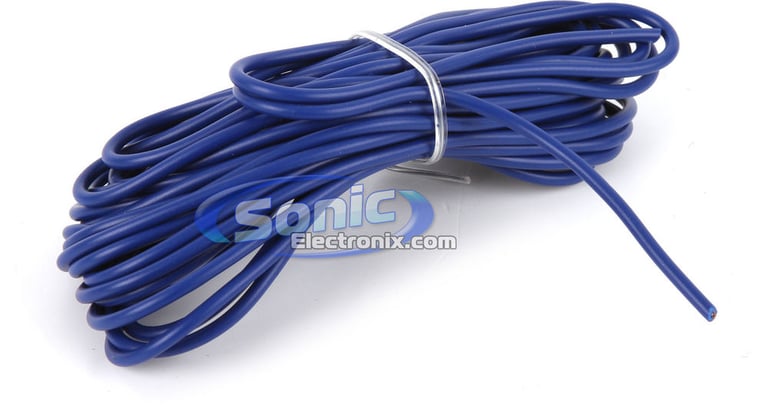

  5. 17 ft. of Remote turn-on wire

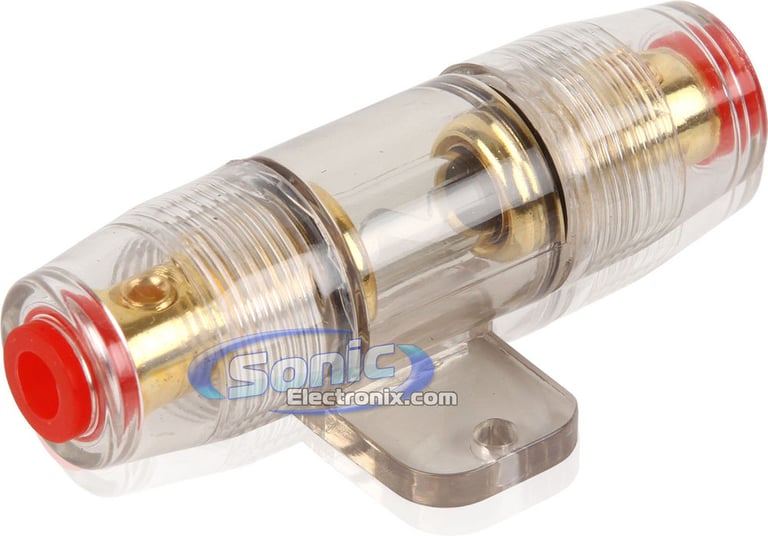

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

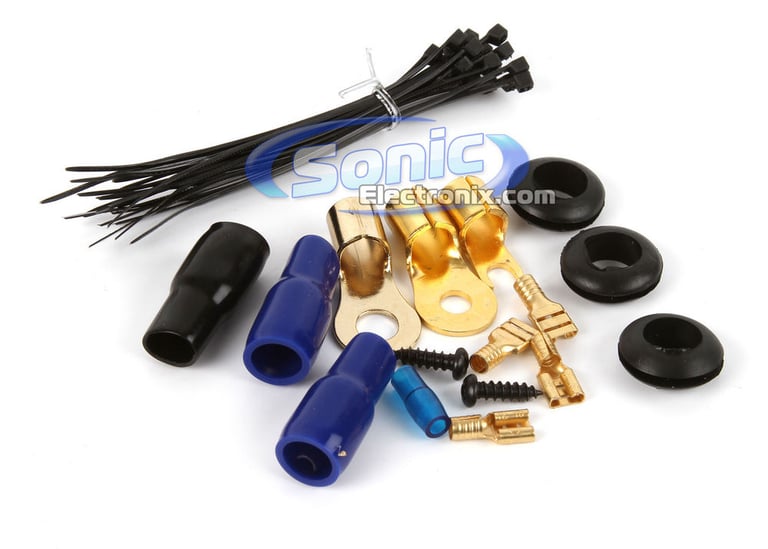

  8. Installation hardware

Loading...
SB-F-SUPRCNSL/10W3v3 main

JL Audio Stealthbox® SB-F-SUPRCNSL/10W3v3

Custom-Fit Loaded 10" Sealed Truck Enclosure with One 10W3v3-2 Subwoofer for select 1999-2007 F-250 Super Duty and F-350 Super Duty and Excursion with Front Bucket Seats

$1,149.99

REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
425 watts x 1 channel
RMS Power @ 2 ohms
700 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
700 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
700 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 100 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
107 dB
Bass Boost
0 - 12 dB

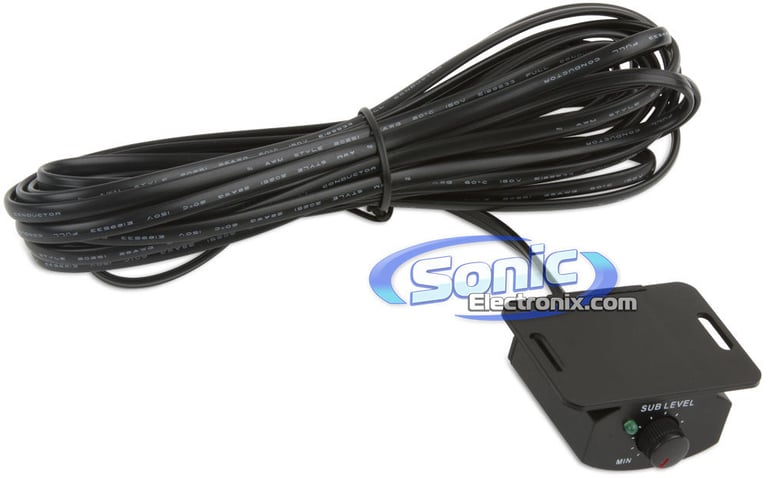

Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 3
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
700 watts
Total RMS Power Handling
700 watts
Peak Power Handling
1400 watts
Total Peak Power Handling
1400 watts
Woofer Surround
VAST
Woofer Composition
Kevlar Reinforced Pulp Paper
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Sensitivity
84.1 dB
Frequency Response
Not specified by manufacturer
Xmax (millimeters)
14 mm
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
11-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

T0D4-12_GTO7001

Weight:

48.33lbs

Internal SKU:

t0d412_gto7001

Internal Product ID:

35772
