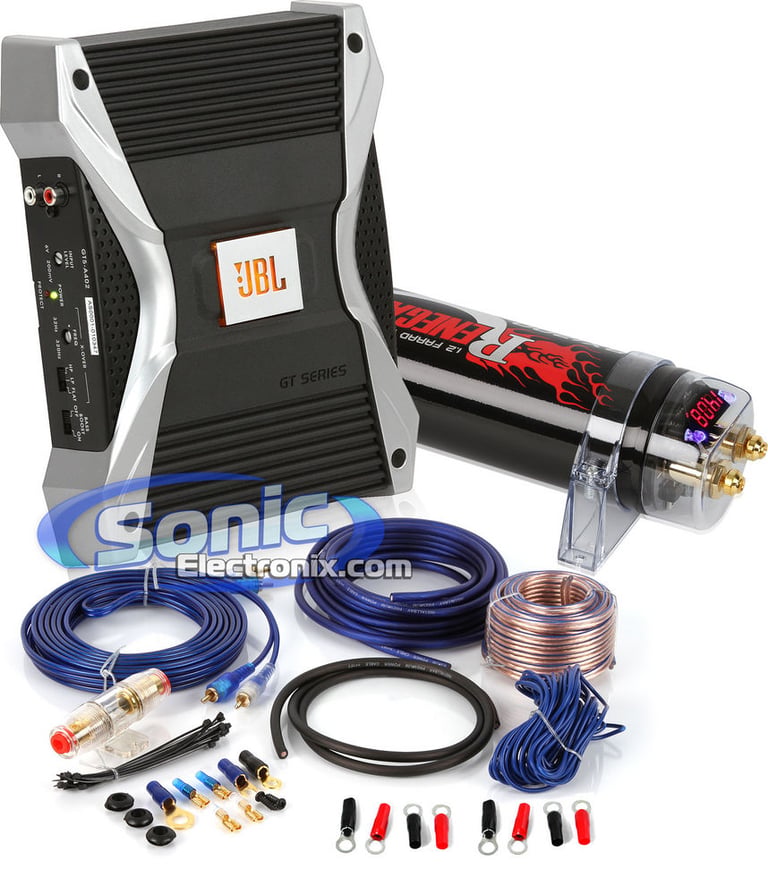

JBL GT5-A402 + Amplifier Kit

240W Max, 2-Channel GT Series Class AB Car Amplifier + 8 Gauge Amplifier Kit + 1 Farad Capacitor

JBL
Shop all JBL
EXCLUSIVE
Product videos
highlight-star-icon

GT Series 2-Channel Class AB Car Amplifier • MOSFET Power Supply • Cast-Aluminum Heatsink • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Learn more about the gt5a402_ak8

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


GT Series 2-Channel Class AB Car Amplifier • MOSFET Power Supply • Cast-Aluminum Heatsink • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • RX1200 Digital 1.2 Farad Capacitor • Bright LED Voltage Display • For Systems up to 1200 Watts

Description


JBL brand icon

Authorized dealer

JBL and The Install Bay Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is a JBL GT5-A402 2-Channel Amplifier. This amplifier is perfect for those looking to power up their aftermarket speakers or even one Single Voice Coil 4 Ohm suboofer at the bridged impedance. We have also included a high quality The Install Bay AK8 amplifier kit to get the best signal and performance out of your brand new amplifier. The Install Bay 8 gauge amplifier kit will have everything you need for complete installation. Protecting your system is just as important as anything else. The Renegade RX1200 1.2 Farad MKII Power Capacitor will ensure that your audio system is protected from excessive power drainage during those long listening sessions. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

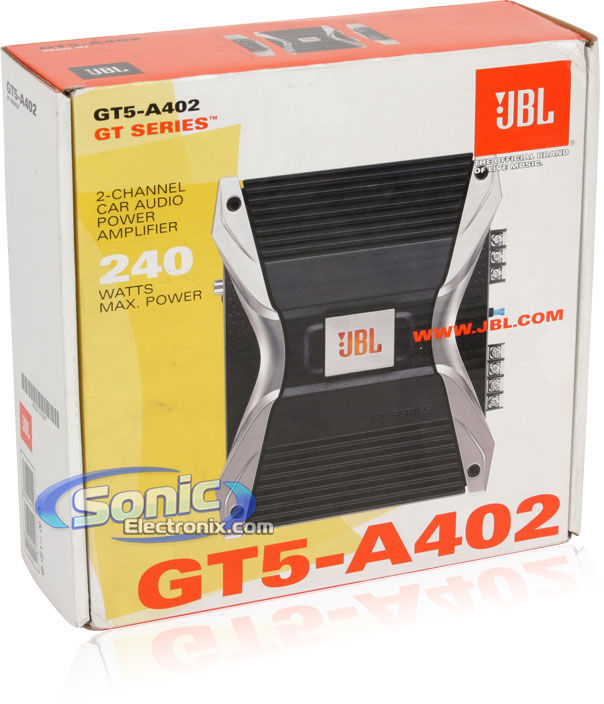

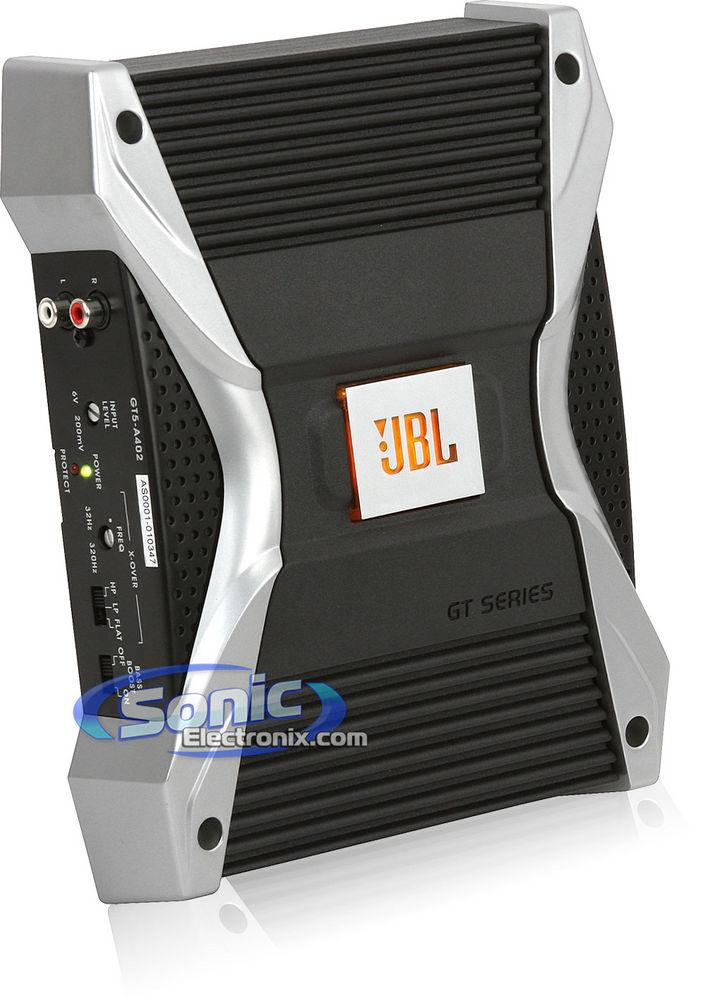

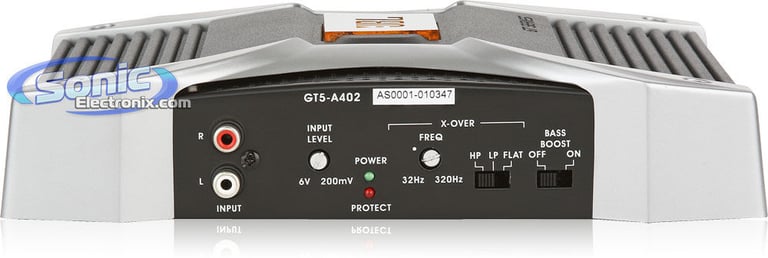

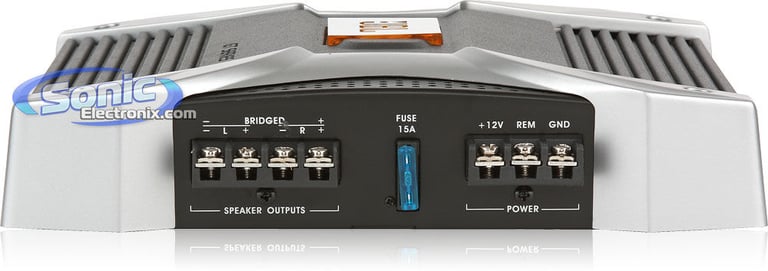

JBL GT5-A402 Features:
  • GT Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 2 chan.
    • 2 ohm: 60 watts x 2 chan.
    • Bridged, 4 ohm: 120 watts x 1 chan.
  • Max power output: 120 watts x 2 chan.
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • Orange backlit JBL logo
  • Bridgeable operation
  • Cast-aluminum heatsink
  • Variable high-pass filter (20-320 Hz, 12 dB/octave)
  • Variable low-pass filter (20-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-100000 Hz
  • Dimensions: 7-1/2"L x 9-1/4"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

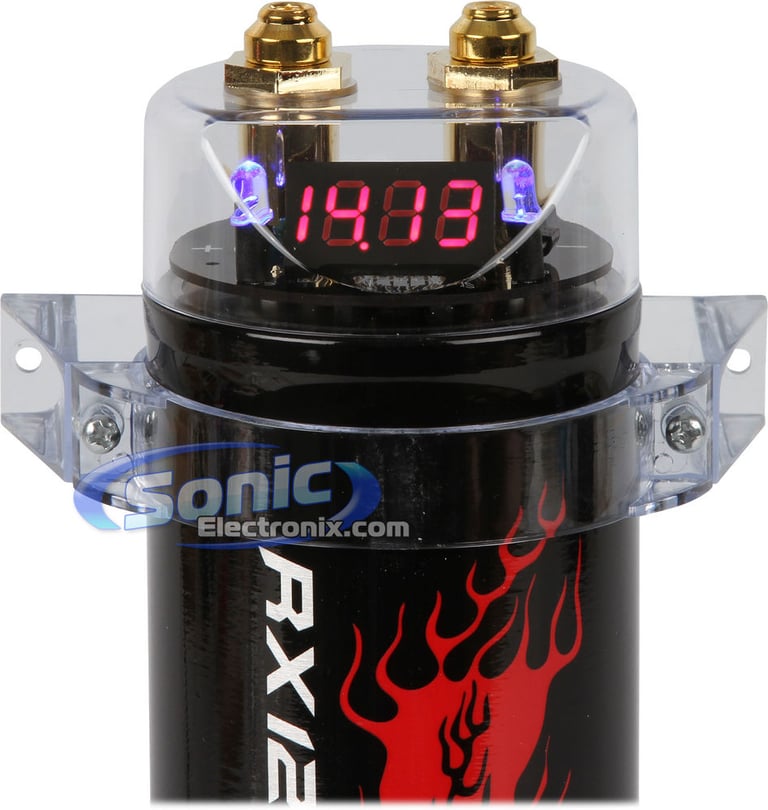

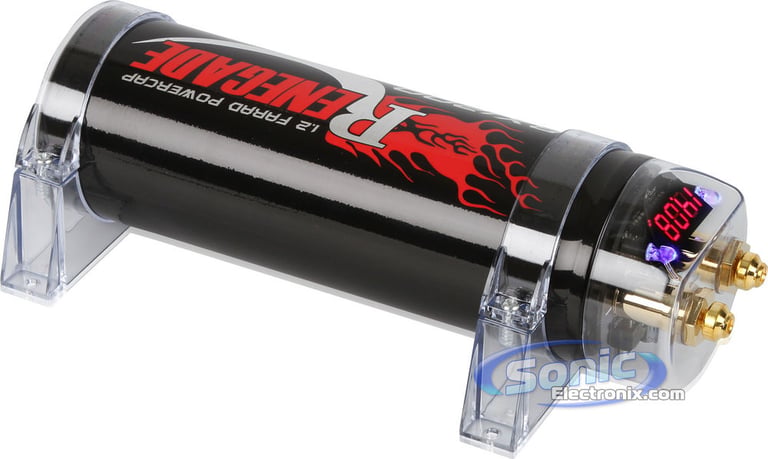

Renegade RX1200 Features:
  • Digital 1.2 Farad Capacitor
  • True 1.2 Farad Capacitor for systems up to 1200 watts
  • Bright LED voltage display
  • Gold plated terminals
  • Operating voltage: 12-16V DC
  • Uses ring terminals for use with any gauge of power/ground cable
  • Includes mounting hardware for a secure installation
  • Color is Black
  • Dimensions: 3"L x 3"W x 10-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

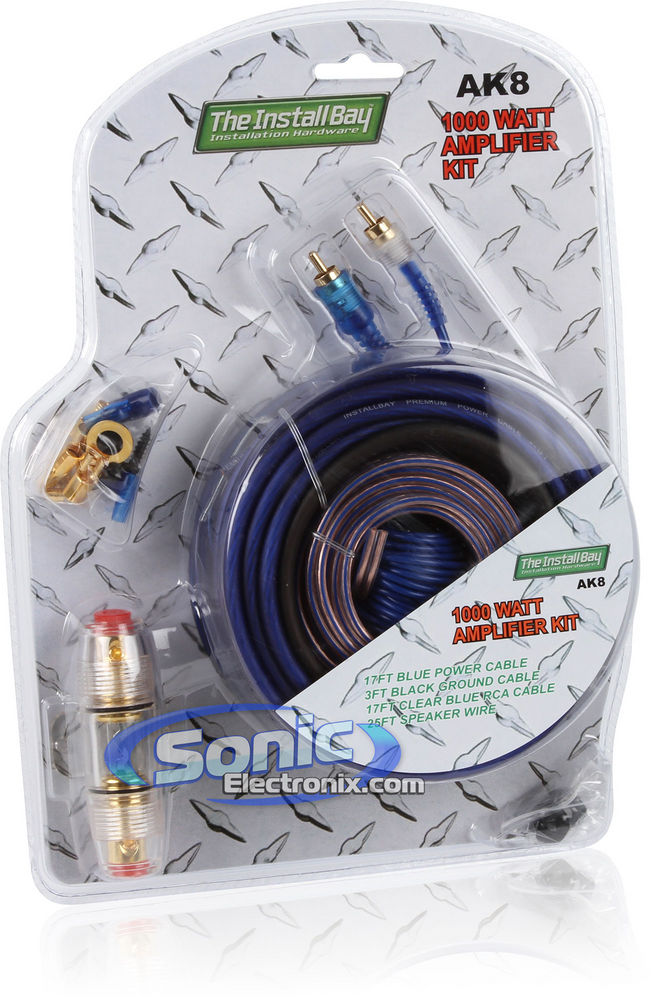

The Install Bay AK8 Features:
  • Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
  • Includes gold plated RCA interconnect cables
  • Designed by the manufacturer for systems up to 1000 watts max
  • Everything you need for an amplifier installation in one convenient package
  • 1-year Manufacturer's warranty

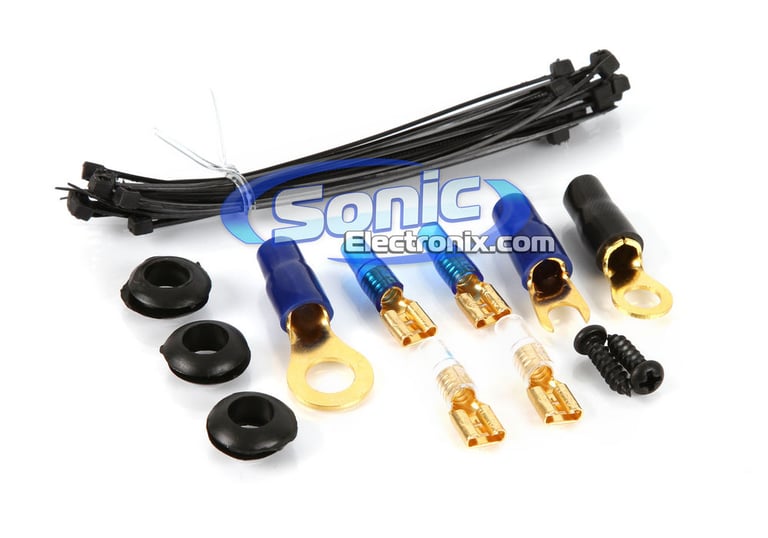

The Install Bay AK8 Includes:

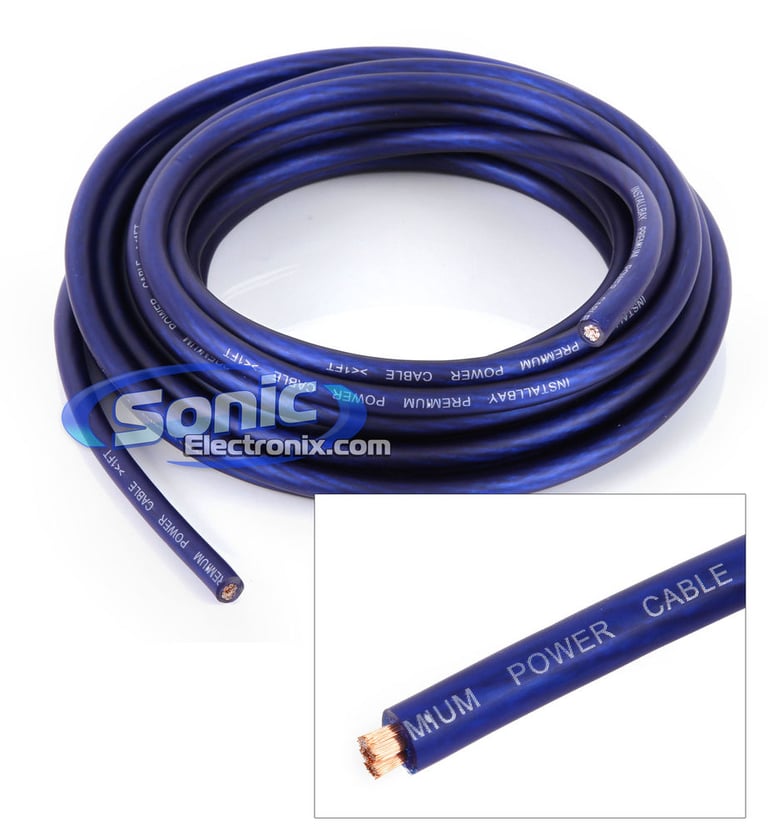

  1. 17 ft. of 8AWG Blue power cable

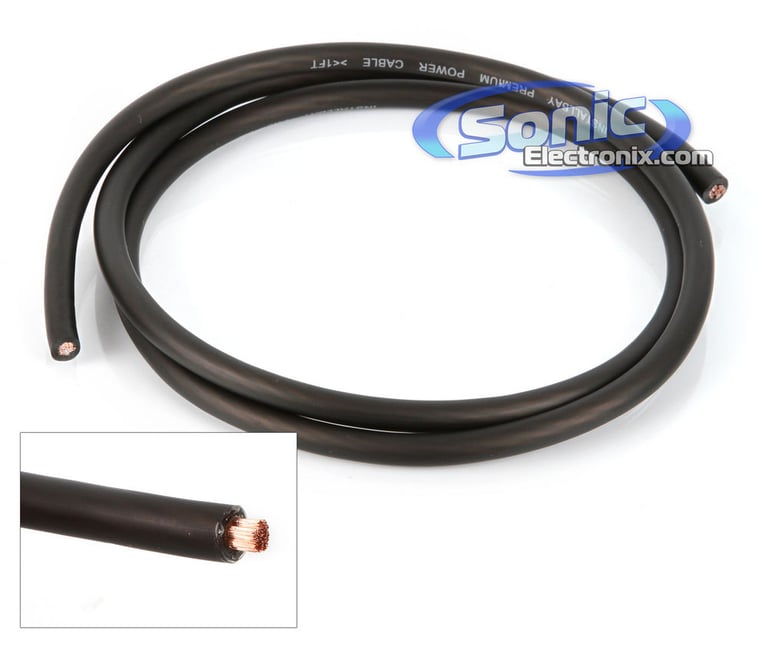

  2. 3 ft. of Black ground cable

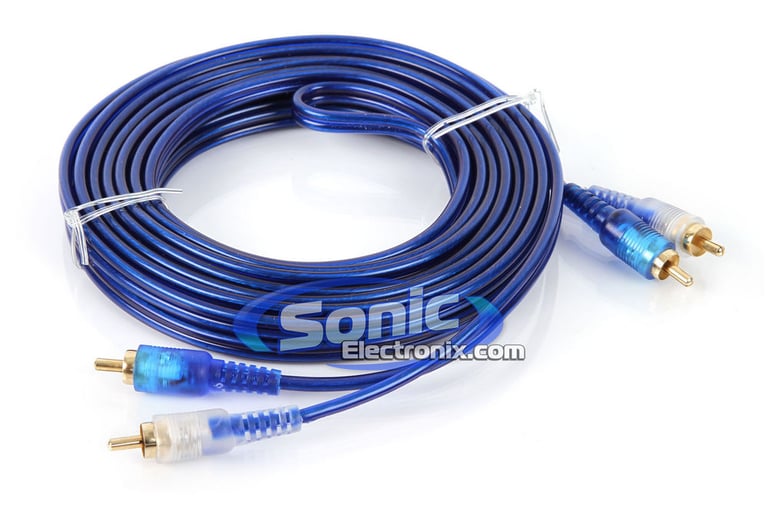

  3. 17 ft. of Clear blue RCA cable

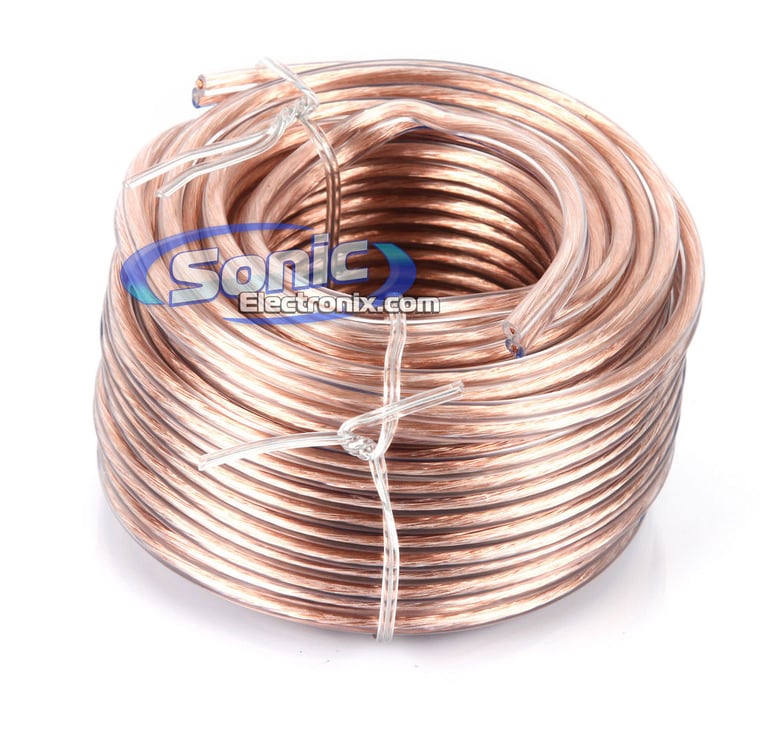

  4. 25 ft. Speaker wire

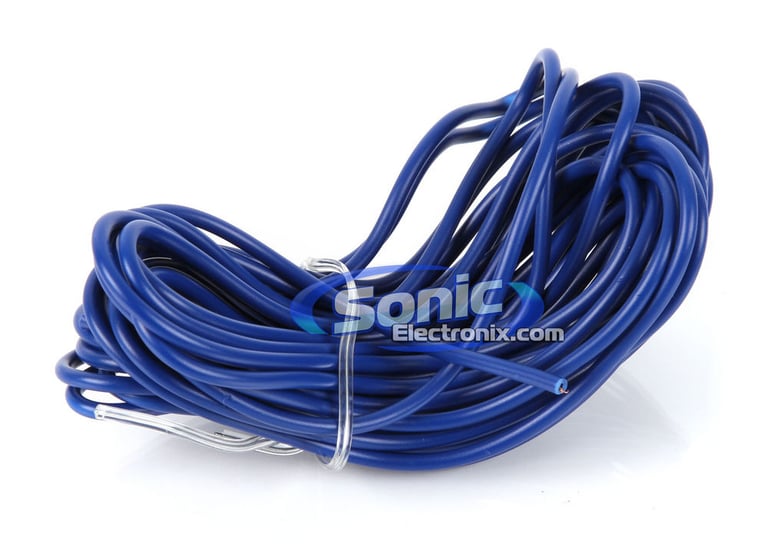

  5. 17 ft. of Clear blue remote turn-on wire

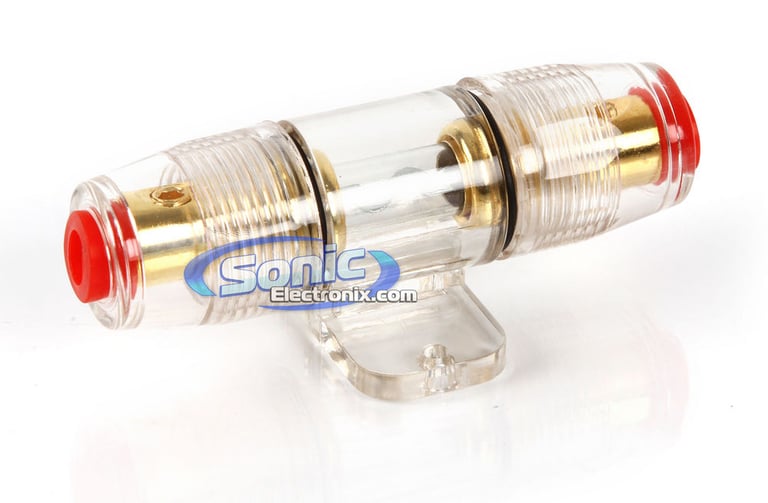

  6. 1 AGU fuse holder + 40AMP AGU fuse
  7. 5/16" Gold ring terminal
  8. 1/4" Gold ring terminal
  9. #10 Gold spade terminal
  10. 4 Gold speaker terminals
  11. 3 Grommets
  12. 20 4" cable ties

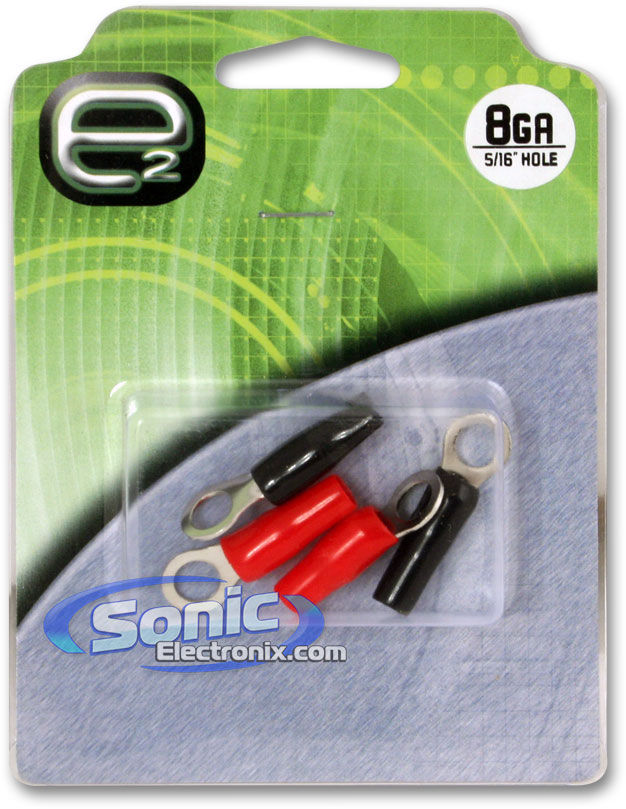

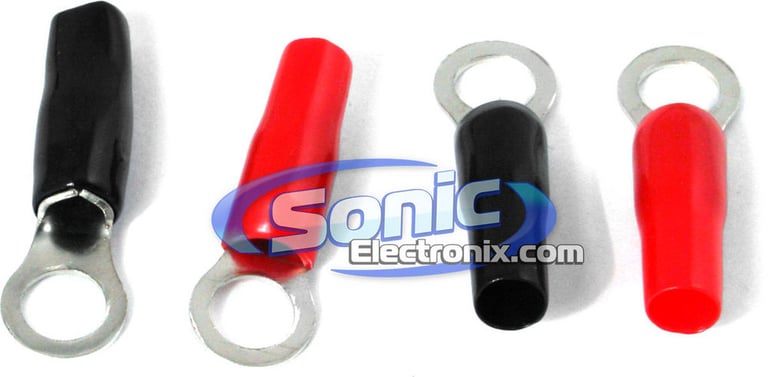

Scosche ERTC8-4 Features: (2 Included)
  • 4 pack of 8 Gauge Ring Terminals
  • 4 Pieces: 2 black, 2 red
  • Platinum Plated

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
60 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
120 watts x 1 channel
Peak Power Output
120 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
240 watts
Total RMS Power Output
120 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 320 Hz
Low-Pass Crossover Frequency
20 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
15A x 1
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
25 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AGU
Fuse Size
40A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GT5-A402_AK8

Weight:

13.71lbs

Internal SKU:

gt5a402_ak8

Internal Product ID:

35805
