Kicker KX550.3

KX-Series 04KX550.3 3-Channel Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

3-Channel KX-Series Power Amplifier • 80W RMS x 2 @ 2 + 420W RMS x 1 @ 2 • KickBass • 4-Way Protection • Aluminum EndKaps • Adjustable Input Gain • High and Low Level Inputs

Learn more about the 04kx5503

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

14
-18.19%

$44.99

List price $54.99

Product Highlights


3-Channel KX-Series Power Amplifier • 80W RMS x 2 @ 2 + 420W RMS x 1 @ 2 • KickBass • 4-Way Protection • Aluminum EndKaps • Adjustable Input Gain • High and Low Level Inputs

Description


Kicker brand icon

Authorized dealer

  • 3-Channel KX-Series Power Amplifier
  • Low Impedance Operation
  • Class D Amplification in Subwoofer Channel
  • SORT Protection Circuitry (Short circuit, Over-voltage, Reverse polarity, Thermal)
  • MOSFET Power Supply
  • KickBass: 0-18 dB @ 40 Hz

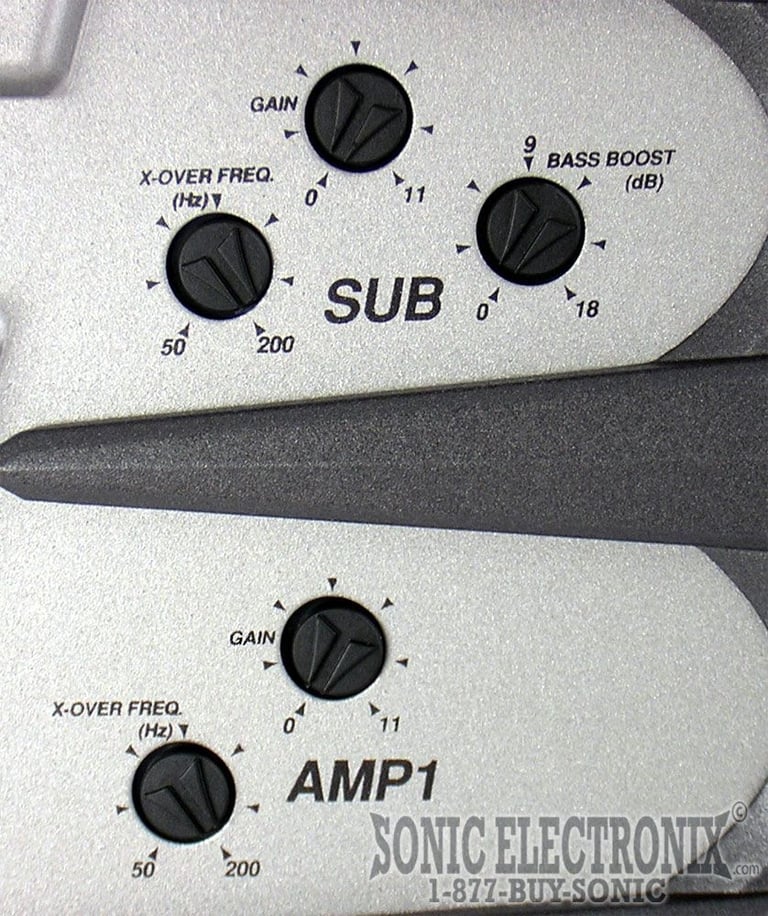

  • Built-In Variable Crossover: 12 dB High or Low-Pass operation (50-200 Hz)

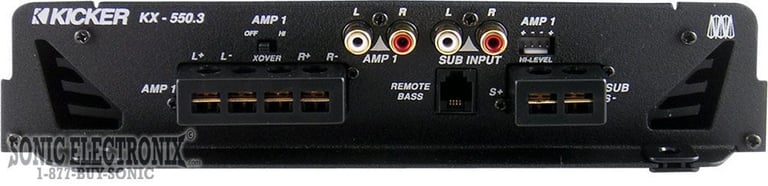

  • High & Low level inputs
  • Custom tooled gold plated connectors

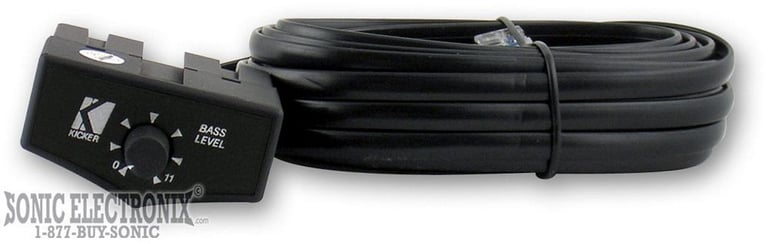

  • Remote Bass Level Control with 20' cord
  • Cast aluminum EndKaps
  • RMS Power Ratings:
    • 14.4V:
      • 70 watts x 2 chan. @ 4 ohm
      • 85 watts x 2 chan. @ 2 ohm
      • Sub Power:
      • 210 watts x 1 chan. @ 4 ohm
      • 420 watts x 1 chan. @ 2 ohm
    • 12.5V:
      • 40 watts x 2 chan. @ 4 ohm
      • 70 watts x 2 chan. @ 2 ohm
      • Sub Power:
      • 180 watts x 1 chan. @ 4 ohm
      • 360 watts x 1 chan. @ 2 ohm
  • Input gain control: Low Level (170mV - 5V), High Level (340mV - 10V)
  • Dimensions: 19.25" L x 10-1/8" W x 2.5" H
  • Authorized Internet Dealer
  • 1-Year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 2 chan + 210 watts x 1 chan.
RMS Power @ 2 ohms
85 watts x 2 chan. + 420 watts x 1 chan.
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
3-Channel
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB @ 40 Hz
Fuse Rating
60A

Item Details


Manufacturer:

Model Number:

KX550.3

Weight:

15.25lbs

Internal SKU:

04kx5503

Internal Product ID:

3586

Product and How-to Videos


Customer Ratings & Reviews


Kicker KX550.3 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Impressive amp

I had a buddy getone of these and I put it into a ford explorer that was pusing two audiobahn 12" subs. I did not know what to think when we started, but it really does a great job of pushing those subs. It seems to give very clean power to the subs and it does not break a sweat doing it. I was impressed with the amp.

By Collin on January 9, 2006

11 found this helpful


I Love Kicker

I am using one of these babies for my rear speakers and it pushes them with ease, 80watts RMS per speaker is just what I needed.

By Cody on December 20, 2005

5 found this helpful
