Product Highlights


Massive Audio NX4 Nano Block Series 4-Channel Car Amplifier • MOSFET Power Supply • 3-way Protection Circuitry • Ultra Efficient Nano Technology • CEA-2006 Compliant Amplifier • Complete 4 Gauge Z-Series 2-Channel Amplifier Installation Kit • Full Spec Cable is True to Gauge • For Systems up to 1000 Watts

Description


Massive Audio brand icon

Authorized dealer

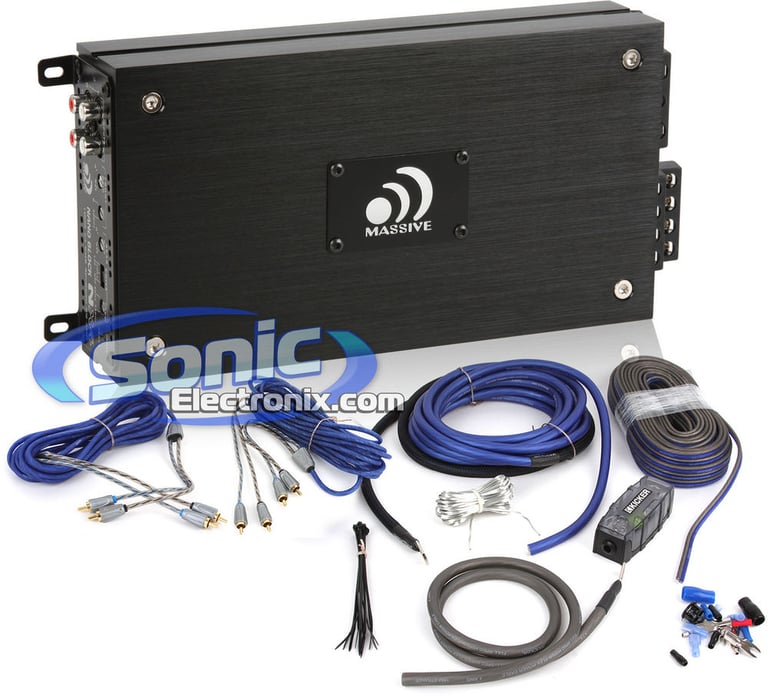

Massive Audio and Kicker Bundle

Looking to add some power to your system? Sonic Electronix has created a bundle ideal for anyone looking to add an amplifier to their system. Included in this combo is a Massive Audio NX4 Nano Block Series 4-Channel Car Amplifier. This amplifier is perfect for those looking to power up their high end speakers while taking up minimal space. We have also included a high quality Kicker 09ZCK4 amplifier kit to get the best signal and performance out of your brand new amplifier. Along with the Kicker 09ZCK4 we have includes some Kicker 09ZI25 Interconnect Cables so that you will have everything you need for complete installation. This quality bundle comes with an affordable price, making it a must for anyone looking to add some power to their system.

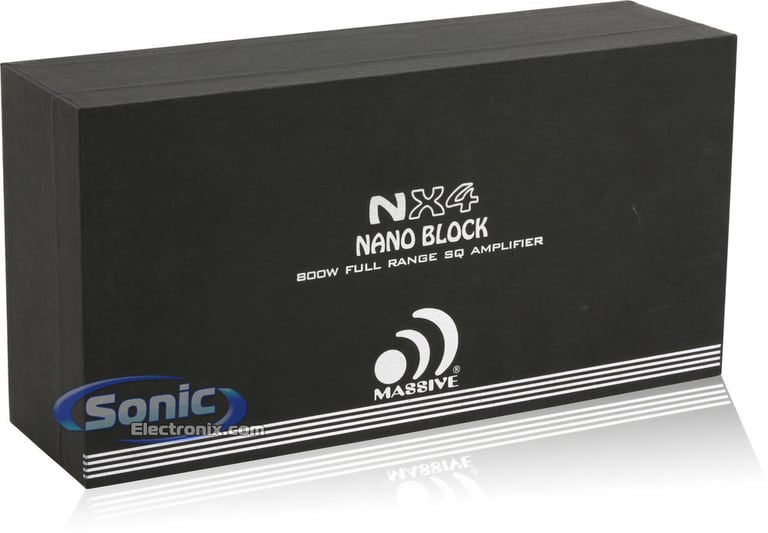

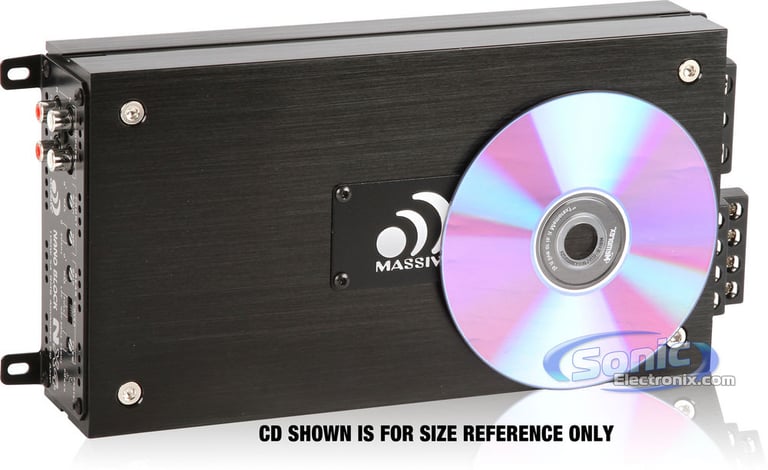

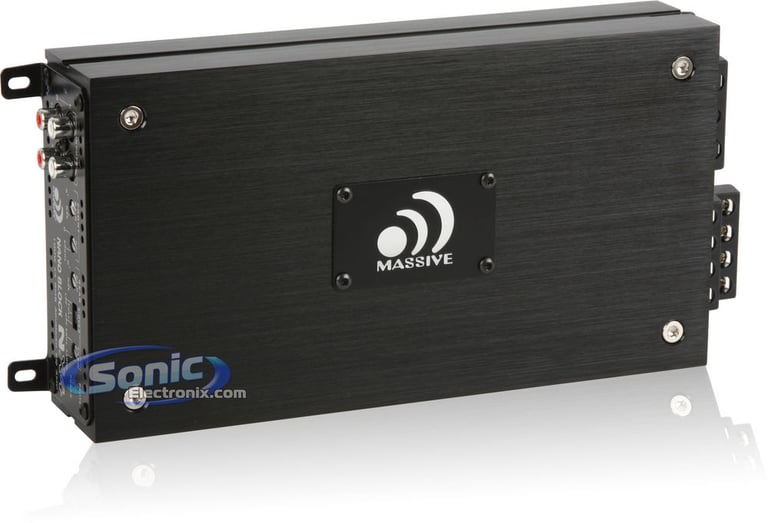

Massive Audio NX4 Features:

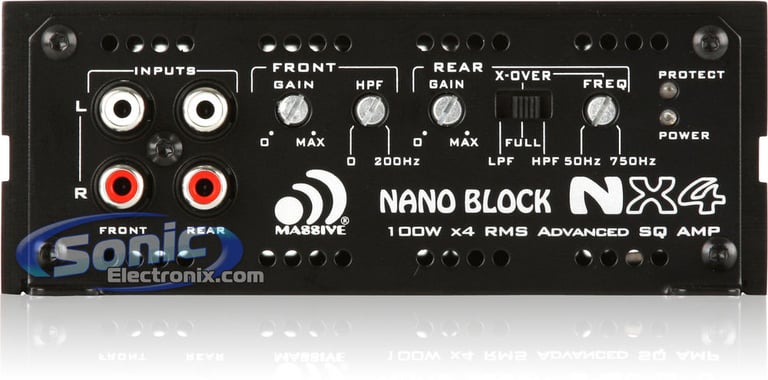

  • Massive Audio NX4 Nano Block Series 4-Channel Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
  • Max power output: 400 watts x 4 chan.
  • MOSFET power supply with high grade switching devices
  • LED power/protect indicators
  • Designed to fit into restrictive or limited spaces while still delivering staggering amounts of power
  • Ultra efficient Nano Technology power supplies and endless possible installation scenarios
  • Monoblock operation
  • Extreme power in a small footprint
  • Ultimate mounting flexibility (stackable, line array, side mount)
  • Mill Spec double sided PCB with SMD parts
  • Built-In noise reduction circuitry
  • Heavy duty aluminum alloy heatsink are anodized in a Raven Black finish for extreme heat dissipation
  • 3-Way protection circuitry (short circuit, overheating and Low Voltage)
  • Chrome-plated RCA level inputs

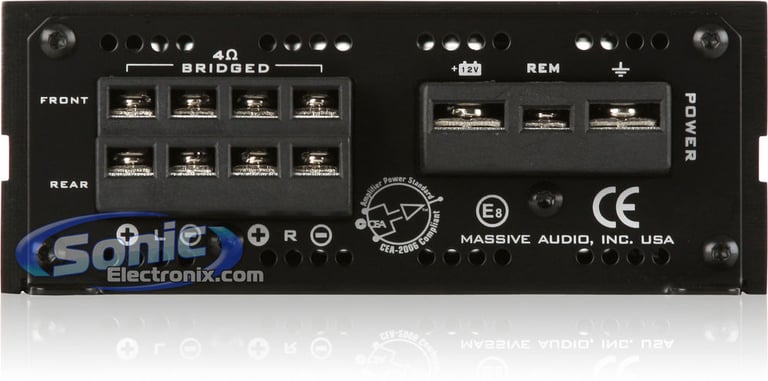

  • Chrome-plated screw terminals
  • Adjustable high-pass filter (50-750 Hz, 24 dB/octave)
  • Adjustable low-pass filter (50-750 Hz, 24 dB/octave)
  • Subsonic Filter (50-750 Hz, 24 dB/octave)
  • Frequency response: 15-25,000 Hz
  • THD (Total Harmonic Distortion): <0.05%
  • Signal-to-Noise Ratio: >80 dB
  • Max Voltage: 15V
  • Max RCA Voltage: 5V
  • 4-gauge power and ground wiring is required for installation.
  • CEA-2006 compliant amplifier
  • Also found as: Massive Audio SKUNX4
  • Weight: 9 lbs
  • Dimensions: 10"L x 5-1/2"W x 2-1/8"H
  • 1-year Sonic Electronix warranty

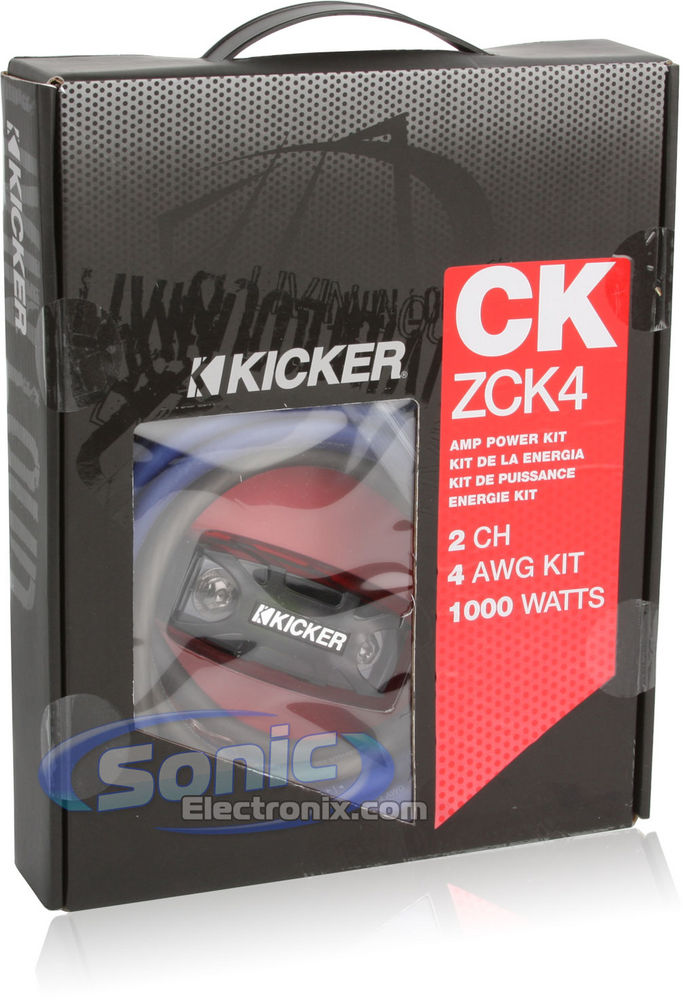

Kicker 09ZCK4 Features:
  • Complete 4 Gauge Z-Series 2-Channel Amplifier Installation Kit
  • 1000 Watts RMS
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kicker 09ZCK4 Includes:

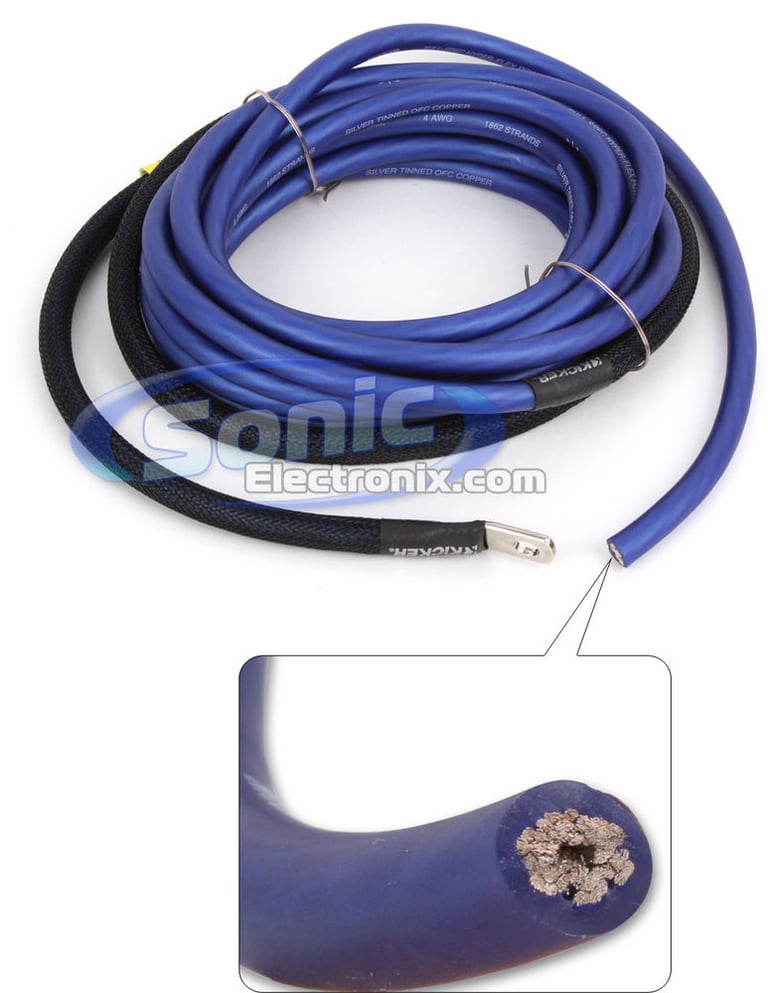

  1. 20ft (6.1m) Blue 4 AWG power wire

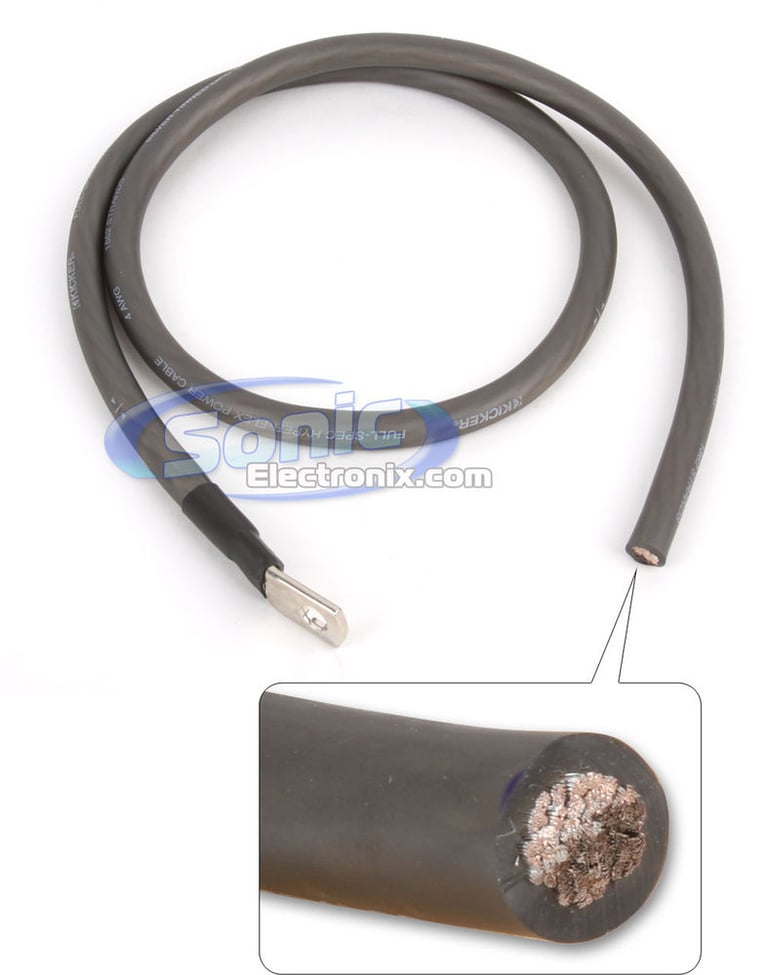

  2. 3ft (0.9m) Black 4 AWG ground wire
  3. 20ft (6.1m) Blue 18AWG remote lead wire
  4. 16.4 (5m) Blue, black, and gray 2 Channel RCA cable

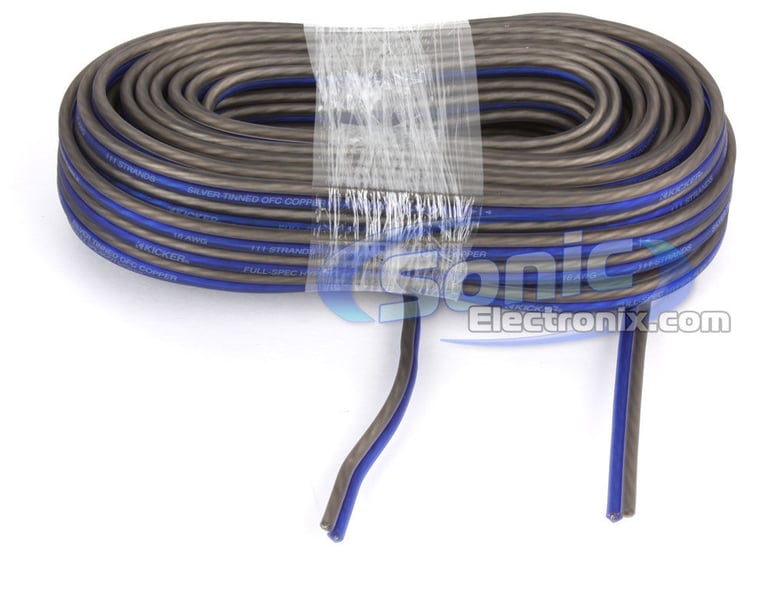

  5. 40ft (12.2m) Blue and gray 16AWG speaker cable

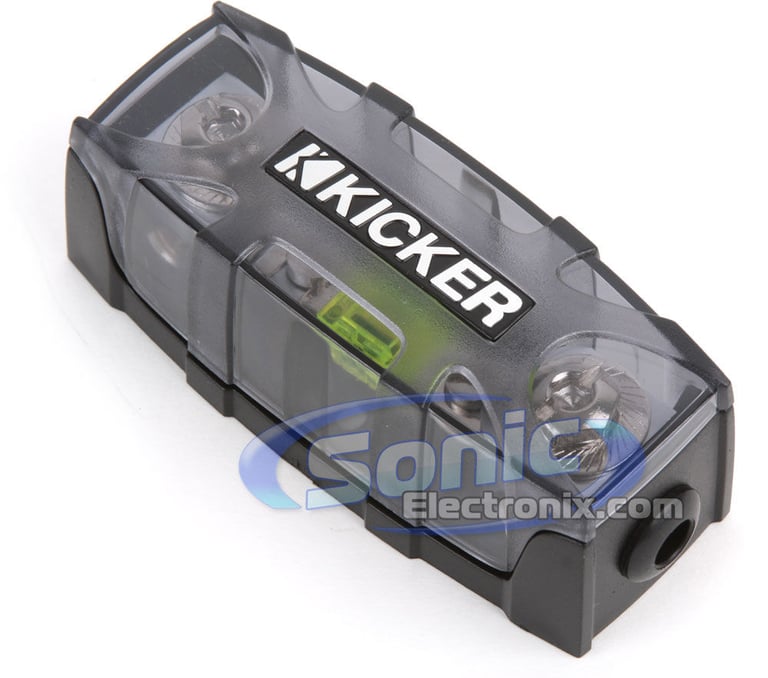

  6. 1 Kicker 09FHS Fuse holder with 100 amp AFS fuse
  7. Black rubber firewall grommet

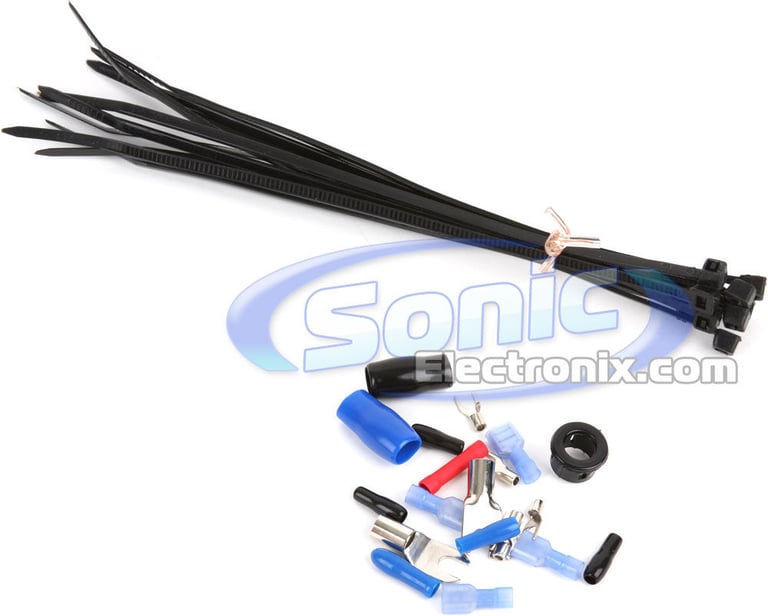

  8. Two 4 AWG Spade terminals
  9. Five 18 AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

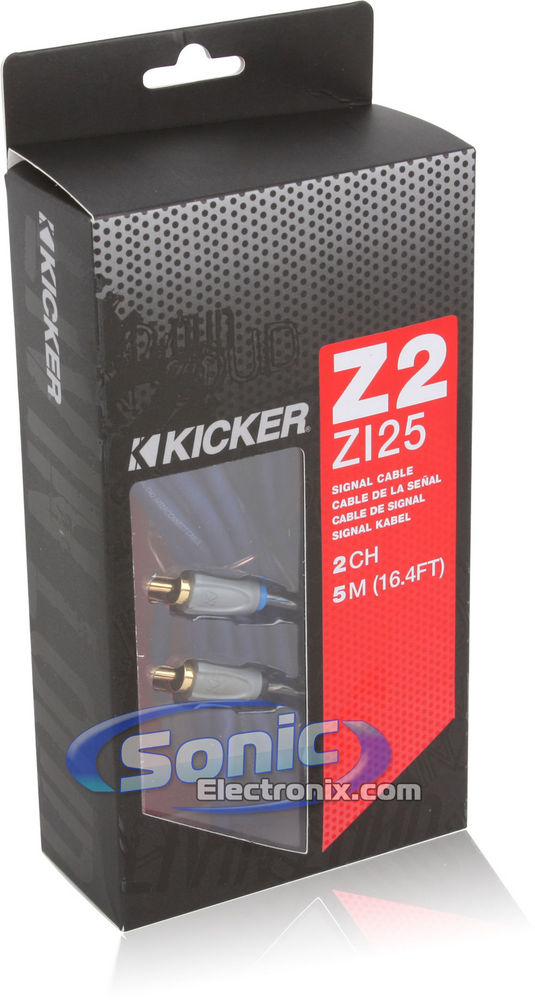

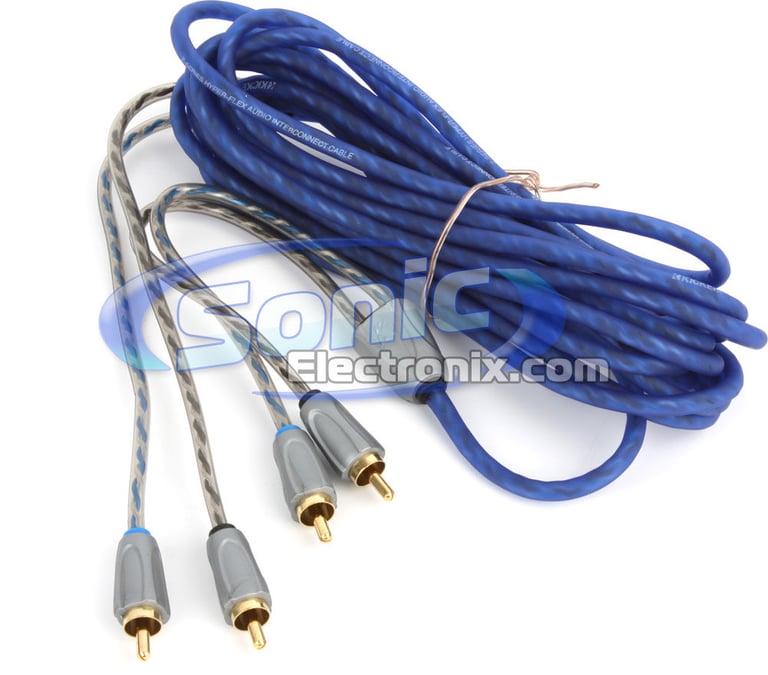

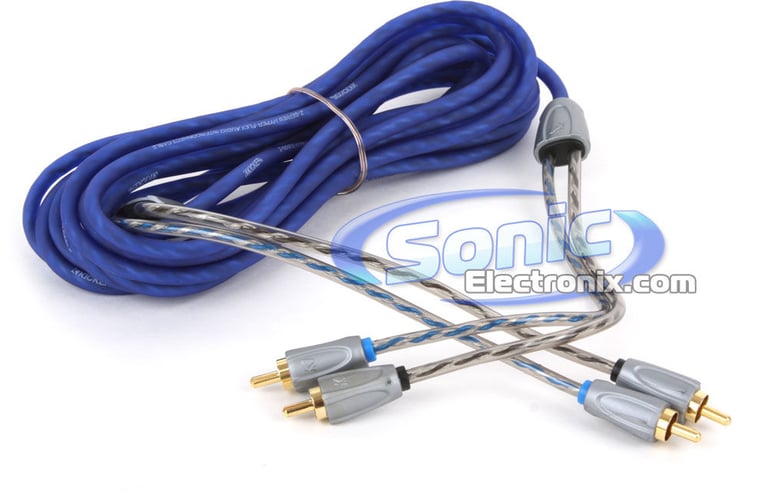

Kicker 09ZI25 Features:
  • KICKER Z-Series RCA interconnects
  • 2-Channel Interconnect Cable
  • Gold plated tips for the best signal transfer
  • Split-center pin for a secure connection while increasing the surface contact area
  • Sure grip ends for simpler installation
  • Twisted pair construction for a reduction in noise interference
  • Hyper-flex technology allows the cable to bend, twist, and contort in every way possible without a loss in quality
  • Cable is blue with silver ends
  • Length: 5 Meters (16.5 ft.)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
400 watts x 4 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 750 Hz
Subsonic Filter
50 - 750 Hz
Signal-to-Noise Ratio
100 dB
Remote bass/level controller
No
Fuse Rating
Not specified by manufacturer
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AFS
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

NX4_09ZCK4

Weight:

15.05lbs

Internal SKU:

nx4_09zck4

Internal Product ID:

35925

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Massive Audio NX4 + Amplifier Kit thumbnail image

5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.7
Features
4.7
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Amazing

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

This wiring kit replaced my 0 gauge kit and it made so much more power. It sounded great. This is a true 4 gauge kit.

By Ben on November 25, 2010

35 found this helpful


Kicker

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

Have this kit in my car and i love it. Wire looks great and is so flexible its crazy. says 1000 watts max but i got 2000 and haven't blown any fuses, now i have some voltage drop but nothing a bat cap cant fix

By Michael on August 26, 2010

35 found this helpful


High quality product

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

I ordered this kit about six months ago, and in my book this the real deal when it comes to quality. I installed it in my vehicle and its currently wired to a 900 watts rms amp.(kit rated @ 1000 watts)
No issues have surfaced. The thickness is 4 gauge as advertised, not like others that make lame claims on their labels. So buyer beware of fakes when ordering your amp installation kits. I am very satisfied with this purchase! You know what they say "You get what you pay for!" It might be a little pricey but its worth the money. Kicker has good products and stands behind their name. I strongly recommended it to anyone who knows how to properly install sound systems.

By Car Sound System Fanatic on July 7, 2010

35 found this helpful


Not Bad.

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

I used this kit to hook up my Hifonics amplifier to a Rockford Fosgate subwoofer and the only problem i had with it was the RCA cables stripped. Besides the RCA cables it a pretty nice kit for the price.

By Matt on February 11, 2010

33 found this helpful


Great AMP Kit

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

Great KIT. Has not let me down yet!

By Swami on November 25, 2010

33 found this helpful


easy to work with

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

cable is Nice and soft to work with, only thing is fuse holder can be better for a 80$ kit

fuse holder cover keeps popping off had to tie it down

By ruperto on May 5, 2010

32 found this helpful


Good wiring kit

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

I would recommend this wiring kit to anyone who needs 4 gauge wire and accessories. The cable is very flexible and has amazing sound quality!

By Blazer on March 31, 2010

32 found this helpful


high quality, worth the price

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

high quality wire, really flexible, came with a nice fuse holder, everything i needed and then some. as far as wiring kits, ill always go with kicker from now on.

By colton on March 11, 2010

31 found this helpful


Best kit ever !

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

I have owned several kits from Stinger, Rockford, etc... This by far has been the best !

By Stephen on June 11, 2010

30 found this helpful


Superb Wiring Kit.

The following review is for 09ZCK4, which is a part of the bundle you are viewing.

The super flex wire is incredible. Who would have thought that it would be possible to bend a 4 gauge wire in less than a 2" circle?! Cable length is just perfect, except that I could do with and extra foot more of ground wire. RCA cables are fine for two channel systems, but I need to buy another 4 channel cable to complete my system.

Running Kicker ZX700.5 Amp with Dual Kicker 10C104 @ 2 Ohm, 4 Kicker 08KS680 @ 4 Ohm /e, and running strong.

If you need a superior wiring kit. Get this.

By Chieftain20 on December 30, 2010

28 found this helpful



R250X1 small

Rockford Fosgate Prime R250X1

250W RMS Monoblock Single Channel Class AB Prime Series Amplifier

(10)

$169.99

List price $229.99

BMF200.2 small

Crossfire BMF200.2

200W RMS 2-Channel Class A/B BMF Series Car Amplifier

(1)

$189.95

List price $189.95

GN-DM3 small

SSV Works GN-DM3

Custom-Fit Dash Kit for SSV Works MRB3 Bluetooth Media Controller in select 2016-2022 General and General XP

$59.99

List price $59.99

CL-LSA small

JL Audio CL-LSA

Load-Sensing Adaptor for use with CL441dsp CleanSweep

$12.95

List price $15.95

574 small

Python 574 Responder LC3 (P/N# 5704p)

Responder LC3 SST Super Code 2-way LCD Pager Car Alarm with 1-Mile Range and Remote Start

(9)

$219.99

List price $599.99

X4R small

Orion X4R

Orion XTR 4 Way Crossover

$0.00

List price $0.00

KITHD2_ADSMRR2 small

iDataLink Maestro KIT-HD2 and RR2 Interface Module

Double DIN Stereo Dash Kit and Harness for select 2014-2025 vehicles from Harley Davidson (Requires MRR or MRR2 module) and Universal Stereo Replacement Interface Module

(5)

$326.20

List price $529.98

MARINEM6001A small

Infinity MARINE M6001A

600W RMS Reference Series Class-D Monoblock Amplifier with Bass Remote

$369.95

List price $419.95

MNX460 small

Lanzar MNX460

1600W 4-Channel Mini Max Series Car Amplifier

(6)

$79.99

List price $229.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi Q3

1981 Dodge Mirada

2000 GMC C2500

1993 Dodge Shadow

2010 Dodge Nitro

2006 Buick Rendezvous

1992 Eagle Talon

2008 Scion xD

2014 Ford Explorer

2000 Saturn SC2

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
