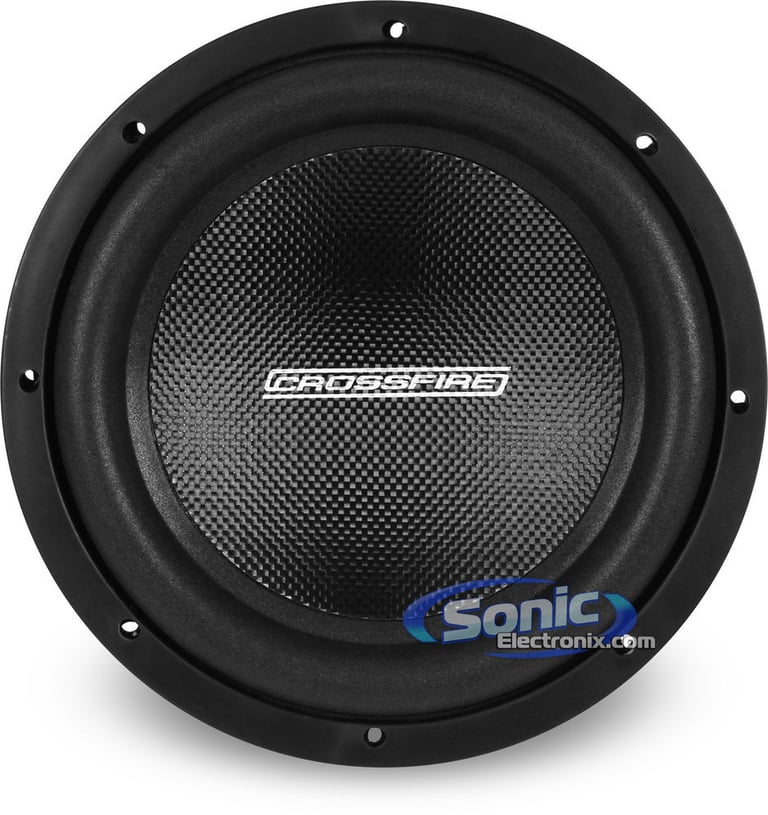

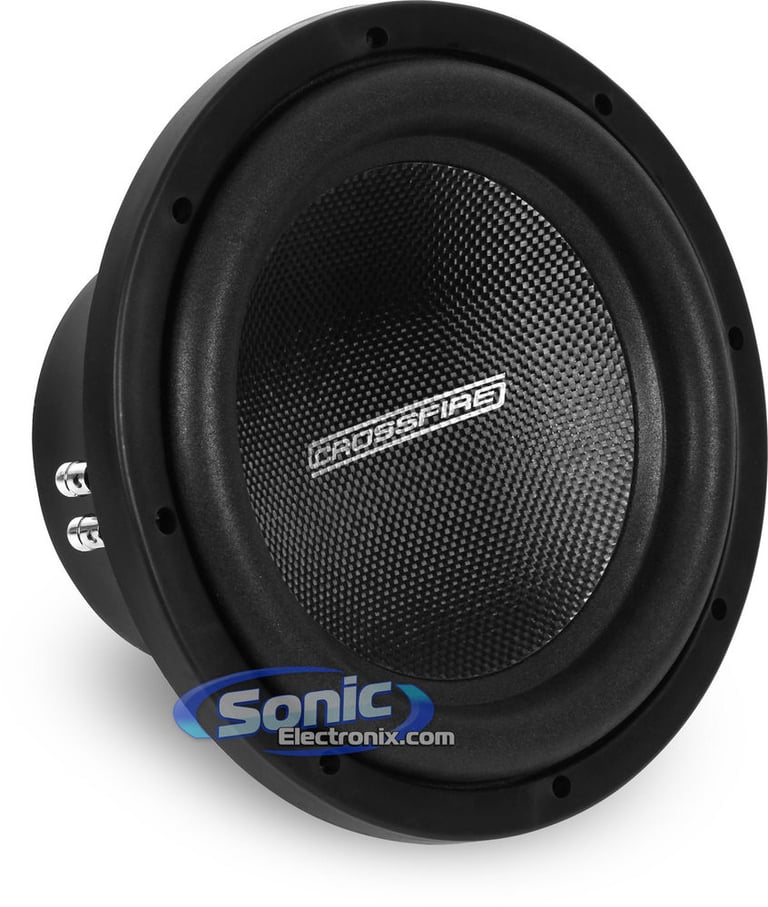

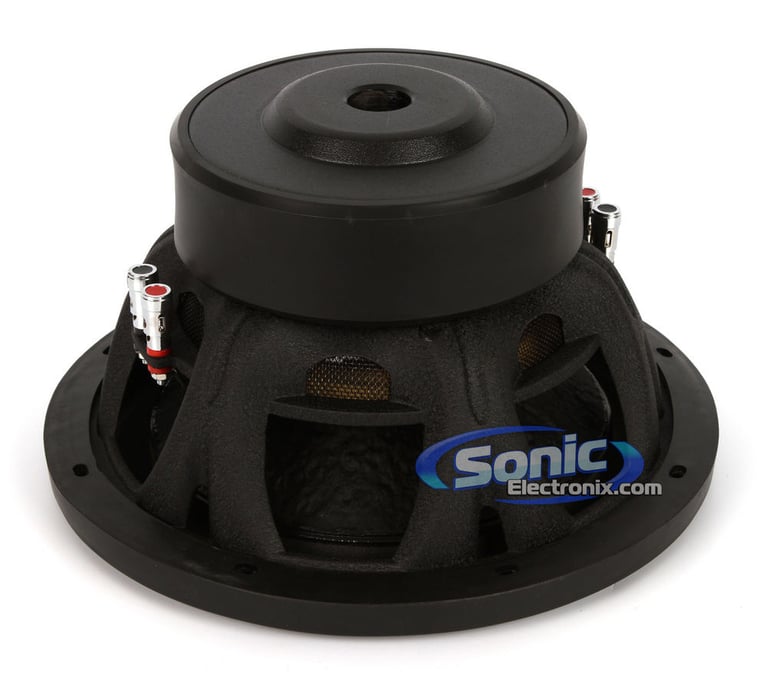

Crossfire C5 10D2

10" Dual 2 ohm C5 Series Car Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

10" Dual 2 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polyprolene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 120 oz Ceramic Magnets • Designed for Small Enclosures

Learn more about the c510d2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Product Highlights


10" Dual 2 Ohm C5 Series Subwoofer • 1000W Max • 500W RMS • Injection Molded Polyprolene Woofer Cone • Foam Composite Woofer Surround • Spring Loaded Push Terminals • Dual 120 oz Ceramic Magnets • Designed for Small Enclosures

Description


Get Started with Crossfire

Are you looking to add bass without waking the neighbors? Well Sonic Electronix is excited to introduce the low-wattage C5 series subwoofers from Crossfire. These subwoofers are rated 500 watts RMS, giving you the right amount of bass without the worry of drowning out your system. The subwoofers feature an injection molded polypropylene woofer cone and foam composite surround for rigidity and enhanced performance. Designed with spring loaded push terminals for easy and quick installation, along with dual stacked 120 oz. magnet structure for increased performance and better frequency range. The C5 subwoofers are capable of high excursion levels while still maintaining a clean, crisp and deep bass. Equipped with 2.5" Aluminum high-temperature voice coils for increased stability and thermal handling, the C5 series subwoofers are perfect for anyone looking to add a little bass into their car.

  • 10" Dual 2 Ohm C5 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 2 Ohm
  • Injection Molded Polypropylene (IMPP) woofer cone material
  • Foam composite woofer surround
  • Rubberized trim ring
  • Designed for small enclosures
  • High excursion capability
  • Spring loaded push terminals
  • 2.5" Dual 2 ohm high-temperature voice coil
  • Dual 120 oz. ceramic stacked magnet structure
  • Frequency response: 10 - 500 Hz
  • Resonance frequency: 30 Hz
  • 21mm Peak-to-peak excursion
  • Mounting depth: 5-9/16"
  • Cutout dimensions: 9-5/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire C5 10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire C5 10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire C5 10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Crossfire C5 10D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
C5 Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
10 - 500 Hz
Xmax (millimeters)
21 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
0.8 cubic feet
Minimum Ported Box Volume
1.4 cubic feet
Maximum Ported Box Volume
1.4 cubic feet
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
9-5/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
38 liters
Total Speaker Q Value (Qts)
0.43
Electrical Q Value (Qes)
0.49
Mechanical Q Value (Qms)
3.43
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5 10D2

Weight:

12.50lbs

Internal SKU:

c510d2

Internal Product ID:

36230
